>ALOS Data Take Simulation(Dec. 10, 2010)

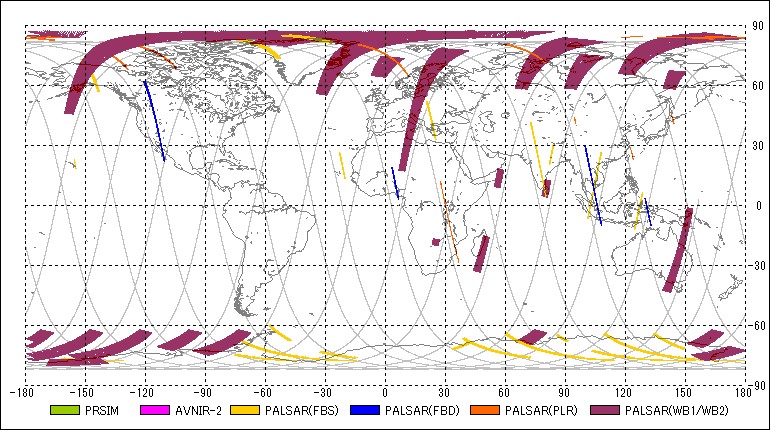

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-12-10 00:00:57	2010-12-10 00:13:09	00:12:12	22	180.45	22	224.94	27.10	80
2	PSM	OB2	2010-12-10 00:01:25	2010-12-10 00:13:55	00:12:30	22	182.15	22	227.74	0.00	-
3	AV2	OBS	2010-12-10 00:05:09	2010-12-10 00:13:12	00:08:03	22	195.77	22	225.13	0.00	-
4	PSR	FBS	2010-12-10 01:09:53	2010-12-10 01:13:33	00:03:40	68	71.84	68	85.21	34.30	7
5	PSR	WB1	2010-12-10 01:20:37	2010-12-10 01:23:47	00:03:10	68	110.98	68	122.53	27.10	80
6	AV2	OBS	2010-12-10 01:25:07	2010-12-10 01:34:21	00:09:14	68	127.39	68	161.06	0.00	-
7	PSM	OB2	2010-12-10 01:25:10	2010-12-10 01:35:16	00:10:06	68	127.58	68	164.41	0.00	-
8	PSR	FBS	2010-12-10 01:37:28	2010-12-10 01:43:20	00:05:52	68	172.43	68	193.82	34.30	7
9	AV2	OBS	2010-12-10 01:37:29	2010-12-10 01:49:25	00:11:56	68	172.49	68	216.01	0.00	-
10	PSM	OB2	2010-12-10 01:37:33	2010-12-10 01:50:07	00:12:34	68	172.73	68	218.56	0.00	-
11	PSR	WB1	2010-12-10 02:53:01	2010-12-10 03:00:27	00:07:26	114	87.89	114	114.99	27.10	80
12	PSM	OB2	2010-12-10 03:03:53	2010-12-10 03:21:41	00:17:48	114	127.58	114	192.49	0.00	-
13	PSR	FBS	2010-12-10 03:10:39	2010-12-10 03:20:29	00:09:50	114	152.25	114	188.11	34.30	7
14	AV2	OBS	2010-12-10 03:11:15	2010-12-10 03:21:57	00:10:42	114	154.44	114	193.46	0.00	-
15	PSR	WB1	2010-12-10 03:35:47	2010-12-10 03:38:23	00:02:36	114	243.91	114	253.39	27.10	80
16	PSR	FBS	2010-12-10 03:44:02	2010-12-10 03:46:14	00:02:12	114	273.99	114	282.01	34.30	7
17	PSR	FBS	2010-12-10 03:47:36	2010-12-10 03:50:42	00:03:06	114	287.00	114	298.30	34.30	7
18	PSR	PLR	2010-12-10 04:26:09	2010-12-10 04:30:01	00:03:52	160	67.53	160	81.63	21.50	127
19	PSR	PLR	2010-12-10 04:31:18	2010-12-10 04:33:10	00:01:52	160	86.31	160	93.11	21.50	127
20	PSR	WB1	2010-12-10 04:35:47	2010-12-10 04:41:13	00:05:26	160	102.72	160	122.53	27.10	80
21	PSM	OB1	2010-12-10 04:41:53	2010-12-10 04:52:45	00:10:52	160	124.96	160	164.59	-1.20	-
22	AV2	OBS	2010-12-10 04:42:38	2010-12-10 04:51:58	00:09:20	160	127.70	160	161.73	0.00	-
23	PSR	FBS	2010-12-10 04:48:16	2010-12-10 04:51:42	00:03:26	160	148.24	160	160.76	34.30	7
24	PSR	WB1	2010-12-10 04:53:13	2010-12-10 04:56:09	00:02:56	160	166.29	160	176.99	27.10	80
25	PSR	FBS	2010-12-10 05:16:21	2010-12-10 05:18:13	00:01:52	160	250.65	160	257.46	34.30	7
26	PSR	FBS	2010-12-10 05:21:14	2010-12-10 05:27:06	00:05:52	160	268.40	160	289.79	34.30	7
27	PSR	FBD	2010-12-10 05:51:39	2010-12-10 06:03:31	00:11:52	206	19.39	206	62.66	34.30	43
28	PSR	PLR	2010-12-10 06:04:42	2010-12-10 06:08:08	00:03:26	206	66.98	206	79.50	21.50	127
29	PSR	PLR	2010-12-10 06:09:15	2010-12-10 06:11:07	00:01:52	206	83.51	206	90.32	21.50	127
30	PSR	WB1	2010-12-10 06:12:07	2010-12-10 06:19:57	00:07:50	206	93.96	206	122.53	27.10	80
31	PSM	OB1	2010-12-10 06:20:39	2010-12-10 06:30:03	00:09:24	206	125.08	206	159.36	-1.20	-
32	AV2	OBS	2010-12-10 06:21:22	2010-12-10 06:29:38	00:08:16	206	127.70	206	157.84	0.00	-
33	PSR	WB1	2010-12-10 06:30:30	2010-12-10 06:33:36	00:03:06	206	161.00	206	172.31	27.10	80
34	PSR	WB1	2010-12-10 06:39:42	2010-12-10 06:45:16	00:05:34	206	194.55	206	214.85	27.10	80
35	AV2	OBS	2010-12-10 06:47:56	2010-12-10 06:49:48	00:01:52	206	224.58	206	231.39	34.30	-
36	AV2	OBS	2010-12-10 06:55:53	2010-12-10 06:57:45	00:01:52	206	253.57	206	260.38	34.30	-
37	PSR	FBS	2010-12-10 07:00:14	2010-12-10 07:03:02	00:02:48	206	269.49	206	279.70	34.30	7
38	PSR	FBS	2010-12-10 07:40:08	2010-12-10 07:45:18	00:05:10	252	54.94	252	73.79	34.30	7
39	PSR	PLR	2010-12-10 07:48:12	2010-12-10 07:50:14	00:02:02	252	84.36	252	91.78	21.50	127
40	PSM	OB1	2010-12-10 07:56:32	2010-12-10 08:18:20	00:21:48	252	114.75	252	194.25	-1.20	-
41	AV2	OBS	2010-12-10 08:07:49	2010-12-10 08:17:31	00:09:42	252	155.96	252	191.33	0.00	-
42	PSR	WB1	2010-12-10 08:18:47	2010-12-10 08:20:17	00:01:30	252	195.89	252	201.36	27.10	80
43	PSR	FBS	2010-12-10 09:07:57	2010-12-10 09:09:49	00:01:52	298	15.26	298	22.06	50.80	17
44	PSR	WB1	2010-12-10 09:31:04	2010-12-10 09:48:44	00:17:40	298	99.56	298	163.98	27.10	80
45	PSM	OB1	2010-12-10 09:36:50	2010-12-10 09:39:30	00:02:40	298	120.59	298	130.31	-1.20	-
46	PSM	OB1	2010-12-10 09:42:49	2010-12-10 09:53:51	00:11:02	298	142.41	298	182.64	-1.20	-
47	AV2	OBS	2010-12-10 09:43:31	2010-12-10 09:48:47	00:05:16	298	144.96	298	164.16	0.00	-
48	PSR	WB1	2010-12-10 11:10:55	2010-12-10 11:14:21	00:03:26	344	103.69	344	116.21	27.10	80
49	PSM	OB1	2010-12-10 11:21:31	2010-12-10 11:30:17	00:08:46	344	142.28	344	174.25	-1.20	-
50	AV2	OBS	2010-12-10 11:22:10	2010-12-10 11:30:19	00:08:09	344	144.65	344	174.37	0.00	-
51	PSR	PLR	2010-12-10 12:31:57	2010-12-10 12:34:03	00:02:06	390	39.14	390	46.80	21.50	127
52	PSR	WB1	2010-12-10 12:45:00	2010-12-10 12:55:35	00:10:35	390	86.73	390	125.33	27.10	80
53	PSM	OB1	2010-12-10 13:09:56	2010-12-10 13:18:40	00:08:44	390	177.66	390	209.51	-1.20	-
54	AV2	OBS	2010-12-10 13:10:42	2010-12-10 13:18:44	00:08:02	390	180.51	390	209.81	0.00	-
55	PSR	WB1	2010-12-10 13:28:06	2010-12-10 13:32:24	00:04:18	390	243.91	390	259.59	27.10	80
56	PSR	FBS	2010-12-10 13:34:24	2010-12-10 13:36:56	00:02:32	390	266.94	390	276.18	34.30	7
57	PSR	FBD	2010-12-10 13:56:28	2010-12-10 14:00:54	00:04:26	390	347.35	436	3.53	34.30	43
58	PSR	PLR	2010-12-10 14:05:38	2010-12-10 14:07:56	00:02:18	436	20.79	436	29.17	21.50	127
59	PSR	WB1	2010-12-10 14:23:43	2010-12-10 14:26:49	00:03:06	436	86.73	436	98.04	27.10	80
60	AV2	OBS	2010-12-10 14:31:17	2010-12-10 14:37:03	00:05:46	436	114.33	436	135.35	0.00	-
61	PSM	OB1	2010-12-10 14:34:25	2010-12-10 14:37:29	00:03:04	436	125.75	436	136.94	-1.20	-
62	AV2	OBS	2010-12-10 14:43:48	2010-12-10 14:55:42	00:11:54	436	159.97	436	203.37	0.00	-
63	PSR	WB1	2010-12-10 15:06:48	2010-12-10 15:10:14	00:03:26	436	243.91	436	256.43	27.10	80
64	PSR	WB1	2010-12-10 15:12:18	2010-12-10 15:14:30	00:02:12	436	263.90	436	271.93	27.10	80
65	PSR	FBS	2010-12-10 15:17:10	2010-12-10 15:20:26	00:03:16	436	281.65	436	293.56	34.30	7
66	PSR	FBD	2010-12-10 15:35:15	2010-12-10 15:46:53	00:11:38	436	347.60	482	30.02	34.30	43
67	PSR	PLR	2010-12-10 15:49:04	2010-12-10 15:50:56	00:01:52	482	37.99	482	44.79	23.10	128
68	PSR	PLR	2010-12-10 15:58:00	2010-12-10 16:01:26	00:03:26	482	70.56	482	83.08	21.50	127
69	PSR	WB1	2010-12-10 16:02:26	2010-12-10 16:05:52	00:03:26	482	86.73	482	99.25	27.10	80
70	AV2	OBS	2010-12-10 16:07:45	2010-12-10 16:25:31	00:17:46	482	106.12	482	170.91	0.00	-
71	PSR	WB1	2010-12-10 16:45:32	2010-12-10 16:50:58	00:05:26	482	243.91	482	263.72	27.10	80
72	PSR	FBS	2010-12-10 16:51:52	2010-12-10 16:59:06	00:07:14	482	267.00	482	293.38	34.30	7
73	PSR	FBS	2010-12-10 17:17:58	2010-12-10 17:28:50	00:10:52	528	2.19	528	41.82	34.30	7
74	AV2	OBS	2010-12-10 17:44:56	2010-12-10 17:46:48	00:01:52	528	100.53	528	107.34	0.00	-
75	PSM	OB1	2010-12-10 17:48:46	2010-12-10 18:01:26	00:12:40	528	114.51	528	160.70	-1.20	-
76	AV2	OBS	2010-12-10 17:49:32	2010-12-10 18:01:14	00:11:42	528	117.30	528	159.97	0.00	-
77	PSR	WB1	2010-12-10 18:24:15	2010-12-10 18:29:41	00:05:26	528	243.91	528	263.72	27.10	80
78	PSR	FBS	2010-12-10 18:30:34	2010-12-10 18:34:52	00:04:18	528	266.94	528	282.62	34.30	7
79	PSR	FBS	2010-12-10 18:35:57	2010-12-10 18:37:39	00:01:42	528	286.57	528	292.77	34.30	7
80	PSR	WB1	2010-12-10 19:19:52	2010-12-10 19:22:28	00:02:36	574	86.73	574	96.21	27.10	80
81	PSM	OB1	2010-12-10 19:27:31	2010-12-10 19:32:59	00:05:28	574	114.57	574	134.50	-1.20	-
82	AV2	OBS	2010-12-10 19:28:17	2010-12-10 19:32:19	00:04:02	574	117.36	574	132.07	0.00	-
83	PSR	WB1	2010-12-10 20:02:58	2010-12-10 20:08:22	00:05:24	574	243.85	574	263.54	27.10	80
84	PSR	FBS	2010-12-10 20:10:13	2010-12-10 20:16:41	00:06:28	574	270.34	574	293.93	34.30	7
85	PSR	PLR	2010-12-10 20:26:20	2010-12-10 20:38:16	00:11:56	574	329.12	620	12.64	21.50	127
86	PSR	FBS	2010-12-10 20:43:10	2010-12-10 20:49:06	00:05:56	620	30.51	620	52.15	34.30	7
87	PSR	PLR	2010-12-10 20:52:04	2010-12-10 20:57:30	00:05:26	620	62.97	620	82.78	21.50	127
88	PSR	WB1	2010-12-10 20:58:35	2010-12-10 21:11:53	00:13:18	620	86.73	620	135.23	27.10	80
89	PSR	WB1	2010-12-10 21:41:41	2010-12-10 21:44:37	00:02:56	620	243.91	620	254.60	27.10	80
90	PSR	FBS	2010-12-10 21:50:03	2010-12-10 21:54:33	00:04:30	620	274.42	620	290.83	34.30	7
91	PSR	FBD	2010-12-10 22:13:35	2010-12-10 22:18:39	00:05:04	666	0.24	666	18.72	34.30	43
92	PSR	FBS	2010-12-10 22:35:35	2010-12-10 22:37:27	00:01:52	666	80.41	666	87.22	34.30	7
93	PSM	OB1	2010-12-10 22:47:01	2010-12-10 22:49:47	00:02:46	666	122.17	666	132.26	-1.20	-
94	AV2	OBS	2010-12-10 23:00:20	2010-12-10 23:02:12	00:01:52	666	170.73	666	177.54	0.00	-
95	AV2	OBS	2010-12-10 23:06:09	2010-12-10 23:09:59	00:03:50	666	191.94	666	205.92	0.00	-
96	PSM	OB2	2010-12-10 23:06:12	2010-12-10 23:10:00	00:03:48	666	192.12	666	205.98	0.00	-
97	PSM	OB1	2010-12-10 23:24:04	2010-12-10 23:26:40	00:02:36	666	257.28	666	266.76	-1.20	-
98	AV2	OBS	2010-12-10 23:24:52	2010-12-10 23:26:44	00:01:52	666	260.13	666	266.94	0.00	-
99	PSR	FBS	2010-12-10 23:55:13	2010-12-10 23:59:27	00:04:14	41	10.88	41	26.32	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
22	-11.56028	2010-12-09 23:11:27	156.09993	2010-12-10 00:00:48
68	-36.23986	2010-12-10 00:50:10	131.42035	2010-12-10 01:39:31
114	-60.91944	2010-12-10 02:28:53	106.74076	2010-12-10 03:18:15
160	-85.59903	2010-12-10 04:07:36	82.06118	2010-12-10 04:56:58
206	-110.27861	2010-12-10 05:46:19	57.38160	2010-12-10 06:35:41
252	-134.95819	2010-12-10 07:25:02	32.70202	2010-12-10 08:14:24
298	-159.63777	2010-12-10 09:03:45	8.02243	2010-12-10 09:53:07
344	175.68264	2010-12-10 10:42:28	-16.65715	2010-12-10 11:31:50
390	151.00306	2010-12-10 12:21:12	-41.33673	2010-12-10 13:10:33
436	126.32348	2010-12-10 13:59:55	-66.01631	2010-12-10 14:49:16
482	101.64389	2010-12-10 15:38:38	-90.69590	2010-12-10 16:27:59
528	76.96431	2010-12-10 17:17:21	-115.37548	2010-12-10 18:06:42
574	52.28473	2010-12-10 18:56:04	-140.05506	2010-12-10 19:45:26
620	27.60515	2010-12-10 20:34:47	-164.73465	2010-12-10 21:24:09
666	2.92556	2010-12-10 22:13:30	170.58577	2010-12-10 23:02:52
41	-21.75402	2010-12-10 23:52:13	145.90619	2010-12-11 00:41:35
