>ALOS Data Take Simulation(Nov. 20, 2010)

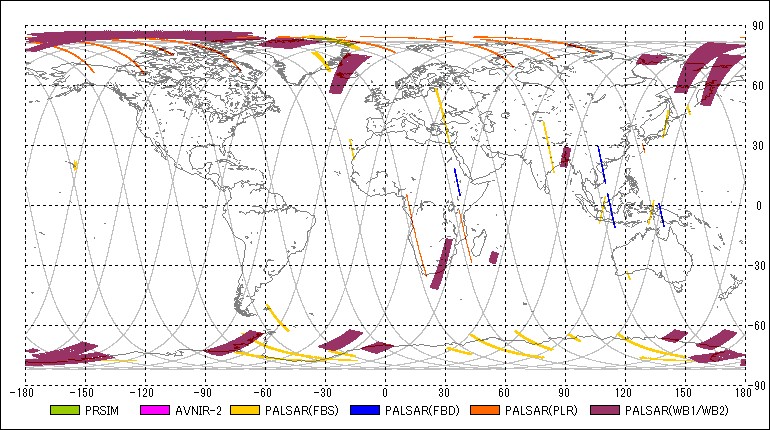

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-11-20 00:46:58	2010-11-20 00:58:35	00:11:37	56	82.17	56	124.54	27.10	80
2	PSR	FBS	2010-11-20 01:00:29	2010-11-20 01:04:57	00:04:28	56	131.46	56	147.75	41.50	10
3	AV2	OBS	2010-11-20 01:00:40	2010-11-20 01:02:32	00:01:52	56	132.13	56	138.94	0.00	-
4	AV2	OBS	2010-11-20 01:06:35	2010-11-20 01:08:27	00:01:52	56	153.71	56	160.52	-13.92	-
5	AV2	OBS	2010-11-20 01:10:22	2010-11-20 01:23:35	00:13:13	56	167.51	56	215.70	0.00	-
6	PSM	OB2	2010-11-20 01:10:26	2010-11-20 01:23:50	00:13:24	56	167.75	56	216.62	0.00	-
7	PSR	FBS	2010-11-20 01:12:52	2010-11-20 01:16:54	00:04:02	56	176.62	56	191.33	34.30	7
8	PSR	PLR	2010-11-20 02:21:22	2010-11-20 02:28:18	00:06:56	102	66.43	102	91.72	21.50	127
9	PSR	WB1	2010-11-20 02:31:22	2010-11-20 02:33:14	00:01:52	102	102.90	102	109.71	27.10	80
10	PSM	OB2	2010-11-20 02:34:37	2010-11-20 02:47:05	00:12:28	102	114.75	102	160.21	0.00	-
11	AV2	OBS	2010-11-20 02:37:25	2010-11-20 02:46:17	00:08:52	102	124.96	102	157.30	0.00	-
12	AV2	OBS	2010-11-20 02:50:02	2010-11-20 02:55:20	00:05:18	102	170.97	102	190.30	0.00	-
13	PSM	OB2	2010-11-20 02:50:05	2010-11-20 02:56:15	00:06:10	102	171.15	102	193.64	0.00	-
14	PSR	FBS	2010-11-20 02:51:05	2010-11-20 02:55:29	00:04:24	102	174.80	102	190.85	34.30	7
15	PSR	FBS	2010-11-20 03:18:50	2010-11-20 03:20:42	00:01:52	102	276.00	102	282.80	34.30	7
16	PSR	FBS	2010-11-20 03:23:23	2010-11-20 03:27:57	00:04:34	102	292.59	102	309.24	34.30	7
17	PSR	PLR	2010-11-20 04:02:19	2010-11-20 04:06:15	00:03:56	148	74.58	148	88.92	21.50	127
18	PSM	OB2	2010-11-20 04:11:48	2010-11-20 04:19:14	00:07:26	148	109.16	148	136.27	0.00	-
19	AV2	OBS	2010-11-20 04:19:42	2010-11-20 04:20:48	00:01:06	148	137.97	148	141.98	0.00	-
20	PSR	WB1	2010-11-20 04:22:57	2010-11-20 04:26:17	00:03:20	148	149.82	148	161.98	27.10	80
21	AV2	OBS	2010-11-20 04:45:29	2010-11-20 04:47:21	00:01:52	148	231.93	148	238.74	0.00	-
22	PSR	FBS	2010-11-20 04:55:50	2010-11-20 05:02:24	00:06:34	148	269.68	148	293.62	34.30	7
23	PSR	PLR	2010-11-20 05:38:16	2010-11-20 05:44:58	00:06:42	194	64.49	194	88.92	21.50	127
24	PSM	OB1	2010-11-20 05:54:51	2010-11-20 06:04:49	00:09:58	194	124.96	194	161.31	-1.20	-
25	AV2	OBS	2010-11-20 05:55:37	2010-11-20 06:04:07	00:08:30	194	127.70	194	158.69	0.00	-
26	PSR	WB1	2010-11-20 06:16:10	2010-11-20 06:18:18	00:02:08	194	202.64	194	210.42	27.10	80
27	PSM	OB1	2010-11-20 06:21:34	2010-11-20 06:24:10	00:02:36	194	222.39	194	231.87	-1.20	-
28	AV2	OBS	2010-11-20 06:22:19	2010-11-20 06:24:11	00:01:52	194	225.13	194	231.93	0.00	-
29	PSR	FBS	2010-11-20 06:34:00	2010-11-20 06:37:50	00:03:50	194	267.73	194	281.71	34.30	7
30	PSR	PLR	2010-11-20 07:17:12	2010-11-20 07:22:28	00:05:16	240	65.28	240	84.48	21.50	127
31	PSM	OB1	2010-11-20 07:30:44	2010-11-20 07:52:34	00:21:50	240	114.63	240	194.25	-1.20	-
32	AV2	OBS	2010-11-20 07:44:09	2010-11-20 07:51:45	00:07:36	240	163.50	240	191.21	0.00	-
33	PSR	WB1	2010-11-20 07:53:01	2010-11-20 08:00:35	00:07:34	240	195.89	240	223.48	27.10	80
34	AV2	OBS	2010-11-20 07:55:56	2010-11-20 07:58:32	00:02:36	240	206.47	240	215.95	0.00	-
35	PSR	WB1	2010-11-20 08:08:11	2010-11-20 08:10:03	00:01:52	240	251.20	240	258.01	27.10	80
36	PSR	FBS	2010-11-20 08:42:22	2010-11-20 08:44:14	00:01:52	286	15.80	286	22.61	21.50	3
37	PSM	OB1	2010-11-20 09:09:27	2010-11-20 09:12:57	00:03:30	286	114.57	286	127.33	-1.20	-
38	AV2	OBS	2010-11-20 09:10:13	2010-11-20 09:12:13	00:02:00	286	117.36	286	124.66	0.00	-
39	PSM	OB1	2010-11-20 09:17:04	2010-11-20 09:30:58	00:13:54	286	142.34	286	193.03	-1.20	-
40	AV2	OBS	2010-11-20 09:17:49	2010-11-20 09:23:01	00:05:12	286	145.14	286	164.10	0.00	-
41	PSR	WB1	2010-11-20 09:44:54	2010-11-20 09:48:20	00:03:26	286	243.91	286	256.43	27.10	80
42	PSM	OB1	2010-11-20 10:51:17	2010-11-20 10:53:53	00:02:36	332	125.99	332	135.48	-1.20	-
43	AV2	OBS	2010-11-20 10:52:03	2010-11-20 10:53:55	00:01:52	332	128.79	332	135.60	0.00	-
44	AV2	OBS	2010-11-20 10:55:36	2010-11-20 11:05:18	00:09:42	332	141.74	332	177.11	0.00	-
45	PSM	OB1	2010-11-20 10:56:40	2010-11-20 11:06:02	00:09:22	332	145.57	332	179.72	-1.20	-
46	PSR	FBS	2010-11-20 12:07:22	2010-11-20 12:09:14	00:01:52	378	43.40	378	50.20	34.30	7
47	PSR	WB1	2010-11-20 12:23:33	2010-11-20 12:29:41	00:06:08	378	102.47	378	124.84	27.10	80
48	PSM	OB1	2010-11-20 12:33:01	2010-11-20 12:35:37	00:02:36	378	136.94	378	146.42	-1.20	-
49	AV2	OBS	2010-11-20 12:33:47	2010-11-20 12:35:39	00:01:52	378	139.73	378	146.54	0.00	-
50	PSM	OB1	2010-11-20 12:44:54	2010-11-20 12:51:02	00:06:08	378	180.27	378	202.64	-1.20	-
51	AV2	OBS	2010-11-20 12:45:41	2010-11-20 12:50:29	00:04:48	378	183.13	378	200.63	0.00	-
52	PSR	WB1	2010-11-20 13:02:24	2010-11-20 13:06:44	00:04:20	378	244.09	378	259.89	27.10	80
53	PSR	FBS	2010-11-20 13:08:39	2010-11-20 13:11:27	00:02:48	378	266.94	378	277.15	34.30	7
54	PSR	FBD	2010-11-20 13:30:36	2010-11-20 13:34:28	00:03:52	378	346.93	424	1.03	34.30	43
55	PSR	PLR	2010-11-20 13:40:55	2010-11-20 13:42:47	00:01:52	424	24.55	424	31.36	21.50	127
56	PSR	PLR	2010-11-20 13:54:51	2010-11-20 13:59:19	00:04:28	424	75.37	424	91.65	21.50	127
57	AV2	OBS	2010-11-20 14:06:16	2010-11-20 14:08:08	00:01:52	424	117.06	424	123.87	0.00	-
58	AV2	OBS	2010-11-20 14:33:04	2010-11-20 14:39:20	00:06:16	424	214.73	424	237.59	0.00	-
59	PSR	FBS	2010-11-20 15:01:53	2010-11-20 15:03:45	00:01:52	424	319.82	424	326.63	34.30	7
60	PSR	FBD	2010-11-20 15:09:09	2010-11-20 15:14:27	00:05:18	424	346.38	470	5.71	34.30	43
61	PSR	FBD	2010-11-20 15:15:14	2010-11-20 15:21:02	00:05:48	470	8.57	470	29.72	34.30	43
62	PSR	PLR	2010-11-20 15:32:37	2010-11-20 15:36:39	00:04:02	470	71.96	470	86.67	21.50	127
63	PSR	WB1	2010-11-20 15:38:40	2010-11-20 15:40:32	00:01:52	470	94.03	470	100.83	27.10	80
64	AV2	OBS	2010-11-20 15:42:27	2010-11-20 16:00:37	00:18:10	470	107.82	470	174.07	0.00	-
65	PSR	WB1	2010-11-20 16:23:47	2010-11-20 16:27:13	00:03:26	470	258.49	470	271.01	27.10	80
66	PSR	FBS	2010-11-20 16:28:22	2010-11-20 16:33:22	00:05:00	470	275.21	470	293.44	34.30	7
67	PSR	FBS	2010-11-20 16:55:30	2010-11-20 17:03:06	00:07:36	516	14.16	516	41.88	34.30	7
68	PSR	PLR	2010-11-20 17:10:15	2010-11-20 17:16:49	00:06:34	516	67.95	516	91.90	21.50	127
69	AV2	OBS	2010-11-20 17:19:30	2010-11-20 17:21:24	00:01:54	516	101.68	516	108.61	0.00	-
70	PSM	OB1	2010-11-20 17:23:01	2010-11-20 17:36:49	00:13:48	516	114.57	516	164.89	-1.20	-
71	AV2	OBS	2010-11-20 17:23:47	2010-11-20 17:36:05	00:12:18	516	117.30	516	162.16	0.00	-
72	PSR	WB1	2010-11-20 18:00:30	2010-11-20 18:03:56	00:03:26	516	251.20	516	263.72	27.10	80
73	PSR	FBS	2010-11-20 18:04:49	2010-11-20 18:07:35	00:02:46	516	266.94	516	277.03	34.30	7
74	PSR	FBS	2010-11-20 18:10:14	2010-11-20 18:12:02	00:01:48	516	286.69	516	293.26	34.30	7
75	AV2	OBS	2010-11-20 18:57:02	2010-11-20 18:58:54	00:01:52	562	97.37	562	104.18	0.00	-
76	PSM	OB1	2010-11-20 19:01:45	2010-11-20 19:10:01	00:08:16	562	114.57	562	144.71	-1.20	-
77	AV2	OBS	2010-11-20 19:02:31	2010-11-20 19:09:15	00:06:44	562	117.36	562	141.92	0.00	-
78	PSR	WB1	2010-11-20 19:39:53	2010-11-20 19:43:11	00:03:18	562	253.63	562	265.66	27.10	80
79	PSR	FBS	2010-11-20 19:47:22	2010-11-20 19:51:14	00:03:52	562	280.92	562	295.02	34.30	7
80	PSR	PLR	2010-11-20 20:00:35	2010-11-20 20:08:27	00:07:52	562	329.12	562	357.81	21.50	127
81	PSR	FBD	2010-11-20 20:09:44	2010-11-20 20:14:08	00:04:24	608	2.49	608	18.54	34.30	43
82	PSR	FBS	2010-11-20 20:16:42	2010-11-20 20:25:12	00:08:30	608	27.90	608	58.89	34.30	7
83	PSR	PLR	2010-11-20 20:29:51	2010-11-20 20:34:15	00:04:24	608	75.85	608	91.90	21.50	127
84	PSR	FBS	2010-11-20 20:51:57	2010-11-20 20:53:49	00:01:52	608	156.45	608	163.25	9.90	0
85	AV2	OBS	2010-11-20 20:57:15	2010-11-20 21:02:25	00:05:10	608	175.71	608	194.55	0.00	-
86	PSM	OB2	2010-11-20 21:00:32	2010-11-20 21:02:42	00:02:10	608	187.69	608	195.59	0.00	-
87	PSR	WB1	2010-11-20 21:15:56	2010-11-20 21:19:12	00:03:16	608	243.91	608	255.82	27.10	80
88	PSR	FBS	2010-11-20 21:24:17	2010-11-20 21:29:23	00:05:06	608	274.36	608	292.95	34.30	7
89	PSR	PLR	2010-11-20 21:37:20	2010-11-20 21:49:22	00:12:02	608	321.95	654	5.83	21.50	127
90	PSR	FBS	2010-11-20 22:08:52	2010-11-20 22:11:34	00:02:42	654	76.95	654	86.79	34.30	7
91	PSM	OB1	2010-11-20 22:20:56	2010-11-20 22:23:36	00:02:40	654	120.95	654	130.67	-1.20	-
92	AV2	OBS	2010-11-20 22:21:42	2010-11-20 22:23:36	00:01:54	654	123.69	654	130.61	0.00	-
93	AV2	OBS	2010-11-20 22:36:50	2010-11-20 22:39:24	00:02:34	654	178.93	654	188.29	0.00	-
94	PSM	OB2	2010-11-20 22:36:50	2010-11-20 22:40:10	00:03:20	654	178.93	654	191.09	0.00	-
95	PSR	WB1	2010-11-20 22:54:39	2010-11-20 22:56:45	00:02:06	654	243.91	654	251.56	27.10	80
96	PSR	FBS	2010-11-20 23:03:57	2010-11-20 23:05:53	00:01:56	654	277.76	654	284.81	34.30	7
97	PSR	FBS	2010-11-20 23:32:09	2010-11-20 23:35:35	00:03:26	29	20.60	29	33.12	34.30	7
98	PSR	FBS	2010-11-20 23:44:21	2010-11-20 23:47:47	00:03:26	29	65.16	29	77.68	34.30	7
99	PSR	WB1	2010-11-20 23:49:58	2010-11-21 00:02:25	00:12:27	29	85.58	29	130.98	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
10	-5.12213	2010-11-19 22:45:42	162.53808	2010-11-19 23:35:03
56	-29.80171	2010-11-20 00:24:25	137.85850	2010-11-20 01:13:46
102	-54.48129	2010-11-20 02:03:08	113.17892	2010-11-20 02:52:29
148	-79.16087	2010-11-20 03:41:51	88.49933	2010-11-20 04:31:12
194	-103.84046	2010-11-20 05:20:34	63.81975	2010-11-20 06:09:56
240	-128.52004	2010-11-20 06:59:17	39.14017	2010-11-20 07:48:39
286	-153.19962	2010-11-20 08:38:00	14.46059	2010-11-20 09:27:22
332	-177.87921	2010-11-20 10:16:43	-10.21900	2010-11-20 11:06:05
378	157.44121	2010-11-20 11:55:26	-34.89858	2010-11-20 12:44:48
424	132.76163	2010-11-20 13:34:10	-59.57816	2010-11-20 14:23:31
470	108.08205	2010-11-20 15:12:53	-84.25775	2010-11-20 16:02:14
516	83.40246	2010-11-20 16:51:36	-108.93733	2010-11-20 17:40:57
562	58.72288	2010-11-20 18:30:19	-133.61691	2010-11-20 19:19:40
608	34.04330	2010-11-20 20:09:02	-158.29649	2010-11-20 20:58:23
654	9.36372	2010-11-20 21:47:45	177.02392	2010-11-20 22:37:07
29	-15.31587	2010-11-20 23:26:28	152.34434	2010-11-21 00:15:50
