>ALOS Data Take Simulation(Nov. 19, 2010)

Observation Area

PRISM

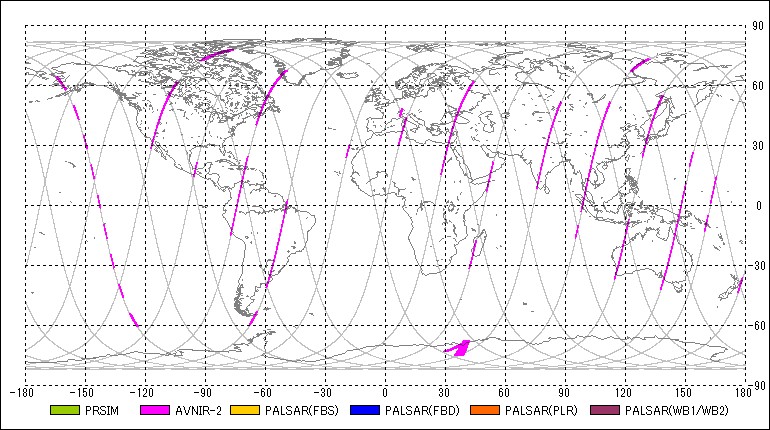

AVNIR-2

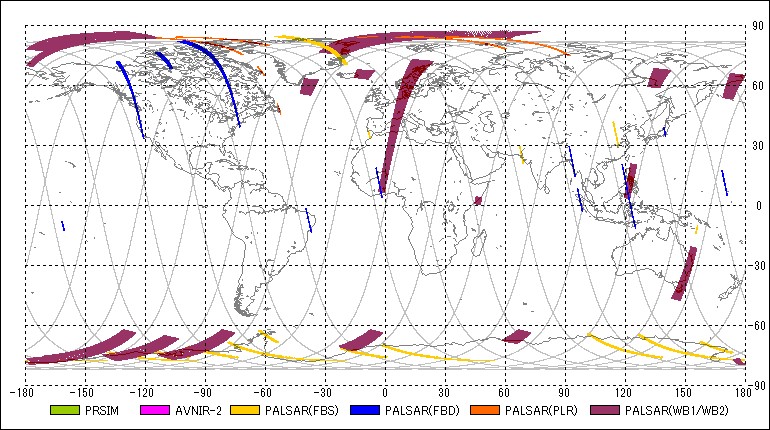

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	PLR	2010-11-19 00:05:32	2010-11-19 00:08:14	00:02:42	37	79.74	37	89.59	21.50	127
2	AV2	OBS	2010-11-19 00:25:47	2010-11-19 00:27:39	00:01:52	37	153.59	37	160.40	0.00	-
3	AV2	OBS	2010-11-19 00:29:56	2010-11-19 00:44:42	00:14:46	37	168.72	37	222.57	0.00	-
4	PSM	OB2	2010-11-19 00:29:57	2010-11-19 00:44:57	00:15:00	37	168.78	37	223.48	0.00	-
5	PSR	FBS	2010-11-19 00:57:05	2010-11-19 01:02:15	00:05:10	37	267.73	37	286.57	34.30	7
6	PSR	FBD	2010-11-19 01:17:57	2010-11-19 01:21:59	00:04:02	37	343.83	37	358.54	34.30	43
7	PSR	PLR	2010-11-19 01:34:20	2010-11-19 01:36:32	00:02:12	83	43.58	83	51.60	21.50	127
8	PSR	PLR	2010-11-19 01:39:48	2010-11-19 01:41:44	00:01:56	83	63.57	83	70.63	21.50	127
9	PSR	PLR	2010-11-19 01:42:49	2010-11-19 01:47:33	00:04:44	83	74.58	83	91.84	21.50	127
10	PSR	WB1	2010-11-19 01:52:34	2010-11-19 01:55:44	00:03:10	83	110.13	83	121.68	27.10	80
11	PSM	OB2	2010-11-19 01:56:03	2010-11-19 02:05:17	00:09:14	83	122.77	83	156.45	0.00	-
12	AV2	OBS	2010-11-19 01:56:30	2010-11-19 02:05:12	00:08:42	83	124.48	83	156.20	0.00	-
13	PSR	WB1	2010-11-19 02:05:45	2010-11-19 02:11:09	00:05:24	83	158.15	83	177.84	27.10	80
14	PSM	OB2	2010-11-19 02:11:37	2010-11-19 02:22:43	00:11:06	83	179.54	83	220.02	0.00	-
15	AV2	OBS	2010-11-19 02:13:42	2010-11-19 02:21:58	00:08:16	83	187.20	83	217.35	0.00	-
16	PSR	FBS	2010-11-19 02:37:37	2010-11-19 02:40:23	00:02:46	83	274.42	83	284.51	34.30	7
17	PSR	FBD	2010-11-19 03:11:13	2010-11-19 03:24:03	00:12:50	129	36.95	129	83.75	34.30	43
18	AV2	OBS	2010-11-19 03:29:50	2010-11-19 03:31:42	00:01:52	129	104.84	129	111.65	0.00	-
19	AV2	OBS	2010-11-19 03:36:07	2010-11-19 03:51:23	00:15:16	129	127.70	129	183.37	0.00	-
20	AV2	OBS	2010-11-19 03:53:10	2010-11-19 03:55:02	00:01:52	129	189.93	129	196.74	0.00	-
21	PSR	WB1	2010-11-19 04:07:58	2010-11-19 04:10:18	00:02:20	129	243.91	129	252.42	27.10	80
22	PSR	FBS	2010-11-19 04:19:29	2010-11-19 04:22:03	00:02:34	129	285.90	129	295.26	34.30	7
23	PSR	FBD	2010-11-19 04:58:10	2010-11-19 05:01:02	00:02:52	175	66.92	175	77.37	34.30	43
24	PSM	OB1	2010-11-19 05:14:06	2010-11-19 05:27:38	00:13:32	175	125.02	175	174.37	-1.20	-
25	AV2	OBS	2010-11-19 05:14:51	2010-11-19 05:26:57	00:12:06	175	127.76	175	171.88	0.00	-
26	AV2	OBS	2010-11-19 05:48:25	2010-11-19 05:50:17	00:01:52	175	250.17	175	256.97	-21.50	-
27	PSR	FBS	2010-11-19 05:53:14	2010-11-19 05:58:52	00:05:38	175	267.73	175	288.27	34.30	7
28	PSR	FBD	2010-11-19 06:27:05	2010-11-19 06:38:27	00:11:22	221	31.18	221	72.63	34.30	43
29	PSM	OB1	2010-11-19 06:52:49	2010-11-19 07:06:03	00:13:14	221	125.02	221	173.28	-1.20	-
30	AV2	OBS	2010-11-19 07:01:55	2010-11-19 07:05:57	00:04:02	221	158.21	221	172.92	0.00	-
31	PSR	WB1	2010-11-19 07:06:30	2010-11-19 07:08:06	00:01:36	221	174.92	221	180.76	27.10	80
32	AV2	OBS	2010-11-19 07:12:42	2010-11-19 07:16:40	00:03:58	221	197.53	221	212.00	0.00	-
33	AV2	OBS	2010-11-19 07:26:22	2010-11-19 07:28:24	00:02:02	221	247.37	221	254.79	41.50	-
34	PSR	FBS	2010-11-19 07:33:47	2010-11-19 07:36:53	00:03:06	221	274.48	221	285.78	34.30	7
35	AV2	OBS	2010-11-19 07:40:23	2010-11-19 07:42:15	00:01:52	221	298.49	221	305.29	0.00	-
36	AV2	OBS	2010-11-19 07:44:30	2010-11-19 07:46:22	00:01:52	221	313.50	221	320.31	0.00	-
37	AV2	OBS	2010-11-19 07:48:37	2010-11-19 07:50:29	00:01:52	221	328.51	221	335.32	0.00	-
38	AV2	OBS	2010-11-19 07:52:44	2010-11-19 07:54:36	00:01:52	221	343.52	221	350.33	0.00	-
39	AV2	OBS	2010-11-19 07:56:51	2010-11-19 07:58:43	00:01:52	221	358.54	267	5.35	0.00	-
40	AV2	OBS	2010-11-19 08:00:58	2010-11-19 08:02:50	00:01:52	267	13.55	267	20.36	0.00	-
41	AV2	OBS	2010-11-19 08:05:04	2010-11-19 08:06:56	00:01:52	267	28.51	267	35.31	0.00	-
42	AV2	OBS	2010-11-19 08:09:11	2010-11-19 08:11:03	00:01:52	267	43.52	267	50.33	0.00	-
43	AV2	OBS	2010-11-19 08:13:17	2010-11-19 08:15:09	00:01:52	267	58.47	267	65.28	0.00	-
44	PSM	OB1	2010-11-19 08:28:41	2010-11-19 08:49:37	00:20:56	267	114.63	267	190.97	-1.20	-
45	AV2	OBS	2010-11-19 08:29:25	2010-11-19 08:42:25	00:13:00	267	117.36	267	164.77	0.00	-
46	PSR	WB1	2010-11-19 09:04:07	2010-11-19 09:07:33	00:03:26	267	243.91	267	256.43	27.10	80
47	PSR	FBS	2010-11-19 09:12:30	2010-11-19 09:14:50	00:02:20	267	274.42	267	282.93	34.30	7
48	PSR	FBD	2010-11-19 09:31:45	2010-11-19 09:33:47	00:02:02	267	344.62	267	352.03	34.30	43
49	AV2	CA1	2010-11-19 09:35:34	2010-11-19 09:43:22	00:07:48	267	358.54	313	26.99	0.00	-
50	PSM	OB1	2010-11-19 10:04:36	2010-11-19 10:07:12	00:02:36	313	104.42	313	113.90	-1.20	-
51	PSR	WB1	2010-11-19 10:04:51	2010-11-19 10:23:51	00:19:00	313	105.33	313	174.62	27.10	80
52	AV2	OBS	2010-11-19 10:12:06	2010-11-19 10:16:50	00:04:44	313	131.77	313	149.03	-21.50	-
53	PSM	OB1	2010-11-19 10:13:44	2010-11-19 10:25:02	00:11:18	313	137.73	313	178.93	-1.20	-
54	PSR	FBS	2010-11-19 10:49:23	2010-11-19 10:53:15	00:03:52	313	267.73	313	281.83	34.30	7
55	PSR	FBD	2010-11-19 11:15:21	2010-11-19 11:19:29	00:04:08	359	2.43	359	17.50	34.30	43
56	PSR	WB1	2010-11-19 11:44:57	2010-11-19 11:46:49	00:01:52	359	110.37	359	117.18	27.10	80
57	AV2	OBS	2010-11-19 11:55:35	2010-11-19 11:57:27	00:01:52	359	149.15	359	155.96	0.00	-
58	PSR	FBD	2010-11-19 13:02:17	2010-11-19 13:04:09	00:01:52	405	32.40	405	39.20	34.30	43
59	PSR	WB1	2010-11-19 13:17:10	2010-11-19 13:21:56	00:04:46	405	86.67	405	104.05	27.10	80
60	PSR	WB1	2010-11-19 13:24:59	2010-11-19 13:27:47	00:02:48	405	115.18	405	125.39	27.10	80
61	AV2	OBS	2010-11-19 13:41:58	2010-11-19 13:54:10	00:12:12	405	177.11	405	221.60	0.00	-
62	AV2	OBS	2010-11-19 13:57:27	2010-11-19 13:59:19	00:01:52	405	233.57	405	240.38	0.00	-
63	PSR	WB1	2010-11-19 14:00:16	2010-11-19 14:05:28	00:05:12	405	243.85	405	262.81	27.10	80
64	PSR	FBS	2010-11-19 14:06:36	2010-11-19 14:08:48	00:02:12	405	266.94	405	274.96	34.30	7
65	PSR	FBS	2010-11-19 14:09:51	2010-11-19 14:12:33	00:02:42	405	278.79	405	288.64	34.30	7
66	PSR	FBD	2010-11-19 14:28:17	2010-11-19 14:37:43	00:09:26	405	346.01	451	20.42	34.30	43
67	PSR	FBS	2010-11-19 14:39:36	2010-11-19 14:43:36	00:04:00	451	27.29	451	41.88	34.30	7
68	PSR	PLR	2010-11-19 14:52:24	2010-11-19 14:57:18	00:04:54	451	73.97	451	91.84	21.50	127
69	AV2	OBS	2010-11-19 15:02:41	2010-11-19 15:10:25	00:07:44	451	111.41	451	139.61	0.00	-
70	PSM	OB1	2010-11-19 15:04:51	2010-11-19 15:10:27	00:05:36	451	119.37	451	139.79	-1.20	-
71	AV2	OBS	2010-11-19 15:14:46	2010-11-19 15:25:40	00:10:54	451	155.53	451	195.28	0.00	-
72	PSR	WB1	2010-11-19 15:39:52	2010-11-19 15:44:26	00:04:34	451	247.07	451	263.72	27.10	80
73	PSR	FBS	2010-11-19 15:45:59	2010-11-19 15:52:27	00:06:28	451	269.31	451	292.89	34.30	7
74	PSR	FBD	2010-11-19 16:09:19	2010-11-19 16:13:11	00:03:52	451	354.46	497	8.57	34.30	43
75	PSR	FBD	2010-11-19 16:14:08	2010-11-19 16:18:58	00:04:50	497	12.03	497	29.66	34.30	43
76	PSR	PLR	2010-11-19 16:32:11	2010-11-19 16:36:01	00:03:50	497	77.86	497	91.84	21.50	127
77	AV2	OBS	2010-11-19 16:54:19	2010-11-19 16:56:19	00:02:00	497	158.51	497	165.81	0.00	-
78	PSR	WB1	2010-11-19 17:17:43	2010-11-19 17:24:31	00:06:48	497	243.91	497	268.70	27.10	80
79	PSR	FBS	2010-11-19 17:26:06	2010-11-19 17:31:22	00:05:16	497	274.42	497	293.62	34.30	7
80	PSR	FBS	2010-11-19 17:54:36	2010-11-19 17:57:50	00:03:14	543	18.42	543	30.21	34.30	7
81	AV2	OBS	2010-11-19 18:16:44	2010-11-19 18:18:36	00:01:52	543	99.13	543	105.94	0.00	-
82	PSM	OB1	2010-11-19 18:20:59	2010-11-19 18:31:51	00:10:52	543	114.63	543	154.26	-1.20	-
83	AV2	OBS	2010-11-19 18:21:44	2010-11-19 18:31:06	00:09:22	543	117.36	543	151.52	0.00	-
84	PSM	OB1	2010-11-19 22:05:33	2010-11-19 22:08:39	00:03:06	635	213.52	635	224.82	-1.20	-
85	AV2	OBS	2010-11-19 22:06:19	2010-11-19 22:08:27	00:02:08	635	216.31	635	224.09	0.00	-
86	PSR	FBD	2010-11-19 22:46:03	2010-11-19 22:50:51	00:04:48	10	1.22	10	18.72	34.30	43
87	PSR	FBS	2010-11-19 22:54:13	2010-11-19 22:56:05	00:01:52	10	31.00	10	37.80	34.30	7
88	PSR	FBS	2010-11-19 23:04:34	2010-11-19 23:09:28	00:04:54	10	68.74	10	86.61	34.30	7
89	PSR	WB1	2010-11-19 23:10:19	2010-11-19 23:20:36	00:10:17	10	89.71	10	127.21	27.10	80
90	AV2	OBS	2010-11-19 23:31:10	2010-11-19 23:34:52	00:03:42	10	165.74	10	179.24	0.00	-
91	AV2	OBS	2010-11-19 23:36:25	2010-11-19 23:38:43	00:02:18	10	184.89	10	193.28	0.00	-
92	PSM	OB2	2010-11-19 23:36:26	2010-11-19 23:39:30	00:03:04	10	184.95	10	196.13	0.00	-
93	PSR	FBS	2010-11-19 23:37:34	2010-11-19 23:39:26	00:01:52	10	189.08	10	195.89	34.30	7
94	PSR	WB1	2010-11-19 23:40:38	2010-11-19 23:48:36	00:07:58	10	200.27	10	229.32	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
37	-19.60797	2010-11-18 23:43:38	148.05224	2010-11-19 00:33:00
83	-44.28755	2010-11-19 01:22:21	123.37266	2010-11-19 02:11:43
129	-68.96713	2010-11-19 03:01:04	98.69307	2010-11-19 03:50:26
175	-93.64672	2010-11-19 04:39:48	74.01349	2010-11-19 05:29:09
221	-118.32630	2010-11-19 06:18:31	49.33391	2010-11-19 07:07:52
267	-143.00588	2010-11-19 07:57:14	24.65433	2010-11-19 08:46:35
313	-167.68546	2010-11-19 09:35:57	-0.02526	2010-11-19 10:25:18
359	167.63495	2010-11-19 11:14:40	-24.70484	2010-11-19 12:04:01
405	142.95537	2010-11-19 12:53:23	-49.38442	2010-11-19 13:42:45
451	118.27579	2010-11-19 14:32:06	-74.06400	2010-11-19 15:21:28
497	93.59620	2010-11-19 16:10:49	-98.74359	2010-11-19 17:00:11
543	68.91662	2010-11-19 17:49:32	-123.42317	2010-11-19 18:38:54
589	44.23704	2010-11-19 19:28:15	-148.10275	2010-11-19 20:17:37
635	19.55746	2010-11-19 21:06:59	-172.78234	2010-11-19 21:56:20
10	-5.12213	2010-11-19 22:45:42	162.53808	2010-11-19 23:35:03
