>ALOS Data Take Simulation(Nov. 08, 2010)

Observation Area

PRISM

AVNIR-2

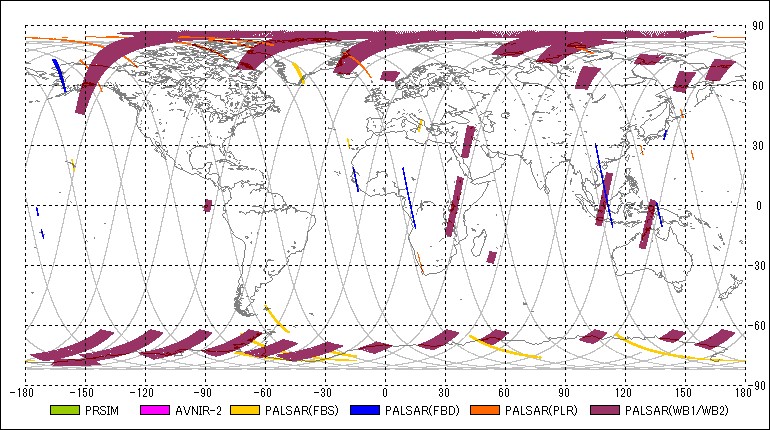

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-11-08 00:44:57	2010-11-08 00:48:23	00:03:26	58	59.20	58	71.72	34.30	7
2	PSR	PLR	2010-11-08 00:50:02	2010-11-08 00:53:56	00:03:54	58	77.74	58	91.96	21.50	127
3	PSR	WB1	2010-11-08 00:59:17	2010-11-08 01:02:41	00:03:24	58	111.41	58	123.81	27.10	80
4	PSM	OB1	2010-11-08 01:04:13	2010-11-08 01:06:49	00:02:36	58	129.40	58	138.88	-0.21	-
5	AV2	OBS	2010-11-08 01:04:58	2010-11-08 01:06:50	00:01:52	58	132.19	58	139.00	0.00	-
6	PSR	FBD	2010-11-08 01:07:32	2010-11-08 01:09:24	00:01:52	58	141.49	58	148.30	34.30	43
7	PSM	OB2	2010-11-08 01:14:45	2010-11-08 01:28:09	00:13:24	58	167.81	58	216.68	0.00	-
8	PSR	WB1	2010-11-08 01:17:09	2010-11-08 01:24:23	00:07:14	58	176.56	58	202.94	27.10	80
9	PSR	WB1	2010-11-08 01:35:37	2010-11-08 01:37:53	00:02:16	58	243.91	58	252.17	27.10	80
10	PSR	PLR	2010-11-08 02:27:11	2010-11-08 02:32:35	00:05:24	104	71.96	104	91.65	21.50	127
11	PSR	WB1	2010-11-08 02:35:39	2010-11-08 02:37:31	00:01:52	104	102.90	104	109.71	27.10	80
12	PSM	OB2	2010-11-08 02:38:51	2010-11-08 02:51:37	00:12:46	104	114.51	104	161.06	0.00	-
13	AV2	OBS	2010-11-08 02:41:49	2010-11-08 02:50:51	00:09:02	104	125.33	104	158.27	0.00	-
14	PSR	WB1	2010-11-08 02:52:05	2010-11-08 02:59:55	00:07:50	104	162.77	104	191.33	27.10	80
15	AV2	OBS	2010-11-08 02:54:23	2010-11-08 02:59:50	00:05:27	104	171.15	104	191.03	0.00	-
16	PSM	OB2	2010-11-08 02:54:55	2010-11-08 03:00:29	00:05:34	104	173.10	104	193.40	0.00	-
17	PSR	FBS	2010-11-08 03:23:01	2010-11-08 03:24:53	00:01:52	104	275.57	104	282.38	34.30	7
18	PSR	FBS	2010-11-08 03:27:24	2010-11-08 03:32:10	00:04:46	104	291.62	104	309.00	34.30	7
19	PSR	WB1	2010-11-08 04:16:04	2010-11-08 04:19:46	00:03:42	150	109.04	150	122.53	27.10	80
20	PSM	OB2	2010-11-08 04:19:33	2010-11-08 04:21:27	00:01:54	150	121.74	150	128.67	0.00	-
21	AV2	OBS	2010-11-08 04:21:11	2010-11-08 04:30:36	00:09:25	150	127.76	150	162.10	0.00	-
22	AV2	OBS	2010-11-08 04:49:43	2010-11-08 04:51:39	00:01:56	150	231.75	150	238.80	0.00	-
23	PSR	WB1	2010-11-08 04:53:02	2010-11-08 04:55:28	00:02:26	150	243.91	150	252.78	27.10	80
24	PSR	FBS	2010-11-08 05:00:05	2010-11-08 05:06:39	00:06:34	150	269.55	150	293.50	34.30	7
25	PSR	PLR	2010-11-08 05:43:28	2010-11-08 05:49:36	00:06:08	196	67.77	196	90.14	21.50	127
26	PSR	WB1	2010-11-08 05:50:39	2010-11-08 05:54:45	00:04:06	196	93.96	196	108.92	27.10	80
27	PSM	OB1	2010-11-08 05:59:10	2010-11-08 06:08:58	00:09:48	196	125.02	196	160.76	-1.20	-
28	AV2	OBS	2010-11-08 05:59:55	2010-11-08 06:08:11	00:08:16	196	127.76	196	157.90	0.00	-
29	PSR	WB1	2010-11-08 06:20:26	2010-11-08 06:22:34	00:02:08	196	202.58	196	210.36	27.10	80
30	PSR	WB1	2010-11-08 06:31:45	2010-11-08 06:35:01	00:03:16	196	243.91	196	255.82	27.10	80
31	PSR	FBS	2010-11-08 06:38:18	2010-11-08 06:42:02	00:03:44	196	267.73	196	281.35	34.30	7
32	PSR	PLR	2010-11-08 07:18:47	2010-11-08 07:23:57	00:05:10	242	55.37	242	74.21	21.50	127
33	PSR	WB1	2010-11-08 07:27:23	2010-11-08 07:32:29	00:05:06	242	86.73	242	105.33	27.10	80
34	PSM	OB1	2010-11-08 07:35:02	2010-11-08 07:56:52	00:21:50	242	114.63	242	194.25	-1.20	-
35	PSR	WB1	2010-11-08 07:41:48	2010-11-08 07:46:40	00:04:52	242	139.31	242	157.05	27.10	80
36	PSR	WB1	2010-11-08 07:48:51	2010-11-08 07:57:31	00:08:40	242	165.01	242	196.62	27.10	80
37	PSR	WB1	2010-11-08 08:12:29	2010-11-08 08:14:21	00:01:52	242	251.20	242	258.01	27.10	80
38	PSR	FBS	2010-11-08 08:46:30	2010-11-08 08:48:40	00:02:10	288	15.26	288	23.16	21.50	3
39	PSR	FBD	2010-11-08 08:57:20	2010-11-08 09:02:26	00:05:06	288	54.76	288	73.36	41.50	46
40	PSM	OB1	2010-11-08 09:13:44	2010-11-08 09:17:14	00:03:30	288	114.57	288	127.33	-1.20	-
41	AV2	OBS	2010-11-08 09:14:30	2010-11-08 09:16:28	00:01:58	288	117.36	288	124.54	0.00	-
42	PSR	FBS	2010-11-08 09:19:31	2010-11-08 09:21:51	00:02:20	288	135.66	288	144.17	34.30	7
43	AV2	OBS	2010-11-08 09:22:03	2010-11-08 09:34:13	00:12:10	288	144.90	288	189.27	0.00	-
44	PSR	WB1	2010-11-08 09:51:12	2010-11-08 09:54:38	00:03:26	288	251.20	288	263.72	27.10	80
45	PSR	FBD	2010-11-08 10:15:50	2010-11-08 10:17:42	00:01:52	288	341.03	288	347.84	34.30	43
46	PSR	FBD	2010-11-08 10:18:54	2010-11-08 10:20:46	00:01:52	288	352.21	288	359.02	34.30	43
47	PSR	WB1	2010-11-08 10:51:34	2010-11-08 10:53:26	00:01:52	334	111.35	334	118.15	27.10	80
48	AV2	OBS	2010-11-08 10:56:37	2010-11-08 11:06:03	00:09:26	334	129.76	334	164.16	34.30	-
49	PSM	OB1	2010-11-08 11:00:59	2010-11-08 11:10:03	00:09:04	334	145.69	334	178.75	-1.20	-
50	PSR	WB1	2010-11-08 11:29:27	2010-11-08 11:32:35	00:03:08	334	249.50	334	260.92	27.10	80
51	PSR	PLR	2010-11-08 12:05:27	2010-11-08 12:07:19	00:01:52	380	20.79	380	27.59	21.50	127
52	PSR	PLR	2010-11-08 12:11:16	2010-11-08 12:13:08	00:01:52	380	42.00	380	48.81	21.50	127
53	PSR	WB1	2010-11-08 12:23:31	2010-11-08 12:31:13	00:07:42	380	86.67	380	114.75	27.10	80
54	PSM	OB1	2010-11-08 12:37:05	2010-11-08 12:39:41	00:02:36	380	136.14	380	145.63	-1.20	-
55	AV2	OBS	2010-11-08 12:37:51	2010-11-08 12:39:43	00:01:52	380	138.94	380	145.75	0.00	-
56	PSM	OB1	2010-11-08 12:49:02	2010-11-08 12:56:22	00:07:20	380	179.72	380	206.47	-1.20	-
57	AV2	OBS	2010-11-08 12:49:48	2010-11-08 12:55:40	00:05:52	380	182.52	380	203.91	0.00	-
58	PSR	WB1	2010-11-08 13:06:38	2010-11-08 13:11:02	00:04:24	380	243.91	380	259.95	27.10	80
59	PSR	FBD	2010-11-08 13:34:53	2010-11-08 13:38:51	00:03:58	380	346.93	426	1.40	34.30	43
60	PSR	PLR	2010-11-08 13:44:52	2010-11-08 13:46:44	00:01:52	426	23.34	426	30.15	21.50	127
61	PSR	PLR	2010-11-08 13:59:04	2010-11-08 14:01:04	00:02:00	426	75.12	426	82.42	21.50	127
62	AV2	OBS	2010-11-08 14:10:25	2010-11-08 14:12:17	00:01:52	426	116.51	426	123.32	0.00	-
63	AV2	OBS	2010-11-08 14:25:00	2010-11-08 14:43:37	00:18:37	426	169.69	426	237.59	0.00	-
64	PSR	WB1	2010-11-08 14:45:21	2010-11-08 14:50:21	00:05:00	426	243.91	426	262.14	27.10	80
65	PSR	WB1	2010-11-08 14:51:20	2010-11-08 14:53:12	00:01:52	426	265.73	426	272.53	27.10	80
66	PSR	FBD	2010-11-08 15:13:31	2010-11-08 15:25:43	00:12:12	426	346.62	472	31.12	34.30	43
67	PSR	WB1	2010-11-08 15:40:57	2010-11-08 15:48:01	00:07:04	472	86.67	472	112.44	27.10	80
68	PSM	OB1	2010-11-08 15:48:15	2010-11-08 16:05:23	00:17:08	472	113.29	472	175.77	-1.20	-
69	PSR	WB1	2010-11-08 16:05:34	2010-11-08 16:07:44	00:02:10	472	176.44	472	184.34	27.10	80
70	PSR	WB1	2010-11-08 16:24:04	2010-11-08 16:29:30	00:05:26	472	243.91	472	263.72	27.10	80
71	PSR	FBS	2010-11-08 16:30:24	2010-11-08 16:37:36	00:07:12	472	267.00	472	293.26	34.30	7
72	AV2	OBS	2010-11-08 17:23:42	2010-11-08 17:25:36	00:01:54	518	101.38	518	108.31	0.00	-
73	AV2	OBS	2010-11-08 17:28:06	2010-11-08 17:40:10	00:12:04	518	117.36	518	161.37	0.00	-
74	PSR	WB1	2010-11-08 18:02:47	2010-11-08 18:08:13	00:05:26	518	243.91	518	263.72	27.10	80
75	PSM	OB1	2010-11-08 19:06:03	2010-11-08 19:14:01	00:07:58	564	114.57	564	143.62	-1.20	-
76	PSR	WB1	2010-11-08 20:37:01	2010-11-08 20:50:25	00:13:24	610	86.31	610	135.17	27.10	80
77	AV2	OBS	2010-11-08 21:01:02	2010-11-08 21:02:54	00:01:52	610	173.89	610	180.70	0.00	-
78	AV2	OBS	2010-11-08 21:04:49	2010-11-08 21:08:57	00:04:08	610	187.69	610	202.76	0.00	-
79	PSM	OB2	2010-11-08 21:07:04	2010-11-08 21:09:02	00:01:58	610	195.89	610	203.06	0.00	-
80	PSR	WB1	2010-11-08 21:20:13	2010-11-08 21:23:25	00:03:12	610	243.91	610	255.58	27.10	80
81	PSR	FBS	2010-11-08 21:28:35	2010-11-08 21:33:29	00:04:54	610	274.42	610	292.29	34.30	7
82	PSR	PLR	2010-11-08 21:42:12	2010-11-08 21:45:38	00:03:26	610	324.07	610	336.59	21.50	127
83	PSR	FBD	2010-11-08 21:48:14	2010-11-08 21:57:12	00:08:58	610	346.01	656	18.72	34.30	43
84	PSR	PLR	2010-11-08 22:09:10	2010-11-08 22:13:34	00:04:24	656	62.36	656	78.40	21.50	127
85	PSR	WB1	2010-11-08 22:15:51	2010-11-08 22:17:43	00:01:52	656	86.73	656	93.54	27.10	80
86	PSM	OB1	2010-11-08 22:25:17	2010-11-08 22:27:57	00:02:40	656	121.19	656	130.92	-1.20	-
87	AV2	OBS	2010-11-08 22:26:03	2010-11-08 22:27:55	00:01:52	656	123.99	656	130.80	0.00	-
88	AV2	OBS	2010-11-08 22:33:04	2010-11-08 22:34:56	00:01:52	656	149.52	656	156.32	0.00	-
89	AV2	OBS	2010-11-08 22:41:04	2010-11-08 22:42:56	00:01:52	656	178.69	656	185.50	0.00	-
90	PSM	OB2	2010-11-08 22:41:07	2010-11-08 22:43:15	00:02:08	656	178.93	656	186.71	0.00	-
91	PSR	WB1	2010-11-08 22:58:56	2010-11-08 23:01:02	00:02:06	656	243.91	656	251.56	27.10	80
92	PSR	FBD	2010-11-08 23:32:03	2010-11-08 23:35:55	00:03:52	31	4.62	31	18.72	34.30	43
93	PSR	FBS	2010-11-08 23:38:06	2010-11-08 23:39:58	00:01:52	31	26.74	31	33.55	34.30	7
94	PSR	PLR	2010-11-08 23:52:45	2010-11-08 23:55:25	00:02:40	31	80.11	31	89.83	21.50	127
95	PSR	WB1	2010-11-08 23:59:42	2010-11-09 00:03:08	00:03:26	31	105.51	31	118.03	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
12	-6.19515	2010-11-07 22:49:59	161.46506	2010-11-07 23:39:21
58	-30.87473	2010-11-08 00:28:42	136.78547	2010-11-08 01:18:04
104	-55.55432	2010-11-08 02:07:25	112.10589	2010-11-08 02:56:47
150	-80.23390	2010-11-08 03:46:08	87.42631	2010-11-08 04:35:30
196	-104.91348	2010-11-08 05:24:52	62.74673	2010-11-08 06:14:13
242	-129.59307	2010-11-08 07:03:35	38.06714	2010-11-08 07:52:56
288	-154.27265	2010-11-08 08:42:18	13.38756	2010-11-08 09:31:39
334	-178.95223	2010-11-08 10:21:01	-11.29202	2010-11-08 11:10:22
380	156.36819	2010-11-08 11:59:44	-35.97161	2010-11-08 12:49:06
426	131.68860	2010-11-08 13:38:27	-60.65119	2010-11-08 14:27:49
472	107.00902	2010-11-08 15:17:10	-85.33077	2010-11-08 16:06:32
518	82.32944	2010-11-08 16:55:53	-110.01035	2010-11-08 17:45:15
564	57.64986	2010-11-08 18:34:36	-134.68994	2010-11-08 19:23:58
610	32.97027	2010-11-08 20:13:19	-159.36952	2010-11-08 21:02:41
656	8.29069	2010-11-08 21:52:03	175.95090	2010-11-08 22:41:24
31	-16.38889	2010-11-08 23:30:46	151.27132	2010-11-09 00:20:07
