>ALOS Data Take Simulation(Mar. 05, 2011)

Observation Area

PRISM

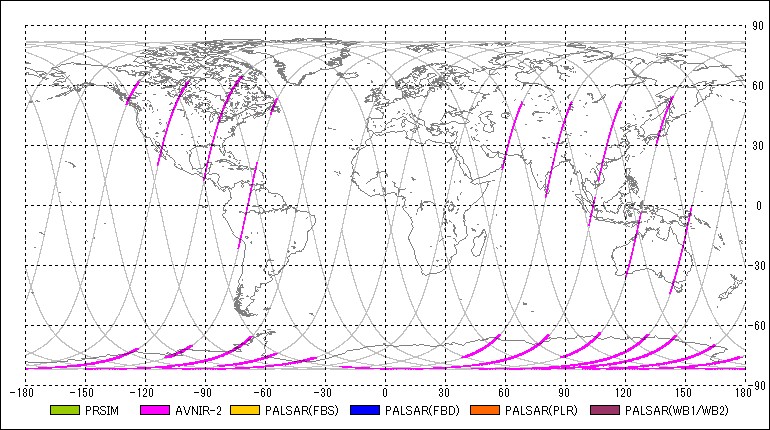

AVNIR-2

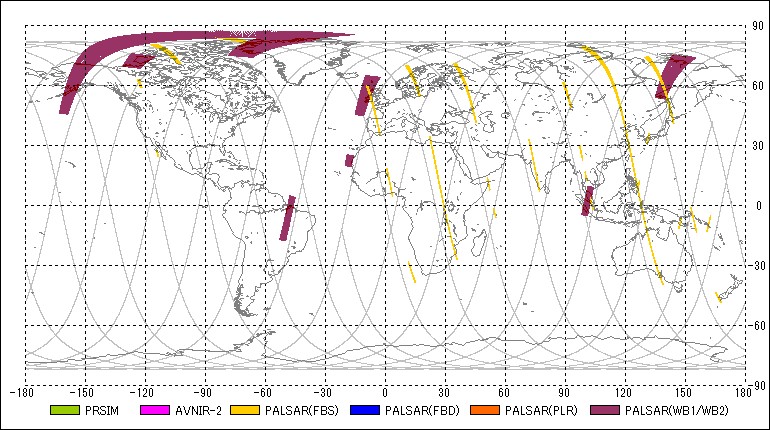

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2011-03-05 00:11:46	2011-03-05 00:23:44	00:11:58	27	180.76	27	224.40	0.00	-
2	PSM	OB2	2011-03-05 00:11:46	2011-03-05 00:24:12	00:12:26	27	180.76	27	226.10	0.00	-
3	PSR	FBS	2011-03-05 00:13:07	2011-03-05 00:15:09	00:02:02	27	185.68	27	193.09	34.30	7
4	PSM	OB1	2011-03-05 00:28:49	2011-03-05 00:33:55	00:05:06	27	242.99	27	261.59	-1.20	-
5	AV2	OBS	2011-03-05 00:29:32	2011-03-05 00:36:50	00:07:18	27	245.55	27	272.17	0.00	-
6	PSR	FBS	2011-03-05 01:22:13	2011-03-05 01:24:33	00:02:20	73	77.68	73	86.18	34.30	7
7	PSR	WB1	2011-03-05 01:29:17	2011-03-05 01:35:51	00:06:34	73	103.45	73	127.39	27.10	80
8	PSM	OB1	2011-03-05 01:34:12	2011-03-05 01:42:08	00:07:56	73	121.38	73	150.31	-1.20	-
9	AV2	OBS	2011-03-05 01:35:09	2011-03-05 01:41:57	00:06:48	73	124.84	73	149.64	0.00	-
10	PSR	FBS	2011-03-05 01:40:05	2011-03-05 01:42:11	00:02:06	73	142.83	73	150.49	34.30	7
11	PSR	FBS	2011-03-05 01:46:34	2011-03-05 01:48:42	00:02:08	73	166.47	73	174.25	34.30	7
12	PSM	OB2	2011-03-05 01:49:10	2011-03-05 02:01:14	00:12:04	73	175.96	73	219.96	0.00	-
13	AV2	OBS	2011-03-05 01:51:25	2011-03-05 02:00:04	00:08:39	73	184.16	73	215.70	0.00	-
14	PSM	OB1	2011-03-05 02:07:20	2011-03-05 02:12:36	00:05:16	73	242.20	73	261.41	-1.20	-
15	AV2	OBS	2011-03-05 02:08:02	2011-03-05 02:11:50	00:03:48	73	244.76	73	258.61	0.00	-
16	AV2	OBS	2011-03-05 03:14:40	2011-03-05 03:25:42	00:11:02	119	127.76	119	167.99	0.00	-
17	PSR	WB1	2011-03-05 03:26:09	2011-03-05 03:30:43	00:04:34	119	169.63	119	186.29	27.10	80
18	PSM	OB2	2011-03-05 03:27:26	2011-03-05 03:32:08	00:04:42	119	174.31	119	191.45	0.00	-
19	AV2	OBS	2011-03-05 03:27:55	2011-03-05 03:31:47	00:03:52	119	176.08	119	190.18	0.00	-
20	PSM	OB1	2011-03-05 03:46:29	2011-03-05 03:51:01	00:04:32	119	243.78	119	260.32	-1.20	-
21	AV2	OBS	2011-03-05 03:47:05	2011-03-05 03:54:59	00:07:54	119	245.97	119	274.78	0.00	-
22	PSR	FBS	2011-03-05 04:37:21	2011-03-05 04:40:45	00:03:24	165	69.29	165	81.69	34.30	7
23	PSM	OB1	2011-03-05 04:52:37	2011-03-05 05:07:13	00:14:36	165	124.96	165	178.20	-1.20	-
24	AV2	OBS	2011-03-05 04:53:23	2011-03-05 05:06:37	00:13:14	165	127.70	165	175.96	0.00	-
25	PSM	OB1	2011-03-05 05:24:55	2011-03-05 05:30:29	00:05:34	165	242.75	165	263.05	-1.20	-
26	AV2	OBS	2011-03-05 05:25:41	2011-03-05 05:29:17	00:03:36	165	245.55	165	258.68	0.00	-
27	PSR	FBS	2011-03-05 06:03:07	2011-03-05 06:04:37	00:01:30	211	22.00	211	27.47	34.30	7
28	PSR	FBS	2011-03-05 06:12:40	2011-03-05 06:14:28	00:01:48	211	56.89	211	63.45	34.30	7
29	PSM	OB1	2011-03-05 06:31:58	2011-03-05 06:42:00	00:10:02	211	127.27	211	163.86	-1.20	-
30	AV2	OBS	2011-03-05 06:32:06	2011-03-05 06:41:34	00:09:28	211	127.76	211	162.28	0.00	-
31	AV2	OBS	2011-03-05 10:25:25	2011-03-05 10:29:23	00:03:58	303	258.61	303	273.08	0.00	-
32	PSR	WB1	2011-03-05 11:24:24	2011-03-05 11:30:30	00:06:06	349	113.72	349	135.96	27.10	80
33	PSR	WB1	2011-03-05 11:35:21	2011-03-05 11:37:33	00:02:12	349	153.65	349	161.67	27.10	80
34	PSM	OB1	2011-03-05 11:36:42	2011-03-05 11:40:24	00:03:42	349	158.51	349	172.00	-1.20	-
35	AV2	OBS	2011-03-05 12:03:29	2011-03-05 12:05:53	00:02:24	349	256.18	349	264.94	0.00	-
36	PSR	FBS	2011-03-05 12:17:41	2011-03-05 12:19:43	00:02:02	349	308.03	349	315.44	34.30	7
37	PSR	FBS	2011-03-05 12:27:33	2011-03-05 12:31:37	00:04:04	349	344.01	349	358.84	34.30	7
38	PSR	FBS	2011-03-05 12:42:34	2011-03-05 12:52:32	00:09:58	395	38.78	395	75.12	34.30	7
39	PSR	WB1	2011-03-05 13:19:49	2011-03-05 13:26:29	00:06:40	395	174.62	395	198.93	27.10	80
40	PSM	OB1	2011-03-05 13:22:33	2011-03-05 13:31:25	00:08:52	395	184.59	395	216.92	-1.20	-
41	PSM	OB1	2011-03-05 13:39:21	2011-03-05 13:43:39	00:04:18	395	245.79	395	261.47	-1.20	-
42	AV2	OBS	2011-03-05 13:39:36	2011-03-05 13:46:22	00:06:46	395	246.76	395	271.44	0.00	-
43	PSR	FBS	2011-03-05 13:58:58	2011-03-05 14:32:44	00:33:46	395	317.39	441	80.53	34.30	7
44	PSM	OB1	2011-03-05 14:44:23	2011-03-05 14:48:13	00:03:50	441	122.96	441	136.94	-1.20	-
45	AV2	OBS	2011-03-05 14:45:09	2011-03-05 14:47:27	00:02:18	441	125.75	441	134.14	0.00	-
46	AV2	OBS	2011-03-05 14:54:05	2011-03-05 15:06:00	00:11:55	441	158.33	441	201.79	0.00	-
47	PSM	OB1	2011-03-05 15:18:56	2011-03-05 15:22:22	00:03:26	441	248.95	441	261.47	-1.20	-
48	AV2	OBS	2011-03-05 15:19:42	2011-03-05 15:21:36	00:01:54	441	251.75	441	258.68	0.00	-
49	PSR	FBS	2011-03-05 15:48:04	2011-03-05 15:50:24	00:02:20	441	355.25	487	3.77	34.30	7
50	PSR	FBS	2011-03-05 15:52:05	2011-03-05 15:53:57	00:01:52	487	9.85	487	16.65	34.30	7
51	PSR	FBS	2011-03-05 15:54:57	2011-03-05 15:57:33	00:02:36	487	20.30	487	29.78	34.30	7
52	PSR	FBS	2011-03-05 16:02:13	2011-03-05 16:06:25	00:04:12	487	46.80	487	62.12	34.30	7
53	PSR	WB1	2011-03-05 16:14:56	2011-03-05 16:18:20	00:03:24	487	93.17	487	105.57	27.10	80
54	AV2	OBS	2011-03-05 16:20:44	2011-03-05 16:35:22	00:14:38	487	114.33	487	167.69	0.00	-
55	PSM	OB1	2011-03-05 16:45:48	2011-03-05 16:48:24	00:02:36	487	205.74	487	215.22	-1.20	-
56	PSM	OB1	2011-03-05 16:58:12	2011-03-05 17:01:06	00:02:54	487	250.96	487	261.53	-1.20	-
57	AV2	OBS	2011-03-05 16:58:52	2011-03-05 17:04:24	00:05:32	487	253.45	487	273.63	0.00	-
58	PSR	FBS	2011-03-05 17:29:21	2011-03-05 17:37:07	00:07:46	533	4.56	533	32.88	34.30	7
59	PSM	OB1	2011-03-05 17:59:30	2011-03-05 18:11:56	00:12:26	533	114.51	533	159.85	-1.20	-
60	AV2	OBS	2011-03-05 18:00:16	2011-03-05 18:11:58	00:11:42	533	117.30	533	159.97	0.00	-
61	PSR	FBS	2011-03-05 19:04:27	2011-03-05 19:06:19	00:01:52	533	351.36	533	358.17	34.30	7
62	PSR	FBS	2011-03-05 19:08:15	2011-03-05 19:10:41	00:02:26	579	5.23	579	14.10	34.30	7
63	PSR	FBS	2011-03-05 19:17:33	2011-03-05 19:26:29	00:08:56	579	39.14	579	71.72	34.30	7
64	PSR	WB1	2011-03-05 19:34:55	2011-03-05 19:37:23	00:02:28	579	102.47	579	111.47	27.10	80
65	PSM	OB1	2011-03-05 19:38:14	2011-03-05 19:42:56	00:04:42	579	114.57	579	131.71	-1.20	-
66	AV2	OBS	2011-03-05 19:39:00	2011-03-05 19:42:16	00:03:16	579	117.36	579	129.28	0.00	-
67	AV2	OBS	2011-03-05 20:17:37	2011-03-05 20:21:51	00:04:14	579	258.19	579	273.63	0.00	-
68	PSR	FBS	2011-03-05 20:37:24	2011-03-05 20:55:04	00:17:40	579	330.33	625	34.77	34.30	7
69	PSR	FBS	2011-03-05 20:59:54	2011-03-05 21:04:54	00:05:00	625	52.39	625	70.63	34.30	7
70	PSR	WB1	2011-03-05 21:08:39	2011-03-05 21:22:37	00:13:58	625	84.30	625	135.23	27.10	80
71	PSM	OB1	2011-03-05 21:53:25	2011-03-05 21:57:15	00:03:50	625	247.55	625	261.53	-1.20	-
72	AV2	OBS	2011-03-05 21:54:28	2011-03-05 21:59:30	00:05:02	625	251.38	625	269.74	0.00	-
73	PSR	FBS	2011-03-05 22:12:53	2011-03-05 22:16:23	00:03:30	625	318.54	625	331.31	34.30	7
74	PSR	FBS	2011-03-05 22:24:45	2011-03-05 22:29:23	00:04:38	671	1.82	671	18.72	34.30	7
75	PSR	FBS	2011-03-05 22:33:22	2011-03-05 22:40:54	00:07:32	671	33.19	671	60.66	34.30	7
76	PSR	FBS	2011-03-05 23:14:47	2011-03-05 23:17:39	00:02:52	671	184.28	671	194.74	34.30	7
77	AV2	OBS	2011-03-05 23:31:48	2011-03-05 23:38:40	00:06:52	671	246.34	671	271.38	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
27	-14.24284	2011-03-04 23:22:11	153.41737	2011-03-05 00:11:32
73	-38.92242	2011-03-05 01:00:54	128.73778	2011-03-05 01:50:15
119	-63.60201	2011-03-05 02:39:37	104.05820	2011-03-05 03:28:58
165	-88.28159	2011-03-05 04:18:20	79.37862	2011-03-05 05:07:41
211	-112.96117	2011-03-05 05:57:03	54.69904	2011-03-05 06:46:25
257	-137.64076	2011-03-05 07:35:46	30.01945	2011-03-05 08:25:08
303	-162.32034	2011-03-05 09:14:29	5.33987	2011-03-05 10:03:51
349	173.00008	2011-03-05 10:53:12	-19.33971	2011-03-05 11:42:34
395	148.32050	2011-03-05 12:31:55	-44.01930	2011-03-05 13:21:17
441	123.64091	2011-03-05 14:10:39	-68.69888	2011-03-05 15:00:00
487	98.96133	2011-03-05 15:49:22	-93.37846	2011-03-05 16:38:43
533	74.28175	2011-03-05 17:28:05	-118.05804	2011-03-05 18:17:26
579	49.60217	2011-03-05 19:06:48	-142.73763	2011-03-05 19:56:09
625	24.92258	2011-03-05 20:45:31	-167.41721	2011-03-05 21:34:52
671	0.24300	2011-03-05 22:24:14	167.90321	2011-03-05 23:13:36
