>ALOS Data Take Simulation(Feb. 20, 2011)

Observation Area

PRISM

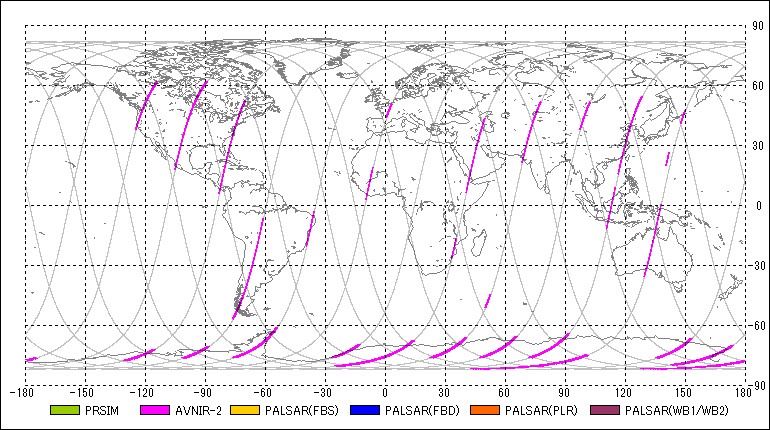

AVNIR-2

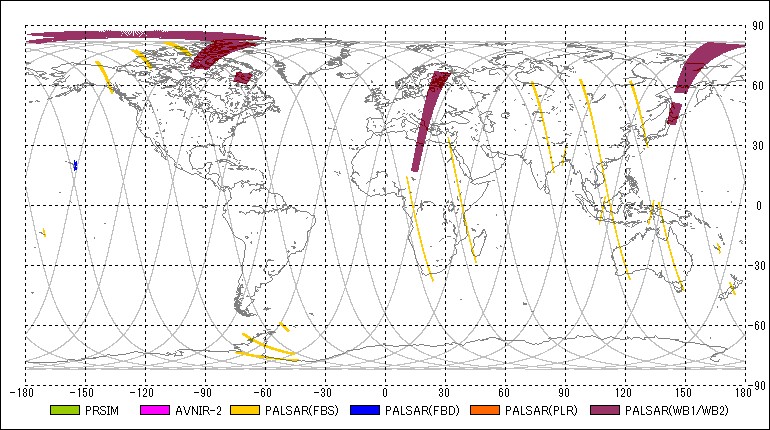

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2011-02-20 00:46:58	2011-02-20 00:58:35	00:11:37	56	82.17	56	124.54	27.10	80
2	PSR	WB1	2011-02-20 00:59:25	2011-02-20 01:02:59	00:03:34	56	127.58	56	140.58	27.10	80
3	AV2	OBS	2011-02-20 01:00:40	2011-02-20 01:02:32	00:01:52	56	132.13	56	138.94	0.00	-
4	AV2	OBS	2011-02-20 01:06:35	2011-02-20 01:08:27	00:01:52	56	153.71	56	160.52	-13.92	-
5	PSR	FBS	2011-02-20 01:12:52	2011-02-20 01:16:54	00:04:02	56	176.62	56	191.33	34.30	7
6	AV2	OBS	2011-02-20 01:13:39	2011-02-20 01:23:35	00:09:56	56	179.48	56	215.70	0.00	-
7	PSM	OB2	2011-02-20 01:13:40	2011-02-20 01:23:50	00:10:10	56	179.54	56	216.62	0.00	-
8	PSM	OB1	2011-02-20 01:30:53	2011-02-20 01:39:37	00:08:44	56	242.33	56	274.17	-1.20	-
9	AV2	OBS	2011-02-20 01:34:56	2011-02-20 01:38:28	00:03:32	56	257.10	56	269.98	0.00	-
10	AV2	OBS	2011-02-20 02:37:25	2011-02-20 02:48:12	00:10:47	102	124.96	102	164.29	0.00	-
11	PSM	OB2	2011-02-20 02:37:28	2011-02-20 02:47:04	00:09:36	102	125.14	102	160.15	0.00	-
12	AV2	OBS	2011-02-20 02:50:02	2011-02-20 02:55:54	00:05:52	102	170.97	102	192.37	0.00	-
13	PSM	OB2	2011-02-20 02:50:09	2011-02-20 02:56:07	00:05:58	102	171.40	102	193.16	0.00	-
14	PSR	FBS	2011-02-20 02:51:06	2011-02-20 02:55:30	00:04:24	102	174.86	102	190.91	34.30	7
15	PSM	OB1	2011-02-20 03:09:40	2011-02-20 03:18:18	00:08:38	102	242.57	102	274.05	-1.20	-
16	AV2	OBS	2011-02-20 03:10:23	2011-02-20 03:14:05	00:03:42	102	245.18	102	258.68	0.00	-
17	PSR	FBS	2011-02-20 03:23:23	2011-02-20 03:25:23	00:02:00	102	292.59	102	299.88	34.30	7
18	PSR	FBS	2011-02-20 04:02:00	2011-02-20 04:04:32	00:02:32	148	73.42	148	82.66	34.30	7
19	AV2	OBS	2011-02-20 04:16:54	2011-02-20 04:20:46	00:03:52	148	127.76	148	141.86	0.00	-
20	PSR	FBS	2011-02-20 04:22:45	2011-02-20 04:26:07	00:03:22	148	149.09	148	161.37	34.30	7
21	PSM	OB2	2011-02-20 04:23:02	2011-02-20 04:27:04	00:04:02	148	150.12	148	164.83	0.00	-
22	AV2	OBS	2011-02-20 04:49:32	2011-02-20 04:52:48	00:03:16	148	246.76	148	258.68	0.00	-
23	PSM	OB1	2011-02-20 04:50:39	2011-02-20 04:56:57	00:06:18	148	250.83	148	273.81	-1.20	-
24	PSR	FBS	2011-02-20 04:58:03	2011-02-20 05:02:23	00:04:20	148	277.76	148	293.56	34.30	7
25	PSR	FBS	2011-02-20 05:38:57	2011-02-20 05:42:09	00:03:12	194	66.98	194	78.65	34.30	7
26	PSM	OB1	2011-02-20 05:54:51	2011-02-20 06:04:49	00:09:58	194	124.96	194	161.31	-1.20	-
27	AV2	OBS	2011-02-20 05:55:37	2011-02-20 06:04:07	00:08:30	194	127.70	194	158.69	0.00	-
28	PSM	OB1	2011-02-20 06:21:34	2011-02-20 06:24:10	00:02:36	194	222.39	194	231.87	-1.20	-
29	AV2	OBS	2011-02-20 06:22:19	2011-02-20 06:24:11	00:01:52	194	225.13	194	231.93	0.00	-
30	PSM	OB1	2011-02-20 06:27:42	2011-02-20 06:34:30	00:06:48	194	244.76	194	269.55	-1.20	-
31	AV2	OBS	2011-02-20 06:28:25	2011-02-20 06:31:31	00:03:06	194	247.37	194	258.68	0.00	-
32	PSR	FBS	2011-02-20 06:34:49	2011-02-20 06:37:49	00:03:00	194	270.71	194	281.65	34.30	7
33	PSR	FBS	2011-02-20 07:14:03	2011-02-20 07:19:17	00:05:14	240	53.79	240	72.87	34.30	7
34	PSM	OB1	2011-02-20 07:35:57	2011-02-20 07:47:39	00:11:42	240	133.65	240	176.32	-1.20	-
35	AV2	OBS	2011-02-20 07:36:42	2011-02-20 07:46:56	00:10:14	240	136.33	240	173.65	0.00	-
36	AV2	OBS	2011-02-20 07:53:10	2011-02-20 07:55:58	00:02:48	240	196.44	240	206.65	0.00	-
37	PSM	OB1	2011-02-20 08:06:49	2011-02-20 08:11:11	00:04:22	240	246.22	240	262.14	-1.20	-
38	AV2	OBS	2011-02-20 08:07:35	2011-02-20 08:11:59	00:04:24	240	248.95	240	265.00	0.00	-
39	PSR	FBD	2011-02-20 08:42:22	2011-02-20 08:44:14	00:01:52	286	15.80	286	22.61	21.50	39
40	PSR	WB1	2011-02-20 09:08:39	2011-02-20 09:23:03	00:14:24	286	111.71	286	164.22	27.10	80
41	PSM	OB1	2011-02-20 09:46:21	2011-02-20 09:53:11	00:06:50	286	249.19	286	274.11	-1.20	-
42	AV2	OBS	2011-02-20 09:46:54	2011-02-20 09:48:58	00:02:04	286	251.14	286	258.68	0.00	-
43	PSR	FBS	2011-02-20 10:11:42	2011-02-20 10:13:34	00:01:52	286	341.64	286	348.45	34.30	7
44	PSM	OB1	2011-02-20 10:51:17	2011-02-20 10:53:53	00:02:36	332	125.99	332	135.48	-1.20	-
45	AV2	OBS	2011-02-20 10:52:03	2011-02-20 10:53:55	00:01:52	332	128.79	332	135.60	0.00	-
46	PSM	OB1	2011-02-20 11:00:13	2011-02-20 11:06:01	00:05:48	332	158.51	332	179.66	-1.20	-
47	AV2	OBS	2011-02-20 11:00:55	2011-02-20 11:05:17	00:04:22	332	161.13	332	177.05	0.00	-
48	PSM	OB1	2011-02-20 11:26:30	2011-02-20 11:31:54	00:05:24	332	254.36	332	274.05	-1.20	-
49	PSR	FBS	2011-02-20 11:42:21	2011-02-20 11:44:41	00:02:20	332	312.22	332	320.73	34.30	7
50	PSR	FBS	2011-02-20 11:48:10	2011-02-20 11:50:06	00:01:56	332	333.43	332	340.48	34.30	7
51	PSM	OB1	2011-02-20 12:44:54	2011-02-20 12:51:02	00:06:08	378	180.27	378	202.64	-1.20	-
52	AV2	OBS	2011-02-20 12:45:41	2011-02-20 12:50:27	00:04:46	378	183.13	378	200.51	0.00	-
53	PSM	OB1	2011-02-20 13:01:07	2011-02-20 13:10:39	00:09:32	378	239.41	378	274.17	-1.20	-
54	AV2	OBS	2011-02-20 13:01:52	2011-02-20 13:06:24	00:04:32	378	242.14	378	258.68	0.00	-
55	PSR	FBS	2011-02-20 13:21:37	2011-02-20 13:34:29	00:12:52	378	314.17	424	1.09	34.30	7
56	PSR	FBS	2011-02-20 13:41:28	2011-02-20 13:51:22	00:09:54	424	26.56	424	62.66	34.30	7
57	AV2	OBS	2011-02-20 14:25:20	2011-02-20 14:39:20	00:14:00	424	186.53	424	237.59	0.00	-
58	PSM	OB1	2011-02-20 14:42:34	2011-02-20 14:49:22	00:06:48	424	249.38	424	274.17	-1.20	-
59	AV2	OBS	2011-02-20 14:43:20	2011-02-20 14:45:12	00:01:52	424	252.17	424	258.98	0.00	-
60	PSR	FBS	2011-02-20 15:01:51	2011-02-20 15:30:19	00:28:28	424	319.76	470	63.57	34.30	7
61	PSR	WB1	2011-02-20 15:43:39	2011-02-20 15:45:37	00:01:58	470	112.20	470	119.37	27.10	80
62	AV2	OBS	2011-02-20 15:47:43	2011-02-20 16:00:37	00:12:54	470	127.03	470	174.07	0.00	-
63	PSM	OB1	2011-02-20 16:21:48	2011-02-20 16:28:02	00:06:14	470	251.26	470	273.99	-1.20	-
64	AV2	OBS	2011-02-20 16:22:29	2011-02-20 16:24:21	00:01:52	470	253.75	470	260.56	0.00	-
65	PSR	FBS	2011-02-20 16:55:31	2011-02-20 17:08:41	00:13:10	516	14.22	516	62.24	34.30	7
66	PSR	WB1	2011-02-20 17:17:51	2011-02-20 17:22:17	00:04:26	516	95.67	516	111.83	27.10	80
67	PSM	OB1	2011-02-20 17:23:01	2011-02-20 17:36:49	00:13:48	516	114.57	516	164.89	-1.20	-
68	AV2	OBS	2011-02-20 17:23:47	2011-02-20 17:36:05	00:12:18	516	117.30	516	162.16	0.00	-
69	PSM	OB1	2011-02-20 18:01:16	2011-02-20 18:06:48	00:05:32	516	254.00	516	274.17	-1.20	-
70	PSM	OB1	2011-02-20 19:01:45	2011-02-20 19:10:01	00:08:16	562	114.57	562	144.71	-1.20	-
71	AV2	OBS	2011-02-20 19:02:31	2011-02-20 19:09:15	00:06:44	562	117.36	562	141.92	0.00	-
72	PSM	OB1	2011-02-20 19:40:35	2011-02-20 19:45:29	00:04:54	562	256.18	562	274.05	-1.20	-
73	AV2	OBS	2011-02-20 19:41:18	2011-02-20 19:44:30	00:03:12	562	258.80	562	270.47	0.00	-
74	PSR	FBS	2011-02-20 20:00:28	2011-02-20 20:18:26	00:17:58	562	328.69	608	34.22	34.30	7
75	PSR	FBD	2011-02-20 20:51:57	2011-02-20 20:53:49	00:01:52	608	156.45	608	163.25	9.90	36
76	PSM	OB1	2011-02-20 21:17:20	2011-02-20 21:24:14	00:06:54	608	248.95	608	274.11	-1.20	-
77	AV2	OBS	2011-02-20 21:18:05	2011-02-20 21:21:25	00:03:20	608	251.75	608	263.90	0.00	-
78	PSR	FBS	2011-02-20 21:36:34	2011-02-20 21:51:42	00:15:08	608	319.15	654	14.34	34.30	7
79	AV2	OBS	2011-02-20 22:55:43	2011-02-20 22:58:47	00:03:04	654	247.80	654	258.98	0.00	-
80	PSM	OB1	2011-02-20 22:57:45	2011-02-20 23:00:57	00:03:12	654	255.21	654	266.88	-1.20	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
10	-5.12213	2011-02-19 22:45:42	162.53808	2011-02-19 23:35:03
56	-29.80171	2011-02-20 00:24:25	137.85850	2011-02-20 01:13:46
102	-54.48129	2011-02-20 02:03:08	113.17892	2011-02-20 02:52:29
148	-79.16087	2011-02-20 03:41:51	88.49933	2011-02-20 04:31:12
194	-103.84046	2011-02-20 05:20:34	63.81975	2011-02-20 06:09:56
240	-128.52004	2011-02-20 06:59:17	39.14017	2011-02-20 07:48:39
286	-153.19962	2011-02-20 08:38:00	14.46059	2011-02-20 09:27:22
332	-177.87921	2011-02-20 10:16:43	-10.21900	2011-02-20 11:06:05
378	157.44121	2011-02-20 11:55:26	-34.89858	2011-02-20 12:44:48
424	132.76163	2011-02-20 13:34:10	-59.57816	2011-02-20 14:23:31
470	108.08205	2011-02-20 15:12:53	-84.25775	2011-02-20 16:02:14
516	83.40246	2011-02-20 16:51:36	-108.93733	2011-02-20 17:40:57
562	58.72288	2011-02-20 18:30:19	-133.61691	2011-02-20 19:19:40
608	34.04330	2011-02-20 20:09:02	-158.29649	2011-02-20 20:58:23
654	9.36372	2011-02-20 21:47:45	177.02392	2011-02-20 22:37:07
29	-15.31587	2011-02-20 23:26:28	152.34434	2011-02-21 00:15:50
