>ALOS Data Take Simulation(Jan. 09, 2011)

Observation Area

PRISM

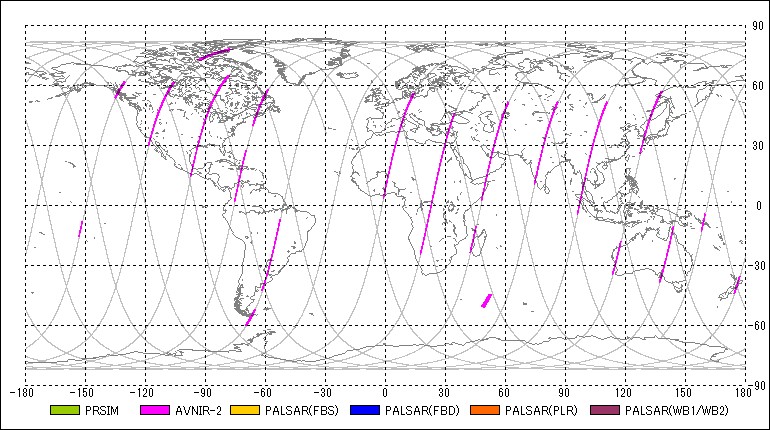

AVNIR-2

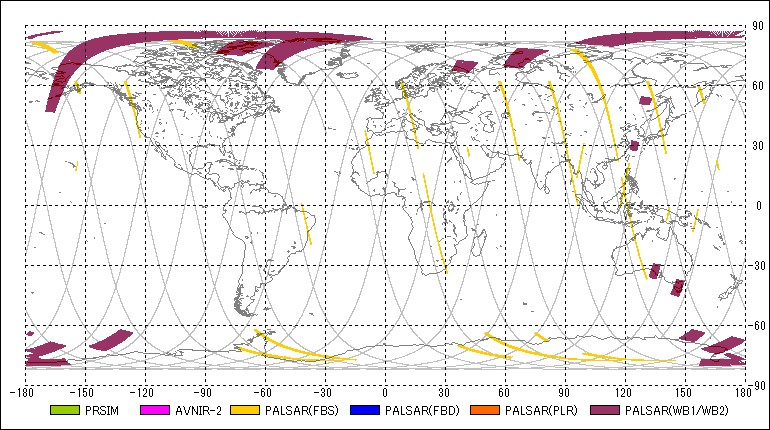

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2011-01-09 00:39:31	2011-01-09 00:41:57	00:02:26	40	180.21	40	189.08	34.30	7
2	AV2	OBS	2011-01-09 00:42:24	2011-01-09 00:50:08	00:07:44	40	190.72	40	218.93	0.00	-
3	PSR	WB1	2011-01-09 00:47:18	2011-01-09 00:49:54	00:02:36	40	208.65	40	218.14	27.10	80
4	PSR	FBS	2011-01-09 01:22:44	2011-01-09 01:29:00	00:06:16	40	337.81	86	0.67	34.30	7
5	PSM	OB1	2011-01-09 02:01:36	2011-01-09 02:07:28	00:05:52	86	119.55	86	140.95	1.20	-
6	AV2	OBS	2011-01-09 02:02:22	2011-01-09 02:11:00	00:08:38	86	122.35	86	153.83	0.00	-
7	PSR	WB1	2011-01-09 02:02:57	2011-01-09 02:04:35	00:01:38	86	124.48	86	130.43	27.10	80
8	PSR	WB1	2011-01-09 02:09:06	2011-01-09 02:10:58	00:01:52	86	146.90	86	153.71	27.10	80
9	PSR	FBS	2011-01-09 02:12:09	2011-01-09 02:18:53	00:06:44	86	158.03	86	182.58	34.30	7
10	PSM	OB2	2011-01-09 02:13:17	2011-01-09 02:28:19	00:15:02	86	162.16	86	216.98	0.00	-
11	AV2	OBS	2011-01-09 02:23:05	2011-01-09 02:27:41	00:04:36	86	197.90	86	214.67	0.00	-
12	PSR	FBS	2011-01-09 03:28:51	2011-01-09 03:31:39	00:02:48	132	77.74	132	87.95	34.30	7
13	PSM	OB2	2011-01-09 03:42:33	2011-01-09 03:58:05	00:15:32	132	127.70	132	184.34	0.00	-
14	AV2	OBS	2011-01-09 03:42:34	2011-01-09 03:58:08	00:15:34	132	127.76	132	184.53	0.00	-
15	PSR	FBS	2011-01-09 03:48:08	2011-01-09 03:53:28	00:05:20	132	148.06	132	167.51	34.30	7
16	PSR	FBS	2011-01-09 04:22:02	2011-01-09 04:28:40	00:06:38	132	271.68	132	295.87	34.30	7
17	PSR	WB1	2011-01-09 05:10:02	2011-01-09 05:13:28	00:03:26	178	86.73	178	99.25	27.10	80
18	AV2	OBS	2011-01-09 05:21:17	2011-01-09 05:32:41	00:11:24	178	127.76	178	169.33	0.00	-
19	AV2	OBS	2011-01-09 05:48:27	2011-01-09 05:50:19	00:01:52	178	226.83	178	233.63	-41.50	-
20	PSR	FBS	2011-01-09 05:59:40	2011-01-09 06:04:22	00:04:42	178	267.73	178	284.87	34.30	7
21	PSR	FBS	2011-01-09 06:33:42	2011-01-09 06:42:08	00:08:26	224	31.85	224	62.60	34.30	7
22	PSR	WB1	2011-01-09 06:52:17	2011-01-09 06:55:29	00:03:12	224	99.56	224	111.23	27.10	80
23	PSM	OB1	2011-01-09 06:59:15	2011-01-09 07:14:01	00:14:46	224	125.02	224	178.87	1.20	-
24	AV2	OBS	2011-01-09 07:00:00	2011-01-09 07:13:40	00:13:40	224	127.70	224	177.54	0.00	-
25	PSM	OB1	2011-01-09 07:16:32	2011-01-09 07:21:34	00:05:02	224	188.05	224	206.41	1.20	-
26	AV2	OBS	2011-01-09 07:17:12	2011-01-09 07:20:48	00:03:36	224	190.48	224	203.61	0.00	-
27	PSR	FBS	2011-01-09 08:18:26	2011-01-09 08:20:52	00:02:26	270	53.79	270	62.66	34.30	7
28	PSR	FBS	2011-01-09 08:24:12	2011-01-09 08:26:24	00:02:12	270	74.82	270	82.84	34.30	7
29	PSR	WB1	2011-01-09 08:32:47	2011-01-09 08:34:49	00:02:02	270	106.12	270	113.54	27.10	80
30	PSM	OB1	2011-01-09 08:39:40	2011-01-09 09:02:32	00:22:52	270	131.22	270	214.61	1.20	-
31	AV2	OBS	2011-01-09 08:40:21	2011-01-09 08:59:47	00:19:26	270	133.71	270	204.58	0.00	-
32	AV2	OBS	2011-01-09 10:16:17	2011-01-09 10:30:47	00:14:30	316	123.50	316	176.38	0.00	-
33	PSM	OB1	2011-01-09 10:20:10	2011-01-09 10:31:28	00:11:18	316	137.73	316	178.93	1.20	-
34	PSR	FBS	2011-01-09 11:25:25	2011-01-09 11:27:17	00:01:52	362	15.62	362	22.43	34.30	7
35	PSR	FBS	2011-01-09 11:34:33	2011-01-09 11:37:41	00:03:08	362	48.99	362	60.41	34.30	7
36	PSR	FBS	2011-01-09 13:06:20	2011-01-09 13:16:56	00:10:36	408	23.70	408	62.36	34.30	7
37	AV2	OBS	2011-01-09 13:51:07	2011-01-09 14:00:59	00:09:52	408	187.02	408	223.00	0.00	-
38	AV2	OBS	2011-01-09 14:03:40	2011-01-09 14:05:56	00:02:16	408	232.78	408	241.05	0.00	-
39	PSR	FBS	2011-01-09 14:27:38	2011-01-09 14:42:22	00:14:44	408	320.18	454	13.92	34.30	7
40	PSR	FBS	2011-01-09 14:43:51	2011-01-09 15:00:17	00:16:26	454	19.33	454	79.26	34.30	7
41	PSR	WB1	2011-01-09 15:03:38	2011-01-09 15:09:20	00:05:42	454	91.41	454	112.20	27.10	80
42	PSM	OB1	2011-01-09 15:11:05	2011-01-09 15:17:03	00:05:58	454	118.58	454	140.34	1.20	-
43	AV2	OBS	2011-01-09 15:11:47	2011-01-09 15:16:51	00:05:04	454	121.13	454	139.61	0.00	-
44	PSM	OB1	2011-01-09 15:20:13	2011-01-09 15:32:19	00:12:06	454	151.95	454	196.07	1.20	-
45	AV2	OBS	2011-01-09 15:20:22	2011-01-09 15:27:22	00:07:00	454	152.49	454	178.02	0.00	-
46	PSR	WB1	2011-01-09 15:51:27	2011-01-09 15:53:19	00:01:52	454	265.79	454	272.59	27.10	80
47	PSR	FBS	2011-01-09 16:16:41	2011-01-09 16:34:23	00:17:42	454	357.81	500	62.36	34.30	7
48	PSR	WB1	2011-01-09 16:43:26	2011-01-09 16:45:56	00:02:30	500	95.36	500	104.48	27.10	80
49	AV2	OBS	2011-01-09 16:48:34	2011-01-09 17:02:42	00:14:08	500	114.08	500	165.62	0.00	-
50	PSR	WB1	2011-01-09 17:24:09	2011-01-09 17:27:35	00:03:26	500	243.91	500	256.43	27.10	80
51	PSR	WB1	2011-01-09 17:29:22	2011-01-09 17:31:48	00:02:26	500	262.93	500	271.80	27.10	80
52	PSR	FBS	2011-01-09 18:01:31	2011-01-09 18:13:07	00:11:36	546	20.18	546	62.48	34.30	7
53	AV2	OBS	2011-01-09 18:23:07	2011-01-09 18:24:59	00:01:52	546	98.89	546	105.69	0.00	-
54	PSM	OB1	2011-01-09 18:27:25	2011-01-09 18:37:53	00:10:28	546	114.57	546	152.74	1.20	-
55	AV2	OBS	2011-01-09 18:28:10	2011-01-09 18:37:06	00:08:56	546	117.36	546	149.94	0.00	-
56	PSR	WB1	2011-01-09 19:04:53	2011-01-09 19:08:09	00:03:16	546	251.20	546	263.11	27.10	80
57	PSR	FBS	2011-01-09 19:09:11	2011-01-09 19:12:57	00:03:46	546	266.94	546	280.68	34.30	7
58	PSR	FBS	2011-01-09 19:14:40	2011-01-09 19:16:34	00:01:54	546	286.88	546	293.81	34.30	7
59	PSR	FBS	2011-01-09 19:40:50	2011-01-09 19:42:42	00:01:52	592	22.31	592	29.11	34.30	7
60	PSM	OB1	2011-01-09 20:06:08	2011-01-09 20:09:58	00:03:50	592	114.57	592	128.55	1.20	-
61	AV2	OBS	2011-01-09 20:06:54	2011-01-09 20:09:12	00:02:18	592	117.36	592	125.75	0.00	-
62	PSR	FBS	2011-01-09 20:17:59	2011-01-09 20:19:51	00:01:52	592	157.84	592	164.65	50.80	17
63	AV2	OBS	2011-01-09 20:26:14	2011-01-09 20:28:26	00:02:12	592	187.93	592	195.95	0.00	-
64	PSM	OB2	2011-01-09 20:26:20	2011-01-09 20:28:32	00:02:12	592	188.29	592	196.32	0.00	-
65	PSR	WB1	2011-01-09 20:41:35	2011-01-09 20:45:35	00:04:00	592	243.85	592	258.43	27.10	80
66	PSR	FBS	2011-01-09 20:48:03	2011-01-09 20:55:17	00:07:14	592	267.43	592	293.81	34.30	7
67	PSR	FBS	2011-01-09 21:03:22	2011-01-09 21:17:44	00:14:22	592	323.28	638	15.68	34.30	7
68	PSR	FBS	2011-01-09 21:20:37	2011-01-09 21:30:29	00:09:52	638	26.20	638	62.18	34.30	7
69	PSR	WB1	2011-01-09 21:36:14	2011-01-09 21:50:15	00:14:01	638	83.15	638	134.26	27.10	80
70	PSM	OB1	2011-01-09 22:11:53	2011-01-09 22:15:39	00:03:46	638	213.15	638	226.89	1.20	-
71	AV2	OBS	2011-01-09 22:12:39	2011-01-09 22:14:59	00:02:20	638	215.95	638	224.46	0.00	-
72	PSR	WB1	2011-01-09 22:20:18	2011-01-09 22:22:20	00:02:02	638	243.85	638	251.26	27.10	80
73	PSR	FBS	2011-01-09 22:28:40	2011-01-09 22:31:58	00:03:18	638	274.36	638	286.39	34.30	7
74	PSR	FBS	2011-01-09 22:55:49	2011-01-09 23:02:23	00:06:34	13	13.37	13	37.32	34.30	7
75	PSR	FBS	2011-01-09 23:41:51	2011-01-09 23:45:33	00:03:42	13	181.18	13	194.68	34.30	7
76	PSM	OB2	2011-01-09 23:42:41	2011-01-09 23:45:55	00:03:14	13	184.28	13	196.07	0.00	-
77	AV2	OBS	2011-01-09 23:42:42	2011-01-09 23:45:10	00:02:28	13	184.28	13	193.28	0.00	-
78	PSR	WB1	2011-01-09 23:51:40	2011-01-09 23:54:22	00:02:42	13	217.04	13	226.89	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
40	-21.21751	2011-01-08 23:50:05	146.44270	2011-01-09 00:39:26
86	-45.89709	2011-01-09 01:28:48	121.76312	2011-01-09 02:18:09
132	-70.57667	2011-01-09 03:07:31	97.08354	2011-01-09 03:56:52
178	-95.25625	2011-01-09 04:46:14	72.40395	2011-01-09 05:35:35
224	-119.93584	2011-01-09 06:24:57	47.72437	2011-01-09 07:14:18
270	-144.61542	2011-01-09 08:03:40	23.04479	2011-01-09 08:53:02
316	-169.29500	2011-01-09 09:42:23	-1.63479	2011-01-09 10:31:45
362	166.02541	2011-01-09 11:21:06	-26.31438	2011-01-09 12:10:28
408	141.34583	2011-01-09 12:59:49	-50.99396	2011-01-09 13:49:11
454	116.66625	2011-01-09 14:38:32	-75.67354	2011-01-09 15:27:54
500	91.98667	2011-01-09 16:17:16	-100.35313	2011-01-09 17:06:37
546	67.30708	2011-01-09 17:55:59	-125.03271	2011-01-09 18:45:20
592	42.62750	2011-01-09 19:34:42	-149.71229	2011-01-09 20:24:03
638	17.94792	2011-01-09 21:13:25	-174.39187	2011-01-09 22:02:46
13	-6.73166	2011-01-09 22:52:08	160.92854	2011-01-09 23:41:29
