>ALOS Data Take Simulation(Oct. 25, 2010)

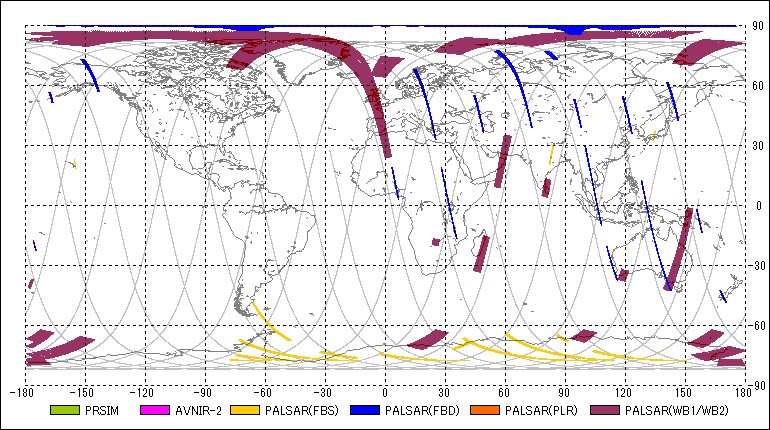

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-10-25 00:00:57	2010-10-25 00:12:57	00:12:00	22	180.45	22	224.21	27.10	80
2	PSR	WB1	2010-10-25 01:12:19	2010-10-25 01:20:21	00:08:02	68	80.71	68	110.01	27.10	80
3	AV2	OBS	2010-10-25 01:25:06	2010-10-25 01:34:22	00:09:16	68	127.33	68	161.13	0.00	-
4	PSM	OB2	2010-10-25 01:25:10	2010-10-25 01:29:08	00:03:58	68	127.58	68	142.04	0.00	-
5	PSR	FBS	2010-10-25 01:29:05	2010-10-25 01:30:57	00:01:52	68	141.86	68	148.67	34.30	7
6	PSM	OB2	2010-10-25 01:37:33	2010-10-25 01:50:37	00:13:04	68	172.73	68	220.38	0.00	-
7	PSR	WB1	2010-10-25 01:48:12	2010-10-25 01:50:18	00:02:06	68	211.57	68	219.23	27.10	80
8	PSR	WB1	2010-10-25 01:57:03	2010-10-25 01:59:07	00:02:04	68	243.85	68	251.38	27.10	80
9	PSR	FBS	2010-10-25 02:03:22	2010-10-25 02:07:00	00:03:38	68	266.88	68	280.13	34.30	7
10	PSR	FBD	2010-10-25 02:51:49	2010-10-25 02:54:23	00:02:34	114	83.57	114	92.93	49.00	51
11	AV2	OBS	2010-10-25 02:57:21	2010-10-25 03:01:55	00:04:34	114	103.75	114	120.40	0.00	-
12	AV2	OBS	2010-10-25 03:03:53	2010-10-25 03:07:31	00:03:38	114	127.58	114	140.82	0.00	-
13	PSM	OB2	2010-10-25 03:03:53	2010-10-25 03:10:27	00:06:34	114	127.58	114	151.52	0.00	-
14	AV2	OBS	2010-10-25 03:13:24	2010-10-25 03:15:49	00:02:25	114	162.28	114	171.09	0.00	-
15	AV2	OBS	2010-10-25 03:17:22	2010-10-25 03:21:14	00:03:52	114	176.75	114	190.85	0.00	-
16	PSM	OB2	2010-10-25 03:17:31	2010-10-25 03:19:23	00:01:52	114	177.29	114	184.10	0.00	-
17	PSR	FBS	2010-10-25 03:44:01	2010-10-25 03:46:13	00:02:12	114	273.93	114	281.95	34.30	7
18	PSR	FBS	2010-10-25 03:47:36	2010-10-25 03:53:56	00:06:20	114	287.00	114	310.09	34.30	7
19	PSM	OB1	2010-10-25 04:37:21	2010-10-25 04:52:39	00:15:18	160	108.43	160	164.22	1.20	-
20	AV2	OBS	2010-10-25 04:42:38	2010-10-25 04:51:58	00:09:20	160	127.70	160	161.73	0.00	-
21	PSR	FBS	2010-10-25 04:48:16	2010-10-25 04:51:42	00:03:26	160	148.24	160	160.76	34.30	7
22	PSR	WB1	2010-10-25 04:53:07	2010-10-25 04:56:09	00:03:02	160	165.93	160	176.99	27.10	80
23	PSR	FBS	2010-10-25 05:16:21	2010-10-25 05:18:13	00:01:52	160	250.65	160	257.46	34.30	7
24	PSR	FBS	2010-10-25 05:21:10	2010-10-25 05:27:06	00:05:56	160	268.22	160	289.85	34.30	7
25	PSM	OB1	2010-10-25 06:12:16	2010-10-25 06:30:02	00:17:46	206	94.57	206	159.36	1.20	-
26	AV2	OBS	2010-10-25 06:21:23	2010-10-25 06:31:05	00:09:42	206	127.76	206	163.13	0.00	-
27	PSR	WB1	2010-10-25 06:25:50	2010-10-25 06:33:36	00:07:46	206	143.99	206	172.31	27.10	80
28	PSR	WB1	2010-10-25 06:39:42	2010-10-25 06:45:16	00:05:34	206	194.55	206	214.85	27.10	80
29	PSR	WB1	2010-10-25 06:53:13	2010-10-25 06:56:29	00:03:16	206	243.91	206	255.82	27.10	80
30	PSR	FBS	2010-10-25 07:00:12	2010-10-25 07:03:00	00:02:48	206	269.31	206	279.52	34.30	7
31	PSR	FBD	2010-10-25 07:40:08	2010-10-25 07:45:18	00:05:10	252	54.94	252	73.79	34.30	43
32	PSR	WB1	2010-10-25 07:48:50	2010-10-25 07:52:16	00:03:26	252	86.73	252	99.25	27.10	80
33	PSM	OB1	2010-10-25 07:53:26	2010-10-25 07:58:52	00:05:26	252	103.45	252	123.26	1.20	-
34	AV2	OBS	2010-10-25 07:54:11	2010-10-25 07:58:05	00:03:54	252	106.18	252	120.40	0.00	-
35	PSM	OB1	2010-10-25 08:07:13	2010-10-25 08:18:19	00:11:06	252	153.71	252	194.19	1.20	-
36	AV2	OBS	2010-10-25 08:07:49	2010-10-25 08:17:31	00:09:42	252	155.96	252	191.33	0.00	-
37	PSR	WB1	2010-10-25 08:18:47	2010-10-25 08:20:17	00:01:30	252	195.89	252	201.36	27.10	80
38	PSR	FBS	2010-10-25 08:38:15	2010-10-25 08:40:07	00:01:52	252	266.94	252	273.75	34.30	7
39	PSR	FBS	2010-10-25 09:07:57	2010-10-25 09:09:49	00:01:52	298	15.26	298	22.06	50.80	17
40	PSR	FBD	2010-10-25 09:17:20	2010-10-25 09:19:24	00:02:04	298	49.47	298	57.01	34.30	43
41	PSR	WB1	2010-10-25 09:29:29	2010-10-25 09:32:15	00:02:46	298	93.78	298	103.87	27.10	80
42	AV2	OBS	2010-10-25 09:33:20	2010-10-25 09:36:42	00:03:22	298	107.76	298	120.04	0.00	-
43	PSM	OB1	2010-10-25 09:42:45	2010-10-25 09:53:59	00:11:14	298	142.16	298	183.13	1.20	-
44	AV2	OBS	2010-10-25 09:43:31	2010-10-25 09:53:49	00:10:18	298	144.96	298	182.52	0.00	-
45	PSR	FBD	2010-10-25 10:35:36	2010-10-25 10:37:36	00:02:00	298	334.83	298	342.12	34.30	43
46	PSR	WB1	2010-10-25 11:10:55	2010-10-25 11:14:21	00:03:26	344	103.69	344	116.21	27.10	80
47	PSM	OB1	2010-10-25 11:21:25	2010-10-25 11:30:33	00:09:08	344	141.92	344	175.23	1.20	-
48	AV2	OBS	2010-10-25 11:22:10	2010-10-25 11:30:19	00:08:09	344	144.65	344	174.37	0.00	-
49	PSR	FBD	2010-10-25 12:07:00	2010-10-25 12:09:22	00:02:22	344	308.15	344	316.78	34.30	43
50	PSR	FBD	2010-10-25 12:16:49	2010-10-25 12:20:41	00:03:52	344	343.95	344	358.05	34.30	43
51	PSR	FBD	2010-10-25 12:32:14	2010-10-25 12:38:14	00:06:00	390	40.17	390	62.06	34.30	43
52	PSM	OB1	2010-10-25 13:09:57	2010-10-25 13:18:41	00:08:44	390	177.72	390	209.57	1.20	-
53	AV2	OBS	2010-10-25 13:10:42	2010-10-25 13:18:44	00:08:02	390	180.51	390	209.81	0.00	-
54	PSR	FBD	2010-10-25 13:47:25	2010-10-25 14:03:17	00:15:52	390	314.35	436	12.22	34.30	43
55	PSR	FBD	2010-10-25 14:09:12	2010-10-25 14:14:58	00:05:46	436	33.79	436	54.82	34.30	43
56	PSM	OB1	2010-10-25 14:34:32	2010-10-25 14:37:28	00:02:56	436	126.18	436	136.87	1.20	-
57	AV2	OBS	2010-10-25 14:35:11	2010-10-25 14:37:03	00:01:52	436	128.55	436	135.35	0.00	-
58	PSM	OB1	2010-10-25 14:43:01	2010-10-25 14:46:53	00:03:52	436	157.11	436	171.21	1.20	-
59	AV2	OBS	2010-10-25 14:43:47	2010-10-25 14:46:07	00:02:20	436	159.91	436	168.42	0.00	-
60	AV2	OBS	2010-10-25 14:49:42	2010-10-25 14:53:48	00:04:06	436	181.49	436	196.44	0.00	-
61	PSM	OB1	2010-10-25 14:51:31	2010-10-25 14:56:27	00:04:56	436	188.11	436	206.10	1.20	-
62	PSR	FBD	2010-10-25 15:27:34	2010-10-25 15:32:56	00:05:22	436	319.58	436	339.15	34.30	43
63	PSR	FBD	2010-10-25 15:35:15	2010-10-25 15:46:47	00:11:32	436	347.60	482	29.66	34.30	43
64	PSR	FBD	2010-10-25 15:48:41	2010-10-25 15:53:13	00:04:32	482	36.59	482	53.12	34.30	43
65	PSR	FBD	2010-10-25 15:58:13	2010-10-25 16:00:05	00:01:52	482	71.35	482	78.16	34.30	43
66	PSR	FBD	2010-10-25 16:01:34	2010-10-25 16:03:50	00:02:16	482	83.57	482	91.84	49.00	51
67	PSR	WB1	2010-10-25 16:04:53	2010-10-25 16:09:23	00:04:30	482	95.67	482	112.08	27.10	80
68	PSM	OB1	2010-10-25 16:07:32	2010-10-25 16:25:46	00:18:14	482	105.33	482	171.82	1.20	-
69	PSR	WB1	2010-10-25 16:51:16	2010-10-25 16:53:14	00:01:58	482	264.81	482	271.99	27.10	80
70	PSR	FBD	2010-10-25 17:27:24	2010-10-25 17:38:50	00:11:26	528	36.59	528	78.28	34.30	43
71	PSM	OB1	2010-10-25 17:44:33	2010-10-25 18:01:31	00:16:58	528	99.13	528	161.00	1.20	-
72	AV2	OBS	2010-10-25 17:44:54	2010-10-25 18:01:16	00:16:22	528	100.41	528	160.09	0.00	-
73	PSR	WB1	2010-10-25 18:25:15	2010-10-25 18:29:41	00:04:26	528	247.55	528	263.72	27.10	80
74	PSR	FBS	2010-10-25 18:30:51	2010-10-25 18:34:53	00:04:02	528	267.91	528	282.62	34.30	7
75	PSR	FBS	2010-10-25 18:35:57	2010-10-25 18:37:39	00:01:42	528	286.57	528	292.77	34.30	7
76	PSR	FBD	2010-10-25 19:05:28	2010-10-25 19:11:18	00:05:50	574	34.22	574	55.49	34.30	43
77	PSM	OB1	2010-10-25 19:20:29	2010-10-25 19:33:07	00:12:38	574	88.92	574	134.99	1.20	-
78	AV2	OBS	2010-10-25 19:23:49	2010-10-25 19:32:21	00:08:32	574	101.08	574	132.19	0.00	-
79	PSR	WB1	2010-10-25 20:02:58	2010-10-25 20:08:22	00:05:24	574	243.85	574	263.54	27.10	80
80	PSR	FBS	2010-10-25 20:10:13	2010-10-25 20:16:39	00:06:26	574	270.34	574	293.81	34.30	7
81	PSR	FBD	2010-10-25 20:29:31	2010-10-25 20:40:01	00:10:30	574	340.73	620	19.02	34.30	43
82	PSR	FBD	2010-10-25 20:43:10	2010-10-25 20:53:38	00:10:28	620	30.51	620	68.68	34.30	43
83	PSM	OB1	2010-10-25 20:58:32	2010-10-25 21:08:54	00:10:22	620	86.55	620	124.35	1.20	-
84	AV2	OBS	2010-10-25 21:04:05	2010-10-25 21:08:15	00:04:10	620	106.79	620	121.98	0.00	-
85	PSR	WB1	2010-10-25 21:34:06	2010-10-25 21:35:58	00:01:52	620	216.25	620	223.06	27.10	80
86	PSR	WB1	2010-10-25 21:41:41	2010-10-25 21:44:37	00:02:56	620	243.91	620	254.60	27.10	80
87	PSR	FBS	2010-10-25 21:47:59	2010-10-25 21:54:31	00:06:32	620	266.88	620	290.71	34.30	7
88	PSR	FBD	2010-10-25 22:13:35	2010-10-25 22:18:39	00:05:04	666	0.24	666	18.72	34.30	43
89	PSR	WB1	2010-10-25 22:19:33	2010-10-25 22:40:45	00:21:12	666	22.00	666	99.31	27.10	80
90	PSM	OB1	2010-10-25 22:41:33	2010-10-25 22:49:45	00:08:12	666	102.23	666	132.13	1.20	-
91	AV2	OBS	2010-10-25 22:47:44	2010-10-25 22:49:36	00:01:52	666	124.78	666	131.59	0.00	-
92	AV2	OBS	2010-10-25 23:00:20	2010-10-25 23:02:12	00:01:52	666	170.73	666	177.54	0.00	-
93	AV2	OBS	2010-10-25 23:06:09	2010-10-25 23:09:59	00:03:50	666	191.94	666	205.92	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
22	-11.56028	2010-10-24 23:11:27	156.09993	2010-10-25 00:00:48
68	-36.23986	2010-10-25 00:50:10	131.42035	2010-10-25 01:39:31
114	-60.91944	2010-10-25 02:28:53	106.74076	2010-10-25 03:18:15
160	-85.59903	2010-10-25 04:07:36	82.06118	2010-10-25 04:56:58
206	-110.27861	2010-10-25 05:46:19	57.38160	2010-10-25 06:35:41
252	-134.95819	2010-10-25 07:25:02	32.70202	2010-10-25 08:14:24
298	-159.63777	2010-10-25 09:03:45	8.02243	2010-10-25 09:53:07
344	175.68264	2010-10-25 10:42:28	-16.65715	2010-10-25 11:31:50
390	151.00306	2010-10-25 12:21:12	-41.33673	2010-10-25 13:10:33
436	126.32348	2010-10-25 13:59:55	-66.01631	2010-10-25 14:49:16
482	101.64389	2010-10-25 15:38:38	-90.69590	2010-10-25 16:27:59
528	76.96431	2010-10-25 17:17:21	-115.37548	2010-10-25 18:06:42
574	52.28473	2010-10-25 18:56:04	-140.05506	2010-10-25 19:45:26
620	27.60515	2010-10-25 20:34:47	-164.73465	2010-10-25 21:24:09
666	2.92556	2010-10-25 22:13:30	170.58577	2010-10-25 23:02:52
41	-21.75402	2010-10-25 23:52:13	145.90619	2010-10-26 00:41:35
