>ALOS Data Take Simulation(Sep. 08, 2010)

Observation Area

PRISM

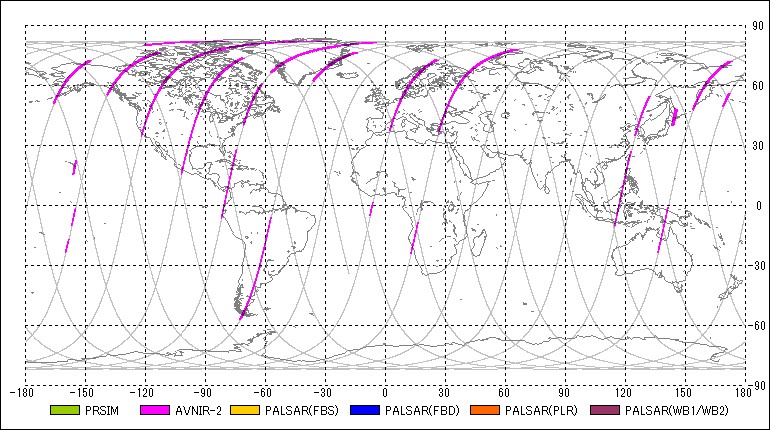

AVNIR-2

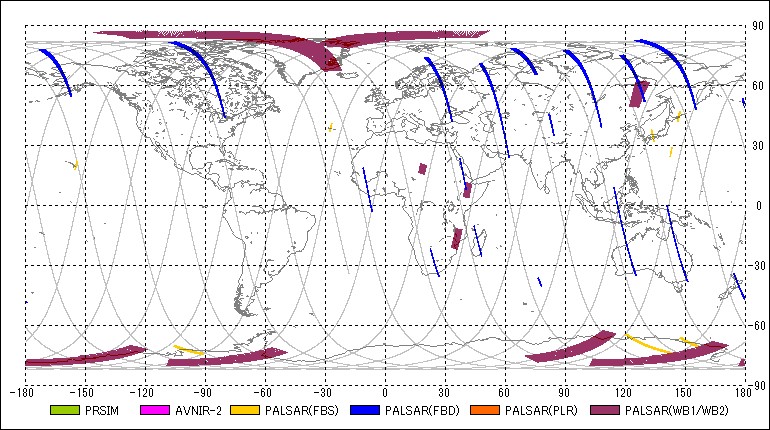

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2010-09-08 00:38:312010-09-08 00:47:57 00:09:26 49 106.12 49 140.52 0.00 -
2PSMOB12010-09-08 00:41:142010-09-08 00:46:34 00:05:20 49 116.09 49 135.54 -1.20 -
3PSRFBS2010-09-08 00:45:322010-09-08 00:47:38 00:02:06 49 131.71 49 139.37 34.30 7
4PSRFBS2010-09-08 00:50:362010-09-08 00:52:28 00:01:52 49 150.18 49 156.99 34.30 7
5PSMOB22010-09-08 00:58:432010-09-08 01:05:29 00:06:46 49 179.78 49 204.46 0.00 -
6AV2OBS2010-09-08 00:59:042010-09-08 01:05:19 00:06:15 49 181.06 49 203.85 0.00 -
7PSRWB12010-09-08 01:16:242010-09-08 01:22:02 00:05:38 49 244.27 49 264.81 27.10 80
8PSMOB22010-09-08 02:16:422010-09-08 02:28:20 00:11:38 95 104.18 95 146.60 0.00 -
9PSRWB12010-09-08 02:20:012010-09-08 02:24:13 00:04:12 95 116.27 95 131.59 27.10 80
10AV2OBS2010-09-08 02:22:212010-09-08 02:27:53 00:05:32 95 124.84 95 145.02 0.00 -
11AV2OBS2010-09-08 02:30:032010-09-08 02:40:27 00:10:24 95 152.92 95 190.85 0.00 -
12PSMOB22010-09-08 02:31:182010-09-08 02:41:16 00:09:58 95 157.42 95 193.76 0.00 -
13PSRFBD2010-09-08 03:38:172010-09-08 03:49:37 00:11:20 141 41.76 141 83.08 34.30 43
14PSMOB22010-09-08 03:59:362010-09-08 04:01:22 00:01:46 141 119.43 141 125.87 0.00 -
15PSMOB12010-09-08 05:44:072010-09-08 05:47:49 00:03:42 187 140.58 187 154.07 -1.20 -
16PSMOB12010-09-08 07:11:362010-09-08 07:24:36 00:13:00 233 99.62 233 147.02 -1.20 -
17PSRWB12010-09-08 07:30:202010-09-08 07:32:52 00:02:32 233 167.93 233 177.17 27.10 80
18PSRWB12010-09-08 07:36:382010-09-08 07:40:00 00:03:22 233 190.91 233 203.18 27.10 80
19PSRFBS2010-09-08 08:00:272010-09-08 08:02:43 00:02:16 233 277.76 233 286.03 34.30 7
20PSRFBD2010-09-08 08:37:192010-09-08 08:44:39 00:07:20 279 52.21 279 78.95 34.30 43
21AV2OBS2010-09-08 08:50:082010-09-08 09:02:26 00:12:18 279 98.95 279 143.80 0.00 -
22PSMOB12010-09-08 08:55:012010-09-08 08:58:53 00:03:52 279 116.76 279 130.86 -1.20 -
23PSRWB12010-09-08 09:06:262010-09-08 09:08:20 00:01:54 279 158.39 279 165.32 27.10 80
24PSMOB12010-09-08 09:13:552010-09-08 09:19:39 00:05:44 279 185.68 279 206.59 -1.20 -
25AV2OBS2010-09-08 09:14:422010-09-08 09:19:02 00:04:20 279 188.54 279 204.34 0.00 -
26PSRFBD2010-09-08 10:14:332010-09-08 10:16:25 00:01:52 325 46.80 325 53.61 34.30 43
27AV2OBS2010-09-08 10:30:372010-09-08 10:40:43 00:10:06 325 105.39 325 142.22 0.00 -
28PSMOB12010-09-08 10:32:212010-09-08 10:41:29 00:09:08 325 111.71 325 145.02 -1.20 -
29AV2OBS2010-09-08 10:50:402010-09-08 10:52:32 00:01:52 325 178.45 325 185.25 0.00 -
30PSRWB12010-09-08 11:11:402010-09-08 11:16:16 00:04:36 325 255.09 325 271.86 27.10 80
31PSRFBD2010-09-08 11:26:112010-09-08 11:30:55 00:04:44 325 308.03 325 325.29 34.30 43
32PSRFBD2010-09-08 11:53:002010-09-08 12:03:32 00:10:32 371 45.83 371 84.24 34.30 43
33PSRFBS2010-09-08 12:18:112010-09-08 12:20:03 00:01:52 371 137.66 371 144.47 34.30 7
34PSRFBD2010-09-08 13:07:502010-09-08 13:19:06 00:11:16 371 318.73 371 359.81 34.30 43
35PSRFBS2010-09-08 13:27:152010-09-08 13:29:37 00:02:22 417 29.54 417 38.17 34.30 7
36PSRFBD2010-09-08 13:32:472010-09-08 13:40:01 00:07:14 417 49.72 417 76.10 34.30 43
37PSRWB12010-09-08 13:43:122010-09-08 13:46:40 00:03:28 417 87.70 417 100.35 27.10 80
38PSMOB12010-09-08 13:45:562010-09-08 13:50:48 00:04:52 417 97.67 417 115.42 -1.20 -
39AV2OBS2010-09-08 13:46:532010-09-08 13:51:13 00:04:20 417 101.14 417 116.94 0.00 -
40AV2OBS2010-09-08 14:10:122010-09-08 14:24:22 00:14:10 417 186.17 417 237.83 0.00 -
41PSRFBS2010-09-08 14:36:442010-09-08 14:38:58 00:02:14 417 282.93 417 291.07 34.30 7
42PSRFBD2010-09-08 14:47:302010-09-08 15:00:22 00:12:52 417 322.19 463 9.12 34.30 43
43PSRFBD2010-09-08 15:07:542010-09-08 15:19:22 00:11:28 463 36.59 463 78.40 34.30 43
44AV2OBS2010-09-08 15:23:222010-09-08 15:28:40 00:05:18 463 92.99 463 112.32 0.00 -
45AV2OBS2010-09-08 15:30:172010-09-08 15:36:11 00:05:54 463 118.15 463 139.67 0.00 -
46PSMOB12010-09-08 15:33:352010-09-08 15:36:59 00:03:24 463 130.25 463 142.65 -1.20 -
47AV2OBS2010-09-08 15:39:332010-09-08 15:49:01 00:09:28 463 151.95 463 186.47 0.00 -
48PSRWB12010-09-08 16:07:192010-09-08 16:12:25 00:05:06 463 253.27 463 271.86 27.10 80
49PSRFBS2010-09-08 16:13:152010-09-08 16:18:13 00:04:58 463 274.90 463 293.02 34.30 7
50PSRFBD2010-09-08 16:45:352010-09-08 16:49:09 00:03:34 509 32.82 509 45.83 34.30 43
51PSRFBD2010-09-08 16:54:032010-09-08 16:58:27 00:04:24 509 63.70 509 79.74 34.30 43
52AV2OBS2010-09-08 17:05:122010-09-08 17:21:42 00:16:30 509 104.30 509 164.47 0.00 -
53PSRFBD2010-09-08 18:03:202010-09-08 18:05:12 00:01:52 509 316.35 509 323.16 34.30 43
54PSRFBD2010-09-08 18:21:132010-09-08 18:34:57 00:13:44 555 21.58 555 71.66 34.30 43
55AV2OBS2010-09-08 18:39:492010-09-08 18:55:11 00:15:22 555 89.35 555 145.38 0.00 -
56PSMOB12010-09-08 18:48:102010-09-08 18:55:52 00:07:42 555 119.86 555 147.94 -1.20 -
57PSRFBD2010-09-08 19:46:202010-09-08 19:51:10 00:04:50 555 331.91 555 349.54 34.30 43
58PSRFBD2010-09-08 19:55:302010-09-08 20:00:28 00:04:58 601 5.35 601 23.46 34.30 43
59PSRFBD2010-09-08 20:04:582010-09-08 20:14:32 00:09:34 601 39.87 601 74.76 34.30 43
60PSMOB12010-09-08 20:17:452010-09-08 20:28:23 00:10:38 601 86.49 601 125.27 -1.20 -
61AV2OBS2010-09-08 20:21:432010-09-08 20:28:05 00:06:22 601 101.01 601 124.23 0.00 -
62PSRFBS2010-09-08 20:37:022010-09-08 20:38:54 00:01:52 601 156.81 601 163.62 34.30 7
63AV2OBS2010-09-08 20:37:302010-09-08 20:39:22 00:01:52 601 158.51 601 165.32 -34.30 -
64AV2OBS2010-09-08 20:43:512010-09-08 20:46:11 00:02:20 601 181.67 601 190.18 0.00 -
65AV2OBS2010-09-08 20:48:052010-09-08 20:49:57 00:01:52 601 197.11 601 203.91 0.00 -
66PSMOB22010-09-08 20:48:052010-09-08 20:50:43 00:02:38 601 197.11 601 206.71 0.00 -
67PSRWB12010-09-08 21:02:462010-09-08 21:08:36 00:05:50 601 250.65 601 271.93 27.10 80
68PSRFBD2010-09-08 21:22:102010-09-08 21:26:44 00:04:34 601 321.40 601 338.05 34.30 43
69PSMOB12010-09-08 21:56:302010-09-08 21:59:06 00:02:36 647 86.61 647 96.09 -1.20 -
70AV2OBS2010-09-08 21:57:152010-09-08 21:59:07 00:01:52 647 89.35 647 96.15 0.00 -
71PSMOB12010-09-08 22:00:592010-09-08 22:08:13 00:07:14 647 102.96 647 129.34 -1.20 -
72AV2OBS2010-09-08 22:01:452010-09-08 22:07:57 00:06:12 647 105.76 647 128.37 0.00 -
73PSRFBD2010-09-08 23:09:532010-09-08 23:16:35 00:06:42 647 354.22 22 18.66 34.30 43
74PSRWB12010-09-08 23:29:302010-09-08 23:36:56 00:07:26 22 65.76 22 92.87 27.10 80
75PSMOB12010-09-08 23:40:522010-09-08 23:44:28 00:03:36 22 107.21 22 120.34 -1.20 -
76AV2OBS2010-09-08 23:45:152010-09-08 23:47:07 00:01:52 22 123.20 22 130.01 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
3 -1.366542010-09-07 22:30:40166.293672010-09-07 23:20:02
49-26.046122010-09-08 00:09:23141.614092010-09-08 00:58:45
95-50.725702010-09-08 01:48:06116.934512010-09-08 02:37:28
141-75.405292010-09-08 03:26:50 92.254922010-09-08 04:16:11
187-100.084872010-09-08 05:05:33 67.575342010-09-08 05:54:54
233-124.764452010-09-08 06:44:16 42.895762010-09-08 07:33:37
279-149.444032010-09-08 08:22:59 18.216172010-09-08 09:12:20
325-174.123622010-09-08 10:01:42 -6.463412010-09-08 10:51:04
371161.196802010-09-08 11:40:25-31.142992010-09-08 12:29:47
417136.517222010-09-08 13:19:08-55.822572010-09-08 14:08:30
463111.837632010-09-08 14:57:51-80.502162010-09-08 15:47:13
509 87.158052010-09-08 16:36:34-105.181742010-09-08 17:25:56
555 62.478472010-09-08 18:15:17-129.861322010-09-08 19:04:39
601 37.798892010-09-08 19:54:01-154.540902010-09-08 20:43:22
647 13.119302010-09-08 21:32:44-179.220492010-09-08 22:22:05
22-11.560282010-09-08 23:11:27156.099932010-09-09 00:00:48
