>ALOS Data Take Simulation(Aug. 25, 2010)

Observation Area

PRISM

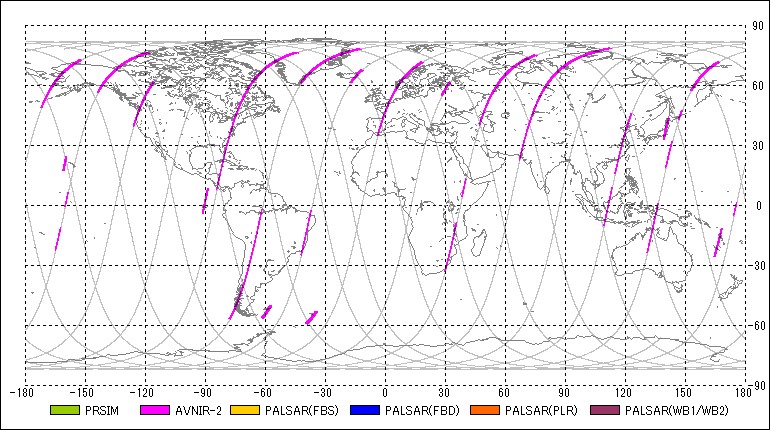

AVNIR-2

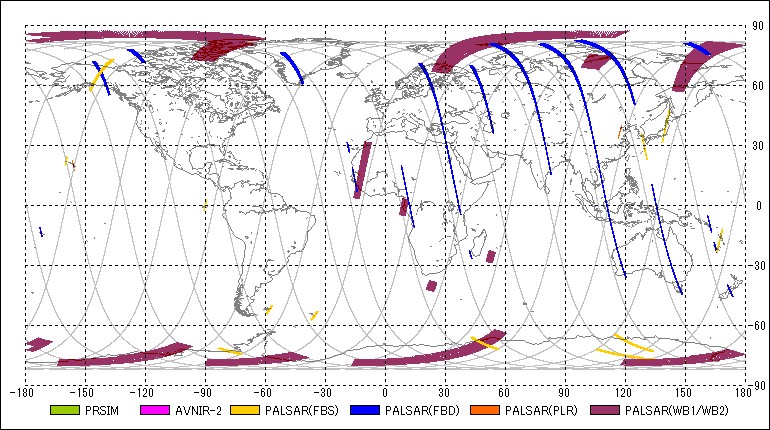

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2010-08-25 00:47:002010-08-25 00:52:06 00:05:06 59 58.83 59 77.43 34.30 43
2PSRWB12010-08-25 00:53:182010-08-25 01:04:48 00:11:30 59 81.81 59 123.75 27.10 80
3PSMOB12010-08-25 00:59:242010-08-25 01:05:02 00:05:38 59 103.99 59 124.54 -1.20 -
4AV2OBS2010-08-25 01:00:052010-08-25 01:04:17 00:04:12 59 106.55 59 121.86 0.00 -
5PSRFBS2010-08-25 01:06:552010-08-25 01:11:55 00:05:00 59 131.46 59 149.70 34.30 7
6AV2OBS2010-08-25 01:07:072010-08-25 01:14:47 00:07:40 59 132.19 59 160.15 0.00 -
7PSMOB22010-08-25 01:16:562010-08-25 01:27:04 00:10:08 59 167.99 59 204.95 0.00 -
8AV2OBS2010-08-25 01:19:572010-08-25 01:26:47 00:06:50 59 178.93 59 203.85 0.00 -
9PSMOB22010-08-25 02:37:552010-08-25 02:53:43 00:15:48 105 103.32 105 160.94 0.00 -
10AV2OBS2010-08-25 02:46:132010-08-25 02:54:32 00:08:19 105 133.53 105 163.86 0.00 -
11PSRPLR2010-08-25 02:47:332010-08-25 02:49:59 00:02:26 105 138.45 105 147.33 21.50 127
12AV2OBS2010-08-25 02:56:312010-08-25 03:01:43 00:05:12 105 171.15 105 190.12 0.00 -
13PSMOB22010-08-25 02:57:112010-08-25 03:02:27 00:05:16 105 173.58 105 192.79 0.00 -
14PSRWB12010-08-25 04:16:282010-08-25 04:19:00 00:02:32 151 102.72 151 111.95 27.10 80
15PSMOB22010-08-25 04:18:112010-08-25 04:32:47 00:14:36 151 108.98 151 162.22 0.00 -
16PSRWB12010-08-25 04:55:122010-08-25 05:02:54 00:07:42 151 243.97 151 272.05 27.10 80
17PSRFBD2010-08-25 05:46:142010-08-25 05:48:40 00:02:26 197 70.08 197 78.95 34.30 43
18PSMOB12010-08-25 05:53:112010-08-25 06:10:59 00:17:48 197 95.36 197 160.27 -1.20 -
19AV2OBS2010-08-25 05:53:572010-08-25 06:10:15 00:16:18 197 98.16 197 157.60 0.00 -
20PSRWB12010-08-25 06:22:302010-08-25 06:24:38 00:02:08 197 202.27 197 210.05 27.10 80
21PSRFBS2010-08-25 06:43:112010-08-25 06:45:03 00:01:52 197 277.76 197 284.57 34.30 7
22PSRFBD2010-08-25 07:20:202010-08-25 07:25:44 00:05:24 243 53.18 243 72.87 34.30 43
23PSMOB12010-08-25 07:33:122010-08-25 07:44:52 00:11:40 243 100.10 243 142.65 -1.20 -
24AV2OBS2010-08-25 07:33:532010-08-25 07:44:03 00:10:10 243 102.59 243 139.67 0.00 -
25AV2OBS2010-08-25 07:51:282010-08-25 07:53:56 00:02:28 243 166.72 243 175.71 0.00 -
26PSMOB12010-08-25 07:56:432010-08-25 08:04:59 00:08:16 243 185.86 243 216.01 -1.20 -
27AV2OBS2010-08-25 07:57:262010-08-25 08:04:14 00:06:48 243 188.54 243 213.33 0.00 -
28PSRWB12010-08-25 08:05:262010-08-25 08:07:18 00:01:52 243 217.65 243 224.46 27.10 80
29PSRPLR2010-08-25 08:48:382010-08-25 08:50:44 00:02:06 289 15.26 289 22.91 26.20 131
30PSRWB12010-08-25 09:08:302010-08-25 09:15:42 00:07:12 289 87.64 289 113.90 27.10 80
31AV2OBS2010-08-25 09:16:392010-08-25 09:18:37 00:01:58 289 117.36 289 124.54 0.00 -
32PSRWB12010-08-25 09:32:452010-08-25 09:35:33 00:02:48 289 176.08 289 186.29 27.10 80
33PSRWB12010-08-25 09:55:202010-08-25 09:59:00 00:03:40 289 258.49 289 271.86 27.10 80
34PSRFBD2010-08-25 10:18:122010-08-25 10:20:04 00:01:52 289 341.82 289 348.63 34.30 43
35PSRFBD2010-08-25 10:43:302010-08-25 10:45:50 00:02:20 335 74.09 335 82.60 34.30 43
36PSMOB12010-08-25 10:51:452010-08-25 11:02:55 00:11:10 335 104.18 335 144.90 -1.20 -
37AV2OBS2010-08-25 10:52:242010-08-25 11:02:58 00:10:34 335 106.61 335 145.14 0.00 -
38PSRWB12010-08-25 11:03:332010-08-25 11:11:56 00:08:23 335 147.21 335 177.78 27.10 80
39PSRFBS2010-08-25 11:27:122010-08-25 11:29:04 00:01:52 335 233.45 335 240.26 34.30 7
40AV2OBS2010-08-25 11:27:402010-08-25 11:29:32 00:01:52 335 235.15 335 241.96 -34.30 -
41PSRFBD2010-08-25 11:48:312010-08-25 11:50:55 00:02:24 335 311.19 335 319.94 34.30 43
42PSRFBD2010-08-25 11:54:422010-08-25 11:56:44 00:02:02 335 333.74 335 341.15 34.30 43
43PSRFBD2010-08-25 11:57:302010-08-25 12:00:26 00:02:56 335 343.95 335 354.65 34.30 43
44AV2OBS2010-08-25 12:32:202010-08-25 12:34:12 00:01:52 381 110.98 381 117.79 0.00 -
45PSMOB12010-08-25 12:51:072010-08-25 12:58:51 00:07:44 381 179.54 381 207.74 -1.20 -
46AV2OBS2010-08-25 12:51:532010-08-25 12:58:07 00:06:14 381 182.34 381 205.07 0.00 -
47PSRFBS2010-08-25 13:05:022010-08-25 13:06:54 00:01:52 381 230.23 381 237.04 34.30 7
48AV2OBS2010-08-25 13:05:302010-08-25 13:07:22 00:01:52 381 231.93 381 238.74 -34.30 -
49PSRFBD2010-08-25 13:27:272010-08-25 13:43:31 00:16:04 381 311.98 427 10.58 34.30 43
50PSRFBS2010-08-25 13:46:162010-08-25 13:50:32 00:04:16 427 20.60 427 36.16 34.30 7
51PSRFBD2010-08-25 13:53:502010-08-25 14:03:42 00:09:52 427 48.20 427 84.18 34.30 43
52AV2OBS2010-08-25 14:07:402010-08-25 14:12:58 00:05:18 427 98.64 427 117.97 0.00 -
53AV2OBS2010-08-25 14:30:322010-08-25 14:45:46 00:15:14 427 182.03 427 237.59 0.00 -
54PSRWB12010-08-25 14:49:342010-08-25 14:55:10 00:05:36 427 251.44 427 271.86 27.10 80
55PSRFBD2010-08-25 15:08:332010-08-25 15:41:51 00:33:18 427 320.67 473 82.11 34.30 43
56AV2OBS2010-08-25 15:47:012010-08-25 16:10:01 00:23:00 473 100.95 473 184.83 0.00 -
57PSRFBS2010-08-25 16:07:392010-08-25 16:09:49 00:02:10 473 176.20 473 184.10 34.30 7
58PSRFBS2010-08-25 16:36:092010-08-25 16:39:45 00:03:36 473 280.07 473 293.20 34.30 7
59PSRFBD2010-08-25 17:01:402010-08-25 17:20:34 00:18:54 519 13.19 519 82.11 34.30 43
60PSMOB12010-08-25 17:21:472010-08-25 17:42:59 00:21:12 519 86.49 519 163.80 -1.20 -
61PSRWB12010-08-25 17:24:142010-08-25 17:27:36 00:03:22 519 95.48 519 107.76 27.10 80
62PSRFBS2010-08-25 18:11:252010-08-25 18:15:53 00:04:28 519 267.55 519 283.84 34.30 7
63PSRFBD2010-08-25 18:45:582010-08-25 18:56:10 00:10:12 565 33.55 565 70.75 34.30 43
64PSMOB12010-08-25 19:05:172010-08-25 19:15:51 00:10:34 565 103.99 565 142.53 -1.20 -
65AV2OBS2010-08-25 19:08:572010-08-25 19:15:15 00:06:18 565 117.36 565 140.34 0.00 -
66PSRWB12010-08-25 19:44:552010-08-25 19:51:33 00:06:38 565 248.53 565 272.72 27.10 80
67PSRFBD2010-08-25 20:07:242010-08-25 20:09:16 00:01:52 565 330.52 565 337.32 34.30 43
68PSRFBD2010-08-25 20:13:302010-08-25 20:35:12 00:21:42 565 352.76 611 71.90 34.30 43
69AV2OBS2010-08-25 20:43:112010-08-25 20:49:11 00:06:00 611 101.01 611 122.90 0.00 -
70PSRFBS2010-08-25 20:44:092010-08-25 20:49:19 00:05:10 611 104.54 611 123.38 21.50 3
71PSRFBS2010-08-25 20:57:572010-08-25 20:59:49 00:01:52 611 154.80 611 161.61 34.30 7
72AV2OBS2010-08-25 20:58:252010-08-25 21:00:17 00:01:52 611 156.51 611 163.31 -34.30 -
73AV2OBS2010-08-25 21:03:072010-08-25 21:04:59 00:01:52 611 173.71 611 180.51 0.00 -
74PSMOB22010-08-25 21:03:072010-08-25 21:05:01 00:01:54 611 173.71 611 180.64 0.00 -
75AV2OBS2010-08-25 21:07:582010-08-25 21:11:02 00:03:04 611 191.33 611 202.52 0.00 -
76PSMOB22010-08-25 21:09:102010-08-25 21:11:08 00:01:58 611 195.71 611 202.88 0.00 -
77PSRFBS2010-08-25 21:32:402010-08-25 21:35:22 00:02:42 611 281.47 611 291.31 34.30 7
78PSRFBD2010-08-25 21:50:272010-08-25 21:59:41 00:09:14 611 346.32 657 19.94 34.30 43
79PSMOB12010-08-25 22:17:492010-08-25 22:20:33 00:02:44 657 86.06 657 96.03 -1.20 -
80PSMOB12010-08-25 22:22:202010-08-25 22:30:06 00:07:46 657 102.59 657 130.92 -1.20 -
81AV2OBS2010-08-25 22:23:062010-08-25 22:30:04 00:06:58 657 105.39 657 130.80 0.00 -
82AV2OBS2010-08-25 22:43:062010-08-25 22:44:58 00:01:52 657 178.33 657 185.13 0.00 -
83PSRFBS2010-08-25 22:46:352010-08-25 22:50:25 00:03:50 657 191.03 657 205.01 34.30 7
84AV2OBS2010-08-25 22:47:042010-08-25 22:50:54 00:03:50 657 192.73 657 206.71 -34.30 -
85PSRFBD2010-08-25 23:34:092010-08-25 23:38:07 00:03:58 32 4.50 32 18.96 34.30 43
86PSRFBD2010-08-25 23:39:312010-08-25 23:41:37 00:02:06 32 24.01 32 31.67 34.30 43

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
13 -6.731662010-08-24 22:52:08160.928542010-08-24 23:41:29
59-31.411252010-08-25 00:30:51136.248962010-08-25 01:20:13
105-56.090832010-08-25 02:09:34111.569382010-08-25 02:58:56
151-80.770412010-08-25 03:48:17 86.889802010-08-25 04:37:39
197-105.450002010-08-25 05:27:00 62.210212010-08-25 06:16:22
243-130.129582010-08-25 07:05:43 37.530632010-08-25 07:55:05
289-154.809162010-08-25 08:44:27 12.851052010-08-25 09:33:48
335-179.488742010-08-25 10:23:10-11.828542010-08-25 11:12:31
381155.831672010-08-25 12:01:53-36.508122010-08-25 12:51:14
427131.152092010-08-25 13:40:36-61.187702010-08-25 14:29:57
473106.472512010-08-25 15:19:19-85.867282010-08-25 16:08:40
519 81.792932010-08-25 16:58:02-110.546872010-08-25 17:47:24
565 57.113342010-08-25 18:36:45-135.226452010-08-25 19:26:07
611 32.433762010-08-25 20:15:28-159.906032010-08-25 21:04:50
657 7.754182010-08-25 21:54:11175.414392010-08-25 22:43:33
32-16.925412010-08-25 23:32:54150.734802010-08-26 00:22:16
