>ALOS Data Take Simulation(Aug. 09, 2010)

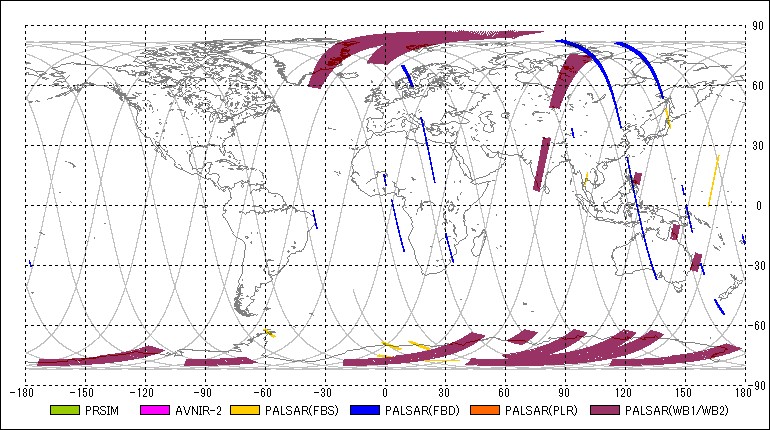

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2010-08-09 00:04:13	2010-08-09 00:06:07	00:01:54	31	121.92	31	128.85	0.00	-
2	PSM	OB2	2010-08-09 00:17:13	2010-08-09 00:32:13	00:15:00	31	169.33	31	224.03	0.00	-
3	PSR	WB1	2010-08-09 00:22:33	2010-08-09 00:25:09	00:02:36	31	188.84	31	198.32	27.10	80
4	PSR	WB1	2010-08-09 00:37:39	2010-08-09 00:45:45	00:08:06	31	243.85	31	273.38	27.10	80
5	PSR	FBS	2010-08-09 00:47:57	2010-08-09 00:49:53	00:01:56	31	281.41	31	288.46	34.30	7
6	PSR	FBD	2010-08-09 01:05:40	2010-08-09 01:08:50	00:03:10	31	346.01	31	357.56	34.30	43
7	AV2	OBS	2010-08-09 01:38:27	2010-08-09 01:52:39	00:14:12	77	105.57	77	157.36	0.00	-
8	PSM	OB2	2010-08-09 01:43:20	2010-08-09 01:50:50	00:07:30	77	123.38	77	150.73	0.00	-
9	PSR	WB1	2010-08-09 01:54:06	2010-08-09 01:56:14	00:02:08	77	162.64	77	170.42	27.10	80
10	PSM	OB2	2010-08-09 01:56:42	2010-08-09 02:09:50	00:13:08	77	172.13	77	220.02	0.00	-
11	PSR	WB1	2010-08-09 02:16:22	2010-08-09 02:21:52	00:05:30	77	243.85	77	263.90	27.10	80
12	PSR	FBS	2010-08-09 02:22:41	2010-08-09 02:25:59	00:03:18	77	266.88	77	278.91	34.30	7
13	AV2	OBS	2010-08-09 03:16:49	2010-08-09 03:40:12	00:23:23	123	104.30	123	189.57	0.00	-
14	PSR	FBS	2010-08-09 03:32:49	2010-08-09 03:35:05	00:02:16	123	162.64	123	170.91	34.30	7
15	PSM	OB2	2010-08-09 03:35:31	2010-08-09 03:40:01	00:04:30	123	172.49	123	188.90	0.00	-
16	PSR	WB1	2010-08-09 03:55:06	2010-08-09 03:57:32	00:02:26	123	243.91	123	252.78	27.10	80
17	PSR	FBS	2010-08-09 04:07:31	2010-08-09 04:09:23	00:01:52	123	289.19	123	295.99	34.30	7
18	PSR	WB1	2010-08-09 04:55:05	2010-08-09 05:03:11	00:08:06	169	102.66	169	132.19	27.10	80
19	PSM	OB1	2010-08-09 04:56:30	2010-08-09 05:15:02	00:18:32	169	107.82	169	175.41	-1.20	-
20	PSR	WB1	2010-08-09 05:06:45	2010-08-09 05:14:37	00:07:52	169	145.20	169	173.89	27.10	80
21	PSR	WB1	2010-08-09 05:34:14	2010-08-09 05:41:16	00:07:02	169	245.43	169	271.07	27.10	80
22	AV2	OBS	2010-08-09 06:42:41	2010-08-09 06:46:53	00:04:12	215	134.99	215	150.31	0.00	-
23	AV2	OBS	2010-08-09 06:58:07	2010-08-09 06:59:59	00:01:52	215	191.33	215	198.14	-34.30	-
24	PSM	OB1	2010-08-09 08:15:48	2010-08-09 08:22:36	00:06:48	261	114.63	261	139.43	-1.20	-
25	AV2	OBS	2010-08-09 08:16:44	2010-08-09 08:21:52	00:05:08	261	118.03	261	136.75	0.00	-
26	AV2	OBS	2010-08-09 09:55:17	2010-08-09 09:57:45	00:02:28	307	117.36	307	126.36	0.00	-
27	PSR	WB1	2010-08-09 10:35:09	2010-08-09 10:37:41	00:02:32	307	262.81	307	272.05	27.10	80
28	PSR	FBD	2010-08-09 10:52:36	2010-08-09 10:54:04	00:01:28	307	326.44	307	331.79	34.30	43
29	PSR	FBD	2010-08-09 10:55:44	2010-08-09 10:57:42	00:01:58	307	337.87	307	345.04	34.30	43
30	PSR	WB1	2010-08-09 11:26:37	2010-08-09 11:31:47	00:05:10	353	90.50	353	109.34	27.10	80
31	PSM	OB1	2010-08-09 11:32:48	2010-08-09 11:35:18	00:02:30	353	112.99	353	122.10	-1.20	-
32	AV2	OBS	2010-08-09 11:33:34	2010-08-09 11:37:26	00:03:52	353	115.78	353	129.88	0.00	-
33	PSR	FBD	2010-08-09 12:24:30	2010-08-09 12:27:22	00:02:52	353	301.59	353	312.04	34.30	43
34	PSR	FBD	2010-08-09 12:30:13	2010-08-09 12:32:25	00:02:12	353	322.43	353	330.46	34.30	43
35	PSR	FBD	2010-08-09 12:36:08	2010-08-09 12:40:32	00:04:24	353	344.01	399	0.06	34.30	43
36	PSR	FBD	2010-08-09 12:41:17	2010-08-09 12:43:17	00:02:00	399	2.80	399	10.09	34.30	43
37	PSR	FBS	2010-08-09 12:50:27	2010-08-09 12:53:49	00:03:22	399	36.22	399	48.50	34.30	7
38	PSR	FBD	2010-08-09 12:54:34	2010-08-09 13:03:12	00:08:38	399	51.24	399	82.72	34.30	43
39	PSR	WB1	2010-08-09 13:04:19	2010-08-09 13:13:54	00:09:35	399	86.79	399	121.74	27.10	80
40	PSM	OB1	2010-08-09 13:10:05	2010-08-09 13:13:01	00:02:56	399	107.82	399	118.52	-1.20	-
41	AV2	OBS	2010-08-09 13:10:47	2010-08-09 13:12:41	00:01:54	399	110.31	399	117.24	0.00	-
42	AV2	OBS	2010-08-09 13:29:39	2010-08-09 13:39:57	00:10:18	399	179.12	399	216.68	0.00	-
43	PSR	FBD	2010-08-09 14:08:13	2010-08-09 14:25:51	00:17:38	399	319.76	445	24.07	34.30	43
44	PSR	FBD	2010-08-09 14:29:16	2010-08-09 14:42:20	00:13:04	445	36.53	445	84.18	34.30	43
45	PSM	OB1	2010-08-09 14:49:54	2010-08-09 14:57:06	00:07:12	445	111.83	445	138.09	-1.20	-
46	AV2	OBS	2010-08-09 14:53:14	2010-08-09 14:56:24	00:03:10	445	123.99	445	135.54	0.00	-
47	AV2	OBS	2010-08-09 15:02:24	2010-08-09 15:14:12	00:11:48	445	157.36	445	200.39	0.00	-
48	PSR	WB1	2010-08-09 15:28:52	2010-08-09 15:33:50	00:04:58	445	253.87	445	271.99	27.10	80
49	PSR	FBD	2010-08-09 16:06:41	2010-08-09 16:08:33	00:01:52	491	31.79	491	38.59	34.30	43
50	AV2	OBS	2010-08-09 16:40:40	2010-08-09 16:43:44	00:03:04	491	155.72	491	166.90	0.00	-
51	AV2	OBS	2010-08-09 19:39:38	2010-08-09 19:51:28	00:11:50	583	88.37	583	131.53	0.00	-
52	PSM	OB1	2010-08-09 19:43:55	2010-08-09 19:51:25	00:07:30	583	103.99	583	131.34	-1.20	-
53	PSR	WB1	2010-08-09 20:24:39	2010-08-09 20:29:57	00:05:18	583	252.54	583	271.86	27.10	80
54	PSR	FBD	2010-08-09 20:45:29	2010-08-09 20:50:11	00:04:42	583	328.51	583	345.65	34.30	43
55	PSR	FBD	2010-08-09 20:56:37	2010-08-09 21:06:13	00:09:36	629	9.12	629	44.13	34.30	43
56	PSR	FBD	2010-08-09 21:09:51	2010-08-09 21:13:29	00:03:38	629	57.38	629	70.63	34.30	43
57	PSM	OB1	2010-08-09 21:17:52	2010-08-09 21:28:48	00:10:56	629	86.61	629	126.48	-1.20	-
58	AV2	OBS	2010-08-09 21:23:17	2010-08-09 21:27:59	00:04:42	629	106.36	629	123.50	0.00	-
59	PSR	FBD	2010-08-09 22:25:43	2010-08-09 22:33:29	00:07:46	629	334.04	4	2.37	41.50	46
60	PSR	FBD	2010-08-09 22:34:54	2010-08-09 22:37:06	00:02:12	4	7.54	4	15.56	34.30	43
61	PSM	OB1	2010-08-09 23:02:07	2010-08-09 23:09:21	00:07:14	4	106.79	4	133.17	-1.20	-
62	AV2	OBS	2010-08-09 23:07:16	2010-08-09 23:09:08	00:01:52	4	125.57	4	132.38	0.00	-
63	PSR	FBS	2010-08-09 23:15:02	2010-08-09 23:22:48	00:07:46	4	153.83	4	182.15	34.30	7
64	AV2	OBS	2010-08-09 23:17:31	2010-08-09 23:19:23	00:01:52	4	162.89	4	169.69	0.00	-
65	PSR	WB1	2010-08-09 23:28:38	2010-08-09 23:31:36	00:02:58	4	203.43	4	214.25	27.10	80
66	AV2	OBS	2010-08-09 23:30:11	2010-08-09 23:32:03	00:01:52	4	209.14	4	215.95	0.00	-
67	PSR	WB1	2010-08-09 23:39:53	2010-08-09 23:47:27	00:07:34	4	244.51	4	272.11	27.10	80
68	PSR	FBS	2010-08-09 23:50:02	2010-08-09 23:52:04	00:02:02	4	281.53	4	288.94	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
31	-16.38889	2010-08-08 23:30:46	151.27132	2010-08-09 00:20:07
77	-41.06848	2010-08-09 01:09:29	126.59173	2010-08-09 01:58:50
123	-65.74806	2010-08-09 02:48:12	101.91215	2010-08-09 03:37:33
169	-90.42764	2010-08-09 04:26:55	77.23257	2010-08-09 05:16:17
215	-115.10722	2010-08-09 06:05:38	52.55299	2010-08-09 06:55:00
261	-139.78681	2010-08-09 07:44:21	27.87340	2010-08-09 08:33:43
307	-164.46639	2010-08-09 09:23:04	3.19382	2010-08-09 10:12:26
353	170.85403	2010-08-09 11:01:47	-21.48576	2010-08-09 11:51:09
399	146.17445	2010-08-09 12:40:30	-46.16535	2010-08-09 13:29:52
445	121.49486	2010-08-09 14:19:14	-70.84493	2010-08-09 15:08:35
491	96.81528	2010-08-09 15:57:57	-95.52451	2010-08-09 16:47:18
537	72.13570	2010-08-09 17:36:40	-120.20409	2010-08-09 18:26:01
583	47.45611	2010-08-09 19:15:23	-144.88368	2010-08-09 20:04:44
629	22.77653	2010-08-09 20:54:06	-169.56326	2010-08-09 21:43:28
4	-1.90305	2010-08-09 22:32:49	165.75716	2010-08-09 23:22:11
