>ALOS Data Take Simulation(Jul. 25, 2010)

Observation Area

PRISM

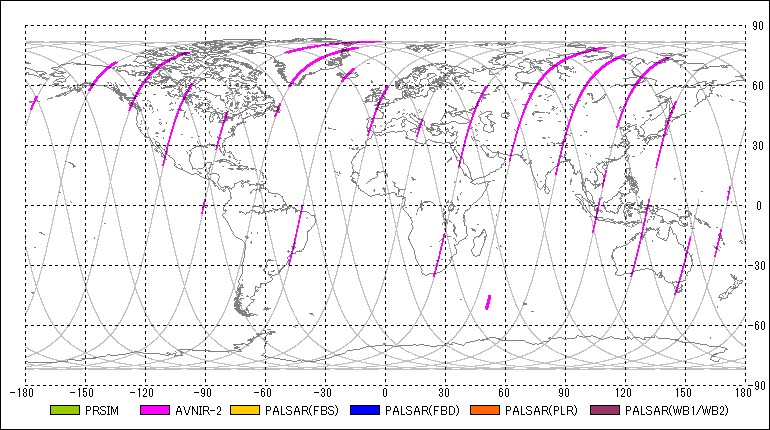

AVNIR-2

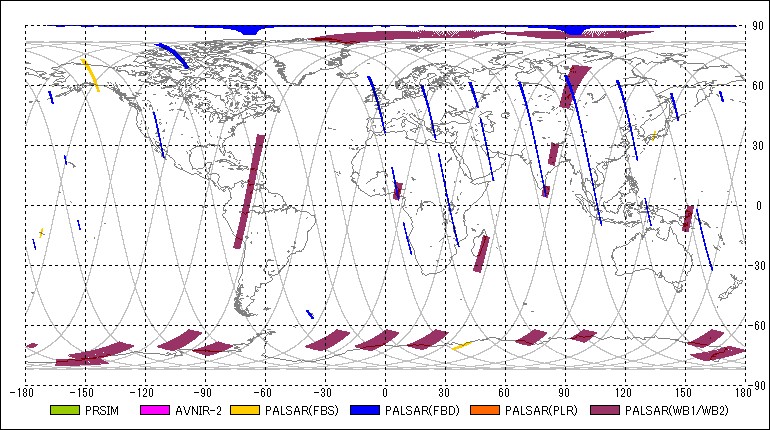

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-07-25 00:00:39	2010-07-25 00:04:45	00:04:06	22	179.36	22	194.31	27.10	80
2	AV2	OBS	2010-07-25 00:05:10	2010-07-25 00:13:13	00:08:03	22	195.83	22	225.19	0.00	-
3	PSM	OB2	2010-07-25 00:05:12	2010-07-25 00:14:08	00:08:56	22	195.95	22	228.53	0.00	-
4	PSM	OB2	2010-07-25 01:19:17	2010-07-25 01:35:11	00:15:54	68	106.12	68	164.10	0.00	-
5	AV2	OBS	2010-07-25 01:25:07	2010-07-25 01:34:21	00:09:14	68	127.39	68	161.06	0.00	-
6	PSR	FBS	2010-07-25 01:29:05	2010-07-25 01:30:57	00:01:52	68	141.86	68	148.67	34.30	7
7	PSM	OB2	2010-07-25 01:37:33	2010-07-25 01:50:37	00:13:04	68	172.73	68	220.38	0.00	-
8	AV2	OBS	2010-07-25 01:38:42	2010-07-25 01:49:24	00:10:42	68	176.93	68	215.95	0.00	-
9	PSR	WB1	2010-07-25 01:57:03	2010-07-25 01:59:07	00:02:04	68	243.85	68	251.38	27.10	80
10	PSR	FBD	2010-07-25 02:12:20	2010-07-25 02:14:12	00:01:52	68	299.58	68	306.39	34.30	43
11	PSR	FBD	2010-07-25 02:51:49	2010-07-25 02:54:05	00:02:16	114	83.57	114	91.84	49.00	51
12	AV2	OBS	2010-07-25 02:57:25	2010-07-25 03:07:33	00:10:08	114	103.99	114	140.95	0.00	-
13	AV2	OBS	2010-07-25 03:13:24	2010-07-25 03:15:49	00:02:25	114	162.28	114	171.09	0.00	-
14	AV2	OBS	2010-07-25 03:17:22	2010-07-25 03:21:58	00:04:36	114	176.75	114	193.52	0.00	-
15	PSM	OB2	2010-07-25 03:17:32	2010-07-25 03:21:40	00:04:08	114	177.35	114	192.43	0.00	-
16	PSR	WB1	2010-07-25 03:35:47	2010-07-25 03:38:23	00:02:36	114	243.91	114	253.39	27.10	80
17	PSR	FBD	2010-07-25 04:25:59	2010-07-25 04:30:07	00:04:08	160	66.98	160	82.05	34.30	43
18	PSM	OB1	2010-07-25 04:34:58	2010-07-25 04:52:38	00:17:40	160	99.74	160	164.16	1.20	-
19	AV2	OBS	2010-07-25 04:35:44	2010-07-25 04:52:42	00:16:58	160	102.53	160	164.41	0.00	-
20	PSR	WB1	2010-07-25 04:37:22	2010-07-25 04:43:50	00:06:28	160	108.49	160	132.07	27.10	80
21	PSR	WB1	2010-07-25 04:48:17	2010-07-25 04:51:43	00:03:26	160	148.30	160	160.82	27.10	80
22	PSR	WB1	2010-07-25 04:54:04	2010-07-25 04:56:08	00:02:04	160	169.39	160	176.93	27.10	80
23	PSR	FBS	2010-07-25 05:16:21	2010-07-25 05:18:13	00:01:52	160	250.65	160	257.46	34.30	7
24	PSR	FBD	2010-07-25 05:52:16	2010-07-25 05:59:12	00:06:56	206	21.64	206	46.92	34.30	43
25	AV2	OBS	2010-07-25 06:13:06	2010-07-25 06:29:40	00:16:34	206	97.55	206	157.96	0.00	-
26	PSM	OB1	2010-07-25 06:15:33	2010-07-25 06:30:05	00:14:32	206	106.48	206	159.48	1.20	-
27	PSR	WB1	2010-07-25 06:39:42	2010-07-25 06:45:16	00:05:34	206	194.55	206	214.85	27.10	80
28	AV2	OBS	2010-07-25 06:47:56	2010-07-25 06:49:48	00:01:52	206	224.58	206	231.39	34.30	-
29	PSR	WB1	2010-07-25 06:53:13	2010-07-25 06:56:29	00:03:16	206	243.91	206	255.82	27.10	80
30	PSR	FBS	2010-07-25 07:40:08	2010-07-25 07:45:18	00:05:10	252	54.94	252	73.79	34.30	7
31	PSM	OB1	2010-07-25 07:53:26	2010-07-25 08:09:38	00:16:12	252	103.45	252	162.52	1.20	-
32	AV2	OBS	2010-07-25 07:57:54	2010-07-25 08:09:13	00:11:19	252	119.73	252	161.00	0.00	-
33	PSM	OB1	2010-07-25 08:16:02	2010-07-25 08:25:04	00:09:02	252	185.86	252	218.80	1.20	-
34	AV2	OBS	2010-07-25 08:18:13	2010-07-25 08:24:19	00:06:06	252	193.88	252	216.13	0.00	-
35	PSR	WB1	2010-07-25 08:31:56	2010-07-25 08:35:22	00:03:26	252	243.91	252	256.43	27.10	80
36	PSR	FBD	2010-07-25 08:59:47	2010-07-25 09:01:39	00:01:52	252	345.41	252	352.21	34.30	43
37	PSR	FBD	2010-07-25 09:08:43	2010-07-25 09:10:35	00:01:52	298	18.05	298	24.86	34.30	43
38	PSR	FBD	2010-07-25 09:17:13	2010-07-25 09:19:29	00:02:16	298	48.99	298	57.25	34.30	43
39	PSR	WB1	2010-07-25 09:27:33	2010-07-25 09:29:25	00:01:52	298	86.73	298	93.54	27.10	80
40	PSM	OB1	2010-07-25 09:32:32	2010-07-25 09:44:04	00:11:32	298	104.90	298	146.96	1.20	-
41	AV2	OBS	2010-07-25 09:41:10	2010-07-25 09:43:38	00:02:28	298	136.33	298	145.32	0.00	-
42	PSR	WB1	2010-07-25 09:49:48	2010-07-25 09:52:44	00:02:56	298	167.81	298	178.51	27.10	80
43	PSR	WB1	2010-07-25 10:10:39	2010-07-25 10:14:05	00:03:26	298	243.91	298	256.43	27.10	80
44	PSR	FBD	2010-07-25 10:35:46	2010-07-25 10:37:44	00:01:58	298	335.44	298	342.61	34.30	43
45	PSR	FBD	2010-07-25 10:56:12	2010-07-25 10:58:14	00:02:02	344	49.96	344	57.38	34.30	43
46	PSM	OB1	2010-07-25 11:14:46	2010-07-25 11:23:00	00:08:14	344	117.73	344	147.75	1.20	-
47	AV2	OBS	2010-07-25 11:15:16	2010-07-25 11:22:14	00:06:58	344	119.55	344	144.96	0.00	-
48	PSR	FBD	2010-07-25 12:11:33	2010-07-25 12:20:41	00:09:08	344	324.74	344	358.05	34.30	43
49	PSR	FBD	2010-07-25 12:32:14	2010-07-25 12:36:42	00:04:28	390	40.17	390	56.46	34.30	43
50	PSM	OB1	2010-07-25 12:50:47	2010-07-25 12:54:01	00:03:14	390	107.82	390	119.61	1.20	-
51	AV2	OBS	2010-07-25 12:51:28	2010-07-25 12:53:22	00:01:54	390	110.31	390	117.24	0.00	-
52	PSM	OB1	2010-07-25 13:09:57	2010-07-25 13:18:37	00:08:40	390	177.72	390	209.32	1.20	-
53	AV2	OBS	2010-07-25 13:10:42	2010-07-25 13:18:44	00:08:02	390	180.51	390	209.81	0.00	-
54	PSR	WB1	2010-07-25 13:30:06	2010-07-25 13:32:24	00:02:18	390	251.20	390	259.59	27.10	80
55	PSR	FBD	2010-07-25 13:56:30	2010-07-25 14:00:54	00:04:24	390	347.47	436	3.53	34.30	43
56	PSR	FBD	2010-07-25 14:05:28	2010-07-25 14:17:12	00:11:44	436	20.18	436	62.97	34.30	43
57	PSR	WB1	2010-07-25 14:23:44	2010-07-25 14:26:40	00:02:56	436	86.79	436	97.49	27.10	80
58	AV2	OBS	2010-07-25 14:26:44	2010-07-25 14:32:48	00:06:04	436	97.73	436	119.86	0.00	-
59	PSM	OB1	2010-07-25 14:34:28	2010-07-25 14:37:28	00:03:00	436	125.93	436	136.87	1.20	-
60	AV2	OBS	2010-07-25 14:35:11	2010-07-25 14:37:03	00:01:52	436	128.55	436	135.35	0.00	-
61	PSR	WB1	2010-07-25 14:39:18	2010-07-25 14:55:32	00:16:14	436	143.62	436	202.82	27.10	80
62	PSR	WB1	2010-07-25 15:06:48	2010-07-25 15:10:14	00:03:26	436	243.91	436	256.43	27.10	80
63	PSR	WB1	2010-07-25 15:12:18	2010-07-25 15:14:18	00:02:00	436	263.90	436	271.20	27.10	80
64	PSR	FBD	2010-07-25 15:35:15	2010-07-25 15:56:37	00:21:22	436	347.60	482	65.52	34.30	43
65	PSR	FBD	2010-07-25 16:01:34	2010-07-25 16:03:50	00:02:16	482	83.57	482	91.84	49.00	51
66	AV2	OBS	2010-07-25 16:03:37	2010-07-25 16:06:25	00:02:48	482	91.05	482	101.26	0.00	-
67	AV2	OBS	2010-07-25 16:15:03	2010-07-25 16:20:19	00:05:16	482	132.74	482	151.95	0.00	-
68	PSM	OB1	2010-07-25 16:26:30	2010-07-25 16:29:30	00:03:00	482	174.50	482	185.44	1.20	-
69	AV2	OBS	2010-07-25 16:27:13	2010-07-25 16:29:05	00:01:52	482	177.11	482	183.92	0.00	-
70	PSR	WB1	2010-07-25 16:47:32	2010-07-25 16:50:58	00:03:26	482	251.20	482	263.72	27.10	80
71	PSR	FBD	2010-07-25 17:17:58	2010-07-25 17:34:24	00:16:26	528	2.19	528	62.12	34.30	43
72	PSM	OB1	2010-07-25 17:41:05	2010-07-25 18:01:33	00:20:28	528	86.49	528	161.13	1.20	-
73	AV2	OBS	2010-07-25 17:49:48	2010-07-25 18:01:14	00:11:26	528	118.28	528	159.97	0.00	-
74	PSR	FBD	2010-07-25 18:58:46	2010-07-25 19:08:02	00:09:16	574	9.79	574	43.58	34.30	43
75	PSR	FBD	2010-07-25 19:08:55	2010-07-25 19:13:07	00:04:12	574	46.80	574	62.12	34.30	43
76	PSM	OB1	2010-07-25 19:19:50	2010-07-25 19:33:08	00:13:18	574	86.55	574	135.05	1.20	-
77	AV2	OBS	2010-07-25 19:23:48	2010-07-25 19:32:20	00:08:32	574	101.01	574	132.13	0.00	-
78	PSR	WB1	2010-07-25 20:04:46	2010-07-25 20:08:22	00:03:36	574	250.41	574	263.54	27.10	80
79	PSR	FBD	2010-07-25 20:28:25	2010-07-25 20:41:53	00:13:28	574	336.72	620	25.83	34.30	43
80	PSR	FBD	2010-07-25 20:43:10	2010-07-25 20:51:22	00:08:12	620	30.51	620	60.41	34.30	43
81	PSM	OB1	2010-07-25 20:58:32	2010-07-25 21:08:54	00:10:22	620	86.55	620	124.35	1.20	-
82	AV2	OBS	2010-07-25 21:04:02	2010-07-25 21:08:14	00:04:12	620	106.61	620	121.92	0.00	-
83	PSR	FBS	2010-07-25 21:27:08	2010-07-25 21:29:00	00:01:52	620	190.79	620	197.59	34.30	7
84	PSR	WB1	2010-07-25 21:41:41	2010-07-25 21:44:37	00:02:56	620	243.91	620	254.60	27.10	80
85	PSR	FBD	2010-07-25 22:06:04	2010-07-25 22:11:08	00:05:04	620	332.76	620	351.24	34.30	43
86	PSR	FBD	2010-07-25 22:13:35	2010-07-25 22:18:39	00:05:04	666	0.24	666	18.72	34.30	43
87	PSR	FBD	2010-07-25 22:22:54	2010-07-25 22:31:22	00:08:28	666	34.22	666	65.09	34.30	43
88	PSM	OB1	2010-07-25 22:41:33	2010-07-25 22:49:45	00:08:12	666	102.23	666	132.13	1.20	-
89	AV2	OBS	2010-07-25 22:47:44	2010-07-25 22:49:36	00:01:52	666	124.78	666	131.59	0.00	-
90	AV2	OBS	2010-07-25 23:00:20	2010-07-25 23:02:12	00:01:52	666	170.73	666	177.54	0.00	-
91	AV2	OBS	2010-07-25 23:06:09	2010-07-25 23:09:59	00:03:50	666	191.94	666	205.92	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
22	-11.56028	2010-07-24 23:11:27	156.09993	2010-07-25 00:00:48
68	-36.23986	2010-07-25 00:50:10	131.42035	2010-07-25 01:39:31
114	-60.91944	2010-07-25 02:28:53	106.74076	2010-07-25 03:18:15
160	-85.59903	2010-07-25 04:07:36	82.06118	2010-07-25 04:56:58
206	-110.27861	2010-07-25 05:46:19	57.38160	2010-07-25 06:35:41
252	-134.95819	2010-07-25 07:25:02	32.70202	2010-07-25 08:14:24
298	-159.63777	2010-07-25 09:03:45	8.02243	2010-07-25 09:53:07
344	175.68264	2010-07-25 10:42:28	-16.65715	2010-07-25 11:31:50
390	151.00306	2010-07-25 12:21:12	-41.33673	2010-07-25 13:10:33
436	126.32348	2010-07-25 13:59:55	-66.01631	2010-07-25 14:49:16
482	101.64389	2010-07-25 15:38:38	-90.69590	2010-07-25 16:27:59
528	76.96431	2010-07-25 17:17:21	-115.37548	2010-07-25 18:06:42
574	52.28473	2010-07-25 18:56:04	-140.05506	2010-07-25 19:45:26
620	27.60515	2010-07-25 20:34:47	-164.73465	2010-07-25 21:24:09
666	2.92556	2010-07-25 22:13:30	170.58577	2010-07-25 23:02:52
41	-21.75402	2010-07-25 23:52:13	145.90619	2010-07-26 00:41:35
