>ALOS Data Take Simulation(Jun. 09, 2010)

Observation Area

PRISM

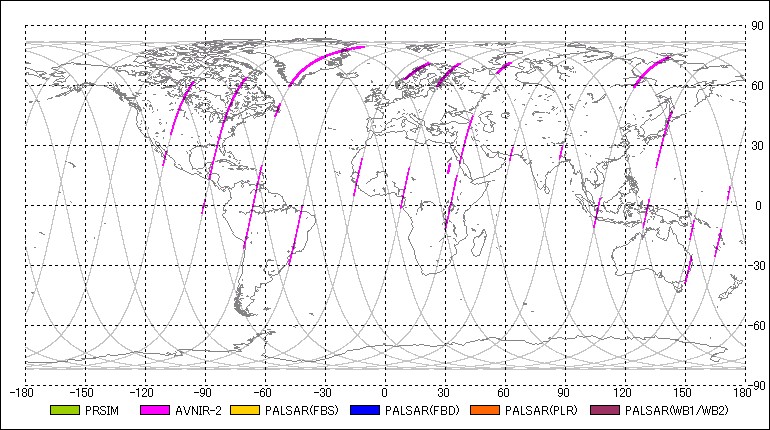

AVNIR-2

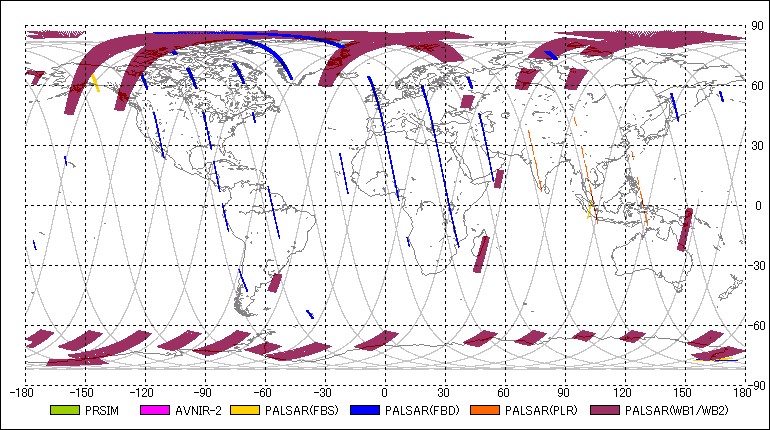

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-06-09 00:00:57	2010-06-09 00:07:23	00:06:26	22	180.45	22	203.91	27.10	80
2	AV2	OBS	2010-06-09 00:02:51	2010-06-09 00:05:35	00:02:44	22	187.38	22	197.35	0.00	-
3	AV2	OBS	2010-06-09 00:07:50	2010-06-09 00:11:32	00:03:42	22	205.55	22	219.05	21.50	-
4	PSM	OB2	2010-06-09 00:09:20	2010-06-09 00:12:54	00:03:34	22	211.02	22	224.03	0.00	-
5	PSR	WB1	2010-06-09 00:18:21	2010-06-09 00:20:27	00:02:06	22	243.91	22	251.56	27.10	80
6	PSR	FBD	2010-06-09 01:07:00	2010-06-09 01:14:44	00:07:44	68	61.33	68	89.53	34.30	43
7	PSM	OB2	2010-06-09 01:25:10	2010-06-09 01:35:16	00:10:06	68	127.58	68	164.41	0.00	-
8	AV2	OBS	2010-06-09 01:26:35	2010-06-09 01:34:21	00:07:46	68	132.74	68	161.06	0.00	-
9	PSM	OB2	2010-06-09 01:37:33	2010-06-09 01:50:31	00:12:58	68	172.73	68	220.02	0.00	-
10	AV2	OBS	2010-06-09 01:38:42	2010-06-09 01:42:34	00:03:52	68	176.93	68	191.03	0.00	-
11	PSR	WB1	2010-06-09 01:57:04	2010-06-09 01:58:56	00:01:52	68	243.91	68	250.71	27.10	80
12	PSR	FBD	2010-06-09 02:12:20	2010-06-09 02:14:12	00:01:52	68	299.58	68	306.39	34.30	43
13	PSR	FBD	2010-06-09 02:23:42	2010-06-09 02:31:34	00:07:52	68	341.03	114	9.72	34.30	43
14	PSR	FBD	2010-06-09 02:39:46	2010-06-09 02:41:46	00:02:00	114	39.63	114	46.92	34.30	43
15	PSR	FBD	2010-06-09 02:45:08	2010-06-09 02:48:34	00:03:26	114	59.20	114	71.72	34.30	43
16	PSR	WB1	2010-06-09 02:53:01	2010-06-09 02:56:27	00:03:26	114	87.95	114	100.47	27.10	80
17	AV2	OBS	2010-06-09 02:57:22	2010-06-09 03:01:54	00:04:32	114	103.81	114	120.34	0.00	-
18	PSM	OB2	2010-06-09 03:03:53	2010-06-09 03:21:41	00:17:48	114	127.58	114	192.49	0.00	-
19	PSR	FBS	2010-06-09 03:17:14	2010-06-09 03:20:28	00:03:14	114	176.26	114	188.05	34.30	7
20	AV2	OBS	2010-06-09 03:17:21	2010-06-09 03:21:16	00:03:55	114	176.68	114	190.97	0.00	-
21	PSR	WB1	2010-06-09 03:35:47	2010-06-09 03:38:23	00:02:36	114	243.91	114	253.39	27.10	80
22	PSR	FBD	2010-06-09 03:54:59	2010-06-09 03:58:47	00:03:48	114	313.92	114	327.78	34.30	43
23	PSR	FBD	2010-06-09 04:03:25	2010-06-09 04:07:59	00:04:34	114	344.62	160	1.28	34.30	43
24	PSR	FBD	2010-06-09 04:08:57	2010-06-09 04:13:41	00:04:44	160	4.86	160	22.12	34.30	43
25	PSR	FBD	2010-06-09 04:14:39	2010-06-09 04:20:29	00:05:50	160	25.65	160	46.92	34.30	43
26	PSR	FBD	2010-06-09 04:23:11	2010-06-09 04:26:37	00:03:26	160	56.77	160	69.29	34.30	43
27	PSR	FBD	2010-06-09 04:27:59	2010-06-09 04:30:07	00:02:08	160	74.27	160	82.05	34.30	43
28	PSR	WB1	2010-06-09 04:33:04	2010-06-09 04:36:24	00:03:20	160	92.81	160	104.97	27.10	80
29	PSR	WB1	2010-06-09 04:37:47	2010-06-09 04:41:13	00:03:26	160	109.95	160	122.47	27.10	80
30	PSM	OB1	2010-06-09 04:41:53	2010-06-09 04:52:51	00:10:58	160	124.96	160	164.95	-1.20	-
31	AV2	OBS	2010-06-09 04:48:47	2010-06-09 04:50:39	00:01:52	160	150.12	160	156.93	0.00	-
32	PSM	OB1	2010-06-09 05:09:18	2010-06-09 05:11:54	00:02:36	160	224.94	160	234.42	-1.20	-
33	PSR	WB1	2010-06-09 05:14:30	2010-06-09 05:17:16	00:02:46	160	243.91	160	254.00	27.10	80
34	PSR	FBD	2010-06-09 05:52:16	2010-06-09 05:59:12	00:06:56	206	21.64	206	46.92	34.30	43
35	PSR	FBD	2010-06-09 06:01:48	2010-06-09 06:05:22	00:03:34	206	56.34	206	69.35	34.30	43
36	PSR	WB1	2010-06-09 06:12:07	2010-06-09 06:15:33	00:03:26	206	94.03	206	106.55	27.10	80
37	PSR	WB1	2010-06-09 06:16:30	2010-06-09 06:19:56	00:03:26	206	109.95	206	122.47	27.10	80
38	PSM	OB1	2010-06-09 06:20:39	2010-06-09 06:30:03	00:09:24	206	125.08	206	159.36	-1.20	-
39	AV2	OBS	2010-06-09 06:27:44	2010-06-09 06:29:36	00:01:52	206	150.91	206	157.72	0.00	-
40	PSR	WB1	2010-06-09 06:30:30	2010-06-09 06:33:36	00:03:06	206	161.00	206	172.31	27.10	80
41	PSR	WB1	2010-06-09 06:39:42	2010-06-09 06:45:16	00:05:34	206	194.55	206	214.85	27.10	80
42	PSR	FBS	2010-06-09 07:40:08	2010-06-09 07:45:18	00:05:10	252	54.94	252	73.79	34.30	7
43	PSR	WB1	2010-06-09 07:48:51	2010-06-09 07:50:39	00:01:48	252	86.73	252	93.30	27.10	80
44	AV2	OBS	2010-06-09 07:54:22	2010-06-09 07:55:58	00:01:36	252	106.85	252	112.68	0.00	-
45	PSR	WB1	2010-06-09 07:58:56	2010-06-09 08:01:16	00:02:20	252	123.56	252	132.07	27.10	80
46	AV2	OBS	2010-06-09 08:02:03	2010-06-09 08:17:33	00:15:30	252	134.87	252	191.39	0.00	-
47	PSM	OB1	2010-06-09 08:04:39	2010-06-09 08:18:17	00:13:38	252	144.35	252	194.07	-1.20	-
48	PSR	WB1	2010-06-09 08:31:56	2010-06-09 08:35:22	00:03:26	252	243.91	252	256.43	27.10	80
49	PSR	FBD	2010-06-09 09:08:43	2010-06-09 09:10:35	00:01:52	298	18.05	298	24.86	34.30	43
50	AV2	OBS	2010-06-09 09:33:16	2010-06-09 09:36:42	00:03:26	298	107.52	298	120.04	0.00	-
51	PSM	OB1	2010-06-09 09:33:50	2010-06-09 09:44:22	00:10:32	298	109.58	298	148.00	-1.20	-
52	PSM	OB1	2010-06-09 09:47:14	2010-06-09 09:53:50	00:06:36	298	158.51	298	182.58	-1.20	-
53	AV2	OBS	2010-06-09 09:47:57	2010-06-09 09:53:33	00:05:36	298	161.13	298	181.55	0.00	-
54	PSR	WB1	2010-06-09 10:12:39	2010-06-09 10:16:05	00:03:26	298	251.20	298	263.72	27.10	80
55	PSR	FBD	2010-06-09 10:35:46	2010-06-09 10:37:44	00:01:58	298	335.44	298	342.61	34.30	43
56	PSR	FBD	2010-06-09 10:56:12	2010-06-09 10:58:14	00:02:02	344	49.96	344	57.38	34.30	43
57	AV2	OBS	2010-06-09 11:11:28	2010-06-09 11:14:06	00:02:38	344	105.69	344	115.30	21.50	-
58	PSM	OB1	2010-06-09 11:18:28	2010-06-09 11:23:04	00:04:36	344	131.16	344	147.94	-1.20	-
59	AV2	OBS	2010-06-09 11:25:22	2010-06-09 11:30:32	00:05:10	344	156.32	344	175.17	0.00	-
60	PSM	OB1	2010-06-09 11:25:58	2010-06-09 11:30:16	00:04:18	344	158.51	344	174.19	-1.20	-
61	PSR	WB1	2010-06-09 11:51:22	2010-06-09 11:53:30	00:02:08	344	251.20	344	258.98	27.10	80
62	PSR	FBD	2010-06-09 12:32:14	2010-06-09 12:36:42	00:04:28	390	40.17	390	56.46	34.30	43
63	PSR	WB1	2010-06-09 12:45:45	2010-06-09 12:54:25	00:08:40	390	89.47	390	121.07	27.10	80
64	PSM	OB1	2010-06-09 12:52:11	2010-06-09 12:55:31	00:03:20	390	112.99	390	125.14	0.00	-
65	PSM	OB1	2010-06-09 13:09:56	2010-06-09 13:18:40	00:08:44	390	177.66	390	209.51	-1.20	-
66	AV2	OBS	2010-06-09 13:10:42	2010-06-09 13:18:44	00:08:02	390	180.51	390	209.81	0.00	-
67	PSR	WB1	2010-06-09 13:19:48	2010-06-09 13:22:52	00:03:04	390	213.64	390	224.82	27.10	80
68	PSR	WB1	2010-06-09 13:28:05	2010-06-09 13:32:23	00:04:18	390	243.91	390	259.59	27.10	80
69	PSR	PLR	2010-06-09 13:56:35	2010-06-09 14:03:53	00:07:18	390	347.78	436	14.40	23.10	128
70	PSR	PLR	2010-06-09 14:05:38	2010-06-09 14:07:30	00:01:52	436	20.79	436	27.59	23.10	128
71	PSM	OB1	2010-06-09 14:25:50	2010-06-09 14:33:30	00:07:40	436	94.45	436	122.41	-1.20	-
72	AV2	OBS	2010-06-09 14:26:31	2010-06-09 14:32:47	00:06:16	436	96.94	436	119.80	0.00	-
73	AV2	OBS	2010-06-09 14:35:11	2010-06-09 14:37:03	00:01:52	436	128.55	436	135.35	0.00	-
74	AV2	OBS	2010-06-09 14:43:48	2010-06-09 14:55:16	00:11:28	436	159.97	436	201.79	0.00	-
75	PSM	OB1	2010-06-09 14:44:57	2010-06-09 14:56:07	00:11:10	436	164.16	436	204.89	-1.20	-
76	PSR	WB1	2010-06-09 15:06:48	2010-06-09 15:10:14	00:03:26	436	243.91	436	256.43	27.10	80
77	PSR	WB1	2010-06-09 15:12:18	2010-06-09 15:14:30	00:02:12	436	263.90	436	271.93	27.10	80
78	PSR	PLR	2010-06-09 15:35:24	2010-06-09 15:46:50	00:11:26	436	348.14	482	29.84	23.10	128
79	PSR	PLR	2010-06-09 15:49:04	2010-06-09 15:50:56	00:01:52	482	37.99	482	44.79	23.10	128
80	PSR	FBD	2010-06-09 15:58:13	2010-06-09 16:00:05	00:01:52	482	71.35	482	78.16	34.30	43
81	PSM	OB1	2010-06-09 16:02:52	2010-06-09 16:11:42	00:08:50	482	88.31	482	120.52	-1.20	-
82	AV2	OBS	2010-06-09 16:10:10	2010-06-09 16:24:28	00:14:18	482	114.93	482	167.08	0.00	-
83	PSM	OB1	2010-06-09 16:26:27	2010-06-09 16:29:31	00:03:04	482	174.31	482	185.50	-1.20	-
84	AV2	OBS	2010-06-09 16:27:13	2010-06-09 16:29:05	00:01:52	482	177.11	482	183.92	0.00	-
85	PSR	WB1	2010-06-09 16:45:32	2010-06-09 16:50:58	00:05:26	482	243.91	482	263.72	27.10	80
86	PSR	FBD	2010-06-09 16:52:04	2010-06-09 16:53:56	00:01:52	482	267.73	482	274.54	34.30	43
87	PSR	PLR	2010-06-09 17:18:41	2010-06-09 17:27:49	00:09:08	528	4.80	528	38.11	23.10	128
88	PSM	OB1	2010-06-09 17:41:06	2010-06-09 17:51:10	00:10:04	528	86.55	528	123.26	-1.20	-
89	AV2	OBS	2010-06-09 17:49:33	2010-06-09 17:56:55	00:07:22	528	117.36	528	144.23	0.00	-
90	AV2	OBS	2010-06-09 17:59:21	2010-06-09 18:01:13	00:01:52	528	153.10	528	159.91	0.00	-
91	PSR	WB1	2010-06-09 18:24:15	2010-06-09 18:27:41	00:03:26	528	243.91	528	256.43	27.10	80
92	PSR	FBS	2010-06-09 18:29:25	2010-06-09 18:31:17	00:01:52	528	262.69	528	269.49	34.30	7
93	PSR	FBD	2010-06-09 18:58:46	2010-06-09 19:08:52	00:10:06	574	9.79	574	46.62	34.30	43
94	PSR	FBD	2010-06-09 19:11:39	2010-06-09 19:13:53	00:02:14	574	56.77	574	64.91	34.30	43
95	PSR	WB1	2010-06-09 19:15:31	2010-06-09 19:32:35	00:17:04	574	70.87	574	133.11	27.10	80
96	PSM	OB1	2010-06-09 19:19:50	2010-06-09 19:33:02	00:13:12	574	86.55	574	134.69	-1.20	-
97	PSR	WB1	2010-06-09 20:02:58	2010-06-09 20:08:22	00:05:24	574	243.85	574	263.54	27.10	80
98	PSR	FBD	2010-06-09 20:28:25	2010-06-09 20:51:23	00:22:58	574	336.72	620	60.48	34.30	43
99	PSR	WB1	2010-06-09 20:57:35	2010-06-09 21:11:53	00:14:18	620	83.08	620	135.23	27.10	80
100	PSM	OB1	2010-06-09 20:58:33	2010-06-09 21:09:03	00:10:30	620	86.55	620	124.84	-1.20	-
101	PSR	WB1	2010-06-09 21:41:41	2010-06-09 21:44:37	00:02:56	620	243.91	620	254.60	27.10	80
102	PSR	FBD	2010-06-09 22:07:11	2010-06-09 22:09:11	00:02:00	620	336.90	620	344.19	34.30	43
103	PSR	FBD	2010-06-09 22:13:34	2010-06-09 22:31:24	00:17:50	666	0.18	666	65.22	34.30	43
104	PSR	FBD	2010-06-09 22:34:54	2010-06-09 22:38:48	00:03:54	666	77.92	666	92.14	34.30	43
105	PSM	OB1	2010-06-09 22:41:36	2010-06-09 22:49:48	00:08:12	666	102.41	666	132.32	-1.20	-
106	PSR	WB1	2010-06-09 22:43:56	2010-06-09 22:46:22	00:02:26	666	110.86	666	119.73	27.10	80
107	AV2	OBS	2010-06-09 23:00:20	2010-06-09 23:02:12	00:01:52	666	170.73	666	177.54	0.00	-
108	AV2	OBS	2010-06-09 23:06:09	2010-06-09 23:09:59	00:03:50	666	191.94	666	205.92	0.00	-
109	PSR	FBD	2010-06-09 23:53:17	2010-06-09 23:59:27	00:06:10	41	3.83	41	26.32	34.30	43

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
22	-11.56028	2010-06-08 23:11:27	156.09993	2010-06-09 00:00:48
68	-36.23986	2010-06-09 00:50:10	131.42035	2010-06-09 01:39:31
114	-60.91944	2010-06-09 02:28:53	106.74076	2010-06-09 03:18:15
160	-85.59903	2010-06-09 04:07:36	82.06118	2010-06-09 04:56:58
206	-110.27861	2010-06-09 05:46:19	57.38160	2010-06-09 06:35:41
252	-134.95819	2010-06-09 07:25:02	32.70202	2010-06-09 08:14:24
298	-159.63777	2010-06-09 09:03:45	8.02243	2010-06-09 09:53:07
344	175.68264	2010-06-09 10:42:28	-16.65715	2010-06-09 11:31:50
390	151.00306	2010-06-09 12:21:12	-41.33673	2010-06-09 13:10:33
436	126.32348	2010-06-09 13:59:55	-66.01631	2010-06-09 14:49:16
482	101.64389	2010-06-09 15:38:38	-90.69590	2010-06-09 16:27:59
528	76.96431	2010-06-09 17:17:21	-115.37548	2010-06-09 18:06:42
574	52.28473	2010-06-09 18:56:04	-140.05506	2010-06-09 19:45:26
620	27.60515	2010-06-09 20:34:47	-164.73465	2010-06-09 21:24:09
666	2.92556	2010-06-09 22:13:30	170.58577	2010-06-09 23:02:52
41	-21.75402	2010-06-09 23:52:13	145.90619	2010-06-10 00:41:35
