>ALOS Data Take Simulation(Jun. 06, 2010)

Observation Area

PRISM

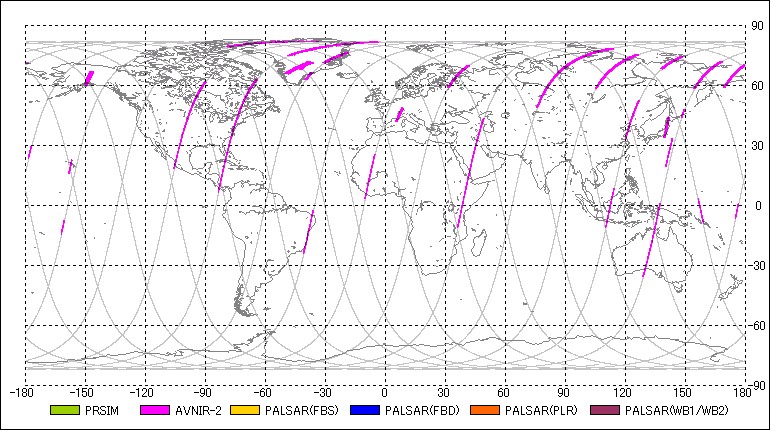

AVNIR-2

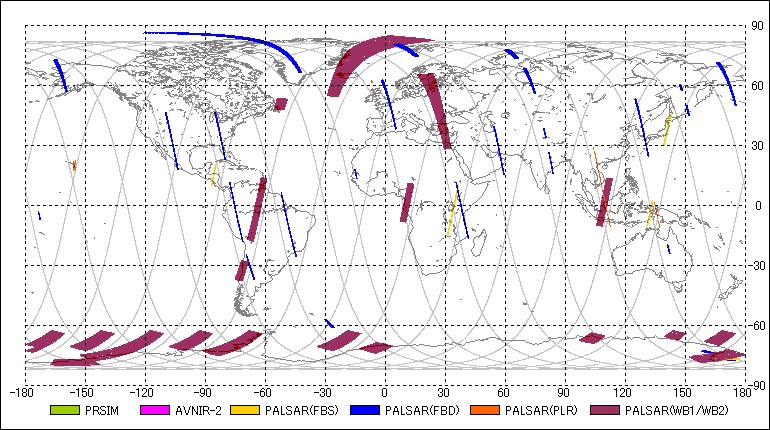

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBD2010-06-06 00:44:172010-06-06 00:51:21 00:07:04 57 64.61 57 90.38 34.30 43
2AV2OBS2010-06-06 00:55:462010-06-06 00:59:46 00:04:00 57 106.42 57 121.01 0.00 -
3AV2OBS2010-06-06 01:02:432010-06-06 01:10:31 00:07:48 57 131.77 57 160.21 0.00 -
4PSRFBS2010-06-06 01:03:082010-06-06 01:08:06 00:04:58 57 133.29 57 151.40 34.30 7
5PSRFBS2010-06-06 01:14:572010-06-06 01:19:01 00:04:04 57 176.44 57 191.27 34.30 7
6AV2OBS2010-06-06 01:15:382010-06-06 01:25:44 00:10:06 57 178.93 57 215.77 0.00 -
7PSMOB22010-06-06 01:15:402010-06-06 01:26:56 00:11:16 57 178.99 57 220.08 0.00 -
8PSRWB12010-06-06 01:33:542010-06-06 01:35:46 00:01:52 57 245.49 57 252.29 27.10 80
9PSRFBD2010-06-06 01:47:212010-06-06 01:49:17 00:01:56 57 294.53 57 301.59 34.30 43
10PSRFBD2010-06-06 01:57:342010-06-06 02:07:04 00:09:30 57 331.79 103 6.44 34.30 43
11AV2OBS2010-06-06 02:33:432010-06-06 02:35:35 00:01:52 103 103.63 103 110.44 0.00 -
12PSMOB22010-06-06 02:39:402010-06-06 02:49:16 00:09:36 103 125.33 103 160.33 0.00 -
13AV2OBS2010-06-06 02:40:092010-06-06 02:45:37 00:05:28 103 127.09 103 147.02 0.00 -
14PSRWB12010-06-06 02:50:372010-06-06 02:57:47 00:07:10 103 165.26 103 191.39 27.10 80
15AV2OBS2010-06-06 02:52:172010-06-06 02:57:43 00:05:26 103 171.34 103 191.15 0.00 -
16PSMOB22010-06-06 02:52:302010-06-06 02:58:20 00:05:50 103 172.13 103 193.40 0.00 -
17PSRFBD2010-06-06 03:33:072010-06-06 03:37:13 00:04:06 103 320.31 103 335.26 34.30 43
18PSRFBD2010-06-06 03:38:232010-06-06 03:47:13 00:08:50 103 339.45 149 11.67 34.30 43
19PSRFBD2010-06-06 03:49:402010-06-06 03:56:52 00:07:12 149 20.60 149 46.86 34.30 43
20AV2OBS2010-06-06 04:12:062010-06-06 04:17:10 00:05:04 149 102.41 149 120.89 0.00 -
21PSRFBD2010-06-06 05:27:012010-06-06 05:35:37 00:08:36 195 15.62 195 46.98 34.30 43
22AV2OBS2010-06-06 05:49:402010-06-06 05:58:32 00:08:52 195 98.22 195 130.55 0.00 -
23PSMOB12010-06-06 05:57:012010-06-06 06:06:55 00:09:54 195 125.02 195 161.13 -1.20 -
24PSMOB12010-06-06 07:32:532010-06-06 07:54:43 00:21:50 241 114.63 241 194.25 -1.20 -
25AV2OBS2010-06-06 07:38:472010-06-06 07:53:55 00:15:08 241 136.14 241 191.33 0.00 -
26PSRFBS2010-06-06 07:47:392010-06-06 07:55:17 00:07:38 241 168.48 241 196.32 34.30 7
27PSRWB12010-06-06 08:10:202010-06-06 08:12:12 00:01:52 241 251.20 241 258.01 27.10 80
28PSRPLR2010-06-06 08:44:272010-06-06 08:46:19 00:01:52 287 15.62 287 22.43 21.50 127
29PSRFBD2010-06-06 08:55:112010-06-06 09:00:17 00:05:06 287 54.76 287 73.36 41.50 46
30AV2OBS2010-06-06 09:09:572010-06-06 09:13:11 00:03:14 287 108.61 287 120.40 0.00 -
31PSRWB12010-06-06 09:26:112010-06-06 09:32:07 00:05:56 287 167.81 287 189.45 27.10 80
32PSRWB12010-06-06 09:47:032010-06-06 09:50:29 00:03:26 287 243.91 287 256.43 27.10 80
33PSRFBD2010-06-06 10:16:162010-06-06 10:18:08 00:01:52 287 350.45 287 357.26 34.30 43
34PSRFBD2010-06-06 10:32:062010-06-06 10:38:46 00:06:40 333 48.20 333 72.51 34.30 43
35PSMOB12010-06-06 10:47:212010-06-06 10:59:11 00:11:50 333 103.81 333 146.96 -1.20 -
36AV2OBS2010-06-06 10:54:272010-06-06 10:56:23 00:01:56 333 129.70 333 136.75 34.30 -
37AV2OBS2010-06-06 11:01:152010-06-06 11:07:21 00:06:06 333 154.44 333 176.68 0.00 -
38PSMOB12010-06-06 11:02:222010-06-06 11:08:04 00:05:42 333 158.57 333 179.36 -1.20 -
39AV2OBS2010-06-06 11:55:102010-06-06 11:58:34 00:03:24 333 351.06 379 3.46 0.00 -
40PSRFBD2010-06-06 12:09:232010-06-06 12:11:23 00:02:00 379 42.97 379 50.26 34.30 43
41PSRFBD2010-06-06 12:12:512010-06-06 12:14:23 00:01:32 379 55.61 379 61.20 34.30 43
42PSRWB12010-06-06 12:23:022010-06-06 12:32:13 00:09:11 379 92.69 379 126.18 27.10 80
43PSMOB12010-06-06 12:36:332010-06-06 12:39:25 00:02:52 379 141.98 379 152.43 0.00 -
44PSMOB12010-06-06 12:46:572010-06-06 12:53:45 00:06:48 379 179.91 379 204.70 -1.20 -
45AV2OBS2010-06-06 12:47:432010-06-06 12:53:35 00:05:52 379 182.70 379 204.10 0.00 -
46PSRWB12010-06-06 13:04:322010-06-06 13:08:52 00:04:20 379 244.09 379 259.89 27.10 80
47PSRFBD2010-06-06 13:29:022010-06-06 13:31:00 00:01:58 379 333.43 379 340.61 34.30 43
48PSRPLR2010-06-06 13:32:512010-06-06 13:36:45 00:03:54 379 347.35 425 1.58 23.10 128
49PSRFBD2010-06-06 13:42:242010-06-06 13:51:04 00:08:40 425 22.18 425 53.79 34.30 43
50PSMOB12010-06-06 14:02:432010-06-06 14:08:47 00:06:04 425 96.27 425 118.40 -1.20 -
51AV2OBS2010-06-06 14:04:042010-06-06 14:08:04 00:04:00 425 101.20 425 115.78 0.00 -
52PSRWB12010-06-06 14:10:372010-06-06 14:12:45 00:02:08 425 125.08 425 132.86 27.10 80
53PSRWB12010-06-06 14:21:382010-06-06 14:30:52 00:09:14 425 165.20 425 198.87 27.10 80
54PSMOB12010-06-06 14:26:422010-06-06 14:41:36 00:14:54 425 183.67 425 238.01 -1.20 -
55PSRWB12010-06-06 14:33:022010-06-06 14:36:20 00:03:18 425 206.83 425 218.87 27.10 80
56PSRWB12010-06-06 14:43:122010-06-06 14:46:38 00:03:26 425 243.91 425 256.43 27.10 80
57PSRWB12010-06-06 14:49:152010-06-06 14:51:07 00:01:52 425 265.91 425 272.72 27.10 80
58PSRFBD2010-06-06 14:52:032010-06-06 14:53:55 00:01:52 425 276.12 425 282.93 34.30 43
59PSRPLR2010-06-06 15:11:312010-06-06 15:23:15 00:11:44 425 347.17 471 29.96 23.10 128
60AV2OBS2010-06-06 15:40:192010-06-06 15:45:21 00:05:02 471 92.14 471 110.50 0.00 -
61AV2OBS2010-06-06 15:46:542010-06-06 16:02:38 00:15:44 471 116.15 471 173.52 0.00 -
62PSRFBS2010-06-06 15:58:242010-06-06 16:02:00 00:03:36 471 158.09 471 171.21 34.30 7
63PSRWB12010-06-06 16:21:552010-06-06 16:27:21 00:05:26 471 243.91 471 263.72 27.10 80
64PSRFBD2010-06-06 16:28:512010-06-06 16:30:43 00:01:52 471 269.13 471 275.94 34.30 43
65PSRFBD2010-06-06 16:57:302010-06-06 17:01:10 00:03:40 517 13.61 517 26.99 34.30 43
66PSRFBD2010-06-06 17:02:292010-06-06 17:04:21 00:01:52 517 31.85 517 38.66 34.30 43
67PSRFBD2010-06-06 17:08:352010-06-06 17:12:47 00:04:12 517 54.03 517 69.35 34.30 43
68PSRFBD2010-06-06 17:13:332010-06-06 17:15:25 00:01:52 517 72.14 517 78.95 34.30 43
69PSMOB12010-06-06 17:17:302010-06-06 17:27:36 00:10:06 517 86.55 517 123.38 -1.20 -
70AV2OBS2010-06-06 17:25:572010-06-06 17:38:07 00:12:10 517 117.36 517 161.73 0.00 -
71PSRWB12010-06-06 18:00:382010-06-06 18:04:04 00:03:26 517 243.91 517 256.43 27.10 80
72PSRFBS2010-06-06 18:05:582010-06-06 18:07:50 00:01:52 517 263.29 517 270.10 34.30 7
73PSRFBD2010-06-06 18:36:062010-06-06 18:43:24 00:07:18 563 13.19 563 39.81 34.30 43
74PSMOB12010-06-06 18:56:132010-06-06 19:11:59 00:15:46 563 86.55 563 144.05 -1.20 -
75AV2OBS2010-06-06 18:57:002010-06-06 18:59:04 00:02:04 563 89.41 563 96.94 0.00 -
76PSRWB12010-06-06 19:39:222010-06-06 19:45:16 00:05:54 563 243.91 563 265.42 27.10 80
77PSRFBD2010-06-06 20:05:582010-06-06 20:14:28 00:08:30 563 340.91 609 11.91 34.30 43
78PSRWB12010-06-06 20:18:242010-06-06 20:29:27 00:11:03 609 26.26 609 66.55 27.10 80
79PSRFBD2010-06-06 20:31:152010-06-06 20:33:41 00:02:26 609 73.12 609 81.99 34.30 43
80PSMOB12010-06-06 20:34:562010-06-06 20:45:14 00:10:18 609 86.55 609 124.11 -1.20 -
81AV2OBS2010-06-06 20:42:142010-06-06 20:44:06 00:01:52 609 113.17 609 119.98 -34.30 -
82PSRPLR2010-06-06 20:53:562010-06-06 20:55:58 00:02:02 609 155.84 609 163.25 9.70 120
83AV2OBS2010-06-06 20:54:242010-06-06 20:56:16 00:01:52 609 157.54 609 164.35 -21.50 -
84AV2OBS2010-06-06 21:02:402010-06-06 21:04:32 00:01:52 609 187.69 609 194.49 0.00 -
85PSMOB22010-06-06 21:02:402010-06-06 21:06:54 00:04:14 609 187.69 609 203.12 0.00 -
86PSRWB12010-06-06 21:18:042010-06-06 21:20:36 00:02:32 609 243.91 609 253.14 27.10 80
87PSRFBD2010-06-06 21:59:502010-06-06 22:07:18 00:07:28 655 36.16 655 63.39 34.30 43
88PSMOB12010-06-06 22:13:392010-06-06 22:16:15 00:02:36 655 86.55 655 96.03 -1.20 -
89PSMOB12010-06-06 22:18:062010-06-06 22:25:56 00:07:50 655 102.78 655 131.34 -1.20 -
90PSMOB12010-06-06 22:30:122010-06-06 22:32:48 00:02:36 655 146.96 655 156.45 -1.20 -
91AV2OBS2010-06-06 22:30:582010-06-06 22:32:50 00:01:52 655 149.76 655 156.57 0.00 -
92AV2OBS2010-06-06 22:38:592010-06-06 22:41:07 00:02:08 655 178.93 655 186.71 0.00 -
93PSRWB12010-06-06 22:56:482010-06-06 22:58:28 00:01:40 655 243.91 655 249.98 27.10 80
94PSRFBD2010-06-06 23:31:462010-06-06 23:33:38 00:01:52 30 11.43 30 18.23 34.30 43
95AV2OBS2010-06-06 23:58:032010-06-07 00:01:39 00:03:36 30 107.27 30 120.40 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
11 -5.658642010-06-05 22:47:50162.001572010-06-05 23:37:12
57-30.338222010-06-06 00:26:33137.321992010-06-06 01:15:55
103-55.017802010-06-06 02:05:17112.642402010-06-06 02:54:38
149-79.697392010-06-06 03:44:00 87.962822010-06-06 04:33:21
195-104.376972010-06-06 05:22:43 63.283242010-06-06 06:12:04
241-129.056552010-06-06 07:01:26 38.603662010-06-06 07:50:47
287-153.736142010-06-06 08:40:09 13.924072010-06-06 09:29:31
333-178.415722010-06-06 10:18:52-10.755512010-06-06 11:08:14
379156.904702010-06-06 11:57:35-35.435092010-06-06 12:46:57
425132.225122010-06-06 13:36:18-60.114682010-06-06 14:25:40
471107.545532010-06-06 15:15:01-84.794262010-06-06 16:04:23
517 82.865952010-06-06 16:53:44-109.473842010-06-06 17:43:06
563 58.186372010-06-06 18:32:28-134.153422010-06-06 19:21:49
609 33.506792010-06-06 20:11:11-158.833012010-06-06 21:00:32
655 8.827202010-06-06 21:49:54176.487412010-06-06 22:39:15
30-15.852382010-06-06 23:28:37151.807832010-06-07 00:17:58
