>ALOS Data Take Simulation(May. 12, 2010)

Observation Area

PRISM

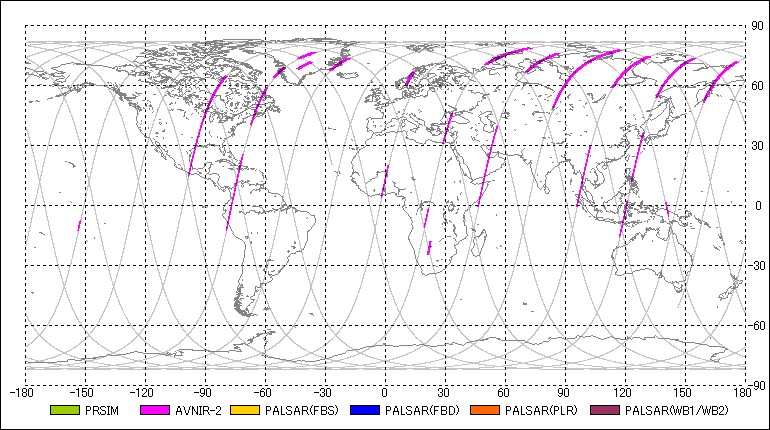

AVNIR-2

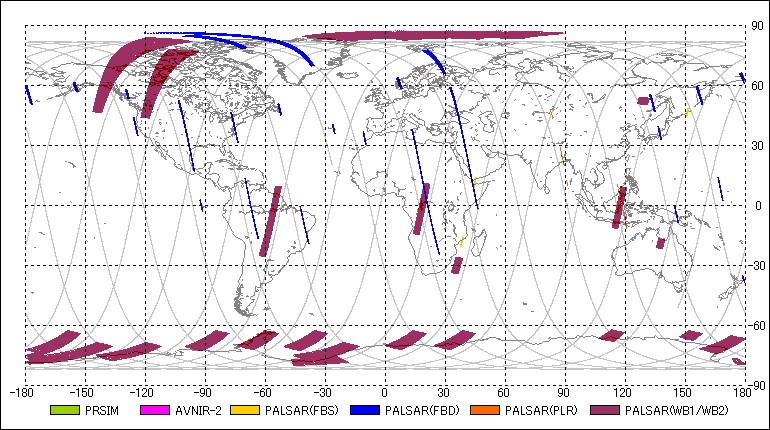

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBD	2010-05-12 00:03:42	2010-05-12 00:05:38	00:01:56	42	33.98	42	41.03	34.30	43
2	PSR	FBD	2010-05-12 00:13:04	2010-05-12 00:19:18	00:06:14	42	68.13	42	90.86	34.30	43
3	AV2	OBS	2010-05-12 00:23:37	2010-05-12 00:29:29	00:05:52	42	106.61	42	128.00	0.00	-
4	PSR	FBS	2010-05-12 00:30:00	2010-05-12 00:31:52	00:01:52	42	129.88	42	136.69	34.30	7
5	PSM	OB2	2010-05-12 00:46:22	2010-05-12 00:55:08	00:08:46	42	189.57	42	221.54	0.00	-
6	PSR	WB1	2010-05-12 00:48:07	2010-05-12 00:50:01	00:01:54	42	195.89	42	202.82	27.10	80
7	PSR	WB1	2010-05-12 01:01:15	2010-05-12 01:03:15	00:02:00	42	243.85	42	251.14	27.10	80
8	PSR	FBD	2010-05-12 01:27:12	2010-05-12 01:33:04	00:05:52	42	338.42	42	359.81	34.30	43
9	PSR	FBD	2010-05-12 01:44:57	2010-05-12 01:47:09	00:02:12	88	43.21	88	51.24	34.30	43
10	PSR	FBD	2010-05-12 01:54:21	2010-05-12 01:57:01	00:02:40	88	77.43	88	87.16	34.30	43
11	AV2	OBS	2010-05-12 02:01:48	2010-05-12 02:07:32	00:05:44	88	104.60	88	125.51	0.00	-
12	PSR	WB1	2010-05-12 02:07:13	2010-05-12 02:08:51	00:01:38	88	124.41	88	130.37	27.10	80
13	AV2	OBS	2010-05-12 02:12:22	2010-05-12 02:19:10	00:06:48	88	143.20	88	167.99	0.00	-
14	PSM	OB2	2010-05-12 02:14:39	2010-05-12 02:16:31	00:01:52	88	151.52	88	158.33	0.00	-
15	PSR	WB1	2010-05-12 02:19:38	2010-05-12 02:25:58	00:06:20	88	169.69	88	192.79	27.10	80
16	AV2	OBS	2010-05-12 02:21:47	2010-05-12 02:26:49	00:05:02	88	177.54	88	195.89	0.00	-
17	PSM	OB2	2010-05-12 02:27:37	2010-05-12 02:32:21	00:04:44	88	198.81	88	216.07	0.00	-
18	PSR	FBD	2010-05-12 03:06:37	2010-05-12 03:15:35	00:08:58	88	341.03	134	13.74	34.30	43
19	PSR	FBD	2010-05-12 03:19:57	2010-05-12 03:24:41	00:04:44	134	29.60	134	46.86	34.30	43
20	AV2	OBS	2010-05-12 03:40:11	2010-05-12 03:44:49	00:04:38	134	103.45	134	120.34	0.00	-
21	PSM	OB2	2010-05-12 03:46:52	2010-05-12 03:58:44	00:11:52	134	127.76	134	171.03	0.00	-
22	AV2	OBS	2010-05-12 03:53:00	2010-05-12 04:01:21	00:08:21	134	150.12	134	180.57	0.00	-
23	PSR	FBD	2010-05-12 04:49:08	2010-05-12 04:51:20	00:02:12	134	354.83	180	2.86	34.30	43
24	PSR	FBD	2010-05-12 04:54:37	2010-05-12 05:05:05	00:10:28	180	14.89	180	53.06	34.30	43
25	AV2	OBS	2010-05-12 05:17:48	2010-05-12 05:26:20	00:08:32	180	99.37	180	130.49	0.00	-
26	PSM	OB1	2010-05-12 05:24:50	2010-05-12 05:37:12	00:12:22	180	125.02	180	170.12	-1.20	-
27	PSR	WB1	2010-05-12 05:57:25	2010-05-12 06:00:41	00:03:16	180	243.91	180	255.82	27.10	80
28	PSR	FBD	2010-05-12 06:38:18	2010-05-12 06:41:28	00:03:10	226	33.00	226	44.55	34.30	43
29	PSR	FBD	2010-05-12 06:43:28	2010-05-12 06:45:20	00:01:52	226	51.78	226	58.59	34.30	43
30	PSR	FBD	2010-05-12 06:46:50	2010-05-12 06:49:04	00:02:14	226	64.06	226	72.21	34.30	43
31	AV2	OBS	2010-05-12 06:57:07	2010-05-12 06:59:55	00:02:48	226	101.62	226	111.83	0.00	-
32	PSM	OB1	2010-05-12 07:03:13	2010-05-12 07:18:51	00:15:38	226	123.81	226	180.82	-1.20	-
33	AV2	OBS	2010-05-12 07:07:34	2010-05-12 07:18:48	00:11:14	226	139.73	226	180.70	0.00	-
34	PSR	FBS	2010-05-12 07:14:31	2010-05-12 07:16:51	00:02:20	226	165.01	226	173.52	34.30	7
35	PSR	FBS	2010-05-12 07:22:47	2010-05-12 07:24:39	00:01:52	226	195.16	226	201.97	34.30	7
36	PSR	WB1	2010-05-12 07:25:32	2010-05-12 07:28:20	00:02:48	226	205.19	226	215.40	27.10	80
37	PSR	WB1	2010-05-12 07:36:08	2010-05-12 07:39:24	00:03:16	226	243.91	226	255.82	27.10	80
38	PSR	WB1	2010-05-12 07:41:12	2010-05-12 07:43:20	00:02:08	226	262.32	226	270.10	27.10	80
39	PSR	FBD	2010-05-12 08:23:03	2010-05-12 08:24:59	00:01:56	272	54.94	272	61.99	34.30	43
40	AV2	OBS	2010-05-12 08:34:51	2010-05-12 08:37:39	00:02:48	272	98.04	272	108.25	0.00	-
41	PSM	OB1	2010-05-12 08:39:25	2010-05-12 08:49:05	00:09:40	272	114.63	272	149.88	-1.20	-
42	AV2	OBS	2010-05-12 08:44:32	2010-05-12 08:48:45	00:04:13	272	133.35	272	148.73	0.00	-
43	PSR	WB1	2010-05-12 08:54:01	2010-05-12 09:01:39	00:07:38	272	167.87	272	195.71	27.10	80
44	AV2	OBS	2010-05-12 08:57:45	2010-05-12 09:00:25	00:02:40	272	181.49	272	191.21	0.00	-
45	AV2	OBS	2010-05-12 09:02:07	2010-05-12 09:03:59	00:01:52	272	197.41	272	204.22	34.30	-
46	PSR	WB1	2010-05-12 09:16:52	2010-05-12 09:20:18	00:03:26	272	251.20	272	263.72	27.10	80
47	PSR	FBD	2010-05-12 09:59:59	2010-05-12 10:05:03	00:05:04	318	48.44	318	66.92	34.30	43
48	PSM	OB1	2010-05-12 10:14:46	2010-05-12 10:26:10	00:11:24	318	102.41	318	143.99	-1.20	-
49	AV2	OBS	2010-05-12 10:17:44	2010-05-12 10:19:36	00:01:52	318	113.17	318	119.98	-21.50	-
50	PSM	OB1	2010-05-12 10:30:10	2010-05-12 10:35:48	00:05:38	318	158.51	318	179.05	-1.20	-
51	AV2	OBS	2010-05-12 10:30:31	2010-05-12 10:35:02	00:04:31	318	159.79	318	176.26	0.00	-
52	PSR	WB1	2010-05-12 10:53:34	2010-05-12 10:57:00	00:03:26	318	243.91	318	256.43	27.10	80
53	PSR	FBD	2010-05-12 11:13:48	2010-05-12 11:15:40	00:01:52	318	317.63	318	324.44	34.30	43
54	PSR	FBD	2010-05-12 11:25:29	2010-05-12 11:29:21	00:03:52	364	0.24	364	14.34	34.30	43
55	PSR	FBD	2010-05-12 11:38:42	2010-05-12 11:41:50	00:03:08	364	48.44	364	59.87	34.30	43
56	PSM	OB1	2010-05-12 11:56:04	2010-05-12 11:58:48	00:02:44	364	111.77	364	121.74	-1.20	-
57	PSR	WB1	2010-05-12 12:32:17	2010-05-12 12:35:33	00:03:16	364	243.91	364	255.82	27.10	80
58	PSR	FBD	2010-05-12 13:01:07	2010-05-12 13:04:09	00:03:02	364	348.99	410	0.06	34.30	43
59	AV2	OBS	2010-05-12 13:02:40	2010-05-12 13:04:32	00:01:52	364	354.65	410	1.46	0.00	-
60	PSR	FBD	2010-05-12 13:12:38	2010-05-12 13:15:06	00:02:28	410	31.00	410	39.99	34.30	43
61	PSR	FBD	2010-05-12 13:16:25	2010-05-12 13:19:31	00:03:06	410	44.79	410	56.10	34.30	43
62	PSR	WB1	2010-05-12 13:27:36	2010-05-12 13:30:07	00:02:31	410	85.58	410	94.75	27.10	80
63	PSM	OB1	2010-05-12 13:32:00	2010-05-12 13:35:24	00:03:24	410	101.62	410	114.02	-1.20	-
64	AV2	OBS	2010-05-12 13:32:46	2010-05-12 13:34:38	00:01:52	410	104.42	410	111.23	0.00	-
65	PSR	WB1	2010-05-12 13:50:33	2010-05-12 14:00:49	00:10:16	410	169.27	410	206.71	27.10	80
66	PSM	OB1	2010-05-12 13:51:07	2010-05-12 14:10:07	00:19:00	410	171.34	410	240.62	-1.20	-
67	PSR	WB1	2010-05-12 14:11:01	2010-05-12 14:14:27	00:03:26	410	243.91	410	256.43	27.10	80
68	PSR	PLR	2010-05-12 14:38:57	2010-05-12 14:45:51	00:06:54	410	345.77	456	10.94	23.10	128
69	PSR	WB1	2010-05-12 15:06:13	2010-05-12 15:09:03	00:02:50	456	85.21	456	95.54	27.10	80
70	AV2	OBS	2010-05-12 15:10:33	2010-05-12 15:14:15	00:03:42	456	101.01	456	114.51	0.00	-
71	AV2	OBS	2010-05-12 15:15:51	2010-05-12 15:21:07	00:05:16	456	120.34	456	139.55	0.00	-
72	AV2	OBS	2010-05-12 15:25:08	2010-05-12 15:35:40	00:10:32	456	154.20	456	192.61	0.00	-
73	PSM	OB1	2010-05-12 15:27:51	2010-05-12 15:36:07	00:08:16	456	164.10	456	194.25	-1.20	-
74	PSR	WB1	2010-05-12 15:51:44	2010-05-12 15:55:10	00:03:26	456	251.20	456	263.72	27.10	80
75	PSR	PLR	2010-05-12 16:23:17	2010-05-12 16:25:09	00:01:52	502	6.26	502	13.07	21.50	127
76	PSR	PLR	2010-05-12 16:26:31	2010-05-12 16:29:45	00:03:14	502	18.05	502	29.84	23.10	128
77	PSR	PLR	2010-05-12 16:32:59	2010-05-12 16:34:55	00:01:56	502	41.63	502	48.68	23.10	128
78	PSM	OB1	2010-05-12 16:45:18	2010-05-12 16:54:28	00:09:10	502	86.55	502	119.98	-1.20	-
79	AV2	OBS	2010-05-12 16:52:53	2010-05-12 17:07:01	00:14:08	502	114.14	502	165.68	0.00	-
80	PSR	WB1	2010-05-12 17:30:27	2010-05-12 17:35:07	00:04:40	502	251.20	502	268.22	27.10	80
81	PSM	OB1	2010-05-12 18:24:01	2010-05-12 18:41:51	00:17:50	548	86.55	548	151.58	-1.20	-
82	PSR	WB1	2010-05-12 18:27:43	2010-05-12 18:37:54	00:10:11	548	99.98	548	137.12	27.10	80
83	PSR	WB1	2010-05-12 19:07:10	2010-05-12 19:12:00	00:04:50	548	243.91	548	261.53	27.10	80
84	PSR	FBD	2010-05-12 19:37:57	2010-05-12 19:55:23	00:17:26	548	356.16	594	59.75	34.30	43
85	PSR	FBD	2010-05-12 19:56:34	2010-05-12 20:00:36	00:04:02	594	64.06	594	78.77	34.30	43
86	PSM	OB1	2010-05-12 20:02:44	2010-05-12 20:13:54	00:11:10	594	86.49	594	127.21	-1.20	-
87	PSR	WB1	2010-05-12 20:04:41	2010-05-12 20:15:47	00:11:06	594	93.66	594	134.14	27.10	80
88	AV2	OBS	2010-05-12 20:30:29	2010-05-12 20:31:49	00:01:20	594	187.69	594	192.55	0.00	-
89	PSR	WB1	2010-05-12 20:46:37	2010-05-12 20:49:49	00:03:12	594	246.52	594	258.19	27.10	80
90	PSR	FBD	2010-05-12 21:10:15	2010-05-12 21:28:13	00:17:58	594	332.76	640	38.29	34.30	43
91	PSR	FBD	2010-05-12 21:33:15	2010-05-12 21:35:23	00:02:08	640	56.65	640	64.43	34.30	43
92	PSM	OB1	2010-05-12 21:41:28	2010-05-12 21:44:14	00:02:46	640	86.55	640	96.64	-1.20	-
93	PSM	OB1	2010-05-12 21:46:02	2010-05-12 21:52:52	00:06:50	640	103.20	640	128.12	-1.20	-
94	PSR	WB1	2010-05-12 22:24:36	2010-05-12 22:26:24	00:01:48	640	243.91	640	250.47	27.10	80
95	PSR	FBD	2010-05-12 23:04:18	2010-05-12 23:06:38	00:02:20	15	28.63	15	37.14	34.30	43

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
42	-22.29053	2010-05-11 23:54:22	145.36968	2010-05-12 00:43:44
88	-46.97011	2010-05-12 01:33:05	120.69009	2010-05-12 02:22:27
134	-71.64970	2010-05-12 03:11:48	96.01051	2010-05-12 04:01:10
180	-96.32928	2010-05-12 04:50:31	71.33093	2010-05-12 05:39:53
226	-121.00886	2010-05-12 06:29:14	46.65135	2010-05-12 07:18:36
272	-145.68845	2010-05-12 08:07:58	21.97176	2010-05-12 08:57:19
318	-170.36803	2010-05-12 09:46:41	-2.70782	2010-05-12 10:36:02
364	164.95239	2010-05-12 11:25:24	-27.38740	2010-05-12 12:14:45
410	140.27281	2010-05-12 13:04:07	-52.06699	2010-05-12 13:53:28
456	115.59322	2010-05-12 14:42:50	-76.74657	2010-05-12 15:32:12
502	90.91364	2010-05-12 16:21:33	-101.42615	2010-05-12 17:10:55
548	66.23406	2010-05-12 18:00:16	-126.10573	2010-05-12 18:49:38
594	41.55448	2010-05-12 19:38:59	-150.78532	2010-05-12 20:28:21
640	16.87489	2010-05-12 21:17:42	-175.46490	2010-05-12 22:07:04
15	-7.80469	2010-05-12 22:56:25	159.85552	2010-05-12 23:45:47
