>ALOS Data Take Simulation(Mar. 22, 2010)

Observation Area

PRISM

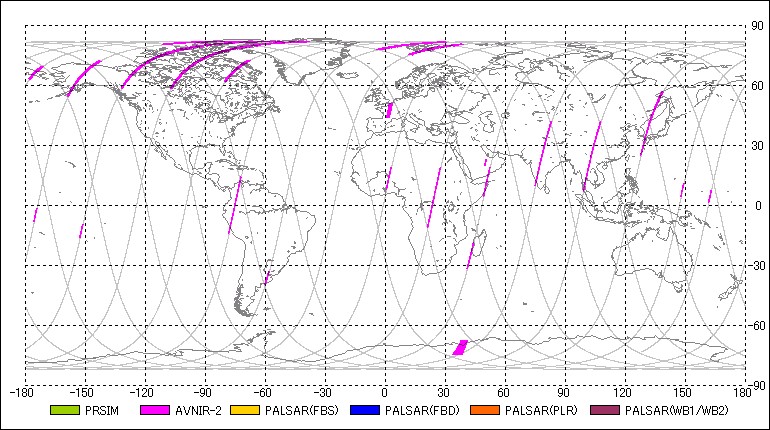

AVNIR-2

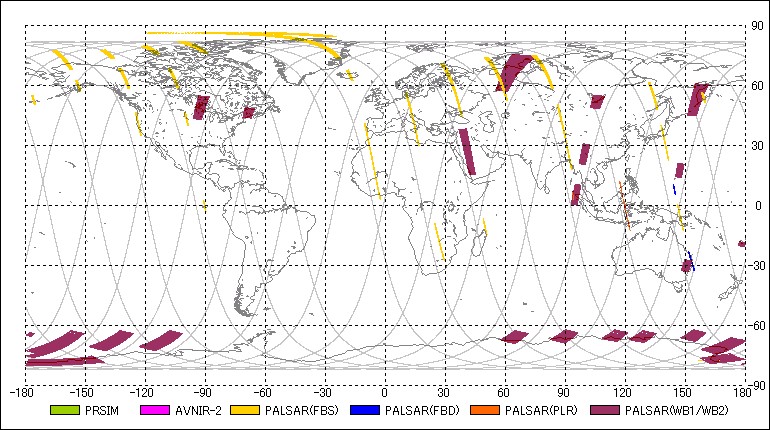

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-03-22 00:20:12	2010-03-22 00:25:14	00:05:02	39	117.61	39	135.96	27.10	80
2	PSR	WB1	2010-03-22 00:31:14	2010-03-22 00:33:46	00:02:32	39	157.84	39	167.08	27.10	80
3	AV2	OBS	2010-03-22 00:34:14	2010-03-22 00:36:06	00:01:52	39	168.78	39	175.59	0.00	-
4	PSM	OB1	2010-03-22 00:44:35	2010-03-22 00:47:11	00:02:36	39	206.53	39	216.01	1.20	-
5	PSR	WB1	2010-03-22 00:54:49	2010-03-22 00:56:49	00:02:00	39	243.85	39	251.14	27.10	80
6	PSM	OB2	2010-03-22 02:00:16	2010-03-22 02:09:58	00:09:42	85	122.53	85	157.90	0.00	-
7	AV2	OBS	2010-03-22 02:00:17	2010-03-22 02:09:09	00:08:52	85	122.53	85	154.86	0.00	-
8	PSM	OB2	2010-03-22 02:11:57	2010-03-22 02:24:51	00:12:54	85	165.14	85	212.18	0.00	-
9	PSR	WB1	2010-03-22 02:33:32	2010-03-22 02:35:44	00:02:12	85	243.85	85	251.87	27.10	80
10	PSR	FBS	2010-03-22 03:25:49	2010-03-22 03:28:15	00:02:26	131	74.52	131	83.39	34.30	7
11	PSR	WB1	2010-03-22 03:39:16	2010-03-22 03:41:38	00:02:22	131	123.56	131	132.19	27.10	80
12	PSM	OB2	2010-03-22 03:40:25	2010-03-22 03:55:57	00:15:32	131	127.70	131	184.34	0.00	-
13	AV2	OBS	2010-03-22 03:43:13	2010-03-22 03:52:53	00:09:40	131	137.97	131	173.22	0.00	-
14	PSR	WB1	2010-03-22 03:45:59	2010-03-22 03:49:25	00:03:26	131	148.00	131	160.52	27.10	80
15	PSR	WB1	2010-03-22 03:51:34	2010-03-22 03:54:58	00:03:24	131	168.42	131	180.82	27.10	80
16	PSR	WB1	2010-03-22 04:12:16	2010-03-22 04:14:32	00:02:16	131	243.91	131	252.17	27.10	80
17	PSR	FBS	2010-03-22 04:42:35	2010-03-22 04:44:51	00:02:16	131	354.46	177	2.74	34.30	7
18	PSR	FBS	2010-03-22 04:54:31	2010-03-22 04:56:57	00:02:26	177	37.99	177	46.86	34.30	7
19	PSR	FBS	2010-03-22 04:59:40	2010-03-22 05:03:06	00:03:26	177	56.77	177	69.29	34.30	7
20	PSR	FBS	2010-03-22 05:04:28	2010-03-22 05:06:20	00:01:52	177	74.27	177	81.08	34.30	7
21	AV2	OBS	2010-03-22 05:21:55	2010-03-22 05:30:45	00:08:50	177	137.91	177	170.12	0.00	-
22	PSR	FBS	2010-03-22 06:31:52	2010-03-22 06:35:44	00:03:52	223	33.00	223	47.10	34.30	7
23	PSR	FBS	2010-03-22 06:38:24	2010-03-22 06:41:50	00:03:26	223	56.77	223	69.29	34.30	7
24	PSR	FBS	2010-03-22 06:42:35	2010-03-22 06:44:27	00:01:52	223	72.02	223	78.83	34.30	7
25	PSR	WB1	2010-03-22 06:51:01	2010-03-22 06:56:39	00:05:38	223	102.84	223	123.38	27.10	80
26	PSM	OB1	2010-03-22 06:57:06	2010-03-22 07:11:24	00:14:18	223	125.02	223	177.17	1.20	-
27	AV2	OBS	2010-03-22 07:05:57	2010-03-22 07:10:51	00:04:54	223	157.30	223	175.17	-21.50	-
28	PSM	OB1	2010-03-22 07:16:38	2010-03-22 07:21:38	00:05:00	223	196.26	223	214.49	0.00	-
29	AV2	OBS	2010-03-22 07:17:21	2010-03-22 07:20:55	00:03:34	223	198.81	223	211.81	0.00	-
30	AV2	OBS	2010-03-22 07:30:37	2010-03-22 07:32:39	00:02:02	223	247.25	223	254.66	41.50	-
31	PSR	FBS	2010-03-22 08:16:44	2010-03-22 08:18:54	00:02:10	269	55.37	269	63.27	34.30	7
32	PSR	FBS	2010-03-22 08:19:44	2010-03-22 08:23:02	00:03:18	269	66.37	269	78.40	34.30	7
33	PSM	OB1	2010-03-22 08:33:01	2010-03-22 08:54:49	00:21:48	269	114.75	269	194.25	1.20	-
34	AV2	OBS	2010-03-22 08:45:43	2010-03-22 08:53:59	00:08:16	269	161.13	269	191.27	0.00	-
35	AV2	CA1	2010-03-22 09:39:52	2010-03-22 09:47:40	00:07:48	269	358.54	315	26.99	0.00	-
36	PSR	FBS	2010-03-22 09:53:35	2010-03-22 09:55:27	00:01:52	315	48.62	315	55.43	34.30	7
37	PSM	OB2	2010-03-22 10:14:31	2010-03-22 10:16:23	00:01:52	315	124.90	315	131.71	0.00	-
38	AV2	OBS	2010-03-22 10:15:47	2010-03-22 10:17:39	00:01:52	315	129.58	315	136.39	-41.50	-
39	PSM	OB1	2010-03-22 10:23:40	2010-03-22 10:29:18	00:05:38	315	158.33	315	178.87	1.20	-
40	AV2	OBS	2010-03-22 10:24:24	2010-03-22 10:27:24	00:03:00	315	160.94	315	171.88	0.00	-
41	PSR	FBS	2010-03-22 11:32:38	2010-03-22 11:34:40	00:02:02	361	49.78	361	57.19	34.30	7
42	PSM	OB1	2010-03-22 11:44:20	2010-03-22 11:47:52	00:03:32	361	92.51	361	105.39	1.20	-
43	AV2	OBS	2010-03-22 11:45:02	2010-03-22 11:47:06	00:02:04	361	95.00	361	102.53	0.00	-
44	PSR	FBD	2010-03-22 12:48:05	2010-03-22 12:51:23	00:03:18	361	324.99	361	337.02	34.30	43
45	PSR	FBS	2010-03-22 12:53:34	2010-03-22 12:57:48	00:04:14	361	344.98	407	0.43	34.30	7
46	PSR	FBD	2010-03-22 12:58:33	2010-03-22 13:00:35	00:02:02	407	3.16	407	10.58	34.30	43
47	PSR	FBS	2010-03-22 13:03:19	2010-03-22 13:08:49	00:05:30	407	20.54	407	40.60	34.30	7
48	PSR	FBS	2010-03-22 13:10:21	2010-03-22 13:14:41	00:04:20	407	46.19	407	61.99	34.30	7
49	PSM	OB1	2010-03-22 13:22:13	2010-03-22 13:25:09	00:02:56	407	89.47	407	100.16	1.20	-
50	AV2	OBS	2010-03-22 13:22:59	2010-03-22 13:24:53	00:01:54	407	92.20	407	99.13	0.00	-
51	PSM	OB1	2010-03-22 13:45:13	2010-03-22 13:58:59	00:13:46	407	173.34	407	223.55	1.20	-
52	AV2	OBS	2010-03-22 13:56:08	2010-03-22 13:58:00	00:01:52	407	213.15	407	219.96	0.00	-
53	PSM	OB1	2010-03-22 14:00:52	2010-03-22 14:03:32	00:02:40	407	230.35	407	240.08	1.20	-
54	PSR	PLR	2010-03-22 14:32:28	2010-03-22 14:39:50	00:07:22	407	345.59	453	12.46	21.50	127
55	PSR	WB1	2010-03-22 15:12:01	2010-03-22 15:14:01	00:02:00	453	129.82	453	137.12	27.10	80
56	PSM	OB1	2010-03-22 15:21:08	2010-03-22 15:30:20	00:09:12	453	163.13	453	196.68	1.20	-
57	AV2	OBS	2010-03-22 15:21:51	2010-03-22 15:29:35	00:07:44	453	165.74	453	193.95	0.00	-
58	PSR	WB1	2010-03-22 15:43:17	2010-03-22 15:46:43	00:03:26	453	243.91	453	256.43	27.10	80
59	PSR	WB1	2010-03-22 15:48:22	2010-03-22 15:51:10	00:02:48	453	262.38	453	272.59	27.10	80
60	PSR	PLR	2010-03-22 16:15:28	2010-03-22 16:17:20	00:01:52	499	1.22	499	8.02	21.50	127
61	PSR	FBS	2010-03-22 16:19:24	2010-03-22 16:29:04	00:09:40	499	15.62	499	50.87	34.30	7
62	PSR	FBS	2010-03-22 16:30:42	2010-03-22 16:35:58	00:05:16	499	56.77	499	75.97	34.30	7
63	AV2	OBS	2010-03-22 16:44:06	2010-03-22 16:47:16	00:03:10	499	105.63	499	117.18	0.00	-
64	PSR	WB1	2010-03-22 16:49:05	2010-03-22 16:52:53	00:03:48	499	123.81	499	137.66	27.10	80
65	PSM	OB1	2010-03-22 16:59:28	2010-03-22 17:02:50	00:03:22	499	161.67	499	173.95	0.00	-
66	PSR	WB1	2010-03-22 17:22:01	2010-03-22 17:25:27	00:03:26	499	243.91	499	256.43	27.10	80
67	PSR	FBS	2010-03-22 17:27:57	2010-03-22 17:29:49	00:01:52	499	265.54	499	272.35	34.30	7
68	PSR	FBS	2010-03-22 18:07:46	2010-03-22 18:14:26	00:06:40	545	50.75	545	75.06	34.30	7
69	AV2	OBS	2010-03-22 18:18:54	2010-03-22 18:26:58	00:08:04	545	91.35	545	120.77	0.00	-
70	PSM	OB1	2010-03-22 18:25:16	2010-03-22 18:36:06	00:10:50	545	114.57	545	154.07	1.20	-
71	PSR	WB1	2010-03-22 19:00:44	2010-03-22 19:06:54	00:06:10	545	243.91	545	266.39	27.10	80
72	PSR	FBS	2010-03-22 19:27:57	2010-03-22 19:30:45	00:02:48	545	343.16	545	353.37	34.30	7
73	PSR	WB1	2010-03-22 19:36:14	2010-03-22 19:43:10	00:06:56	591	13.37	591	38.66	27.10	80
74	PSR	FBS	2010-03-22 19:44:11	2010-03-22 19:52:15	00:08:04	591	42.36	591	71.78	34.30	7
75	AV2	OBS	2010-03-22 19:57:11	2010-03-22 20:05:41	00:08:30	591	89.77	591	120.77	0.00	-
76	PSM	OB1	2010-03-22 20:03:59	2010-03-22 20:07:55	00:03:56	591	114.57	591	128.91	1.20	-
77	AV2	OBS	2010-03-22 20:24:29	2010-03-22 20:26:21	00:01:52	591	189.33	591	196.13	0.00	-
78	PSM	OB2	2010-03-22 20:24:29	2010-03-22 20:26:27	00:01:58	591	189.33	591	196.50	0.00	-
79	PSR	WB1	2010-03-22 20:39:27	2010-03-22 20:43:29	00:04:02	591	243.91	591	258.61	27.10	80
80	PSR	FBS	2010-03-22 21:02:59	2010-03-22 21:08:53	00:05:54	591	329.73	591	351.24	34.30	7
81	PSR	FBS	2010-03-22 21:18:57	2010-03-22 21:26:55	00:07:58	637	27.96	637	57.01	34.30	7
82	PSR	FBS	2010-03-22 21:34:18	2010-03-22 21:36:26	00:02:08	637	83.88	637	91.65	34.30	7
83	AV2	OBS	2010-03-22 21:35:32	2010-03-22 21:37:24	00:01:52	637	88.43	637	95.24	0.00	-
84	AV2	OBS	2010-03-22 21:40:22	2010-03-22 21:45:34	00:05:12	637	106.00	637	124.96	0.00	-
85	AV2	OBS	2010-03-22 22:01:00	2010-03-22 22:02:52	00:01:52	637	181.30	637	188.11	0.00	-
86	PSR	WB1	2010-03-22 22:04:16	2010-03-22 22:06:38	00:02:22	637	193.22	637	201.85	27.10	80
87	PSM	OB2	2010-03-22 22:10:20	2010-03-22 22:13:20	00:03:00	637	215.34	637	226.28	0.00	-
88	PSR	WB1	2010-03-22 22:18:09	2010-03-22 22:20:07	00:01:58	637	243.85	637	251.02	27.10	80
89	PSR	FBS	2010-03-22 22:50:16	2010-03-22 23:01:24	00:11:08	12	0.97	12	41.57	34.30	7
90	PSR	FBS	2010-03-22 23:06:37	2010-03-22 23:08:47	00:02:10	12	60.60	12	68.50	34.30	7
91	PSR	FBS	2010-03-22 23:09:46	2010-03-22 23:15:10	00:05:24	12	72.08	12	91.78	34.30	7
92	AV2	OBS	2010-03-22 23:19:54	2010-03-22 23:21:48	00:01:54	12	108.98	12	115.91	0.00	-
93	AV2	OBS	2010-03-22 23:37:16	2010-03-22 23:39:00	00:01:44	12	172.31	12	178.63	0.00	-
94	PSR	WB1	2010-03-22 23:46:35	2010-03-22 23:48:47	00:02:12	12	206.34	12	214.37	27.10	80
95	PSR	WB1	2010-03-22 23:56:53	2010-03-22 23:59:03	00:02:10	12	243.91	12	251.81	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
39	-20.68099	2010-03-21 23:47:56	146.97921	2010-03-22 00:37:17
85	-45.36058	2010-03-22 01:26:39	122.29963	2010-03-22 02:16:00
131	-70.04016	2010-03-22 03:05:22	97.62005	2010-03-22 03:54:44
177	-94.71974	2010-03-22 04:44:05	72.94047	2010-03-22 05:33:27
223	-119.39932	2010-03-22 06:22:48	48.26088	2010-03-22 07:12:10
269	-144.07891	2010-03-22 08:01:31	23.58130	2010-03-22 08:50:53
315	-168.75849	2010-03-22 09:40:14	-1.09828	2010-03-22 10:29:36
361	166.56193	2010-03-22 11:18:57	-25.77786	2010-03-22 12:08:19
407	141.88234	2010-03-22 12:57:41	-50.45745	2010-03-22 13:47:02
453	117.20276	2010-03-22 14:36:24	-75.13703	2010-03-22 15:25:45
499	92.52318	2010-03-22 16:15:07	-99.81661	2010-03-22 17:04:28
545	67.84360	2010-03-22 17:53:50	-124.49620	2010-03-22 18:43:11
591	43.16401	2010-03-22 19:32:33	-149.17578	2010-03-22 20:21:55
637	18.48443	2010-03-22 21:11:16	-173.85536	2010-03-22 22:00:38
12	-6.19515	2010-03-22 22:49:59	161.46506	2010-03-22 23:39:21
