>ALOS Data Take Simulation(Feb. 20, 2010)

Observation Area

PRISM

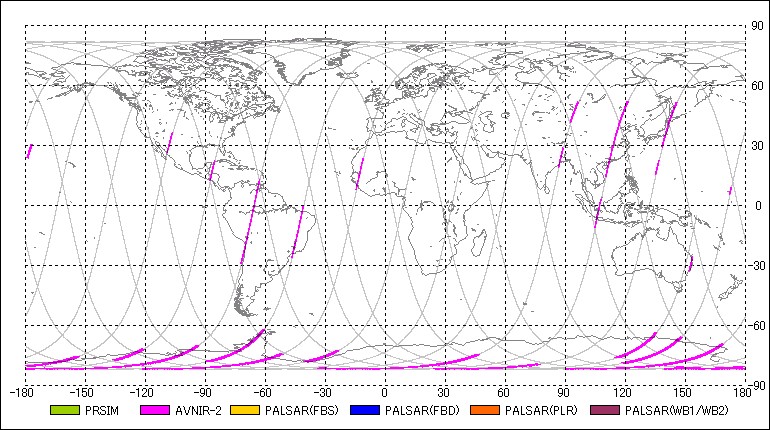

AVNIR-2

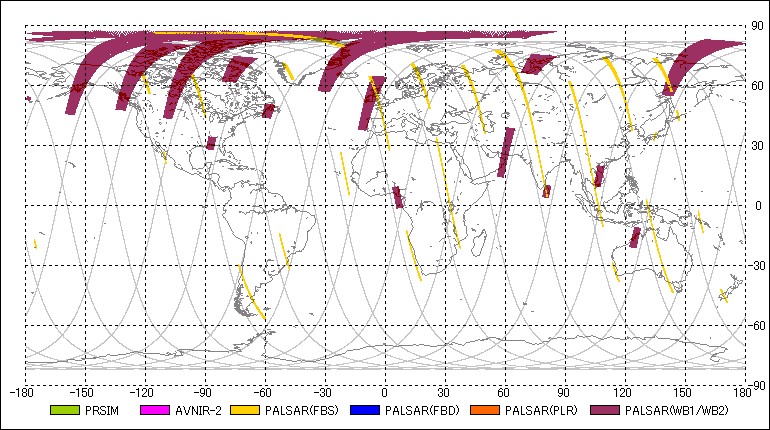

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2010-02-20 00:05:41	2010-02-20 00:07:37	00:01:56	21	205.55	21	212.60	21.50	-
2	PSM	OB1	2010-02-20 00:15:51	2010-02-20 00:21:03	00:05:12	21	242.63	21	261.59	-1.20	-
3	AV2	OBS	2010-02-20 00:16:24	2010-02-20 00:20:18	00:03:54	21	244.64	21	258.86	0.00	-
4	PSR	FBS	2010-02-20 01:04:46	2010-02-20 01:07:46	00:03:00	67	61.02	67	71.96	34.30	7
5	PSR	WB1	2010-02-20 01:10:10	2010-02-20 01:22:29	00:12:19	67	80.71	67	125.63	27.10	80
6	AV2	OBS	2010-02-20 01:23:08	2010-02-20 01:29:22	00:06:14	67	128.00	67	150.73	0.00	-
7	PSM	OB2	2010-02-20 01:23:14	2010-02-20 01:29:32	00:06:18	67	128.37	67	151.34	0.00	-
8	PSR	FBS	2010-02-20 01:26:59	2010-02-20 01:28:51	00:01:52	67	142.04	67	148.85	34.30	7
9	AV2	OBS	2010-02-20 01:31:14	2010-02-20 01:33:06	00:01:52	67	157.54	67	164.35	0.00	-
10	PSM	OB2	2010-02-20 01:31:15	2010-02-20 01:33:07	00:01:52	67	157.60	67	164.41	0.00	-
11	PSM	OB2	2010-02-20 01:36:37	2010-02-20 01:39:41	00:03:04	67	177.17	67	188.35	0.00	-
12	PSR	WB1	2010-02-20 01:40:09	2010-02-20 01:43:31	00:03:22	67	190.06	67	202.33	27.10	80
13	PSM	OB1	2010-02-20 01:54:26	2010-02-20 01:59:44	00:05:18	67	242.14	67	261.47	-1.20	-
14	AV2	OBS	2010-02-20 02:00:11	2010-02-20 02:02:35	00:02:24	67	263.11	67	271.86	0.00	-
15	PSR	FBS	2010-02-20 02:17:12	2010-02-20 02:22:56	00:05:44	67	325.17	67	346.08	34.30	7
16	PSM	OB2	2010-02-20 03:01:41	2010-02-20 03:11:23	00:09:42	113	127.39	113	162.77	0.00	-
17	AV2	OBS	2010-02-20 03:01:42	2010-02-20 03:12:08	00:10:26	113	127.39	113	165.44	0.00	-
18	PSR	WB1	2010-02-20 03:10:20	2010-02-20 03:13:46	00:03:26	113	158.94	113	171.46	27.10	80
19	PSM	OB2	2010-02-20 03:14:25	2010-02-20 03:20:25	00:06:00	113	173.77	113	195.65	0.00	-
20	AV2	OBS	2010-02-20 03:15:18	2010-02-20 03:19:10	00:03:52	113	177.05	113	191.15	0.00	-
21	PSM	OB1	2010-02-20 03:33:24	2010-02-20 03:36:00	00:02:36	113	242.99	113	252.48	-1.20	-
22	PSR	FBS	2010-02-20 03:48:49	2010-02-20 03:57:23	00:08:34	113	299.21	113	330.46	34.30	7
23	PSR	FBS	2010-02-20 04:16:56	2010-02-20 04:25:16	00:08:20	159	41.76	159	72.14	34.30	7
24	AV2	OBS	2010-02-20 04:40:30	2010-02-20 04:43:22	00:02:52	159	127.76	159	138.21	0.00	-
25	AV2	OBS	2010-02-20 04:46:55	2010-02-20 04:49:39	00:02:44	159	151.10	159	161.06	0.00	-
26	PSR	WB1	2010-02-20 04:51:47	2010-02-20 04:53:59	00:02:12	159	168.90	159	176.93	27.10	80
27	AV2	OBS	2010-02-20 05:15:52	2010-02-20 05:20:20	00:04:28	159	256.73	159	273.02	0.00	-
28	PSR	FBS	2010-02-20 05:49:22	2010-02-20 05:51:42	00:02:20	205	18.84	205	27.35	34.30	7
29	PSR	FBS	2010-02-20 05:59:03	2010-02-20 06:04:05	00:05:02	205	54.15	205	72.51	34.30	7
30	PSR	WB1	2010-02-20 06:12:22	2010-02-20 06:15:38	00:03:16	205	102.72	205	114.63	27.10	80
31	PSM	OB1	2010-02-20 06:21:15	2010-02-20 06:27:51	00:06:36	205	135.17	205	159.24	-1.20	-
32	PSR	WB1	2010-02-20 06:22:35	2010-02-20 06:29:55	00:07:20	205	139.97	205	166.72	27.10	80
33	AV2	OBS	2010-02-20 10:11:26	2010-02-20 10:13:18	00:01:52	297	254.54	297	261.35	0.00	-
34	PSR	FBS	2010-02-20 10:33:43	2010-02-20 10:35:39	00:01:56	297	335.86	297	342.92	34.30	7
35	PSR	WB1	2010-02-20 11:11:34	2010-02-20 11:19:36	00:08:02	343	113.84	343	143.13	27.10	80
36	AV2	OBS	2010-02-20 11:23:12	2010-02-20 11:27:35	00:04:23	343	156.26	343	172.25	0.00	-
37	PSM	OB1	2010-02-20 11:23:49	2010-02-20 11:28:25	00:04:36	343	158.51	343	175.29	-1.20	-
38	AV2	OBS	2010-02-20 11:50:38	2010-02-20 11:54:46	00:04:08	343	256.37	343	271.44	0.00	-
39	PSR	FBS	2010-02-20 12:04:53	2010-02-20 12:07:19	00:02:26	343	308.27	343	317.14	34.30	7
40	PSR	FBS	2010-02-20 12:14:40	2010-02-20 12:18:22	00:03:42	343	343.95	343	357.44	34.30	7
41	PSR	FBS	2010-02-20 12:30:08	2010-02-20 12:32:14	00:02:06	389	40.36	389	48.02	34.30	7
42	PSR	FBS	2010-02-20 12:34:12	2010-02-20 12:39:28	00:05:16	389	55.19	389	74.39	34.30	7
43	PSR	WB1	2010-02-20 12:42:51	2010-02-20 12:52:56	00:10:05	389	86.73	389	123.50	27.10	80
44	PSM	OB1	2010-02-20 13:07:51	2010-02-20 13:16:17	00:08:26	389	177.90	389	208.65	-1.20	-
45	AV2	OBS	2010-02-20 13:08:37	2010-02-20 13:15:41	00:07:04	389	180.70	389	206.47	0.00	-
46	PSM	OB1	2010-02-20 13:25:03	2010-02-20 13:30:47	00:05:44	389	240.62	389	261.53	-1.20	-
47	AV2	OBS	2010-02-20 13:25:45	2010-02-20 13:30:41	00:04:56	389	243.18	389	261.17	0.00	-
48	PSR	FBS	2010-02-20 13:45:02	2010-02-20 13:58:40	00:13:38	389	313.50	435	3.22	34.30	7
49	PSR	FBS	2010-02-20 14:07:31	2010-02-20 14:18:23	00:10:52	435	35.49	435	75.12	34.30	7
50	PSR	WB1	2010-02-20 14:32:55	2010-02-20 14:35:23	00:02:28	435	128.12	435	137.12	27.10	80
51	PSM	OB1	2010-02-20 14:42:51	2010-02-20 14:52:23	00:09:32	435	164.35	435	199.11	-1.20	-
52	AV2	OBS	2010-02-20 14:43:33	2010-02-20 14:55:13	00:11:40	435	166.90	435	209.44	0.00	-
53	PSM	OB1	2010-02-20 15:06:07	2010-02-20 15:09:31	00:03:24	435	249.19	435	261.59	-1.20	-
54	AV2	OBS	2010-02-20 15:06:50	2010-02-20 15:12:10	00:05:20	435	251.81	435	271.26	0.00	-
55	PSR	FBS	2010-02-20 15:25:19	2010-02-20 15:28:39	00:03:20	435	319.21	435	331.37	34.30	7
56	PSR	FBS	2010-02-20 15:32:58	2010-02-20 15:53:38	00:20:40	435	347.11	481	62.48	34.30	7
57	PSR	WB1	2010-02-20 16:04:57	2010-02-20 16:09:05	00:04:08	481	103.69	481	118.76	27.10	80
58	PSR	WB1	2010-02-20 16:16:07	2010-02-20 16:18:29	00:02:22	481	144.41	481	153.04	27.10	80
59	AV2	OBS	2010-02-20 16:19:42	2010-02-20 16:22:30	00:02:48	481	157.54	481	167.75	0.00	-
60	PSM	OB2	2010-02-20 16:20:20	2010-02-20 16:23:42	00:03:22	481	159.85	481	172.13	0.00	-
61	PSM	OB1	2010-02-20 16:45:16	2010-02-20 16:48:12	00:02:56	481	250.77	481	261.47	-1.20	-
62	AV2	OBS	2010-02-20 16:46:02	2010-02-20 16:47:54	00:01:52	481	253.57	481	260.38	0.00	-
63	AV2	OBS	2010-02-20 16:49:53	2010-02-20 16:51:45	00:01:52	481	267.61	481	274.42	0.00	-
64	PSR	FBS	2010-02-20 17:15:49	2010-02-20 17:36:45	00:20:56	527	2.19	527	78.53	34.30	7
65	PSR	WB1	2010-02-20 17:38:19	2010-02-20 17:52:54	00:14:35	527	84.24	527	137.42	27.10	80
66	AV2	OBS	2010-02-20 17:54:33	2010-02-20 17:57:21	00:02:48	527	143.44	527	153.65	0.00	-
67	PSM	OB1	2010-02-20 17:55:59	2010-02-20 18:00:03	00:04:04	527	148.60	527	163.43	0.00	-
68	AV2	OBS	2010-02-20 18:25:55	2010-02-20 18:29:39	00:03:44	527	257.82	527	271.44	0.00	-
69	PSR	FBS	2010-02-20 19:03:14	2010-02-20 19:13:22	00:10:08	573	33.91	573	70.87	34.30	7
70	PSR	WB1	2010-02-20 19:20:23	2010-02-20 19:30:26	00:10:03	573	96.40	573	133.05	27.10	80
71	PSR	FBS	2010-02-20 20:26:07	2010-02-20 20:42:05	00:15:58	573	336.17	619	34.40	34.30	7
72	PSR	FBS	2010-02-20 20:45:27	2010-02-20 20:52:19	00:06:52	619	46.62	619	71.66	34.30	7
73	PSR	WB1	2010-02-20 20:55:28	2010-02-20 21:09:44	00:14:16	619	83.21	619	135.23	27.10	80
74	PSM	OB1	2010-02-20 21:14:39	2010-02-20 21:17:15	00:02:36	619	153.10	619	162.58	-1.20	-
75	PSM	OB1	2010-02-20 21:40:39	2010-02-20 21:44:21	00:03:42	619	247.98	619	261.47	-1.20	-
76	AV2	OBS	2010-02-20 21:41:26	2010-02-20 21:47:06	00:05:40	619	250.77	619	271.44	0.00	-
77	PSR	FBS	2010-02-20 22:00:16	2010-02-20 22:07:56	00:07:40	619	319.52	619	347.47	34.30	7
78	PSR	WB1	2010-02-20 22:10:28	2010-02-20 22:13:58	00:03:30	619	356.65	665	9.42	27.10	80
79	PSR	FBS	2010-02-20 22:18:18	2010-02-20 22:29:14	00:10:56	665	25.22	665	65.09	34.30	7
80	PSR	FBS	2010-02-20 22:32:52	2010-02-20 22:36:40	00:03:48	665	78.34	665	92.20	34.30	7
81	PSR	WB1	2010-02-20 22:45:24	2010-02-20 22:47:30	00:02:06	665	124.05	665	131.71	27.10	80
82	AV2	OBS	2010-02-20 22:52:10	2010-02-20 22:54:02	00:01:52	665	148.73	665	155.53	34.30	-
83	AV2	OBS	2010-02-20 22:58:14	2010-02-20 22:59:14	00:01:00	665	170.91	665	174.56	0.00	-
84	PSM	OB1	2010-02-20 23:18:18	2010-02-20 23:23:50	00:05:32	665	244.09	665	264.27	-1.20	-
85	AV2	OBS	2010-02-20 23:19:05	2010-02-20 23:23:19	00:04:14	665	246.95	665	262.38	0.00	-
86	PSR	FBS	2010-02-20 23:51:02	2010-02-20 23:57:28	00:06:26	40	3.40	40	26.86	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
21	-11.02377	2010-02-19 23:09:18	156.63644	2010-02-19 23:58:40
67	-35.70335	2010-02-20 00:48:01	131.95686	2010-02-20 01:37:23
113	-60.38293	2010-02-20 02:26:44	107.27728	2010-02-20 03:16:06
159	-85.06251	2010-02-20 04:05:27	82.59769	2010-02-20 04:54:49
205	-109.74210	2010-02-20 05:44:10	57.91811	2010-02-20 06:33:32
251	-134.42168	2010-02-20 07:22:54	33.23853	2010-02-20 08:12:15
297	-159.10126	2010-02-20 09:01:37	8.55895	2010-02-20 09:50:58
343	176.21915	2010-02-20 10:40:20	-16.12064	2010-02-20 11:29:41
389	151.53957	2010-02-20 12:19:03	-40.80022	2010-02-20 13:08:24
435	126.85999	2010-02-20 13:57:46	-65.47980	2010-02-20 14:47:07
481	102.18041	2010-02-20 15:36:29	-90.15938	2010-02-20 16:25:51
527	77.50082	2010-02-20 17:15:12	-114.83897	2010-02-20 18:04:34
573	52.82124	2010-02-20 18:53:55	-139.51855	2010-02-20 19:43:17
619	28.14166	2010-02-20 20:32:38	-164.19813	2010-02-20 21:22:00
665	3.46208	2010-02-20 22:11:21	171.12228	2010-02-20 23:00:43
40	-21.21751	2010-02-20 23:50:05	146.44270	2010-02-21 00:39:26
