>ALOS Data Take Simulation(Feb. 02, 2010)

Observation Area

PRISM

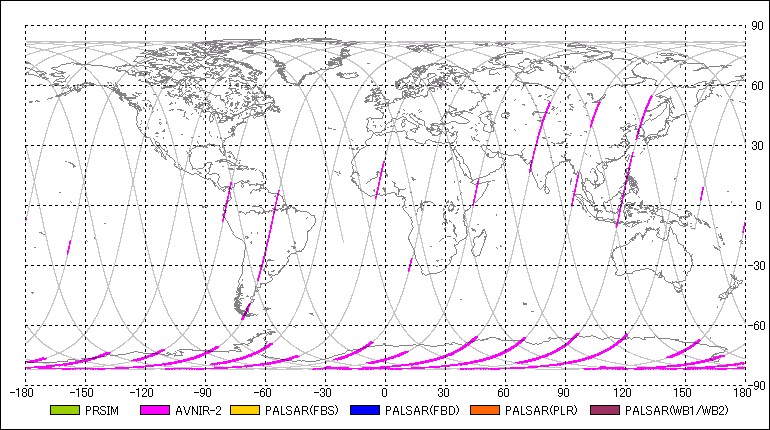

AVNIR-2

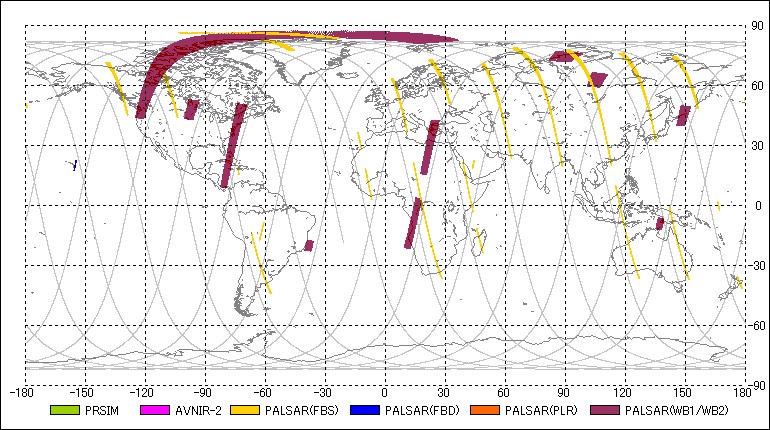

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-02-02 00:26:02	2010-02-02 00:28:58	00:02:56	47	76.28	47	86.97	34.30	7
2	PSR	WB1	2010-02-02 00:40:24	2010-02-02 00:43:46	00:03:22	47	128.67	47	140.95	27.10	80
3	PSM	OB1	2010-02-02 00:48:49	2010-02-02 00:51:29	00:02:40	47	159.36	47	169.09	-1.20	-
4	PSM	OB2	2010-02-02 00:54:44	2010-02-02 01:03:12	00:08:28	47	180.94	47	211.81	0.00	-
5	PSR	WB1	2010-02-02 00:55:56	2010-02-02 00:58:04	00:02:08	47	185.32	47	193.09	27.10	80
6	PSM	OB1	2010-02-02 01:11:38	2010-02-02 01:20:04	00:08:26	47	242.57	47	273.32	-1.20	-
7	AV2	OBS	2010-02-02 01:12:25	2010-02-02 01:19:33	00:07:08	47	245.43	47	271.44	0.00	-
8	PSM	OB2	2010-02-02 02:17:40	2010-02-02 02:24:08	00:06:28	93	123.38	93	146.96	0.00	-
9	AV2	OBS	2010-02-02 02:18:00	2010-02-02 02:24:10	00:06:10	93	124.60	93	147.09	0.00	-
10	AV2	OBS	2010-02-02 02:25:56	2010-02-02 02:36:14	00:10:18	93	153.53	93	191.09	0.00	-
11	PSM	OB2	2010-02-02 02:26:00	2010-02-02 02:37:06	00:11:06	93	153.77	93	194.25	0.00	-
12	PSM	OB1	2010-02-02 02:50:18	2010-02-02 02:56:36	00:06:18	93	242.39	93	265.36	-1.20	-
13	AV2	OBS	2010-02-02 02:51:01	2010-02-02 02:55:49	00:04:48	93	244.94	93	262.44	0.00	-
14	PSR	FBS	2010-02-02 03:09:41	2010-02-02 03:18:45	00:09:04	93	313.01	93	346.08	34.30	7
15	PSR	FBS	2010-02-02 03:26:14	2010-02-02 03:27:48	00:01:34	139	13.43	139	19.15	34.30	7
16	PSR	WB1	2010-02-02 03:53:17	2010-02-02 03:55:49	00:02:32	139	112.08	139	121.31	27.10	80
17	AV2	OBS	2010-02-02 03:57:35	2010-02-02 04:01:09	00:03:34	139	127.76	139	140.76	0.00	-
18	PSM	OB2	2010-02-02 04:03:43	2010-02-02 04:11:51	00:08:08	139	150.12	139	179.78	0.00	-
19	AV2	OBS	2010-02-02 04:07:33	2010-02-02 04:11:49	00:04:16	139	164.10	139	179.66	0.00	-
20	PSM	OB1	2010-02-02 04:29:37	2010-02-02 04:34:15	00:04:38	139	244.57	139	261.47	-1.20	-
21	AV2	OBS	2010-02-02 04:30:24	2010-02-02 04:37:46	00:07:22	139	247.37	139	274.23	0.00	-
22	PSR	FBS	2010-02-02 05:12:44	2010-02-02 05:21:04	00:08:20	185	41.82	185	72.21	34.30	7
23	PSR	WB1	2010-02-02 05:29:03	2010-02-02 05:30:55	00:01:52	185	101.26	185	108.07	27.10	80
24	AV2	OBS	2010-02-02 05:36:19	2010-02-02 05:46:05	00:09:46	185	127.76	185	163.37	0.00	-
25	PSM	OB1	2010-02-02 05:38:20	2010-02-02 05:46:46	00:08:26	185	135.17	185	165.93	-1.20	-
26	AV2	OBS	2010-02-02 06:08:53	2010-02-02 06:15:41	00:06:48	185	246.58	185	271.38	0.00	-
27	PSR	FBS	2010-02-02 06:51:50	2010-02-02 06:59:52	00:08:02	231	43.21	231	72.51	34.30	7
28	PSR	FBS	2010-02-02 07:22:54	2010-02-02 07:24:34	00:01:40	231	156.45	231	162.52	34.30	7
29	PSM	OB1	2010-02-02 07:25:02	2010-02-02 07:30:16	00:05:14	231	164.22	231	183.31	-1.20	-
30	AV2	OBS	2010-02-02 07:25:46	2010-02-02 07:29:28	00:03:42	231	166.90	231	180.39	0.00	-
31	PSM	OB1	2010-02-02 07:47:31	2010-02-02 07:53:17	00:05:46	231	246.22	231	267.25	-1.20	-
32	AV2	OBS	2010-02-02 07:49:52	2010-02-02 07:51:58	00:02:06	231	254.85	231	262.50	0.00	-
33	PSR	WB1	2010-02-02 08:56:00	2010-02-02 09:04:04	00:08:04	277	136.02	277	165.44	27.10	80
34	PSM	OB1	2010-02-02 09:02:12	2010-02-02 09:11:56	00:09:44	277	158.57	277	194.07	-1.20	-
35	PSR	WB1	2010-02-02 09:06:44	2010-02-02 09:14:20	00:07:36	277	175.10	277	202.82	27.10	80
36	AV2	OBS	2010-02-02 09:15:21	2010-02-02 09:17:13	00:01:52	277	206.53	277	213.33	0.00	-
37	PSM	OB1	2010-02-02 09:26:29	2010-02-02 09:30:25	00:03:56	277	247.19	277	261.53	-1.20	-
38	AV2	OBS	2010-02-02 09:27:12	2010-02-02 09:30:02	00:02:50	277	249.74	277	260.07	0.00	-
39	PSR	FBS	2010-02-02 10:10:19	2010-02-02 10:12:11	00:01:52	323	46.98	323	53.79	34.30	7
40	PSM	OB1	2010-02-02 10:33:27	2010-02-02 10:36:03	00:02:36	323	131.34	323	140.82	-1.20	-
41	AV2	OBS	2010-02-02 10:40:47	2010-02-02 10:45:52	00:05:05	323	158.09	323	176.62	0.00	-
42	PSM	OB1	2010-02-02 10:40:54	2010-02-02 10:46:38	00:05:44	323	158.51	323	179.42	-1.20	-
43	AV2	OBS	2010-02-02 11:08:04	2010-02-02 11:11:50	00:03:46	323	257.58	323	271.32	0.00	-
44	PSR	FBS	2010-02-02 11:23:59	2010-02-02 11:26:15	00:02:16	323	315.63	323	323.89	34.30	7
45	PSR	FBS	2010-02-02 11:34:54	2010-02-02 11:36:46	00:01:52	323	355.44	369	2.25	34.30	7
46	PSR	FBS	2010-02-02 11:48:56	2010-02-02 11:56:48	00:07:52	369	46.68	369	75.37	34.30	7
47	PSR	WB1	2010-02-02 12:30:03	2010-02-02 12:32:05	00:02:02	369	196.62	369	204.04	27.10	80
48	PSM	OB1	2010-02-02 12:44:05	2010-02-02 12:47:51	00:03:46	369	247.80	369	261.53	-1.20	-
49	AV2	OBS	2010-02-02 12:44:51	2010-02-02 12:48:23	00:03:32	369	250.59	369	263.48	0.00	-
50	PSR	FBS	2010-02-02 13:03:57	2010-02-02 13:14:53	00:10:56	369	320.18	415	0.06	34.30	7
51	PSR	FBS	2010-02-02 13:23:02	2010-02-02 13:36:02	00:13:00	415	29.78	415	77.19	34.30	7
52	AV2	OBS	2010-02-02 14:02:11	2010-02-02 14:14:35	00:12:24	415	172.55	415	217.77	0.00	-
53	PSR	FBS	2010-02-02 14:06:13	2010-02-02 14:09:21	00:03:08	415	187.26	415	198.69	34.30	7
54	AV2	OBS	2010-02-02 14:17:45	2010-02-02 14:20:09	00:02:24	415	229.32	415	238.07	0.00	-
55	PSM	OB1	2010-02-02 14:23:18	2010-02-02 14:26:34	00:03:16	415	249.56	415	261.47	-1.20	-
56	AV2	OBS	2010-02-02 14:24:04	2010-02-02 14:29:58	00:05:54	415	252.35	415	273.87	0.00	-
57	PSR	FBS	2010-02-02 14:42:46	2010-02-02 14:56:22	00:13:36	415	320.55	461	10.15	34.30	7
58	PSR	FBS	2010-02-02 14:58:31	2010-02-02 15:15:13	00:16:42	461	17.99	461	78.89	34.30	7
59	PSR	WB1	2010-02-02 15:28:39	2010-02-02 15:40:45	00:12:06	461	127.88	461	172.00	27.10	80
60	PSM	OB1	2010-02-02 15:39:09	2010-02-02 15:45:49	00:06:40	461	166.17	461	190.48	-1.20	-
61	AV2	OBS	2010-02-02 15:39:44	2010-02-02 15:45:08	00:05:24	461	168.30	461	187.99	0.00	-
62	PSM	OB1	2010-02-02 16:02:31	2010-02-02 16:05:17	00:02:46	461	251.38	461	261.47	-1.20	-
63	AV2	OBS	2010-02-02 16:03:13	2010-02-02 16:05:05	00:01:52	461	254.00	461	260.80	0.00	-
64	PSR	FBS	2010-02-02 16:37:06	2010-02-02 16:54:14	00:17:08	507	17.50	507	79.99	34.30	7
65	PSR	WB1	2010-02-02 17:06:47	2010-02-02 17:10:03	00:03:16	507	125.75	507	137.66	27.10	80
66	PSM	OB1	2010-02-02 17:14:31	2010-02-02 17:19:35	00:05:04	507	153.95	507	172.43	0.00	-
67	AV2	OBS	2010-02-02 17:42:20	2010-02-02 17:46:58	00:04:38	507	255.39	507	272.29	0.00	-
68	PSR	FBS	2010-02-02 18:16:56	2010-02-02 18:30:42	00:13:46	553	21.58	553	71.78	34.30	7
69	PSR	WB1	2010-02-02 18:33:19	2010-02-02 18:48:38	00:15:19	553	81.32	553	137.18	27.10	80
70	PSM	OB2	2010-02-02 18:49:25	2010-02-02 18:51:51	00:02:26	553	140.03	553	148.91	0.00	-
71	AV2	OBS	2010-02-02 19:22:03	2010-02-02 19:26:15	00:04:12	553	258.98	553	274.30	0.00	-
72	PSR	FBS	2010-02-02 19:42:32	2010-02-02 19:46:36	00:04:04	553	333.74	553	348.57	34.30	7
73	PSR	FBS	2010-02-02 19:48:14	2010-02-02 19:55:40	00:07:26	553	354.52	599	21.64	34.30	7
74	PSR	FBS	2010-02-02 20:03:09	2010-02-02 20:09:55	00:06:46	599	48.93	599	73.60	34.30	7
75	PSR	FBD	2010-02-02 20:32:41	2010-02-02 20:34:41	00:02:00	599	156.63	599	163.92	41.50	46
76	AV2	OBS	2010-02-02 20:43:57	2010-02-02 20:45:49	00:01:52	599	197.71	599	204.52	0.00	-
77	AV2	OBS	2010-02-02 21:00:17	2010-02-02 21:04:15	00:03:58	599	257.28	599	271.74	0.00	-
78	PSR	FBS	2010-02-02 21:17:41	2010-02-02 21:34:25	00:16:44	599	320.73	645	21.76	34.30	7
79	PSR	FBS	2010-02-02 21:38:03	2010-02-02 21:46:05	00:08:02	645	35.01	645	64.30	34.30	7
80	PSR	FBS	2010-02-02 21:51:09	2010-02-02 21:53:41	00:02:32	645	82.78	645	92.02	34.30	7
81	AV2	OBS	2010-02-02 22:19:39	2010-02-02 22:21:31	00:01:52	645	186.71	645	193.52	0.00	-
82	PSM	OB1	2010-02-02 22:26:12	2010-02-02 22:32:00	00:05:48	645	210.60	645	231.75	-1.20	-
83	PSM	OB1	2010-02-02 22:35:51	2010-02-02 22:40:17	00:04:26	645	245.73	645	261.90	-1.20	-
84	AV2	OBS	2010-02-02 22:36:37	2010-02-02 22:39:23	00:02:46	645	248.59	645	258.68	0.00	-
85	PSR	FBS	2010-02-02 23:07:21	2010-02-02 23:12:19	00:04:58	20	0.67	20	18.78	34.30	7
86	PSR	FBS	2010-02-02 23:14:12	2010-02-02 23:17:14	00:03:02	20	25.65	20	36.71	34.30	7
87	AV2	OBS	2010-02-02 23:54:02	2010-02-02 23:55:54	00:01:52	20	170.91	20	177.72	0.00	-
88	PSM	OB2	2010-02-02 23:57:14	2010-02-03 00:01:06	00:03:52	20	182.52	20	196.62	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
1	-0.29351	2010-02-01 22:26:23	167.36670	2010-02-01 23:15:44
47	-24.97310	2010-02-02 00:05:06	142.68711	2010-02-02 00:54:27
93	-49.65268	2010-02-02 01:43:49	118.00753	2010-02-02 02:33:11
139	-74.33226	2010-02-02 03:22:32	93.32795	2010-02-02 04:11:54
185	-99.01184	2010-02-02 05:01:15	68.64837	2010-02-02 05:50:37
231	-123.69143	2010-02-02 06:39:58	43.96878	2010-02-02 07:29:20
277	-148.37101	2010-02-02 08:18:41	19.28920	2010-02-02 09:08:03
323	-173.05059	2010-02-02 09:57:24	-5.39038	2010-02-02 10:46:46
369	162.26983	2010-02-02 11:36:08	-30.06997	2010-02-02 12:25:29
415	137.59024	2010-02-02 13:14:51	-54.74955	2010-02-02 14:04:12
461	112.91066	2010-02-02 14:53:34	-79.42913	2010-02-02 15:42:55
507	88.23108	2010-02-02 16:32:17	-104.10871	2010-02-02 17:21:38
553	63.55149	2010-02-02 18:11:00	-128.78830	2010-02-02 19:00:22
599	38.87191	2010-02-02 19:49:43	-153.46788	2010-02-02 20:39:05
645	14.19233	2010-02-02 21:28:26	-178.14746	2010-02-02 22:17:48
20	-10.48725	2010-02-02 23:07:09	157.17296	2010-02-02 23:56:31
