>ALOS Data Take Simulation(Jan. 29, 2010)

Observation Area

PRISM

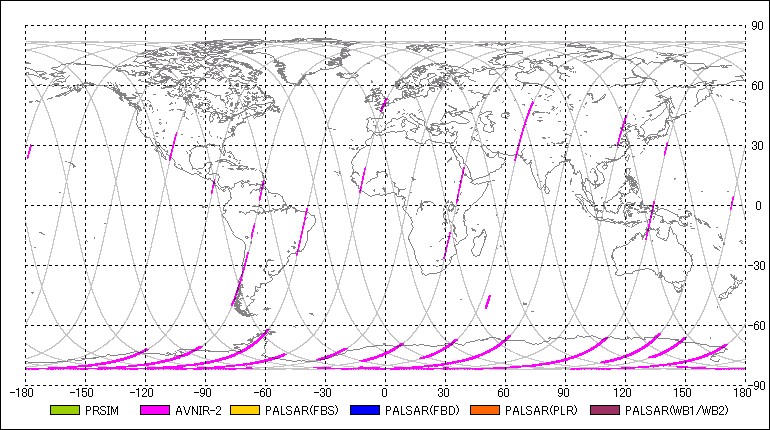

AVNIR-2

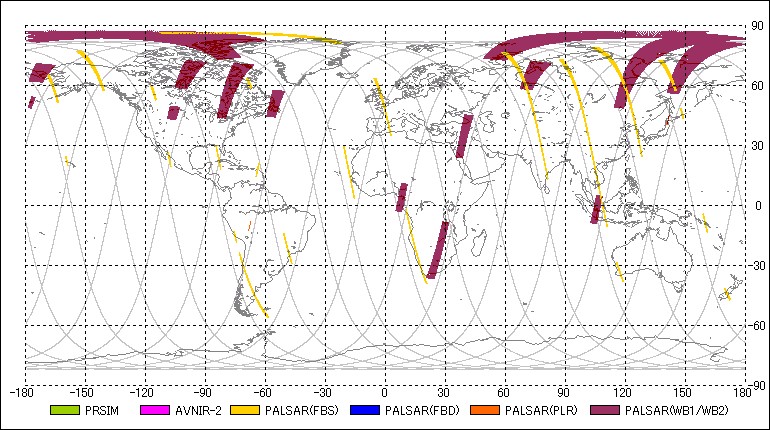

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2010-01-29 00:07:08	2010-01-29 00:12:30	00:05:22	17	242.14	17	261.71	-1.20	-
2	AV2	OBS	2010-01-29 00:07:55	2010-01-29 00:12:33	00:04:38	17	245.00	17	261.90	0.00	-
3	PSR	WB1	2010-01-29 01:01:40	2010-01-29 01:13:37	00:11:57	63	81.02	63	124.60	27.10	80
4	PSM	OB1	2010-01-29 01:15:18	2010-01-29 01:21:54	00:06:36	63	130.74	63	154.80	-1.20	-
5	PSR	PLR	2010-01-29 01:16:03	2010-01-29 01:17:55	00:01:52	63	133.47	63	140.28	21.50	127
6	AV2	OBS	2010-01-29 01:20:05	2010-01-29 01:21:57	00:01:52	63	148.18	63	154.99	0.00	-
7	AV2	OBS	2010-01-29 01:28:19	2010-01-29 01:33:30	00:05:11	63	178.14	63	197.05	0.00	-
8	PSM	OB2	2010-01-29 01:28:19	2010-01-29 01:38:19	00:10:00	63	178.20	63	214.67	0.00	-
9	PSM	OB1	2010-01-29 01:45:51	2010-01-29 01:54:13	00:08:22	63	242.14	63	272.65	-1.20	-
10	AV2	OBS	2010-01-29 01:47:15	2010-01-29 01:53:53	00:06:38	63	247.25	63	271.44	0.00	-
11	PSR	FBS	2010-01-29 02:09:28	2010-01-29 02:14:22	00:04:54	63	328.27	63	346.14	34.30	7
12	PSR	FBS	2010-01-29 02:33:44	2010-01-29 02:35:44	00:02:00	109	56.77	109	64.06	34.30	7
13	PSR	WB1	2010-01-29 02:37:59	2010-01-29 02:54:22	00:16:23	109	72.27	109	132.01	27.10	80
14	PSM	OB2	2010-01-29 02:52:53	2010-01-29 03:02:51	00:09:58	109	126.60	109	162.95	0.00	-
15	AV2	OBS	2010-01-29 02:55:07	2010-01-29 02:59:17	00:04:10	109	134.75	109	149.94	0.00	-
16	PSR	WB1	2010-01-29 03:05:50	2010-01-29 03:10:20	00:04:30	109	173.83	109	190.24	27.10	80
17	PSM	OB2	2010-01-29 03:06:16	2010-01-29 03:10:56	00:04:40	109	175.41	109	192.43	0.00	-
18	PSM	OB1	2010-01-29 03:24:44	2010-01-29 03:28:18	00:03:34	109	242.75	109	255.76	-1.20	-
19	AV2	OBS	2010-01-29 03:31:28	2010-01-29 03:33:20	00:01:52	109	267.31	109	274.11	0.00	-
20	PSR	FBS	2010-01-29 03:40:30	2010-01-29 03:50:22	00:09:52	109	300.19	109	336.17	34.30	7
21	PSR	FBS	2010-01-29 03:51:12	2010-01-29 03:53:18	00:02:06	109	339.27	109	346.93	34.30	7
22	PSR	FBS	2010-01-29 04:01:17	2010-01-29 04:05:13	00:03:56	155	16.05	155	30.39	34.30	7
23	PSM	OB1	2010-01-29 05:03:38	2010-01-29 05:08:36	00:04:58	155	243.36	155	261.47	-1.20	-
24	AV2	OBS	2010-01-29 05:04:24	2010-01-29 05:11:56	00:07:32	155	246.22	155	273.69	0.00	-
25	PSR	FBS	2010-01-29 05:40:20	2010-01-29 05:42:56	00:02:36	201	17.20	201	26.68	34.30	7
26	PSR	FBS	2010-01-29 05:49:32	2010-01-29 05:52:14	00:02:42	201	50.81	201	60.66	34.30	7
27	PSR	WB1	2010-01-29 06:04:49	2010-01-29 06:09:13	00:04:24	201	106.48	201	122.53	27.10	80
28	AV2	OBS	2010-01-29 06:10:38	2010-01-29 06:18:46	00:08:08	201	127.76	201	157.42	0.00	-
29	PSM	OB1	2010-01-29 06:12:41	2010-01-29 06:19:17	00:06:36	201	135.17	201	159.24	-1.20	-
30	AV2	OBS	2010-01-29 06:37:15	2010-01-29 06:39:07	00:01:52	201	224.76	201	231.57	21.50	-
31	PSM	OB1	2010-01-29 06:42:57	2010-01-29 06:47:33	00:04:36	201	245.55	201	262.32	-1.20	-
32	AV2	OBS	2010-01-29 06:43:40	2010-01-29 06:46:44	00:03:04	201	248.16	201	259.34	0.00	-
33	PSR	FBS	2010-01-29 07:29:37	2010-01-29 07:35:49	00:06:12	247	55.73	247	78.34	34.30	7
34	PSR	WB1	2010-01-29 07:38:07	2010-01-29 07:43:43	00:05:36	247	86.73	247	107.15	27.10	80
35	PSR	WB1	2010-01-29 07:50:52	2010-01-29 07:57:24	00:06:32	247	133.23	247	157.05	27.10	80
36	PSM	OB1	2010-01-29 07:57:51	2010-01-29 08:05:11	00:07:20	247	158.69	247	185.44	-1.20	-
37	AV2	OBS	2010-01-29 07:58:31	2010-01-29 08:03:29	00:04:58	247	161.13	247	179.24	0.00	-
38	PSR	WB1	2010-01-29 08:05:38	2010-01-29 08:14:06	00:08:28	247	187.08	247	217.95	27.10	80
39	AV2	OBS	2010-01-29 08:07:26	2010-01-29 08:11:00	00:03:34	247	193.64	247	206.65	0.00	-
40	PSM	OB1	2010-01-29 08:21:50	2010-01-29 08:26:04	00:04:14	247	246.15	247	261.59	-1.20	-
41	AV2	OBS	2010-01-29 08:23:00	2010-01-29 08:25:54	00:02:54	247	250.47	247	261.05	0.00	-
42	PSR	FBS	2010-01-29 08:57:59	2010-01-29 08:59:51	00:01:52	293	18.05	293	24.86	21.50	3
43	PSR	FBS	2010-01-29 09:06:42	2010-01-29 09:12:12	00:05:30	293	49.78	293	69.84	34.30	7
44	PSM	OB1	2010-01-29 09:36:31	2010-01-29 09:44:33	00:08:02	293	158.51	293	187.81	-1.20	-
45	PSR	WB1	2010-01-29 09:39:04	2010-01-29 09:43:32	00:04:28	293	167.81	293	184.10	27.10	80
46	PSM	OB1	2010-01-29 10:01:59	2010-01-29 10:04:45	00:02:46	293	251.38	293	261.47	-1.20	-
47	AV2	OBS	2010-01-29 10:02:28	2010-01-29 10:04:20	00:01:52	293	253.14	293	259.95	0.00	-
48	AV2	OBS	2010-01-29 10:06:19	2010-01-29 10:08:11	00:01:52	293	267.25	293	274.05	0.00	-
49	AV2	OBS	2010-01-29 11:06:19	2010-01-29 11:08:11	00:01:52	339	125.99	339	132.80	0.00	-
50	PSM	OB2	2010-01-29 11:06:22	2010-01-29 11:08:14	00:01:52	339	126.18	339	132.98	0.00	-
51	PSM	OB1	2010-01-29 11:15:14	2010-01-29 11:20:10	00:04:56	339	158.51	339	176.50	-1.20	-
52	AV2	OBS	2010-01-29 11:15:57	2010-01-29 11:19:25	00:03:28	339	161.13	339	173.77	0.00	-
53	AV2	OBS	2010-01-29 11:42:07	2010-01-29 11:46:11	00:04:04	339	256.55	339	271.38	0.00	-
54	PSR	FBS	2010-01-29 11:56:39	2010-01-29 11:59:01	00:02:22	339	309.55	339	318.18	34.30	7
55	PSR	FBS	2010-01-29 12:06:05	2010-01-29 12:09:21	00:03:16	339	343.95	339	355.86	34.30	7
56	PSR	FBS	2010-01-29 12:21:53	2010-01-29 12:23:53	00:02:00	385	41.57	385	48.87	34.30	7
57	PSR	FBS	2010-01-29 12:25:43	2010-01-29 12:30:39	00:04:56	385	55.55	385	73.54	34.30	7
58	PSM	OB1	2010-01-29 12:59:26	2010-01-29 13:07:32	00:08:06	385	178.51	385	208.05	-1.20	-
59	AV2	OBS	2010-01-29 13:00:12	2010-01-29 13:06:46	00:06:34	385	181.30	385	205.25	0.00	-
60	PSM	OB1	2010-01-29 13:16:21	2010-01-29 13:22:25	00:06:04	385	240.20	385	262.32	-1.20	-
61	AV2	OBS	2010-01-29 13:17:04	2010-01-29 13:24:54	00:07:50	385	242.81	385	271.38	0.00	-
62	PSR	FBS	2010-01-29 13:55:23	2010-01-29 14:11:13	00:15:50	431	22.55	431	80.29	34.30	7
63	PSR	WB1	2010-01-29 14:22:21	2010-01-29 14:26:37	00:04:16	431	120.89	431	136.45	27.10	80
64	PSR	FBS	2010-01-29 14:32:25	2010-01-29 14:34:51	00:02:26	431	157.60	431	166.47	34.30	7
65	AV2	OBS	2010-01-29 14:35:05	2010-01-29 14:37:53	00:02:48	431	167.32	431	177.54	0.00	-
66	PSR	PLR	2010-01-29 14:40:26	2010-01-29 14:42:18	00:01:52	431	186.83	431	193.64	21.50	127
67	AV2	OBS	2010-01-29 14:41:05	2010-01-29 14:43:05	00:02:00	431	189.20	431	196.50	0.00	-
68	AV2	OBS	2010-01-29 14:45:01	2010-01-29 14:52:27	00:07:26	431	203.55	431	230.66	0.00	-
69	PSM	OB1	2010-01-29 14:57:32	2010-01-29 15:00:56	00:03:24	431	249.19	431	261.59	-1.20	-
70	AV2	OBS	2010-01-29 14:58:18	2010-01-29 15:03:38	00:05:20	431	251.99	431	271.44	0.00	-
71	PSR	FBS	2010-01-29 15:16:44	2010-01-29 15:20:02	00:03:18	431	319.21	431	331.25	34.30	7
72	PSR	FBS	2010-01-29 15:24:21	2010-01-29 15:48:09	00:23:48	431	346.99	477	73.79	34.30	7
73	PSR	WB1	2010-01-29 15:57:19	2010-01-29 16:05:31	00:08:12	477	107.21	477	137.12	27.10	80
74	AV2	OBS	2010-01-29 16:13:46	2010-01-29 16:15:38	00:01:52	477	167.20	477	174.01	0.00	-
75	PSM	OB1	2010-01-29 16:36:44	2010-01-29 16:39:38	00:02:54	477	250.96	477	261.53	-1.20	-
76	AV2	OBS	2010-01-29 16:37:27	2010-01-29 16:43:15	00:05:48	477	253.57	477	274.72	0.00	-
77	PSR	FBS	2010-01-29 17:09:39	2010-01-29 17:27:55	00:18:16	523	11.00	523	77.61	34.30	7
78	PSR	WB1	2010-01-29 17:35:43	2010-01-29 17:40:05	00:04:22	523	106.06	523	121.98	27.10	80
79	PSR	WB1	2010-01-29 17:42:00	2010-01-29 17:44:24	00:02:24	523	128.97	523	137.73	27.10	80
80	AV2	OBS	2010-01-29 17:46:00	2010-01-29 17:49:52	00:03:52	523	143.56	523	157.66	0.00	-
81	PSM	OB1	2010-01-29 17:47:36	2010-01-29 17:52:00	00:04:24	523	149.33	523	165.38	0.00	-
82	PSM	OB1	2010-01-29 21:32:11	2010-01-29 21:35:47	00:03:36	615	248.34	615	261.47	-1.20	-
83	AV2	OBS	2010-01-29 21:32:57	2010-01-29 21:38:29	00:05:32	615	251.20	615	271.38	0.00	-
84	PSR	FBS	2010-01-29 21:51:14	2010-01-29 22:02:12	00:10:58	615	317.87	615	357.87	34.30	7
85	PSR	FBS	2010-01-29 22:11:52	2010-01-29 22:20:28	00:08:36	661	33.06	661	64.43	34.30	7
86	PSR	FBS	2010-01-29 22:24:44	2010-01-29 22:28:04	00:03:20	661	79.99	661	92.14	34.30	7
87	PSR	WB1	2010-01-29 22:32:16	2010-01-29 22:35:22	00:03:06	661	107.52	661	118.82	27.10	80
88	PSR	WB1	2010-01-29 22:36:46	2010-01-29 22:38:58	00:02:12	661	123.93	661	131.95	27.10	80
89	AV2	OBS	2010-01-29 22:43:41	2010-01-29 22:45:33	00:01:52	661	149.15	661	155.96	21.50	-
90	AV2	OBS	2010-01-29 22:50:52	2010-01-29 22:52:44	00:01:52	661	175.29	661	182.09	0.00	-
91	PSM	OB1	2010-01-29 22:55:48	2010-01-29 22:58:36	00:02:48	661	193.34	661	203.55	-1.20	-
92	PSM	OB1	2010-01-29 23:09:47	2010-01-29 23:14:29	00:04:42	661	244.33	661	261.47	-1.20	-
93	AV2	OBS	2010-01-29 23:10:34	2010-01-29 23:13:44	00:03:10	661	247.19	661	258.74	0.00	-
94	PSR	FBS	2010-01-29 23:41:54	2010-01-29 23:49:38	00:07:44	36	1.40	36	29.60	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
17	-8.87772	2010-01-28 23:00:43	158.78249	2010-01-28 23:50:05
63	-33.55730	2010-01-29 00:39:26	134.10291	2010-01-29 01:28:48
109	-58.23688	2010-01-29 02:18:09	109.42333	2010-01-29 03:07:31
155	-82.91646	2010-01-29 03:56:52	84.74375	2010-01-29 04:46:14
201	-107.59605	2010-01-29 05:35:35	60.06416	2010-01-29 06:24:57
247	-132.27563	2010-01-29 07:14:18	35.38458	2010-01-29 08:03:40
293	-156.95521	2010-01-29 08:53:02	10.70500	2010-01-29 09:42:23
339	178.36521	2010-01-29 10:31:45	-13.97459	2010-01-29 11:21:06
385	153.68562	2010-01-29 12:10:28	-38.65417	2010-01-29 12:59:49
431	129.00604	2010-01-29 13:49:11	-63.33375	2010-01-29 14:38:32
477	104.32646	2010-01-29 15:27:54	-88.01333	2010-01-29 16:17:16
523	79.64687	2010-01-29 17:06:37	-112.69292	2010-01-29 17:55:59
569	54.96729	2010-01-29 18:45:20	-137.37250	2010-01-29 19:34:42
615	30.28771	2010-01-29 20:24:03	-162.05208	2010-01-29 21:13:25
661	5.60813	2010-01-29 22:02:46	173.26834	2010-01-29 22:52:08
36	-19.07146	2010-01-29 23:41:29	148.58875	2010-01-30 00:30:51
