>ALOS Data Take Simulation(Jan. 16, 2010)

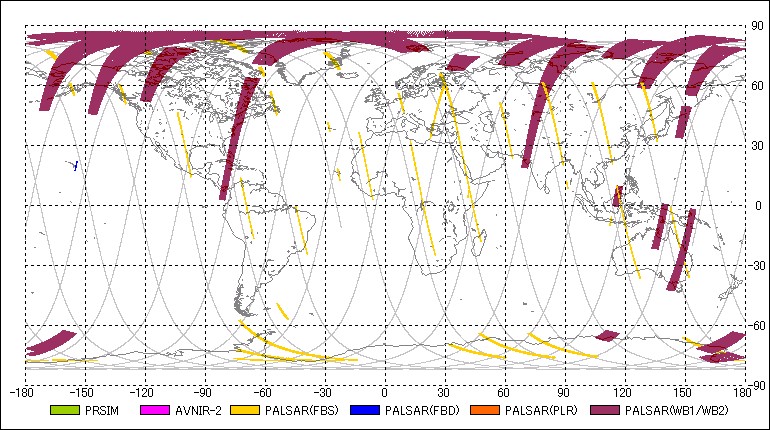

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBS	2010-01-16 00:05:47	2010-01-16 00:08:03	00:02:16	46	10.21	46	18.48	34.30	7
2	PSR	FBS	2010-01-16 00:12:34	2010-01-16 00:14:26	00:01:52	46	35.01	46	41.82	34.30	7
3	PSR	WB1	2010-01-16 00:25:46	2010-01-16 00:37:24	00:11:38	46	83.15	46	125.57	27.10	80
4	PSR	WB1	2010-01-16 00:38:20	2010-01-16 00:43:20	00:05:00	46	128.97	46	147.21	27.10	80
5	AV2	OBS	2010-01-16 00:49:12	2010-01-16 00:57:01	00:07:49	46	168.54	46	197.05	0.00	-
6	PSR	WB1	2010-01-16 00:51:48	2010-01-16 00:58:38	00:06:50	46	178.08	46	203.00	27.10	80
7	PSM	OB2	2010-01-16 00:52:32	2010-01-16 00:55:58	00:03:26	46	180.70	46	193.22	0.00	-
8	PSM	OB2	2010-01-16 00:59:25	2010-01-16 01:02:07	00:02:42	46	205.80	46	215.64	0.00	-
9	AV2	OBS	2010-01-16 00:59:47	2010-01-16 01:01:39	00:01:52	46	207.20	46	214.00	21.50	-
10	PSR	WB1	2010-01-16 01:09:51	2010-01-16 01:11:47	00:01:56	46	243.91	46	250.96	27.10	80
11	PSR	FBS	2010-01-16 01:34:18	2010-01-16 01:41:46	00:07:28	46	333.01	92	0.24	34.30	7
12	PSR	FBS	2010-01-16 01:53:32	2010-01-16 01:57:24	00:03:52	92	43.21	92	57.31	34.30	7
13	PSR	FBS	2010-01-16 01:58:57	2010-01-16 02:00:53	00:01:56	92	62.97	92	70.02	34.30	7
14	PSR	FBS	2010-01-16 02:02:21	2010-01-16 02:05:09	00:02:48	92	75.37	92	85.58	34.30	7
15	PSR	WB1	2010-01-16 02:06:26	2010-01-16 02:15:08	00:08:42	92	90.26	92	121.98	27.10	80
16	AV2	OBS	2010-01-16 02:15:52	2010-01-16 02:20:12	00:04:20	92	124.66	92	140.46	0.00	-
17	PSM	OB1	2010-01-16 02:23:00	2010-01-16 02:25:36	00:02:36	92	150.61	92	160.09	1.20	-
18	AV2	OBS	2010-01-16 02:26:03	2010-01-16 02:31:49	00:05:46	92	161.73	92	182.76	0.00	-
19	PSR	WB1	2010-01-16 02:28:02	2010-01-16 02:31:28	00:03:26	92	169.03	92	181.55	27.10	80
20	PSR	FBS	2010-01-16 02:32:17	2010-01-16 02:34:09	00:01:52	92	184.46	92	191.27	34.30	7
21	PSM	OB2	2010-01-16 02:36:16	2010-01-16 02:39:30	00:03:14	92	198.99	92	210.78	0.00	-
22	PSR	FBS	2010-01-16 03:03:41	2010-01-16 03:06:43	00:03:02	92	298.97	92	310.03	34.30	7
23	PSR	FBS	2010-01-16 03:15:13	2010-01-16 03:24:17	00:09:04	92	341.09	138	14.16	34.30	7
24	PSR	WB1	2010-01-16 03:46:21	2010-01-16 03:49:35	00:03:14	138	94.63	138	106.42	27.10	80
25	PSM	OB2	2010-01-16 03:58:15	2010-01-16 04:05:11	00:06:56	138	137.97	138	163.25	0.00	-
26	AV2	OBS	2010-01-16 04:07:37	2010-01-16 04:09:44	00:02:07	138	172.13	138	179.85	0.00	-
27	PSM	OB2	2010-01-16 04:07:43	2010-01-16 04:09:47	00:02:04	138	172.49	138	180.03	0.00	-
28	AV2	OBS	2010-01-16 04:20:07	2010-01-16 04:21:59	00:01:52	138	217.71	138	224.52	-41.50	-
29	PSR	FBS	2010-01-16 04:34:40	2010-01-16 04:43:00	00:08:20	138	270.77	138	301.16	34.30	7
30	PSR	FBS	2010-01-16 05:02:25	2010-01-16 05:11:59	00:09:34	184	12.03	184	46.92	34.30	7
31	PSR	FBS	2010-01-16 05:19:29	2010-01-16 05:21:21	00:01:52	184	74.27	184	81.08	34.30	7
32	PSR	WB1	2010-01-16 05:25:48	2010-01-16 05:43:38	00:17:50	184	97.25	184	162.28	27.10	80
33	PSM	OB1	2010-01-16 05:36:12	2010-01-16 05:44:58	00:08:46	184	135.17	184	167.14	1.20	-
34	PSR	FBS	2010-01-16 06:12:20	2010-01-16 06:16:54	00:04:34	184	266.94	184	283.59	34.30	7
35	PSR	FBS	2010-01-16 06:51:14	2010-01-16 06:54:40	00:03:26	230	48.81	230	61.33	34.30	7
36	PSR	WB1	2010-01-16 07:03:27	2010-01-16 07:08:03	00:04:36	230	93.36	230	110.13	27.10	80
37	PSM	OB1	2010-01-16 07:22:49	2010-01-16 07:27:57	00:05:08	230	163.98	230	182.70	1.20	-
38	AV2	OBS	2010-01-16 07:23:34	2010-01-16 07:27:14	00:03:40	230	166.72	230	180.09	0.00	-
39	PSR	FBS	2010-01-16 07:24:36	2010-01-16 07:26:28	00:01:52	230	170.49	230	177.29	34.30	7
40	AV2	OBS	2010-01-16 07:32:18	2010-01-16 07:33:48	00:01:30	230	198.56	230	204.04	0.00	-
41	PSR	FBS	2010-01-16 07:51:02	2010-01-16 07:53:34	00:02:32	230	266.94	230	276.18	34.30	7
42	PSR	FBS	2010-01-16 08:31:05	2010-01-16 08:33:27	00:02:22	276	53.00	276	61.63	34.30	7
43	PSR	FBS	2010-01-16 08:34:36	2010-01-16 08:38:02	00:03:26	276	65.76	276	78.28	34.30	7
44	PSR	WB1	2010-01-16 08:44:48	2010-01-16 08:47:30	00:02:42	276	102.96	276	112.81	27.10	80
45	PSR	FBS	2010-01-16 08:49:12	2010-01-16 08:57:04	00:07:52	276	119.01	276	147.69	34.30	7
46	AV2	OBS	2010-01-16 08:55:06	2010-01-16 08:58:22	00:03:16	276	140.52	276	152.43	0.00	-
47	AV2	OBS	2010-01-16 09:00:45	2010-01-16 09:05:33	00:04:48	276	161.13	276	178.63	0.00	-
48	PSR	FBS	2010-01-16 13:02:01	2010-01-16 13:12:35	00:10:34	368	320.97	368	359.51	34.30	7
49	PSR	FBS	2010-01-16 13:20:56	2010-01-16 13:29:46	00:08:50	414	29.96	414	62.18	34.30	7
50	PSM	OB1	2010-01-16 13:59:20	2010-01-16 14:07:20	00:08:00	414	170.00	414	199.17	1.20	-
51	AV2	OBS	2010-01-16 14:04:05	2010-01-16 14:06:35	00:02:30	414	187.32	414	196.44	0.00	-
52	PSR	FBS	2010-01-16 14:25:55	2010-01-16 14:27:55	00:02:00	414	266.94	414	274.23	34.30	7
53	PSR	FBS	2010-01-16 14:28:46	2010-01-16 14:32:38	00:03:52	414	277.33	414	291.44	34.30	7
54	PSR	FBS	2010-01-16 14:40:38	2010-01-16 14:54:14	00:13:36	414	320.61	460	10.21	34.30	7
55	PSR	FBS	2010-01-16 14:56:25	2010-01-16 15:08:31	00:12:06	460	18.17	460	62.30	34.30	7
56	PSR	WB1	2010-01-16 15:14:17	2010-01-16 15:21:33	00:07:16	460	83.33	460	109.83	27.10	80
57	PSR	WB1	2010-01-16 15:22:50	2010-01-16 15:40:20	00:17:30	460	114.45	460	178.26	27.10	80
58	PSM	OB1	2010-01-16 15:36:43	2010-01-16 15:43:59	00:07:16	460	165.14	460	191.64	1.20	-
59	AV2	OBS	2010-01-16 15:37:29	2010-01-16 15:43:21	00:05:52	460	167.93	460	189.33	0.00	-
60	PSR	FBS	2010-01-16 16:04:38	2010-01-16 16:06:30	00:01:52	460	266.94	460	273.75	34.30	7
61	PSR	FBS	2010-01-16 16:31:49	2010-01-16 16:33:41	00:01:52	506	6.02	506	12.82	34.30	7
62	PSR	FBS	2010-01-16 16:35:02	2010-01-16 16:47:12	00:12:10	506	17.81	506	62.18	34.30	7
63	AV2	OBS	2010-01-16 17:12:09	2010-01-16 17:16:01	00:03:52	506	153.10	506	167.20	0.00	-
64	PSM	OB2	2010-01-16 17:13:59	2010-01-16 17:16:01	00:02:02	506	159.79	506	167.20	0.00	-
65	PSR	FBS	2010-01-16 18:14:47	2010-01-16 18:23:09	00:08:22	552	21.58	552	52.09	34.30	7
66	PSR	WB1	2010-01-16 18:36:02	2010-01-16 18:44:11	00:08:09	552	99.07	552	128.79	27.10	80
67	AV2	OBS	2010-01-16 18:45:16	2010-01-16 18:49:08	00:03:52	552	132.74	552	146.84	0.00	-
68	PSM	OB2	2010-01-16 18:45:16	2010-01-16 18:49:52	00:04:36	552	132.74	552	149.52	0.00	-
69	PSR	WB1	2010-01-16 19:15:46	2010-01-16 19:21:42	00:05:56	552	243.91	552	265.54	27.10	80
70	PSR	FBS	2010-01-16 19:24:21	2010-01-16 19:29:27	00:05:06	552	275.27	552	293.87	34.30	7
71	PSR	FBS	2010-01-16 19:41:58	2010-01-16 20:05:52	00:23:54	552	339.51	598	66.67	34.30	7
72	PSR	WB1	2010-01-16 20:08:24	2010-01-16 20:24:40	00:16:16	598	75.91	598	135.23	27.10	80
73	PSR	FBD	2010-01-16 20:30:39	2010-01-16 20:32:31	00:01:52	598	156.99	598	163.80	41.50	46
74	PSM	OB1	2010-01-16 20:41:06	2010-01-16 20:44:20	00:03:14	598	195.10	598	206.89	1.20	-
75	AV2	OBS	2010-01-16 20:41:52	2010-01-16 20:43:44	00:01:52	598	197.90	598	204.70	0.00	-
76	PSR	WB1	2010-01-16 20:54:28	2010-01-16 20:58:20	00:03:52	598	243.91	598	258.01	27.10	80
77	PSR	FBS	2010-01-16 21:02:48	2010-01-16 21:08:08	00:05:20	598	274.30	598	293.74	34.30	7
78	PSR	FBS	2010-01-16 21:18:44	2010-01-16 21:35:14	00:16:30	598	332.40	644	32.58	34.30	7
79	PSR	FBS	2010-01-16 21:38:33	2010-01-16 21:41:51	00:03:18	644	44.61	644	56.65	34.30	7
80	PSR	WB1	2010-01-16 21:50:05	2010-01-16 22:02:53	00:12:48	644	86.67	644	133.35	27.10	80
81	PSM	OB1	2010-01-16 22:18:56	2010-01-16 22:22:06	00:03:10	644	191.94	644	203.49	1.20	-
82	AV2	OBS	2010-01-16 22:19:42	2010-01-16 22:21:34	00:01:52	644	194.74	644	201.54	0.00	-
83	PSM	OB1	2010-01-16 22:24:12	2010-01-16 22:29:44	00:05:32	644	211.15	644	231.32	1.20	-
84	AV2	OBS	2010-01-16 22:25:22	2010-01-16 22:29:04	00:03:42	644	215.34	644	228.83	0.00	-
85	PSR	FBS	2010-01-16 22:41:31	2010-01-16 22:45:03	00:03:32	644	274.23	644	287.12	34.30	7
86	PSR	FBS	2010-01-16 23:05:12	2010-01-16 23:15:06	00:09:54	19	0.61	19	36.71	34.30	7
87	PSR	FBS	2010-01-16 23:23:13	2010-01-16 23:26:15	00:03:02	19	66.37	19	77.43	34.30	7
88	PSR	WB1	2010-01-16 23:54:37	2010-01-17 00:06:31	00:11:54	19	180.82	19	224.21	27.10	80
89	AV2	OBS	2010-01-16 23:55:08	2010-01-16 23:59:30	00:04:22	19	182.70	19	198.63	0.00	-
90	PSM	OB2	2010-01-16 23:55:11	2010-01-16 23:59:01	00:03:50	19	182.88	19	196.86	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
671	0.24300	2010-01-15 22:24:14	167.90321	2010-01-15 23:13:36
46	-24.43658	2010-01-16 00:02:57	143.22363	2010-01-16 00:52:19
92	-49.11617	2010-01-16 01:41:40	118.54404	2010-01-16 02:31:02
138	-73.79575	2010-01-16 03:20:23	93.86446	2010-01-16 04:09:45
184	-98.47533	2010-01-16 04:59:06	69.18488	2010-01-16 05:48:28
230	-123.15491	2010-01-16 06:37:50	44.50530	2010-01-16 07:27:11
276	-147.83450	2010-01-16 08:16:33	19.82571	2010-01-16 09:05:54
322	-172.51408	2010-01-16 09:55:16	-4.85387	2010-01-16 10:44:37
368	162.80634	2010-01-16 11:33:59	-29.53345	2010-01-16 12:23:20
414	138.12676	2010-01-16 13:12:42	-54.21304	2010-01-16 14:02:03
460	113.44717	2010-01-16 14:51:25	-78.89262	2010-01-16 15:40:47
506	88.76759	2010-01-16 16:30:08	-103.57220	2010-01-16 17:19:30
552	64.08801	2010-01-16 18:08:51	-128.25178	2010-01-16 18:58:13
598	39.40842	2010-01-16 19:47:34	-152.93137	2010-01-16 20:36:56
644	14.72884	2010-01-16 21:26:17	-177.61095	2010-01-16 22:15:39
19	-9.95074	2010-01-16 23:05:01	157.70947	2010-01-16 23:54:22
