>ALOS Data Take Simulation(Nov. 04, 2009)

Observation Area

PRISM

AVNIR-2

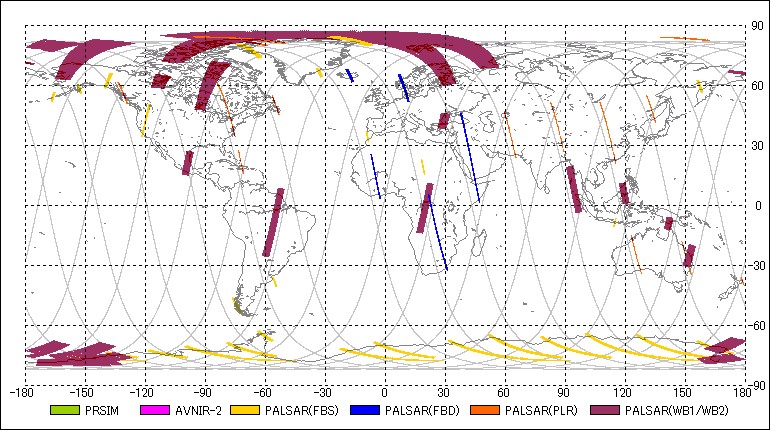

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-11-04 00:05:062009-11-04 00:06:58 00:01:52 39 62.54 39 69.35 34.30 7
2PSRPLR2009-11-04 00:09:492009-11-04 00:12:31 00:02:42 39 79.74 39 89.59 21.50 127
3AV2OBS2009-11-04 00:37:182009-11-04 00:40:28 00:03:10 39 179.97 39 191.51 0.00 -
4PSRWB12009-11-04 00:38:392009-11-04 00:40:57 00:02:18 39 184.89 39 193.28 27.10 80
5PSMOB12009-11-04 00:42:342009-11-04 00:48:50 00:06:16 39 199.17 39 222.03 1.20 -
6AV2OBS2009-11-04 00:43:042009-11-04 00:48:06 00:05:02 39 201.00 39 219.35 0.00 -
7PSRFBS2009-11-04 01:03:112009-11-04 01:07:03 00:03:52 39 274.36 39 288.46 34.30 7
8PSRPLR2009-11-04 01:38:372009-11-04 01:41:55 00:03:18 85 43.58 85 55.61 21.50 127
9PSRFBS2009-11-04 01:46:302009-11-04 01:49:08 00:02:38 85 72.33 85 81.93 34.30 7
10PSMOB22009-11-04 02:00:162009-11-04 02:09:58 00:09:42 85 122.53 85 157.90 0.00 -
11AV2OBS2009-11-04 02:00:462009-11-04 02:09:10 00:08:24 85 124.35 85 154.99 0.00 -
12PSMOB22009-11-04 02:11:572009-11-04 02:26:25 00:14:28 85 165.14 85 217.89 0.00 -
13PSRFBS2009-11-04 02:17:312009-11-04 02:19:23 00:01:52 85 185.44 85 192.24 41.50 10
14AV2OBS2009-11-04 02:20:502009-11-04 02:25:42 00:04:52 85 197.53 85 215.28 0.00 -
15PSRFBS2009-11-04 02:40:052009-11-04 02:44:37 00:04:32 85 267.73 85 284.26 34.30 7
16PSRFBS2009-11-04 02:53:292009-11-04 02:55:21 00:01:52 85 316.60 85 323.40 34.30 7
17PSRPLR2009-11-04 03:09:112009-11-04 03:13:03 00:03:52 131 13.86 131 27.96 21.50 127
18PSRPLR2009-11-04 03:14:162009-11-04 03:23:20 00:09:04 131 32.40 131 65.46 21.50 127
19AV2OBS2009-11-04 03:35:472009-11-04 03:37:39 00:01:52 131 110.86 131 117.67 0.00 -
20AV2OBS2009-11-04 03:40:252009-11-04 03:45:33 00:05:08 131 127.76 131 146.48 0.00 -
21PSMOB22009-11-04 03:43:122009-11-04 03:55:56 00:12:44 131 137.91 131 184.34 0.00 -
22PSRFBS2009-11-04 04:24:052009-11-04 04:26:17 00:02:12 131 287.00 131 295.02 34.30 7
23PSRFBS2009-11-04 04:28:322009-11-04 04:31:14 00:02:42 131 303.17 131 313.01 34.30 7
24PSMOB12009-11-04 05:20:222009-11-04 05:31:30 00:11:08 177 132.26 177 172.86 1.20 -
25AV2OBS2009-11-04 05:21:552009-11-04 05:30:45 00:08:50 177 137.91 177 170.12 0.00 -
26PSRFBS2009-11-04 05:59:442009-11-04 06:03:06 00:03:22 177 275.82 177 288.09 34.30 7
27PSRPLR2009-11-04 06:36:192009-11-04 06:40:01 00:03:42 223 49.17 223 62.66 21.50 127
28PSMOB12009-11-04 07:00:282009-11-04 07:11:24 00:10:56 223 137.30 223 177.17 1.20 -
29AV2OBS2009-11-04 07:08:222009-11-04 07:10:50 00:02:28 223 166.11 223 175.10 0.00 -
30PSMOB12009-11-04 07:14:262009-11-04 07:20:14 00:05:48 223 188.23 223 209.38 1.20 -
31AV2OBS2009-11-04 07:15:102009-11-04 07:19:52 00:04:42 223 190.91 223 208.05 0.00 -
32AV2OBS2009-11-04 07:30:372009-11-04 07:32:39 00:02:02 223 247.25 223 254.66 41.50 -
33PSRFBS2009-11-04 07:36:142009-11-04 07:41:12 00:04:58 223 267.73 223 285.84 34.30 7
34PSRFBS2009-11-04 08:16:212009-11-04 08:18:21 00:02:00 269 53.97 269 61.27 34.30 7
35PSRPLR2009-11-04 08:24:232009-11-04 08:25:55 00:01:32 269 83.33 269 88.92 21.50 127
36PSMOB12009-11-04 08:33:012009-11-04 09:00:49 00:27:48 269 114.75 269 216.13 1.20 -
37PSRWB12009-11-04 08:37:562009-11-04 08:40:36 00:02:40 269 132.68 269 142.41 27.10 80
38PSRWB12009-11-04 08:47:332009-11-04 08:54:59 00:07:26 269 167.81 269 194.92 27.10 80
39PSRFBS2009-11-04 09:16:472009-11-04 09:19:09 00:02:22 269 274.42 269 283.05 34.30 7
40AV2CA12009-11-04 09:39:522009-11-04 09:47:40 00:07:48 269 358.54 315 26.99 0.00 -
41AV2OBS2009-11-04 10:14:262009-11-04 10:16:18 00:01:52 315 124.60 315 131.40 0.00 -
42PSMOB22009-11-04 10:14:282009-11-04 10:16:20 00:01:52 315 124.78 315 131.59 0.00 -
43PSMOB12009-11-04 10:18:012009-11-04 10:29:19 00:11:18 315 137.73 315 178.93 1.20 -
44AV2OBS2009-11-04 10:24:262009-11-04 10:28:32 00:04:06 315 161.13 315 176.08 0.00 -
45PSRFBS2009-11-04 10:55:312009-11-04 10:57:31 00:02:00 315 274.48 315 281.77 34.30 7
46PSRPLR2009-11-04 11:07:182009-11-04 11:09:10 00:01:52 315 317.45 315 324.26 21.50 127
47PSRFBS2009-11-04 11:34:002009-11-04 11:36:20 00:02:20 361 54.76 361 63.27 34.30 7
48AV2OBS2009-11-04 11:52:252009-11-04 11:54:17 00:01:52 361 121.98 361 128.79 0.00 -
49PSRFBS2009-11-04 12:32:232009-11-04 12:35:31 00:03:08 361 267.67 361 279.10 34.30 7
50PSRPLR2009-11-04 12:47:382009-11-04 12:52:54 00:05:16 361 323.34 361 342.55 21.50 127
51PSRPLR2009-11-04 13:08:352009-11-04 13:12:59 00:04:24 407 39.75 407 55.80 21.50 127
52PSRWB12009-11-04 13:44:242009-11-04 13:54:22 00:09:58 407 170.30 407 206.65 27.10 80
53PSMOB12009-11-04 13:45:132009-11-04 13:52:17 00:07:04 407 173.34 407 199.11 1.20 -
54PSMOB12009-11-04 13:55:222009-11-04 13:57:58 00:02:36 407 210.36 407 219.84 1.20 -
55AV2OBS2009-11-04 13:56:082009-11-04 13:58:00 00:01:52 407 213.15 407 219.96 0.00 -
56PSRWB12009-11-04 14:10:342009-11-04 14:12:26 00:01:52 407 265.73 407 272.53 27.10 80
57PSRFBS2009-11-04 14:14:032009-11-04 14:16:59 00:02:56 407 278.43 407 289.13 34.30 7
58PSRPLR2009-11-04 14:26:262009-11-04 14:32:32 00:06:06 407 323.59 407 345.83 21.50 127
59PSRWB12009-11-04 14:36:062009-11-04 14:39:32 00:03:26 407 358.84 453 11.37 27.10 80
60PSRPLR2009-11-04 14:41:402009-11-04 14:50:46 00:09:06 453 19.15 453 52.33 21.50 127
61PSMOB12009-11-04 15:21:082009-11-04 15:30:20 00:09:12 453 163.13 453 196.68 1.20 -
62AV2OBS2009-11-04 15:21:512009-11-04 15:29:43 00:07:52 453 165.74 453 194.43 0.00 -
63PSRWB12009-11-04 15:47:212009-11-04 15:50:47 00:03:26 453 258.74 453 271.26 27.10 80
64PSRFBS2009-11-04 15:51:402009-11-04 15:56:44 00:05:04 453 274.42 453 292.89 34.30 7
65PSRWB12009-11-04 16:13:362009-11-04 16:20:32 00:06:56 453 354.40 499 19.69 27.10 80
66PSRPLR2009-11-04 16:21:572009-11-04 16:29:29 00:07:32 499 24.86 499 52.33 21.50 127
67PSRWB12009-11-04 16:44:202009-11-04 16:51:38 00:07:18 499 106.48 499 133.11 27.10 80
68PSRWB12009-11-04 16:56:462009-11-04 17:00:34 00:03:48 499 151.83 499 165.68 27.10 80
69PSMOB12009-11-04 16:57:372009-11-04 17:01:17 00:03:40 499 154.93 499 168.30 1.20 -
70PSRWB12009-11-04 17:24:022009-11-04 17:27:28 00:03:26 499 251.32 499 263.84 27.10 80
71PSRFBS2009-11-04 17:28:332009-11-04 17:35:41 00:07:08 499 267.73 499 293.74 34.30 7
72PSRPLR2009-11-04 17:59:532009-11-04 18:07:01 00:07:08 545 22.00 545 48.02 21.50 127
73PSRWB12009-11-04 18:12:202009-11-04 18:23:38 00:11:18 545 67.40 545 108.61 27.10 80
74PSRWB12009-11-04 18:24:532009-11-04 18:27:17 00:02:24 545 113.17 545 121.92 27.10 80
75PSRFBS2009-11-04 18:28:552009-11-04 18:34:03 00:05:08 545 127.88 545 146.60 34.30 7
76AV2OBS2009-11-04 18:32:042009-11-04 18:33:56 00:01:52 545 139.37 545 146.17 0.00 -
77PSRWB12009-11-04 19:02:292009-11-04 19:07:03 00:04:34 545 250.29 545 266.94 27.10 80
78PSRFBS2009-11-04 19:09:062009-11-04 19:13:50 00:04:44 545 274.42 545 291.68 34.30 7
79PSRFBD2009-11-04 19:32:242009-11-04 19:45:20 00:12:56 545 359.39 591 46.56 34.30 43
80PSRWB12009-11-04 19:48:422009-11-04 19:58:42 00:10:00 591 58.83 591 95.30 27.10 80
81PSRFBS2009-11-04 20:03:252009-11-04 20:06:03 00:02:38 591 112.50 591 122.10 34.30 7
82PSMOB12009-11-04 20:23:432009-11-04 20:26:27 00:02:44 591 186.53 591 196.50 1.20 -
83AV2OBS2009-11-04 20:24:292009-11-04 20:26:21 00:01:52 591 189.33 591 196.13 0.00 -
84PSRWB12009-11-04 20:40:062009-11-04 20:43:18 00:03:12 591 246.28 591 257.95 27.10 80
85PSRFBS2009-11-04 20:47:482009-11-04 20:52:52 00:05:04 591 274.36 591 292.83 34.30 7
86PSRFBD2009-11-04 21:01:372009-11-04 21:12:53 00:11:16 591 324.74 637 5.83 34.30 43
87PSRFBS2009-11-04 21:14:562009-11-04 21:17:38 00:02:42 637 13.31 637 23.16 34.30 7
88PSRFBD2009-11-04 21:24:572009-11-04 21:29:23 00:04:26 637 49.84 637 66.01 34.30 43
89PSRFBS2009-11-04 21:32:562009-11-04 21:34:56 00:02:00 637 78.95 637 86.25 34.30 7
90PSRWB12009-11-04 21:37:192009-11-04 21:43:29 00:06:10 637 94.94 637 117.42 27.10 80
91PSRFBS2009-11-04 21:44:452009-11-04 21:46:37 00:01:52 637 122.04 637 128.85 34.30 7
92PSMOB12009-11-04 22:00:142009-11-04 22:03:14 00:03:00 637 178.51 637 189.45 1.20 -
93AV2OBS2009-11-04 22:01:002009-11-04 22:02:52 00:01:52 637 181.30 637 188.11 0.00 -
94PSMOB12009-11-04 22:09:342009-11-04 22:13:16 00:03:42 637 212.54 637 226.04 1.20 -
95AV2OBS2009-11-04 22:10:332009-11-04 22:12:37 00:02:04 637 216.13 637 223.67 0.00 -
96PSRFBS2009-11-04 22:24:422009-11-04 22:30:40 00:05:58 637 267.73 637 289.49 34.30 7
97PSRFBD2009-11-04 22:50:172009-11-04 22:57:07 00:06:50 12 1.03 12 25.95 34.30 43
98PSRFBS2009-11-04 22:58:142009-11-04 23:00:14 00:02:00 12 30.02 12 37.32 34.30 7
99PSRFBD2009-11-04 23:06:272009-11-04 23:08:49 00:02:22 12 59.99 12 68.62 34.30 43
100PSRPLR2009-11-04 23:12:182009-11-04 23:14:52 00:02:34 12 81.32 12 90.68 21.50 127
101PSRWB12009-11-04 23:16:052009-11-04 23:18:05 00:02:00 12 95.12 12 102.41 27.10 80
102PSRWB12009-11-04 23:19:092009-11-04 23:21:25 00:02:16 12 106.30 12 114.57 27.10 80
103AV2OBS2009-11-04 23:40:372009-11-04 23:43:01 00:02:24 12 184.53 12 193.28 0.00 -
104PSRWB12009-11-04 23:44:352009-11-04 23:48:07 00:03:32 12 198.99 12 211.88 27.10 80
105PSMOB12009-11-04 23:59:152009-11-05 00:01:51 00:02:36 12 252.48 12 261.96 -1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
39-20.680992009-11-03 23:47:56146.979212009-11-04 00:37:17
85-45.360582009-11-04 01:26:39122.299632009-11-04 02:16:00
131-70.040162009-11-04 03:05:22 97.620052009-11-04 03:54:44
177-94.719742009-11-04 04:44:05 72.940472009-11-04 05:33:27
223-119.399322009-11-04 06:22:48 48.260882009-11-04 07:12:10
269-144.078912009-11-04 08:01:31 23.581302009-11-04 08:50:53
315-168.758492009-11-04 09:40:14 -1.098282009-11-04 10:29:36
361166.561932009-11-04 11:18:57-25.777862009-11-04 12:08:19
407141.882342009-11-04 12:57:41-50.457452009-11-04 13:47:02
453117.202762009-11-04 14:36:24-75.137032009-11-04 15:25:45
499 92.523182009-11-04 16:15:07-99.816612009-11-04 17:04:28
545 67.843602009-11-04 17:53:50-124.496202009-11-04 18:43:11
591 43.164012009-11-04 19:32:33-149.175782009-11-04 20:21:55
637 18.484432009-11-04 21:11:16-173.855362009-11-04 22:00:38
12 -6.195152009-11-04 22:49:59161.465062009-11-04 23:39:21
