>ALOS Data Take Simulation(Jul. 29, 2009)

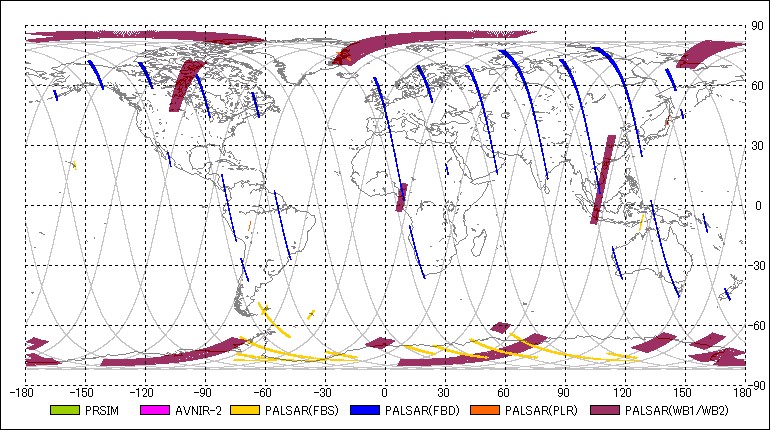

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-07-29 00:16:542009-07-29 00:19:16 00:02:22 17 277.76 17 286.39 34.30 7
2PSRWB12009-07-29 01:01:412009-07-29 01:10:04 00:08:23 63 81.08 63 111.65 27.10 80
3PSMOB22009-07-29 01:08:412009-07-29 01:13:37 00:04:56 63 106.61 63 124.60 0.00 -
4AV2OBS2009-07-29 01:16:012009-07-29 01:17:55 00:01:54 63 133.35 63 140.28 0.00 -
5PSRPLR2009-07-29 01:16:032009-07-29 01:17:59 00:01:56 63 133.47 63 140.52 21.50 127
6AV2OBS2009-07-29 01:20:052009-07-29 01:21:57 00:01:52 63 148.18 63 154.99 0.00 -
7AV2OBS2009-07-29 01:28:182009-07-29 01:31:34 00:03:16 63 178.08 63 190.00 0.00 -
8PSMOB22009-07-29 01:28:192009-07-29 01:32:55 00:04:36 63 178.20 63 194.98 0.00 -
9PSRFBS2009-07-29 01:29:462009-07-29 01:32:40 00:02:54 63 183.49 63 194.07 34.30 7
10PSRFBD2009-07-29 02:10:042009-07-29 02:20:16 00:10:12 63 330.46 109 7.66 34.30 43
11PSRFBD2009-07-29 02:29:382009-07-29 02:33:46 00:04:08 109 41.82 109 56.89 34.30 43
12PSMOB22009-07-29 02:52:112009-07-29 03:02:51 00:10:40 109 124.05 109 162.95 0.00 -
13AV2OBS2009-07-29 02:55:072009-07-29 02:59:17 00:04:10 109 134.75 109 149.94 0.00 -
14PSRWB12009-07-29 02:57:332009-07-29 03:10:21 00:12:48 109 143.62 109 190.30 27.10 80
15PSMOB22009-07-29 03:06:162009-07-29 03:10:56 00:04:40 109 175.41 109 192.43 0.00 -
16PSRWB12009-07-29 03:25:392009-07-29 03:32:45 00:07:06 109 246.09 109 271.99 27.10 80
17PSRFBS2009-07-29 03:33:312009-07-29 03:35:31 00:02:00 109 274.72 109 282.01 34.30 7
18PSRFBS2009-07-29 03:37:282009-07-29 03:43:20 00:05:52 109 289.19 109 310.58 34.30 7
19PSRFBD2009-07-29 03:45:462009-07-29 03:49:38 00:03:52 109 319.39 109 333.49 34.30 43
20PSRFBD2009-07-29 03:51:142009-07-29 04:01:14 00:10:00 109 339.39 155 15.86 34.30 43
21PSRFBD2009-07-29 04:08:212009-07-29 04:16:41 00:08:20 155 41.82 155 72.21 34.30 43
22AV2OBS2009-07-29 04:26:412009-07-29 04:28:45 00:02:04 155 108.61 155 116.15 0.00 -
23AV2OBS2009-07-29 04:32:252009-07-29 04:34:17 00:01:52 155 129.58 155 136.39 -34.30 -
24AV2OBS2009-07-29 04:37:552009-07-29 04:40:43 00:02:48 155 149.58 155 159.79 0.00 -
25PSRWB12009-07-29 05:02:332009-07-29 05:04:25 00:01:52 155 239.47 155 246.28 27.10 80
26PSRFBS2009-07-29 05:10:352009-07-29 05:16:53 00:06:18 155 268.76 155 291.74 34.30 7
27PSRFBD2009-07-29 05:40:202009-07-29 05:42:56 00:02:36 201 17.20 201 26.68 34.30 43
28PSRFBD2009-07-29 05:51:122009-07-29 05:55:26 00:04:14 201 56.83 201 72.27 34.30 43
29AV2OBS2009-07-29 06:02:262009-07-29 06:05:14 00:02:48 201 97.79 201 108.00 0.00 -
30PSMOB12009-07-29 06:07:042009-07-29 06:19:18 00:12:14 201 114.69 201 159.30 1.20 -
31AV2OBS2009-07-29 06:13:252009-07-29 06:19:17 00:05:52 201 137.91 201 159.30 0.00 -
32AV2OBS2009-07-29 06:30:192009-07-29 06:32:11 00:01:52 201 199.54 201 206.34 0.00 -
33PSRFBS2009-07-29 06:48:482009-07-29 06:52:30 00:03:42 201 266.88 201 280.37 34.30 7
34PSRFBD2009-07-29 07:29:472009-07-29 07:34:23 00:04:36 247 56.34 247 73.12 34.30 43
35AV2OBS2009-07-29 07:42:312009-07-29 07:45:33 00:03:02 247 102.78 247 113.84 0.00 -
36AV2OBS2009-07-29 07:58:022009-07-29 08:13:34 00:15:32 247 159.36 247 216.01 0.00 -
37PSRWB12009-07-29 08:22:242009-07-29 08:24:16 00:01:52 247 248.28 247 255.09 27.10 80
38PSRFBS2009-07-29 08:27:312009-07-29 08:29:27 00:01:56 247 266.94 247 273.99 34.30 7
39PSRFBS2009-07-29 08:57:172009-07-29 08:59:09 00:01:52 293 15.44 293 22.25 41.50 10
40PSRFBD2009-07-29 09:06:582009-07-29 09:08:58 00:02:00 293 50.75 293 58.04 34.30 43
41AV2OBS2009-07-29 09:24:212009-07-29 09:28:11 00:03:50 293 114.20 293 128.18 0.00 -
42AV2OBS2009-07-29 09:32:472009-07-29 09:35:35 00:02:48 293 144.96 293 155.17 0.00 -
43PSMOB12009-07-29 09:36:282009-07-29 09:39:40 00:03:12 293 158.33 293 170.00 1.20 -
44PSRWB12009-07-29 09:39:042009-07-29 09:43:32 00:04:28 293 167.81 293 184.10 27.10 80
45AV2OBS2009-07-29 11:01:162009-07-29 11:09:10 00:07:54 339 107.64 339 136.45 0.00 -
46PSMOB22009-07-29 11:06:172009-07-29 11:08:09 00:01:52 339 125.87 339 132.68 0.00 -
47AV2OBS2009-07-29 11:10:472009-07-29 11:19:27 00:08:40 339 142.34 339 173.95 0.00 -
48PSMOB12009-07-29 11:15:112009-07-29 11:20:13 00:05:02 339 158.33 339 176.68 1.20 -
49PSRFBS2009-07-29 11:35:372009-07-29 11:37:29 00:01:52 339 232.84 339 239.65 34.30 7
50AV2OBS2009-07-29 11:36:052009-07-29 11:37:57 00:01:52 339 234.55 339 241.35 -34.30 -
51PSRFBD2009-07-29 11:56:392009-07-29 11:59:01 00:02:22 339 309.55 339 318.18 34.30 43
52PSRFBD2009-07-29 12:06:052009-07-29 12:09:21 00:03:16 339 343.95 339 355.86 34.30 43
53PSRFBD2009-07-29 12:21:532009-07-29 12:23:45 00:01:52 385 41.57 385 48.38 34.30 43
54PSRFBD2009-07-29 12:25:432009-07-29 12:29:23 00:03:40 385 55.55 385 68.92 34.30 43
55PSRWB12009-07-29 12:34:272009-07-29 12:40:39 00:06:12 385 87.40 385 110.01 27.10 80
56PSMOB12009-07-29 12:40:032009-07-29 12:43:19 00:03:16 385 107.82 385 119.73 1.20 -
57AV2OBS2009-07-29 13:00:122009-07-29 13:06:46 00:06:34 385 181.30 385 205.25 0.00 -
58PSMOB22009-07-29 13:00:122009-07-29 13:07:32 00:07:20 385 181.30 385 208.05 0.00 -
59PSRFBS2009-07-29 13:13:372009-07-29 13:15:29 00:01:52 385 230.23 385 237.04 34.30 7
60AV2OBS2009-07-29 13:14:052009-07-29 13:15:57 00:01:52 385 231.93 385 238.74 -34.30 -
61PSRWB12009-07-29 13:18:312009-07-29 13:25:05 00:06:34 385 248.10 385 272.05 27.10 80
62PSRFBD2009-07-29 13:35:472009-07-29 13:49:53 00:14:06 385 311.07 431 2.49 34.30 43
63PSRFBD2009-07-29 13:55:232009-07-29 14:11:13 00:15:50 431 22.55 431 80.29 34.30 43
64PSMOB12009-07-29 14:15:232009-07-29 14:23:05 00:07:42 431 95.48 431 123.56 1.20 -
65PSMOB22009-07-29 14:33:402009-07-29 14:36:20 00:02:40 431 162.16 431 171.88 0.00 -
66AV2OBS2009-07-29 14:35:052009-07-29 14:37:53 00:02:48 431 167.32 431 177.54 0.00 -
67AV2OBS2009-07-29 14:39:452009-07-29 14:43:05 00:03:20 431 184.34 431 196.50 0.00 -
68PSRPLR2009-07-29 14:40:262009-07-29 14:42:18 00:01:52 431 186.83 431 193.64 21.50 127
69PSRFBD2009-07-29 15:17:002009-07-29 15:22:14 00:05:14 431 320.18 431 339.27 34.30 43
70PSRFBD2009-07-29 15:28:572009-07-29 15:48:09 00:19:12 477 3.77 477 73.79 34.30 43
71PSMOB12009-07-29 15:58:522009-07-29 16:05:56 00:07:04 477 112.87 477 138.64 1.20 -
72PSMOB12009-07-29 16:09:012009-07-29 16:15:43 00:06:42 477 149.88 477 174.31 1.20 -
73AV2OBS2009-07-29 16:16:522009-07-29 16:18:44 00:01:52 477 178.51 477 185.32 -34.30 -
74PSRWB12009-07-29 16:40:232009-07-29 16:42:43 00:02:20 477 264.27 477 272.78 27.10 80
75PSRFBD2009-07-29 17:09:392009-07-29 17:28:13 00:18:34 523 11.00 523 78.71 34.30 43
76PSMOB12009-07-29 17:30:232009-07-29 17:35:37 00:05:14 523 86.55 523 105.63 1.20 -
77PSRWB12009-07-29 17:35:412009-07-29 17:43:21 00:07:40 523 105.94 523 133.90 27.10 80
78PSMOB12009-07-29 17:38:022009-07-29 17:51:12 00:13:10 523 114.51 523 162.52 1.20 -
79PSRWB12009-07-29 18:17:542009-07-29 18:19:46 00:01:52 523 259.83 523 266.64 27.10 80
80PSRFBS2009-07-29 18:21:492009-07-29 18:23:41 00:01:52 523 274.11 523 280.92 34.30 7
81PSRFBD2009-07-29 18:49:002009-07-29 19:04:48 00:15:48 569 13.31 569 70.93 34.30 43
82PSMOB12009-07-29 19:09:062009-07-29 19:12:30 00:03:24 569 86.55 569 98.95 1.20 -
83AV2OBS2009-07-29 19:14:322009-07-29 19:16:24 00:01:52 569 106.36 569 113.17 0.00 -
84PSRWB12009-07-29 19:53:292009-07-29 19:57:55 00:04:26 569 248.46 569 264.63 27.10 80
85PSRFBS2009-07-29 19:58:542009-07-29 20:05:56 00:07:02 569 268.16 569 293.81 34.30 7
86PSRFBD2009-07-29 20:27:442009-07-29 20:29:44 00:02:00 615 13.37 615 20.66 34.30 43
87PSRFBD2009-07-29 20:37:412009-07-29 20:43:25 00:05:44 615 49.66 615 70.56 34.30 43
88AV2OBS2009-07-29 20:53:242009-07-29 20:57:42 00:04:18 615 106.97 615 122.65 0.00 -
89PSMOB22009-07-29 20:53:312009-07-29 20:57:05 00:03:34 615 107.40 615 120.40 0.00 -
90PSMOB12009-07-29 21:10:472009-07-29 21:13:23 00:02:36 615 170.30 615 179.78 1.20 -
91PSRWB12009-07-29 21:31:252009-07-29 21:34:07 00:02:42 615 245.61 615 255.45 27.10 80
92PSRFBS2009-07-29 21:39:172009-07-29 21:43:41 00:04:24 615 274.30 615 290.34 34.30 7
93PSRFBD2009-07-29 21:51:572009-07-29 22:00:07 00:08:10 615 320.49 615 350.27 34.30 43
94PSRFBD2009-07-29 22:02:512009-07-29 22:20:31 00:17:40 661 0.18 661 64.61 34.30 43
95PSRPLR2009-07-29 22:22:262009-07-29 22:24:18 00:01:52 661 71.66 661 78.47 21.50 127
96AV2OBS2009-07-29 22:27:022009-07-29 22:28:54 00:01:52 661 88.43 661 95.24 0.00 -
97AV2OBS2009-07-29 22:31:382009-07-29 22:35:04 00:03:26 661 105.21 661 117.73 0.00 -
98AV2OBS2009-07-29 22:50:522009-07-29 22:52:44 00:01:52 661 175.29 661 182.09 0.00 -
99AV2OBS2009-07-29 22:57:272009-07-29 22:59:19 00:01:52 661 199.29 661 206.10 -34.30 -
100PSRWB12009-07-29 23:10:072009-07-29 23:13:25 00:03:18 661 245.55 661 257.58 27.10 80
101PSRFBS2009-07-29 23:18:022009-07-29 23:21:22 00:03:20 661 274.36 661 286.51 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
17 -8.877722009-07-28 23:00:43158.782492009-07-28 23:50:05
63-33.557302009-07-29 00:39:26134.102912009-07-29 01:28:48
109-58.236882009-07-29 02:18:09109.423332009-07-29 03:07:31
155-82.916462009-07-29 03:56:52 84.743752009-07-29 04:46:14
201-107.596052009-07-29 05:35:35 60.064162009-07-29 06:24:57
247-132.275632009-07-29 07:14:18 35.384582009-07-29 08:03:40
293-156.955212009-07-29 08:53:02 10.705002009-07-29 09:42:23
339178.365212009-07-29 10:31:45-13.974592009-07-29 11:21:06
385153.685622009-07-29 12:10:28-38.654172009-07-29 12:59:49
431129.006042009-07-29 13:49:11-63.333752009-07-29 14:38:32
477104.326462009-07-29 15:27:54-88.013332009-07-29 16:17:16
523 79.646872009-07-29 17:06:37-112.692922009-07-29 17:55:59
569 54.967292009-07-29 18:45:20-137.372502009-07-29 19:34:42
615 30.287712009-07-29 20:24:03-162.052082009-07-29 21:13:25
661 5.608132009-07-29 22:02:46173.268342009-07-29 22:52:08
36-19.071462009-07-29 23:41:29148.588752009-07-30 00:30:51
