>ALOS Data Take Simulation(Jul. 17, 2009)

Observation Area

PRISM

AVNIR-2

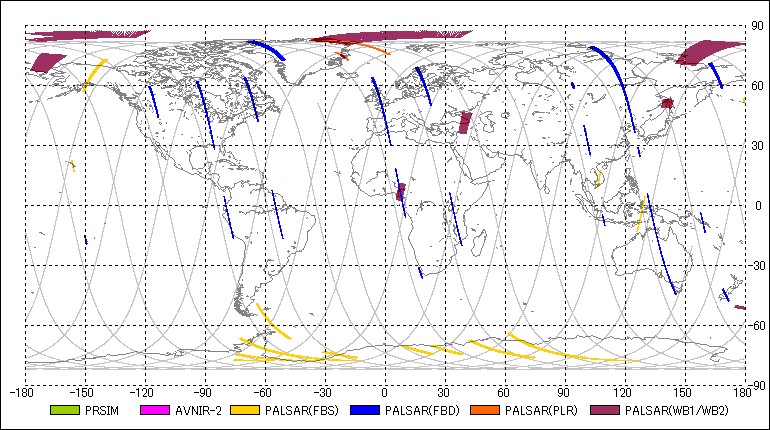

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2009-07-17 00:21:112009-07-17 00:23:33 00:02:22 19 277.76 19 286.39 34.30 7
2PSRFBD2009-07-17 01:03:152009-07-17 01:06:41 00:03:26 65 71.17 65 83.69 34.30 43
3PSRWB12009-07-17 01:07:472009-07-17 01:13:53 00:06:06 65 87.64 65 109.89 27.10 80
4PSRWB12009-07-17 01:18:092009-07-17 01:19:55 00:01:46 65 125.51 65 131.95 27.10 80
5AV2OBS2009-07-17 01:20:222009-07-17 01:26:12 00:05:50 65 133.59 65 154.86 0.00 -
6PSMOB22009-07-17 01:20:232009-07-17 01:26:03 00:05:40 65 133.59 65 154.26 0.00 -
7PSMOB22009-07-17 01:30:162009-07-17 01:42:44 00:12:28 65 169.63 65 215.10 0.00 -
8PSRFBS2009-07-17 01:31:382009-07-17 01:37:02 00:05:24 65 174.62 65 194.31 34.30 7
9AV2OBS2009-07-17 01:32:252009-07-17 01:35:49 00:03:24 65 177.54 65 189.93 0.00 -
10PSRFBD2009-07-17 02:17:162009-07-17 02:24:38 00:07:22 65 341.03 111 7.90 34.30 43
11PSRFBD2009-07-17 02:33:292009-07-17 02:40:09 00:06:40 111 40.17 111 64.49 34.30 43
12AV2OBS2009-07-17 02:56:232009-07-17 03:06:13 00:09:50 111 123.69 111 159.54 0.00 -
13PSMOB22009-07-17 03:00:182009-07-17 03:04:44 00:04:26 111 137.97 111 154.14 0.00 -
14PSRFBS2009-07-17 03:06:412009-07-17 03:09:43 00:03:02 111 161.25 111 172.31 34.30 7
15PSMOB22009-07-17 03:10:302009-07-17 03:15:14 00:04:44 111 175.17 111 192.43 0.00 -
16AV2OBS2009-07-17 03:10:452009-07-17 03:14:25 00:03:40 111 176.14 111 189.51 0.00 -
17PSRFBS2009-07-17 03:37:422009-07-17 03:39:48 00:02:06 111 274.36 111 282.01 34.30 7
18PSRFBS2009-07-17 03:41:302009-07-17 03:47:30 00:06:00 111 288.21 111 310.09 34.30 7
19PSRFBD2009-07-17 03:55:592009-07-17 04:02:25 00:06:26 111 341.03 157 4.50 34.30 43
20PSRFBD2009-07-17 04:08:132009-07-17 04:18:21 00:10:08 157 25.65 157 62.60 34.30 43
21PSMOB12009-07-17 04:30:582009-07-17 04:37:44 00:06:46 157 108.61 157 133.29 -1.20 -
22AV2OBS2009-07-17 04:38:112009-07-17 04:46:07 00:07:56 157 134.93 157 163.86 0.00 -
23AV2OBS2009-07-17 05:00:272009-07-17 05:02:19 00:01:52 157 216.13 157 222.94 21.50 -
24PSRFBS2009-07-17 05:14:462009-07-17 05:20:56 00:06:10 157 268.34 157 290.83 34.30 7
25PSRFBD2009-07-17 05:51:222009-07-17 05:56:20 00:04:58 203 41.82 203 59.93 34.30 43
26PSMOB12009-07-17 06:09:052009-07-17 06:23:35 00:14:30 203 106.42 203 159.30 -1.20 -
27AV2OBS2009-07-17 06:17:442009-07-17 06:22:48 00:05:04 203 137.97 203 156.45 0.00 -
28PSRFBS2009-07-17 06:53:062009-07-17 06:56:40 00:03:34 203 266.94 203 279.95 34.30 7
29PSMOB12009-07-17 07:47:072009-07-17 07:50:21 00:03:14 249 103.93 249 115.72 -1.20 -
30AV2OBS2009-07-17 07:50:492009-07-17 07:58:31 00:07:42 249 117.42 249 145.50 0.00 -
31PSRWB12009-07-17 07:54:532009-07-17 07:58:19 00:03:26 249 132.26 249 144.78 27.10 80
32PSMOB12009-07-17 08:02:082009-07-17 08:11:54 00:09:46 249 158.69 249 194.31 -1.20 -
33AV2OBS2009-07-17 08:02:482009-07-17 08:11:04 00:08:16 249 161.13 249 191.27 0.00 -
34AV2OBS2009-07-17 08:15:532009-07-17 08:17:49 00:01:56 249 208.84 249 215.89 0.00 -
35PSRFBS2009-07-17 08:31:492009-07-17 08:33:41 00:01:52 249 266.94 249 273.75 34.30 7
36PSRFBD2009-07-17 08:51:222009-07-17 08:53:14 00:01:52 249 338.24 249 345.04 34.30 43
37PSRFBS2009-07-17 09:01:242009-07-17 09:03:34 00:02:10 295 14.83 295 22.73 41.50 10
38AV2OBS2009-07-17 09:27:072009-07-17 09:36:17 00:09:10 295 108.61 295 142.04 -41.50 -
39PSMOB12009-07-17 09:27:542009-07-17 09:31:02 00:03:08 295 111.47 295 122.90 -1.20 -
40AV2OBS2009-07-17 09:39:052009-07-17 09:41:53 00:02:48 295 152.19 295 162.40 0.00 -
41PSRWB12009-07-17 09:43:212009-07-17 09:46:17 00:02:56 295 167.81 295 178.51 27.10 80
42PSRFBD2009-07-17 10:51:342009-07-17 10:55:48 00:04:14 341 56.59 341 72.02 34.30 43
43PSMOB12009-07-17 11:06:362009-07-17 11:16:32 00:09:56 341 111.35 341 147.57 -1.20 -
44AV2OBS2009-07-17 11:06:382009-07-17 11:13:00 00:06:22 341 111.53 341 134.75 21.50 -
45PSMOB12009-07-17 11:19:332009-07-17 11:24:15 00:04:42 341 158.57 341 175.71 -1.20 -
46AV2OBS2009-07-17 11:20:142009-07-17 11:24:30 00:04:16 341 161.13 341 176.68 0.00 -
47PSRFBD2009-07-17 12:00:472009-07-17 12:03:09 00:02:22 341 309.00 341 317.63 34.30 43
48PSRFBD2009-07-17 12:10:232009-07-17 12:13:47 00:03:24 341 344.01 341 356.41 34.30 43
49AV2OBS2009-07-17 12:45:022009-07-17 12:46:56 00:01:54 387 110.31 387 117.24 0.00 -
50AV2OBS2009-07-17 13:04:232009-07-17 13:11:11 00:06:48 387 180.94 387 205.74 0.00 -
51PSMOB22009-07-17 13:04:262009-07-17 13:11:56 00:07:30 387 181.12 387 208.47 0.00 -
52PSRFBD2009-07-17 13:40:252009-07-17 13:55:07 00:14:42 387 312.34 433 5.96 34.30 43
53PSRFBD2009-07-17 13:59:402009-07-17 14:01:32 00:01:52 433 22.55 433 29.36 34.30 43
54PSRFBD2009-07-17 14:02:572009-07-17 14:15:33 00:12:36 433 34.52 433 80.47 34.30 43
55PSRWB12009-07-17 14:17:322009-07-17 14:20:20 00:02:48 433 87.70 433 97.91 27.10 80
56AV2OBS2009-07-17 14:21:122009-07-17 14:26:30 00:05:18 433 101.01 433 120.34 0.00 -
57PSMOB12009-07-17 14:28:282009-07-17 14:31:04 00:02:36 433 127.58 433 137.06 -1.20 -
58PSMOB12009-07-17 14:36:482009-07-17 14:48:48 00:12:00 433 157.96 433 201.73 -1.20 -
59AV2OBS2009-07-17 14:44:152009-07-17 14:48:57 00:04:42 433 185.13 433 202.27 0.00 -
60PSMOB22009-07-17 14:52:272009-07-17 14:55:59 00:03:32 433 214.98 433 227.86 0.00 -
61PSRFBD2009-07-17 15:28:512009-07-17 15:30:57 00:02:06 433 347.78 433 355.44 34.30 43
62PSRFBD2009-07-17 15:38:332009-07-17 15:43:15 00:04:42 479 23.16 479 40.30 34.30 43
63PSRFBD2009-07-17 15:47:432009-07-17 15:49:13 00:01:30 479 56.59 479 62.06 34.30 43
64AV2OBS2009-07-17 15:57:182009-07-17 16:00:50 00:03:32 479 91.47 479 104.36 0.00 -
65PSMOB12009-07-17 16:03:012009-07-17 16:19:37 00:16:36 479 112.32 479 172.86 -1.20 -
66AV2OBS2009-07-17 16:03:482009-07-17 16:09:26 00:05:38 479 115.18 479 135.72 0.00 -
67PSRFBS2009-07-17 20:03:082009-07-17 20:10:14 00:07:06 571 267.97 571 293.87 34.30 7
68PSRFBD2009-07-17 20:22:152009-07-17 20:30:13 00:07:58 571 337.69 617 6.75 34.30 43
69PSRFBD2009-07-17 20:41:322009-07-17 20:47:30 00:05:58 617 48.02 617 69.77 34.30 43
70PSRPLR2009-07-17 20:48:502009-07-17 20:52:14 00:03:24 617 74.64 617 87.04 21.50 127
71PSRFBS2009-07-17 20:57:022009-07-17 21:02:12 00:05:10 617 104.54 617 123.38 21.50 3
72AV2OBS2009-07-17 20:57:392009-07-17 21:00:27 00:02:48 617 106.79 617 117.00 0.00 -
73PSMOB12009-07-17 21:19:212009-07-17 21:22:11 00:02:50 617 185.92 617 196.26 -1.20 -
74AV2OBS2009-07-17 21:20:072009-07-17 21:21:59 00:01:52 617 188.72 617 195.53 0.00 -
75PSRWB12009-07-17 21:30:382009-07-17 21:32:30 00:01:52 617 227.07 617 233.88 27.10 80
76PSRFBS2009-07-17 21:43:352009-07-17 21:47:49 00:04:14 617 274.30 617 289.73 34.30 7
77PSRFBD2009-07-17 21:56:152009-07-17 21:58:35 00:02:20 617 320.49 617 329.00 34.30 43
78PSRFBD2009-07-17 22:04:482009-07-17 22:12:12 00:07:24 617 351.67 663 18.66 34.30 43
79PSRFBD2009-07-17 22:14:402009-07-17 22:24:50 00:10:10 663 27.65 663 64.73 34.30 43
80PSRPLR2009-07-17 22:26:442009-07-17 22:28:36 00:01:52 663 71.66 663 78.47 21.50 127
81PSRWB12009-07-17 22:35:062009-07-17 22:38:12 00:03:06 663 102.17 663 113.47 27.10 80
82PSRFBS2009-07-17 22:40:432009-07-17 22:42:35 00:01:52 663 122.65 663 129.46 34.30 7
83AV2OBS2009-07-17 22:41:152009-07-17 22:43:07 00:01:52 663 124.60 663 131.40 0.00 -
84PSMOB12009-07-17 22:54:082009-07-17 22:57:18 00:03:10 663 171.58 663 183.13 -1.20 -
85AV2OBS2009-07-17 22:54:532009-07-17 22:56:45 00:01:52 663 174.31 663 181.12 0.00 -
86AV2OBS2009-07-17 23:00:202009-07-17 23:03:40 00:03:20 663 194.19 663 206.34 0.00 -
87PSRFBS2009-07-17 23:23:152009-07-17 23:25:37 00:02:22 663 277.76 663 286.39 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
19 -9.950742009-07-16 23:05:01157.709472009-07-16 23:54:22
65-34.630322009-07-17 00:43:44133.029892009-07-17 01:33:05
111-59.309912009-07-17 02:22:27108.350302009-07-17 03:11:48
157-83.989492009-07-17 04:01:10 83.670722009-07-17 04:50:31
203-108.669072009-07-17 05:39:53 58.991142009-07-17 06:29:14
249-133.348652009-07-17 07:18:36 34.311552009-07-17 08:07:58
295-158.028242009-07-17 08:57:19 9.631972009-07-17 09:46:41
341177.292182009-07-17 10:36:02-15.047612009-07-17 11:25:24
387152.612602009-07-17 12:14:45-39.727192009-07-17 13:04:07
433127.933012009-07-17 13:53:28-64.406782009-07-17 14:42:50
479103.253432009-07-17 15:32:12-89.086362009-07-17 16:21:33
525 78.573852009-07-17 17:10:55-113.765942009-07-17 18:00:16
571 53.894272009-07-17 18:49:38-138.445522009-07-17 19:38:59
617 29.214682009-07-17 20:28:21-163.125112009-07-17 21:17:42
663 4.535102009-07-17 22:07:04172.195312009-07-17 22:56:25
38-20.144482009-07-17 23:45:47147.515732009-07-18 00:35:09
