>ALOS Data Take Simulation(Sep. 11, 2009)

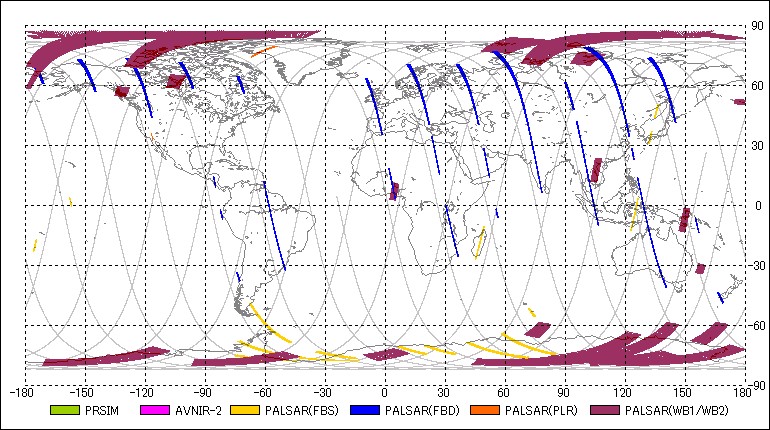

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12009-09-11 00:07:202009-09-11 00:11:12 00:03:52 25 180.27 25 194.37 27.10 80
2AV2OBS2009-09-11 00:14:132009-09-11 00:16:05 00:01:52 25 205.37 25 212.18 34.30 -
3PSRWB12009-09-11 00:24:592009-09-11 00:32:53 00:07:54 25 244.64 25 273.44 27.10 80
4PSRFBS2009-09-11 00:34:042009-09-11 00:36:16 00:02:12 25 277.76 25 285.78 34.30 7
5PSMOB22009-09-11 01:25:402009-09-11 01:37:32 00:11:52 71 105.94 71 149.21 0.00 -
6AV2OBS2009-09-11 01:31:002009-09-11 01:37:20 00:06:20 71 125.39 71 148.48 0.00 -
7PSRFBS2009-09-11 01:31:452009-09-11 01:34:15 00:02:30 71 128.06 71 137.18 34.30 7
8PSRFBS2009-09-11 01:35:292009-09-11 01:37:51 00:02:22 71 141.68 71 150.31 34.30 7
9PSRFBS2009-09-11 01:44:422009-09-11 01:49:48 00:05:06 71 175.29 71 193.88 34.30 7
10AV2OBS2009-09-11 01:44:582009-09-11 01:48:44 00:03:46 71 176.32 71 190.06 0.00 -
11PSMOB22009-09-11 01:45:002009-09-11 01:50:14 00:05:14 71 176.38 71 195.47 0.00 -
12AV2OBS2009-09-11 01:53:102009-09-11 01:55:54 00:02:44 71 206.22 71 216.19 0.00 -
13PSRFBD2009-09-11 02:25:422009-09-11 02:38:40 00:12:58 71 324.86 117 12.16 34.30 43
14PSRFBD2009-09-11 02:50:122009-09-11 02:53:10 00:02:58 117 54.21 117 65.03 34.30 43
15PSRWB12009-09-11 02:59:072009-09-11 03:01:09 00:02:02 117 86.73 117 94.15 27.10 80
16AV2OBS2009-09-11 03:03:522009-09-11 03:08:20 00:04:28 117 104.05 117 120.34 0.00 -
17PSMOB22009-09-11 03:08:582009-09-11 03:28:04 00:19:06 117 122.59 117 192.24 0.00 -
18PSRWB12009-09-11 03:17:542009-09-11 03:21:46 00:03:52 117 155.23 117 169.33 27.10 80
19PSMOB12009-09-11 03:30:212009-09-11 03:32:57 00:02:36 117 200.57 117 210.05 1.20 -
20PSRWB12009-09-11 03:41:012009-09-11 03:43:39 00:02:38 117 239.47 117 249.07 27.10 80
21PSRFBS2009-09-11 03:50:212009-09-11 03:52:41 00:02:20 117 273.57 117 282.08 34.30 7
22PSRFBS2009-09-11 03:53:462009-09-11 04:00:22 00:06:36 117 285.97 117 310.03 34.30 7
23PSRFBD2009-09-11 04:02:562009-09-11 04:04:48 00:01:52 117 319.39 117 326.20 34.30 43
24PSRFBD2009-09-11 04:11:302009-09-11 04:13:32 00:02:02 117 350.63 117 358.05 34.30 43
25PSRFBD2009-09-11 04:15:532009-09-11 04:18:05 00:02:12 163 6.62 163 14.65 34.30 43
26PSRFBD2009-09-11 04:29:392009-09-11 04:33:53 00:04:14 163 56.83 163 72.27 34.30 43
27PSRWB12009-09-11 04:41:532009-09-11 04:44:09 00:02:16 163 101.50 163 109.77 27.10 80
28PSMOB12009-09-11 04:45:312009-09-11 05:02:57 00:17:26 163 114.69 163 178.26 1.20 -
29AV2OBS2009-09-11 05:00:522009-09-11 05:02:44 00:01:52 163 170.73 163 177.54 0.00 -
30PSRFBS2009-09-11 05:27:282009-09-11 05:33:20 00:05:52 163 267.73 163 289.13 34.30 7
31PSRPLR2009-09-11 06:01:042009-09-11 06:02:56 00:01:52 209 30.21 209 37.01 23.10 128
32PSRFBD2009-09-11 06:04:142009-09-11 06:13:12 00:08:58 209 41.76 209 74.45 34.30 43
33PSRWB12009-09-11 06:16:492009-09-11 06:22:55 00:06:06 209 87.70 209 109.95 27.10 80
34PSMOB12009-09-11 06:24:132009-09-11 06:36:19 00:12:06 209 114.63 209 158.75 1.20 -
35AV2OBS2009-09-11 06:30:362009-09-11 06:36:18 00:05:42 209 137.97 209 158.75 0.00 -
36PSRFBS2009-09-11 06:44:482009-09-11 06:49:58 00:05:10 209 189.69 209 208.53 34.30 7
37AV2OBS2009-09-11 06:45:142009-09-11 06:49:46 00:04:32 209 191.33 209 207.86 -34.30 -
38PSRWB12009-09-11 07:02:522009-09-11 07:05:00 00:02:08 209 255.58 209 263.36 27.10 80
39PSRFBS2009-09-11 07:06:312009-09-11 07:09:17 00:02:46 209 268.95 209 279.04 34.30 7
40PSRFBD2009-09-11 07:46:342009-09-11 07:51:44 00:05:10 255 54.94 255 73.79 34.30 43
41PSRWB12009-09-11 07:57:132009-09-11 07:59:51 00:02:38 255 93.78 255 103.39 27.10 80
42AV2OBS2009-09-11 08:00:342009-09-11 08:02:26 00:01:52 255 106.00 255 112.81 0.00 -
43AV2OBS2009-09-11 08:08:232009-09-11 08:11:11 00:02:48 255 134.56 255 144.78 0.00 -
44AV2OBS2009-09-11 08:13:472009-09-11 08:30:51 00:17:04 255 154.20 255 216.43 0.00 -
45PSRFBS2009-09-11 08:44:412009-09-11 08:46:33 00:01:52 255 266.94 255 273.75 34.30 7
46PSRFBS2009-09-11 09:09:242009-09-11 09:11:20 00:01:56 255 357.02 301 4.07 34.30 7
47PSRFBD2009-09-11 09:26:262009-09-11 09:29:36 00:03:10 301 59.14 301 70.69 34.30 43
48PSMOB12009-09-11 09:39:492009-09-11 09:51:15 00:11:26 301 107.94 301 149.64 1.20 -
49AV2OBS2009-09-11 09:49:232009-09-11 09:55:13 00:05:50 301 142.89 301 164.16 0.00 -
50PSRWB12009-09-11 09:56:142009-09-11 09:59:06 00:02:52 301 167.81 301 178.26 27.10 80
51PSRWB12009-09-11 10:20:562009-09-11 10:24:46 00:03:50 301 257.95 301 271.93 27.10 80
52PSMOB12009-09-11 11:22:212009-09-11 11:25:45 00:03:24 347 121.86 347 134.26 1.20 -
53AV2OBS2009-09-11 11:23:002009-09-11 11:25:02 00:02:02 347 124.23 347 131.65 0.00 -
54AV2OBS2009-09-11 11:29:432009-09-11 11:35:39 00:05:56 347 148.73 347 170.36 0.00 -
55PSRFBD2009-09-11 12:13:232009-09-11 12:15:33 00:02:10 347 307.97 347 315.87 34.30 43
56PSRFBD2009-09-11 12:23:152009-09-11 12:26:05 00:02:50 347 343.95 347 354.28 34.30 43
57PSRFBD2009-09-11 12:38:272009-09-11 12:48:09 00:09:42 393 39.38 393 74.76 34.30 43
58PSMOB12009-09-11 12:57:132009-09-11 13:00:23 00:03:10 393 107.82 393 119.37 1.20 -
59PSMOB22009-09-11 13:17:022009-09-11 13:26:36 00:09:34 393 180.09 393 214.98 0.00 -
60AV2OBS2009-09-11 13:18:222009-09-11 13:21:10 00:02:48 393 184.95 393 195.16 0.00 -
61PSRFBD2009-09-11 13:54:212009-09-11 14:10:17 00:15:56 393 316.17 439 14.28 34.30 43
62PSRFBD2009-09-11 14:12:012009-09-11 14:14:19 00:02:18 439 20.60 439 28.99 34.30 43
63PSRFBD2009-09-11 14:15:182009-09-11 14:28:24 00:13:06 439 32.58 439 80.35 34.30 43
64PSMOB12009-09-11 14:32:122009-09-11 14:43:56 00:11:44 439 94.21 439 137.00 1.20 -
65AV2OBS2009-09-11 14:34:432009-09-11 14:37:31 00:02:48 439 103.39 439 113.60 0.00 -
66PSMOB22009-09-11 14:52:052009-09-11 15:02:07 00:10:02 439 166.72 439 203.31 0.00 -
67AV2OBS2009-09-11 15:01:482009-09-11 15:03:40 00:01:52 439 202.09 439 208.90 34.30 -
68PSRWB12009-09-11 15:16:032009-09-11 15:20:57 00:04:54 439 254.12 439 271.99 27.10 80
69PSRFBD2009-09-11 15:41:402009-09-11 15:56:40 00:15:00 439 347.53 485 42.24 34.30 43
70PSRFBD2009-09-11 15:57:432009-09-11 16:02:07 00:04:24 485 46.07 485 62.12 34.30 43
71PSRPLR2009-09-11 16:11:442009-09-11 16:14:02 00:02:18 485 97.19 485 105.57 21.50 127
72AV2OBS2009-09-11 16:18:302009-09-11 16:21:18 00:02:48 485 121.86 485 132.07 0.00 -
73AV2OBS2009-09-11 16:22:522009-09-11 16:25:34 00:02:42 485 137.73 485 147.57 34.30 -
74PSRFBD2009-09-11 17:25:002009-09-11 17:45:12 00:20:12 531 4.38 531 78.04 34.30 43
75PSMOB12009-09-11 17:47:332009-09-11 17:52:35 00:05:02 531 86.55 531 104.90 1.20 -
76PSRWB12009-09-11 17:54:462009-09-11 17:57:14 00:02:28 531 112.93 531 121.92 27.10 80
77PSMOB12009-09-11 17:55:142009-09-11 18:01:50 00:06:36 531 114.57 531 138.64 1.20 -
78PSMOB12009-09-11 18:05:022009-09-11 18:07:38 00:02:36 531 150.31 531 159.79 1.20 -
79AV2OBS2009-09-11 18:05:482009-09-11 18:07:40 00:01:52 531 153.10 531 159.91 0.00 -
80PSRFBS2009-09-11 18:46:132009-09-11 18:48:05 00:01:52 531 300.55 531 307.36 34.30 7
81PSRFBD2009-09-11 19:00:122009-09-11 19:02:04 00:01:52 531 351.55 531 358.35 34.30 43
82PSRFBD2009-09-11 19:05:442009-09-11 19:10:22 00:04:38 577 11.73 577 28.63 34.30 43
83PSRFBD2009-09-11 19:13:022009-09-11 19:22:04 00:09:02 577 38.35 577 71.29 34.30 43
84PSMOB12009-09-11 19:26:162009-09-11 19:29:26 00:03:10 577 86.55 577 98.10 1.20 -
85PSRWB12009-09-11 19:26:342009-09-11 19:33:06 00:06:32 577 87.64 577 111.47 27.10 80
86PSMOB22009-09-11 19:33:482009-09-11 19:36:16 00:02:28 577 114.08 577 123.08 0.00 -
87PSRWB12009-09-11 19:35:142009-09-11 19:37:06 00:01:52 577 119.25 577 126.06 27.10 80
88PSRWB12009-09-11 20:11:512009-09-11 20:17:03 00:05:12 577 252.84 577 271.80 27.10 80
89PSRFBS2009-09-11 20:18:372009-09-11 20:23:05 00:04:28 577 277.52 577 293.81 34.30 7
90PSRFBD2009-09-11 20:33:292009-09-11 20:41:23 00:07:54 577 331.73 623 0.55 34.30 43
91PSRFBD2009-09-11 20:44:542009-09-11 20:50:46 00:05:52 623 13.37 623 34.77 34.30 43
92PSRFBD2009-09-11 20:51:482009-09-11 21:00:48 00:09:00 623 38.47 623 71.29 34.30 43
93PSRWB12009-09-11 21:05:012009-09-11 21:07:01 00:02:00 623 86.73 623 94.03 27.10 80
94PSMOB22009-09-11 21:10:282009-09-11 21:15:34 00:05:06 623 106.61 623 125.20 0.00 -
95AV2OBS2009-09-11 21:10:422009-09-11 21:12:34 00:01:52 623 107.40 623 114.20 -41.50 -
96AV2OBS2009-09-11 21:33:582009-09-11 21:37:16 00:03:18 623 192.30 623 204.34 0.00 -
97PSRFBS2009-09-11 21:34:572009-09-11 21:37:17 00:02:20 623 195.89 623 204.40 34.30 7
98PSRWB12009-09-11 21:46:552009-09-11 21:50:31 00:03:36 623 239.47 623 252.60 27.10 80
99PSRWB12009-09-11 21:51:482009-09-11 21:55:14 00:03:26 623 257.28 623 269.80 27.10 80
100PSRFBS2009-09-11 21:56:272009-09-11 22:00:19 00:03:52 623 274.30 623 288.40 34.30 7
101PSRFBD2009-09-11 22:20:182009-09-11 22:25:06 00:04:48 669 1.22 669 18.72 34.30 43
102PSRFBD2009-09-11 22:29:112009-09-11 22:37:35 00:08:24 669 33.61 669 64.24 34.30 43
103PSRWB12009-09-11 22:43:442009-09-11 22:55:42 00:11:58 669 86.67 669 130.31 27.10 80
104PSMOB22009-09-11 22:50:512009-09-11 22:53:05 00:02:14 669 112.62 669 120.77 0.00 -
105PSMOB12009-09-11 23:05:112009-09-11 23:08:25 00:03:14 669 164.95 669 176.75 1.20 -
106AV2OBS2009-09-11 23:05:542009-09-11 23:08:04 00:02:10 669 167.51 669 175.41 0.00 -
107PSMOB12009-09-11 23:13:412009-09-11 23:16:11 00:02:30 669 195.95 669 205.07 1.20 -
108PSRWB12009-09-11 23:17:102009-09-11 23:19:02 00:01:52 669 208.65 669 215.46 27.10 80
109PSRWB12009-09-11 23:25:382009-09-11 23:34:32 00:08:54 669 239.47 669 271.93 27.10 80
110PSRFBS2009-09-11 23:36:072009-09-11 23:38:29 00:02:22 669 277.76 669 286.39 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
25-13.169822009-09-10 23:17:53154.490392009-09-11 00:07:15
71-37.849402009-09-11 00:56:36129.810812009-09-11 01:45:58
117-62.528982009-09-11 02:35:19105.131232009-09-11 03:24:41
163-87.208562009-09-11 04:14:02 80.451642009-09-11 05:03:24
209-111.888152009-09-11 05:52:45 55.772062009-09-11 06:42:07
255-136.567732009-09-11 07:31:29 31.092482009-09-11 08:20:50
301-161.247312009-09-11 09:10:12 6.412902009-09-11 09:59:33
347174.073102009-09-11 10:48:55-18.266692009-09-11 11:38:16
393149.393522009-09-11 12:27:38-42.946272009-09-11 13:16:59
439124.713942009-09-11 14:06:21-67.625852009-09-11 14:55:43
485100.034362009-09-11 15:45:04-92.305442009-09-11 16:34:26
531 75.354772009-09-11 17:23:47-116.985022009-09-11 18:13:09
577 50.675192009-09-11 19:02:30-141.664602009-09-11 19:51:52
623 25.995612009-09-11 20:41:13-166.344182009-09-11 21:30:35
669 1.316032009-09-11 22:19:56168.976232009-09-11 23:09:18
44-23.363562009-09-11 23:58:40144.296652009-09-12 00:48:01
