>ALOS Data Take Simulation(Apr. 23, 2009)

Observation Area

PRISM

AVNIR-2

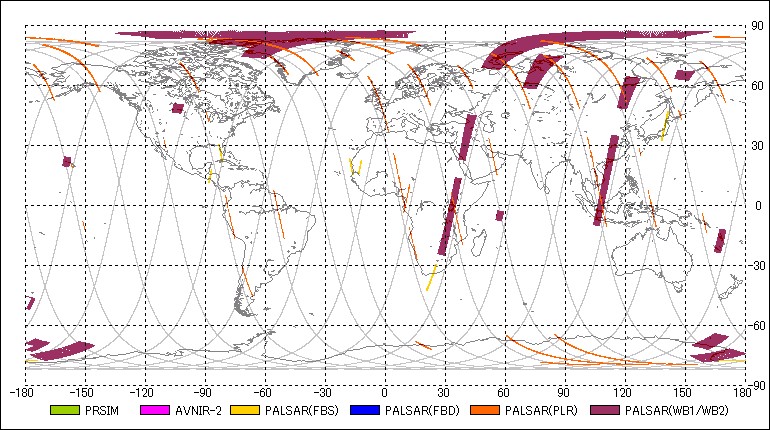

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2009-04-23 00:50:342009-04-23 00:56:50 00:06:16 60 64.00 60 86.85 21.50 127
2PSRWB12009-04-23 01:03:242009-04-23 01:05:16 00:01:52 60 110.80 60 117.61 27.10 80
3PSRFBS2009-04-23 01:09:042009-04-23 01:13:48 00:04:44 60 131.46 60 148.73 34.30 7
4AV2OBS2009-04-23 01:09:152009-04-23 01:11:09 00:01:54 60 132.13 60 139.06 0.00 -
5PSMOB22009-04-23 01:09:192009-04-23 01:11:23 00:02:04 60 132.38 60 139.91 0.00 -
6AV2OBS2009-04-23 01:14:152009-04-23 01:16:47 00:02:32 60 150.37 60 159.61 0.00 -
7PSMOB22009-04-23 01:14:152009-04-23 01:16:47 00:02:32 60 150.37 60 159.61 0.00 -
8AV2OBS2009-04-23 01:19:042009-04-23 01:20:56 00:01:52 60 167.93 60 174.74 0.00 -
9PSMOB12009-04-23 01:24:302009-04-23 01:33:24 00:08:54 60 187.75 60 220.20 -1.20 -
10AV2OBS2009-04-23 01:25:022009-04-23 01:33:20 00:08:18 60 189.69 60 219.96 0.00 -
11PSRPLR2009-04-23 02:06:392009-04-23 02:13:55 00:07:16 60 341.46 106 7.96 21.50 127
12PSRWB12009-04-23 02:43:022009-04-23 02:47:58 00:04:56 106 114.14 106 132.13 27.10 80
13AV2OBS2009-04-23 02:46:122009-04-23 02:56:37 00:10:25 106 125.69 106 163.68 0.00 -
14PSMOB22009-04-23 02:46:172009-04-23 02:55:55 00:09:38 106 125.99 106 161.13 0.00 -
15PSRWB12009-04-23 02:51:082009-04-23 03:04:08 00:13:00 106 143.68 106 191.09 27.10 80
16PSRPLR2009-04-23 03:37:182009-04-23 03:42:18 00:05:00 106 312.04 106 330.27 21.50 127
17PSRPLR2009-04-23 03:45:222009-04-23 03:52:04 00:06:42 106 341.46 152 5.90 21.50 127
18PSRFBS2009-04-23 03:55:502009-04-23 03:58:52 00:03:02 152 19.63 152 30.69 34.30 7
19PSRPLR2009-04-23 04:01:322009-04-23 04:03:24 00:01:52 152 40.42 152 47.23 21.50 127
20PSRPLR2009-04-23 04:05:352009-04-23 04:10:23 00:04:48 152 55.19 152 72.69 21.50 127
21AV2OBS2009-04-23 04:25:282009-04-23 04:35:15 00:09:47 152 127.70 152 163.37 0.00 -
22AV2OBS2009-04-23 04:49:462009-04-23 04:51:38 00:01:52 152 216.31 152 223.12 0.00 -
23PSRPLR2009-04-23 05:36:322009-04-23 05:38:24 00:01:52 198 26.80 198 33.61 21.50 127
24PSRPLR2009-04-23 05:50:572009-04-23 05:54:07 00:03:10 198 79.44 198 90.99 21.50 127
25PSMOB12009-04-23 05:56:552009-04-23 06:00:01 00:03:06 198 101.20 198 112.50 -1.20 -
26PSRWB12009-04-23 05:57:242009-04-23 06:02:37 00:05:13 198 102.96 198 121.98 27.10 80
27AV2OBS2009-04-23 06:04:122009-04-23 06:10:20 00:06:08 198 127.76 198 150.12 0.00 -
28PSMOB22009-04-23 06:04:122009-04-23 06:13:02 00:08:50 198 127.76 198 159.97 0.00 -
29PSRWB12009-04-23 06:19:022009-04-23 06:20:54 00:01:52 198 181.79 198 188.60 27.10 80
30AV2OBS2009-04-23 06:23:362009-04-23 06:25:28 00:01:52 198 198.50 198 205.31 0.00 -
31PSRPLR2009-04-23 07:23:042009-04-23 07:30:32 00:07:28 244 55.37 244 82.60 21.50 127
32PSRWB12009-04-23 07:31:402009-04-23 07:38:34 00:06:54 244 86.73 244 111.89 27.10 80
33PSMOB12009-04-23 07:39:202009-04-23 07:52:40 00:13:20 244 114.63 244 163.25 -1.20 -
34PSRWB12009-04-23 07:44:282009-04-23 07:51:16 00:06:48 244 133.41 244 158.21 27.10 80
35PSRWB12009-04-23 07:53:082009-04-23 08:04:24 00:11:16 244 164.95 244 206.04 27.10 80
36AV2OBS2009-04-23 07:55:102009-04-23 07:59:58 00:04:48 244 172.43 244 189.93 0.00 -
37PSRFBS2009-04-23 08:05:122009-04-23 08:09:26 00:04:14 244 208.96 244 224.40 34.30 7
38PSRPLR2009-04-23 08:42:402009-04-23 08:44:32 00:01:52 244 345.65 244 352.46 21.50 127
39PSRPLR2009-04-23 08:51:132009-04-23 08:53:05 00:01:52 290 16.84 290 23.64 23.10 128
40PSRPLR2009-04-23 09:00:322009-04-23 09:06:14 00:05:42 290 50.81 290 71.60 21.50 127
41PSMOB12009-04-23 09:18:022009-04-23 09:21:28 00:03:26 290 114.57 290 127.09 -1.20 -
42AV2OBS2009-04-23 09:23:532009-04-23 09:26:17 00:02:24 290 135.90 290 144.65 0.00 -
43AV2OBS2009-04-23 09:29:252009-04-23 09:32:13 00:02:48 290 156.08 290 166.29 0.00 -
44PSRPLR2009-04-23 09:32:342009-04-23 09:37:18 00:04:44 290 167.57 290 184.83 21.50 127
45PSRPLR2009-04-23 10:39:022009-04-23 10:45:32 00:06:30 336 49.96 336 73.66 21.50 127
46PSMOB12009-04-23 10:55:532009-04-23 11:05:47 00:09:54 336 111.41 336 147.51 -1.20 -
47AV2OBS2009-04-23 11:00:542009-04-23 11:02:46 00:01:52 336 129.76 336 136.57 41.50 -
48PSRFBS2009-04-23 11:08:082009-04-23 11:10:38 00:02:30 336 156.14 336 165.26 34.30 7
49PSRPLR2009-04-23 11:59:472009-04-23 12:02:59 00:03:12 336 344.43 336 356.10 21.50 127
50PSRPLR2009-04-23 12:15:242009-04-23 12:17:18 00:01:54 382 41.39 382 48.32 21.50 127
51PSRPLR2009-04-23 12:19:182009-04-23 12:24:42 00:05:24 382 55.61 382 75.31 21.50 127
52PSMOB12009-04-23 12:28:572009-04-23 12:36:55 00:07:58 382 90.86 382 119.92 -1.20 -
53PSMOB12009-04-23 12:53:102009-04-23 13:01:02 00:07:52 382 179.12 382 207.80 -1.20 -
54AV2OBS2009-04-23 12:53:562009-04-23 13:00:16 00:06:20 382 181.91 382 205.01 0.00 -
55PSRPLR2009-04-23 13:39:212009-04-23 13:44:53 00:05:32 382 347.53 428 7.72 21.50 127
56PSRPLR2009-04-23 13:49:002009-04-23 13:50:54 00:01:54 428 22.73 428 29.66 21.50 127
57PSRPLR2009-04-23 13:56:352009-04-23 14:06:11 00:09:36 428 50.39 428 85.39 21.50 127
58PSMOB12009-04-23 14:11:182009-04-23 14:16:02 00:04:44 428 104.05 428 121.31 -1.20 -
59PSMOB12009-04-23 14:28:162009-04-23 14:47:44 00:19:28 428 165.93 428 236.92 -1.20 -
60AV2OBS2009-04-23 14:29:022009-04-23 14:47:55 00:18:53 428 168.72 428 237.59 0.00 -
61PSRPLR2009-04-23 15:18:012009-04-23 15:30:57 00:12:56 428 347.35 474 34.52 21.50 127
62PSRPLR2009-04-23 15:34:222009-04-23 15:42:34 00:08:12 474 46.98 474 76.89 21.50 127
63PSRWB12009-04-23 15:45:402009-04-23 15:50:35 00:04:55 474 88.19 474 106.12 27.10 80
64AV2OBS2009-04-23 15:51:352009-04-23 15:54:03 00:02:28 474 109.77 474 118.76 0.00 -
65PSMOB12009-04-23 15:58:462009-04-23 16:01:22 00:02:36 474 135.96 474 145.44 -1.20 -
66AV2OBS2009-04-23 16:00:112009-04-23 16:02:03 00:01:52 474 141.13 474 147.94 0.00 -
67PSRFBS2009-04-23 16:05:312009-04-23 16:08:01 00:02:30 474 160.64 474 169.76 34.30 7
68PSRFBS2009-04-23 16:34:342009-04-23 16:36:26 00:01:52 474 266.52 474 273.32 34.30 7
69PSRPLR2009-04-23 17:13:052009-04-23 17:21:29 00:08:24 520 46.98 520 77.61 21.50 127
70PSRWB12009-04-23 17:23:592009-04-23 17:27:25 00:03:26 520 86.73 520 99.25 27.10 80
71AV2OBS2009-04-23 17:28:242009-04-23 17:33:10 00:04:46 520 102.84 520 120.22 0.00 -
72PSRWB12009-04-23 17:35:142009-04-23 17:37:06 00:01:52 520 127.76 520 134.56 27.10 80
73PSMOB12009-04-23 17:40:292009-04-23 17:45:01 00:04:32 520 146.96 520 163.50 -1.20 -
74PSRWB12009-04-23 18:08:572009-04-23 18:12:23 00:03:26 520 250.71 520 263.23 27.10 80
75PSRPLR2009-04-23 18:13:362009-04-23 18:20:48 00:07:12 520 267.67 520 293.93 21.50 127
76PSRPLR2009-04-23 18:42:382009-04-23 18:48:18 00:05:40 566 13.55 566 34.22 21.50 127
77PSRPLR2009-04-23 18:54:362009-04-23 18:58:30 00:03:54 566 57.19 566 71.42 21.50 127
78PSRPLR2009-04-23 19:00:522009-04-23 19:03:14 00:02:22 566 80.05 566 88.68 21.50 127
79AV2OBS2009-04-23 19:06:362009-04-23 19:12:02 00:05:26 566 100.95 566 120.77 0.00 -
80PSMOB12009-04-23 19:10:202009-04-23 19:17:24 00:07:04 566 114.57 566 140.34 -1.20 -
81PSRWB12009-04-23 19:47:132009-04-23 19:51:31 00:04:18 566 249.07 566 264.75 27.10 80
82PSRPLR2009-04-23 19:52:202009-04-23 19:59:26 00:07:06 566 267.67 566 293.56 21.50 127
83PSRPLR2009-04-23 20:11:452009-04-23 20:19:43 00:07:58 566 338.54 612 7.60 21.50 127
84PSRPLR2009-04-23 20:30:532009-04-23 20:37:17 00:06:24 612 48.32 612 71.66 21.50 127
85PSRPLR2009-04-23 20:38:162009-04-23 20:41:36 00:03:20 612 75.24 612 87.40 21.50 127
86AV2OBS2009-04-23 20:45:212009-04-23 20:50:43 00:05:22 612 101.08 612 120.65 0.00 -
87PSRWB12009-04-23 21:00:022009-04-23 21:01:54 00:01:52 612 154.62 612 161.43 27.10 80
88PSMOB12009-04-23 21:04:302009-04-23 21:07:10 00:02:40 612 170.91 612 180.64 -1.20 -
89AV2OBS2009-04-23 21:05:162009-04-23 21:07:08 00:01:52 612 173.71 612 180.51 0.00 -
90PSMOB12009-04-23 21:09:202009-04-23 21:12:04 00:02:44 612 188.54 612 198.50 -1.20 -
91AV2OBS2009-04-23 21:10:062009-04-23 21:11:58 00:01:52 612 191.33 612 198.14 0.00 -
92PSRWB12009-04-23 21:19:312009-04-23 21:21:57 00:02:26 612 225.67 612 234.55 27.10 80
93PSRWB12009-04-23 21:25:002009-04-23 21:27:42 00:02:42 612 245.67 612 255.51 27.10 80
94PSRPLR2009-04-23 21:31:022009-04-23 21:33:14 00:02:12 612 267.67 612 275.69 21.50 127
95PSRPLR2009-04-23 21:48:242009-04-23 21:53:28 00:05:04 612 331.00 612 349.48 21.50 127
96PSRPLR2009-04-23 21:55:342009-04-23 22:03:36 00:08:02 612 357.14 658 26.44 21.50 127
97PSRPLR2009-04-23 22:06:002009-04-23 22:14:18 00:08:18 658 35.19 658 65.46 21.50 127
98PSRPLR2009-04-23 22:16:002009-04-23 22:18:08 00:02:08 658 71.66 658 79.44 21.50 127
99PSRWB12009-04-23 22:20:082009-04-23 22:22:00 00:01:52 658 86.73 658 93.54 27.10 80
100AV2OBS2009-04-23 22:25:162009-04-23 22:29:28 00:04:12 658 105.39 658 120.71 0.00 -
101PSMOB12009-04-23 22:29:382009-04-23 22:32:18 00:02:40 658 121.38 658 131.10 -1.20 -
102AV2OBS2009-04-23 22:45:122009-04-23 22:47:04 00:01:52 658 178.08 658 184.89 0.00 -
103PSRWB12009-04-23 22:48:442009-04-23 22:52:32 00:03:48 658 191.03 658 204.89 27.10 80
104AV2OBS2009-04-23 22:53:162009-04-23 22:55:08 00:01:52 658 207.50 658 214.31 0.00 -
105AV2OBS2009-04-23 23:00:272009-04-23 23:02:19 00:01:52 658 233.76 658 240.56 0.00 -
106PSRPLR2009-04-23 23:14:002009-04-23 23:15:54 00:01:54 658 283.17 658 290.10 21.50 127
107PSRFBS2009-04-23 23:38:452009-04-23 23:41:31 00:02:46 33 13.43 33 23.52 34.30 7
108PSRPLR2009-04-23 23:52:322009-04-23 23:59:12 00:06:40 33 63.70 33 88.01 21.50 127

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
14 -7.268182009-04-22 22:54:17160.392032009-04-22 23:43:38
60-31.947762009-04-23 00:33:00135.712452009-04-23 01:22:21
106-56.627342009-04-23 02:11:43111.032872009-04-23 03:01:04
152-81.306932009-04-23 03:50:26 86.353282009-04-23 04:39:48
198-105.986512009-04-23 05:29:09 61.673702009-04-23 06:18:31
244-130.666092009-04-23 07:07:52 36.994122009-04-23 07:57:14
290-155.345672009-04-23 08:46:35 12.314542009-04-23 09:35:57
336179.974742009-04-23 10:25:18-12.365052009-04-23 11:14:40
382155.295162009-04-23 12:04:01-37.044632009-04-23 12:53:23
428130.615582009-04-23 13:42:45-61.724212009-04-23 14:32:06
474105.936002009-04-23 15:21:28-86.403802009-04-23 16:10:49
520 81.256412009-04-23 17:00:11-111.083382009-04-23 17:49:32
566 56.576832009-04-23 18:38:54-135.762962009-04-23 19:28:15
612 31.897252009-04-23 20:17:37-160.442542009-04-23 21:06:59
658 7.217662009-04-23 21:56:20174.877872009-04-23 22:45:42
33-17.461922009-04-23 23:35:03150.198292009-04-24 00:24:25
