>ALOS Data Take Simulation(May. 18, 2009)

Observation Area

PRISM

AVNIR-2

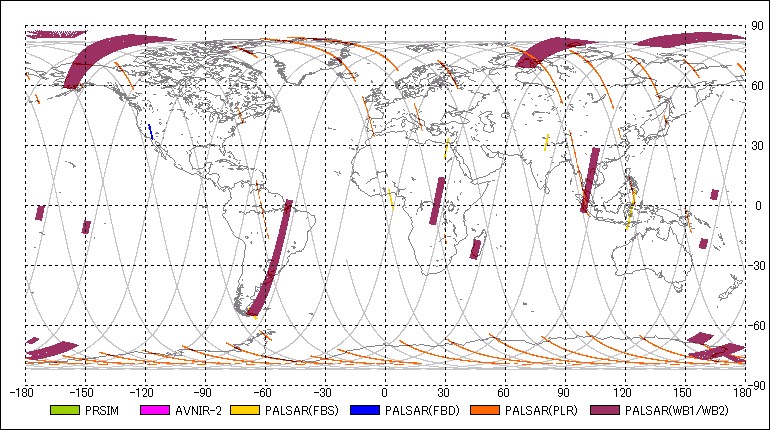

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2009-05-18 00:24:212009-05-18 00:28:13 00:03:52 29 211.02 29 225.13 0.00 -
2PSRPLR2009-05-18 01:25:152009-05-18 01:27:35 00:02:20 75 73.12 75 81.63 23.10 128
3AV2OBS2009-05-18 01:37:402009-05-18 01:39:32 00:01:52 75 118.40 75 125.20 0.00 -
4AV2OBS2009-05-18 01:43:392009-05-18 01:46:47 00:03:08 75 140.16 75 151.58 0.00 -
5PSMOB22009-05-18 01:43:432009-05-18 01:46:29 00:02:46 75 140.40 75 150.49 0.00 -
6PSRFBS2009-05-18 01:52:012009-05-18 01:58:15 00:06:14 75 170.73 75 193.46 34.30 7
7PSMOB22009-05-18 01:53:022009-05-18 02:05:36 00:12:34 75 174.37 75 220.20 0.00 -
8AV2OBS2009-05-18 01:53:212009-05-18 02:00:27 00:07:06 75 175.53 75 201.42 0.00 -
9PSRPLR2009-05-18 02:19:292009-05-18 02:23:29 00:04:00 75 270.83 75 285.42 23.10 128
10PSRPLR2009-05-18 02:38:502009-05-18 02:47:34 00:08:44 75 341.46 121 13.31 23.10 128
11PSRPLR2009-05-18 02:54:442009-05-18 02:57:36 00:02:52 121 39.38 121 49.84 21.50 127
12PSRWB12009-05-18 03:07:592009-05-18 03:11:25 00:03:26 121 87.70 121 100.22 27.10 80
13AV2OBS2009-05-18 03:12:302009-05-18 03:16:56 00:04:26 121 104.24 121 120.40 0.00 -
14AV2OBS2009-05-18 03:21:452009-05-18 03:35:25 00:13:40 121 137.91 121 187.75 0.00 -
15PSRWB12009-05-18 03:25:042009-05-18 03:34:34 00:09:30 121 150.00 121 184.65 27.10 80
16PSMOB22009-05-18 03:31:312009-05-18 03:35:09 00:03:38 121 173.52 121 186.77 0.00 -
17PSRPLR2009-05-18 03:57:202009-05-18 04:00:56 00:03:36 121 267.67 121 280.80 23.10 128
18PSRPLR2009-05-18 04:03:002009-05-18 04:05:06 00:02:06 121 288.40 121 296.05 23.10 128
19PSRFBS2009-05-18 04:06:012009-05-18 04:08:17 00:02:16 121 299.40 121 307.66 34.30 7
20AV2OBS2009-05-18 04:50:302009-05-18 04:58:26 00:07:56 167 101.56 167 130.49 0.00 -
21PSMOB22009-05-18 04:57:422009-05-18 05:11:12 00:13:30 167 127.82 167 177.05 0.00 -
22PSRFBS2009-05-18 05:01:522009-05-18 05:04:48 00:02:56 167 143.01 167 153.71 34.30 7
23AV2OBS2009-05-18 05:21:462009-05-18 05:23:38 00:01:52 167 215.58 167 222.39 41.50 -
24PSRPLR2009-05-18 05:36:032009-05-18 05:41:59 00:05:56 167 267.67 167 289.31 23.10 128
25PSRFBD2009-05-18 06:09:472009-05-18 06:12:35 00:02:48 213 30.69 213 40.90 34.30 43
26PSRPLR2009-05-18 06:16:522009-05-18 06:21:20 00:04:28 213 56.59 213 72.87 23.10 128
27PSRWB12009-05-18 06:27:072009-05-18 06:31:52 00:04:45 213 93.96 213 111.29 27.10 80
28PSMOB12009-05-18 06:35:392009-05-18 06:46:41 00:11:02 213 125.02 213 165.26 1.20 -
29AV2OBS2009-05-18 06:41:112009-05-18 06:45:55 00:04:44 213 145.20 213 162.46 0.00 -
30AV2OBS2009-05-18 06:54:042009-05-18 06:56:50 00:02:46 213 192.18 213 202.27 0.00 -
31PSRWB12009-05-18 06:55:152009-05-18 06:58:25 00:03:10 213 196.50 213 208.05 27.10 80
32PSRPLR2009-05-18 07:14:462009-05-18 07:20:12 00:05:26 213 267.67 213 287.48 23.10 128
33PSRPLR2009-05-18 07:55:522009-05-18 07:57:44 00:01:52 259 57.56 259 64.36 21.50 127
34AV2OBS2009-05-18 08:07:242009-05-18 08:09:16 00:01:52 259 99.62 259 106.42 0.00 -
35PSMOB12009-05-18 08:11:312009-05-18 08:23:27 00:11:56 259 114.63 259 158.15 1.20 -
36AV2OBS2009-05-18 08:16:512009-05-18 08:22:37 00:05:46 259 134.14 259 155.17 0.00 -
37PSRFBS2009-05-18 08:19:512009-05-18 08:23:17 00:03:26 259 145.02 259 157.54 34.30 7
38PSRWB12009-05-18 08:25:182009-05-18 08:32:24 00:07:06 259 164.89 259 190.79 27.10 80
39AV2OBS2009-05-18 08:32:522009-05-18 08:35:32 00:02:40 259 192.49 259 202.21 0.00 -
40PSRPLR2009-05-18 08:53:342009-05-18 08:58:12 00:04:38 259 267.97 259 284.87 23.10 128
41PSRPLR2009-05-18 09:32:212009-05-18 09:34:13 00:01:52 305 49.41 305 56.22 21.50 127
42PSRPLR2009-05-18 09:35:412009-05-18 09:38:41 00:03:00 305 61.57 305 72.51 23.10 128
43AV2OBS2009-05-18 09:48:042009-05-18 09:51:30 00:03:26 305 106.73 305 119.25 0.00 -
44AV2OBS2009-05-18 09:54:562009-05-18 09:56:48 00:01:52 305 131.77 305 138.58 -41.50 -
45AV2OBS2009-05-18 09:58:192009-05-18 10:00:11 00:01:52 305 144.11 305 150.91 0.00 -
46AV2OBS2009-05-18 10:02:002009-05-18 10:04:26 00:02:26 305 157.54 305 166.41 0.00 -
47PSRPLR2009-05-18 10:32:122009-05-18 10:36:32 00:04:20 305 267.67 305 283.47 23.10 128
48PSRPLR2009-05-18 11:14:372009-05-18 11:17:55 00:03:18 351 62.36 351 74.39 23.10 128
49AV2OBS2009-05-18 11:27:492009-05-18 11:29:41 00:01:52 351 110.50 351 117.30 34.30 -
50PSMOB12009-05-18 11:28:362009-05-18 11:36:12 00:07:36 351 113.35 351 141.07 1.20 -
51AV2OBS2009-05-18 11:41:552009-05-18 11:43:47 00:01:52 351 161.92 351 168.72 -41.50 -
52PSRPLR2009-05-18 12:10:552009-05-18 12:14:37 00:03:42 351 267.67 351 281.16 23.10 128
53PSRPLR2009-05-18 12:31:572009-05-18 12:36:21 00:04:24 351 344.37 397 0.43 23.10 128
54PSRPLR2009-05-18 12:46:532009-05-18 12:48:45 00:01:52 397 38.84 397 45.65 21.50 127
55PSRPLR2009-05-18 12:50:212009-05-18 12:57:17 00:06:56 397 51.48 397 76.76 23.10 128
56PSRWB12009-05-18 13:24:302009-05-18 13:41:17 00:16:47 397 176.02 397 237.22 27.10 80
57PSMOB12009-05-18 13:38:412009-05-18 13:41:17 00:02:36 397 227.74 397 237.22 1.20 -
58PSRPLR2009-05-18 13:49:392009-05-18 13:55:47 00:06:08 397 267.67 397 290.04 23.10 128
59PSRPLR2009-05-18 14:14:132009-05-18 14:18:53 00:04:40 397 357.32 443 14.34 21.50 127
60PSRPLR2009-05-18 14:23:492009-05-18 14:25:41 00:01:52 443 32.33 443 39.14 21.50 127
61PSRPLR2009-05-18 14:27:492009-05-18 14:36:43 00:08:54 443 46.92 443 79.38 23.10 128
62AV2OBS2009-05-18 14:41:182009-05-18 14:43:32 00:02:14 443 96.09 443 104.24 0.00 -
63AV2OBS2009-05-18 14:45:162009-05-18 14:47:24 00:02:08 443 110.56 443 118.34 0.00 -
64AV2OBS2009-05-18 14:49:072009-05-18 14:51:45 00:02:38 443 124.60 443 134.20 0.00 -
65AV2OBS2009-05-18 14:58:122009-05-18 15:00:04 00:01:52 443 157.72 443 164.53 0.00 -
66PSMOB12009-05-18 15:02:432009-05-18 15:10:15 00:07:32 443 174.19 443 201.66 1.20 -
67AV2OBS2009-05-18 15:07:312009-05-18 15:10:17 00:02:46 443 191.70 443 201.79 0.00 -
68PSRPLR2009-05-18 15:28:232009-05-18 15:35:29 00:07:06 443 267.79 443 293.68 23.10 128
69PSRPLR2009-05-18 15:51:412009-05-18 16:04:09 00:12:28 443 352.76 489 38.23 21.50 127
70PSRPLR2009-05-18 16:07:122009-05-18 16:15:58 00:08:46 489 49.35 489 81.32 23.10 128
71AV2OBS2009-05-18 16:21:232009-05-18 16:23:15 00:01:52 489 101.01 489 107.82 0.00 -
72AV2OBS2009-05-18 16:24:582009-05-18 16:39:46 00:14:48 489 114.14 489 168.11 0.00 -
73PSRPLR2009-05-18 17:07:052009-05-18 17:14:41 00:07:36 489 267.73 489 295.45 23.10 128
74PSMOB12009-05-18 17:56:072009-05-18 18:15:55 00:19:48 535 86.49 535 158.69 1.20 -
75AV2OBS2009-05-18 18:10:452009-05-18 18:12:41 00:01:56 535 139.91 535 146.96 -34.30 -
76PSRWB12009-05-18 18:41:082009-05-18 18:45:00 00:03:52 535 250.71 535 264.81 27.10 80
77PSRPLR2009-05-18 18:45:492009-05-18 18:52:43 00:06:54 535 267.79 535 292.95 23.10 128
78PSRPLR2009-05-18 19:26:462009-05-18 19:31:24 00:04:38 581 57.13 581 74.03 23.10 128
79PSMOB12009-05-18 19:34:502009-05-18 19:47:10 00:12:20 581 86.49 581 131.46 1.20 -
80AV2OBS2009-05-18 19:46:182009-05-18 19:48:10 00:01:52 581 128.37 581 135.17 41.50 -
81PSRWB12009-05-18 20:02:172009-05-18 20:04:39 00:02:22 581 186.65 581 195.28 27.10 80
82PSMOB12009-05-18 20:03:242009-05-18 20:06:00 00:02:36 581 190.72 581 200.21 1.20 -
83PSRWB12009-05-18 20:18:512009-05-18 20:23:09 00:04:18 581 247.07 581 262.75 27.10 80
84PSRPLR2009-05-18 20:25:002009-05-18 20:31:54 00:06:54 581 269.49 581 294.66 23.10 128
85PSRPLR2009-05-18 20:44:032009-05-18 20:45:55 00:01:52 581 338.96 581 345.77 21.50 127
86PSRPLR2009-05-18 20:59:372009-05-18 21:04:01 00:04:24 627 35.74 627 51.78 23.10 128
87PSRPLR2009-05-18 21:07:572009-05-18 21:14:03 00:06:06 627 66.13 627 88.37 23.10 128
88PSMOB12009-05-18 21:14:572009-05-18 21:24:19 00:09:22 627 91.65 627 125.81 1.20 -
89PSRWB12009-05-18 21:15:052009-05-18 21:23:16 00:08:11 627 92.14 627 121.98 27.10 80
90PSRWB12009-05-18 21:38:562009-05-18 21:41:28 00:02:32 627 179.05 627 188.29 27.10 80
91PSMOB12009-05-18 21:40:492009-05-18 21:43:33 00:02:44 627 185.92 627 195.89 1.20 -
92AV2OBS2009-05-18 21:51:472009-05-18 21:53:39 00:01:52 627 225.98 627 232.78 0.00 -
93PSRWB12009-05-18 21:57:022009-05-18 21:59:02 00:02:00 627 245.06 627 252.35 27.10 80
94PSRPLR2009-05-18 22:03:142009-05-18 22:09:44 00:06:30 627 267.73 627 291.44 23.10 128
95PSRFBS2009-05-18 22:27:322009-05-18 22:30:48 00:03:16 627 356.35 2 8.27 34.30 7
96PSMOB12009-05-18 22:32:382009-05-18 22:35:14 00:02:36 2 14.95 2 24.43 1.20 -
97PSRPLR2009-05-18 22:37:302009-05-18 22:43:46 00:06:16 2 32.64 2 55.49 23.10 128
98PSRPLR2009-05-18 22:45:082009-05-18 22:52:24 00:07:16 2 60.54 2 87.04 23.10 128
99PSMOB12009-05-18 22:57:202009-05-18 23:05:06 00:07:46 2 105.03 2 133.35 1.20 -
100AV2OBS2009-05-18 23:03:222009-05-18 23:05:14 00:01:52 2 126.97 2 133.77 0.00 -
101PSRWB12009-05-18 23:15:302009-05-18 23:17:22 00:01:52 2 171.21 2 178.02 27.10 80
102PSRWB12009-05-18 23:22:142009-05-18 23:24:06 00:01:52 2 195.83 2 202.64 27.10 80
103PSRPLR2009-05-18 23:41:572009-05-18 23:48:17 00:06:20 2 267.67 2 290.77 23.10 128

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
29-15.315872009-05-17 23:26:28152.344342009-05-18 00:15:50
75-39.995452009-05-18 01:05:11127.664762009-05-18 01:54:33
121-64.675032009-05-18 02:43:54102.985182009-05-18 03:33:16
167-89.354622009-05-18 04:22:37 78.305592009-05-18 05:11:59
213-114.034202009-05-18 06:01:21 53.626012009-05-18 06:50:42
259-138.713782009-05-18 07:40:04 28.946432009-05-18 08:29:25
305-163.393362009-05-18 09:18:47 4.266852009-05-18 10:08:08
351171.927052009-05-18 10:57:30-20.412742009-05-18 11:46:51
397147.247472009-05-18 12:36:13-45.092322009-05-18 13:25:34
443122.567892009-05-18 14:14:56-69.771902009-05-18 15:04:18
489 97.888312009-05-18 15:53:39-94.451492009-05-18 16:43:01
535 73.208722009-05-18 17:32:22-119.131072009-05-18 18:21:44
581 48.529142009-05-18 19:11:05-143.810652009-05-18 20:00:27
627 23.849562009-05-18 20:49:48-168.490232009-05-18 21:39:10
2 -0.830032009-05-18 22:28:32166.830182009-05-18 23:17:53
