>ALOS Data Take Simulation(Jan. 12, 2009)

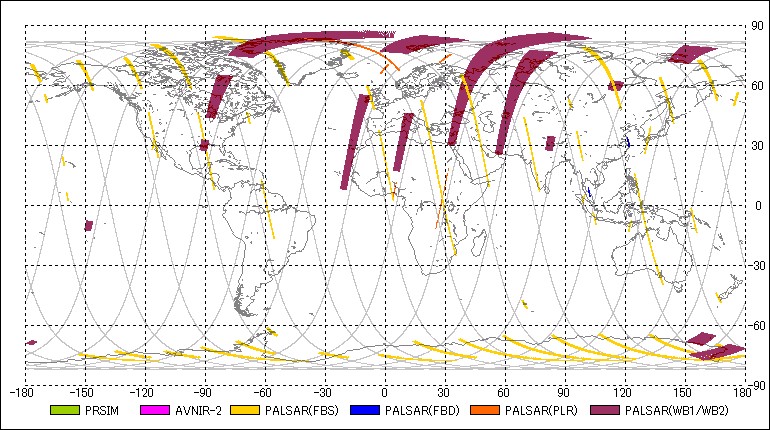

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2009-01-12 00:09:502009-01-12 00:15:38 00:05:48 27 173.71 27 194.86 0.00 -
2AV2OBS2009-01-12 00:20:152009-01-12 00:22:07 00:01:52 27 211.75 27 218.56 34.30 -
3PSRFBS2009-01-12 01:16:482009-01-12 01:24:34 00:07:46 73 57.92 73 86.25 34.30 7
4PSRWB12009-01-12 01:27:492009-01-12 01:30:47 00:02:58 73 98.10 73 108.92 27.10 80
5PSMOB12009-01-12 01:34:122009-01-12 01:42:08 00:07:56 73 121.38 73 150.31 -1.20 -
6AV2OBS2009-01-12 01:37:562009-01-12 01:44:00 00:06:04 73 134.99 73 157.11 0.00 -
7PSRFBS2009-01-12 01:39:082009-01-12 01:43:30 00:04:22 73 139.37 73 155.29 34.30 7
8PSMOB22009-01-12 01:49:102009-01-12 02:01:16 00:12:06 73 175.96 73 220.08 0.00 -
9AV2OBS2009-01-12 01:51:092009-01-12 01:53:49 00:02:40 73 183.19 73 192.91 0.00 -
10PSRFBS2009-01-12 01:52:062009-01-12 01:54:12 00:02:06 73 186.65 73 194.31 34.30 7
11PSRFBS2009-01-12 02:14:192009-01-12 02:17:33 00:03:14 73 267.67 73 279.46 34.30 7
12PSRFBS2009-01-12 02:34:262009-01-12 02:43:14 00:08:48 73 341.03 119 13.13 34.30 7
13PSRFBS2009-01-12 02:50:162009-01-12 02:52:28 00:02:12 119 38.78 119 46.80 34.30 7
14PSRWB12009-01-12 03:11:312009-01-12 03:13:23 00:01:52 119 116.27 119 123.08 27.10 80
15AV2OBS2009-01-12 03:14:402009-01-12 03:31:47 00:17:07 119 127.76 119 190.18 0.00 -
16PSMOB22009-01-12 03:19:282009-01-12 03:32:08 00:12:40 119 145.26 119 191.45 0.00 -
17PSRFBS2009-01-12 03:27:112009-01-12 03:29:03 00:01:52 119 173.40 119 180.21 41.50 10
18PSRFBS2009-01-12 03:54:532009-01-12 03:56:45 00:01:52 119 274.42 119 281.22 34.30 7
19PSRFBS2009-01-12 03:59:092009-01-12 04:01:01 00:01:52 119 289.98 119 296.78 34.30 7
20PSRFBS2009-01-12 04:19:572009-01-12 04:31:13 00:11:16 165 5.83 165 46.92 34.30 7
21PSRFBS2009-01-12 04:33:552009-01-12 04:40:45 00:06:50 165 56.77 165 81.69 34.30 7
22AV2OBS2009-01-12 04:53:232009-01-12 05:01:15 00:07:52 165 127.76 165 156.45 0.00 -
23PSRWB12009-01-12 04:57:542009-01-12 05:00:24 00:02:30 165 144.23 165 153.35 27.10 80
24PSMOB22009-01-12 04:59:212009-01-12 05:01:25 00:02:04 165 149.52 165 157.05 0.00 -
25PSRFBS2009-01-12 05:34:352009-01-12 05:37:37 00:03:02 165 278.00 165 289.06 34.30 7
26PSRFBS2009-01-12 06:03:032009-01-12 06:09:55 00:06:52 211 21.76 211 46.80 34.30 7
27PSRFBS2009-01-12 06:12:382009-01-12 06:17:32 00:04:54 211 56.77 211 74.64 34.30 7
28PSRWB12009-01-12 06:24:392009-01-12 06:39:41 00:15:02 211 100.59 211 155.41 27.10 80
29AV2OBS2009-01-12 06:32:062009-01-12 06:38:42 00:06:36 211 127.76 211 151.83 0.00 -
30PSMOB12009-01-12 06:36:362009-01-12 06:39:30 00:02:54 211 144.11 211 154.68 -1.20 -
31AV2OBS2009-01-12 06:58:362009-01-12 07:00:28 00:01:52 211 224.40 211 231.20 41.50 -
32AV2OBS2009-01-12 07:04:422009-01-12 07:06:34 00:01:52 211 246.64 211 253.45 34.30 -
33PSRFBS2009-01-12 07:10:282009-01-12 07:15:18 00:04:50 211 267.67 211 285.30 34.30 7
34PSRFBS2009-01-12 07:51:022009-01-12 07:55:56 00:04:54 257 55.61 257 73.48 34.30 7
35PSRWB12009-01-12 08:00:422009-01-12 08:17:10 00:16:28 257 90.86 257 150.91 27.10 80
36AV2OBS2009-01-12 08:14:532009-01-12 08:24:49 00:09:56 257 142.59 257 178.81 0.00 -
37PSRPLR2009-01-12 08:19:382009-01-12 08:28:32 00:08:54 257 159.91 257 192.37 21.50 127
38AV2OBS2009-01-12 08:33:032009-01-12 08:35:05 00:02:02 257 208.84 257 216.25 0.00 -
39PSRFBS2009-01-12 08:51:032009-01-12 08:53:15 00:02:12 257 274.48 257 282.50 34.30 7
40PSRFBS2009-01-12 09:14:312009-01-12 09:16:23 00:01:52 303 0.06 303 6.87 34.30 7
41PSRFBS2009-01-12 09:19:242009-01-12 09:21:16 00:01:52 303 17.81 303 24.62 41.50 10
42PSRFBS2009-01-12 09:28:032009-01-12 09:29:55 00:01:52 303 49.41 303 56.22 34.30 7
43PSRFBS2009-01-12 09:31:002009-01-12 09:34:02 00:03:02 303 60.17 303 71.23 34.30 7
44PSRPLR2009-01-12 09:42:242009-01-12 09:44:16 00:01:52 303 101.68 303 108.49 21.50 127
45AV2OBS2009-01-12 09:48:412009-01-12 09:53:21 00:04:40 303 124.66 303 141.68 0.00 -
46PSRWB12009-01-12 09:50:502009-01-12 09:59:26 00:08:36 303 132.50 303 163.86 27.10 80
47PSRPLR2009-01-12 10:00:202009-01-12 10:02:58 00:02:38 303 167.08 303 176.68 21.50 127
48AV2OBS2009-01-12 10:00:582009-01-12 10:03:04 00:02:06 303 169.39 303 177.05 0.00 -
49PSRFBS2009-01-12 10:29:452009-01-12 10:31:57 00:02:12 303 274.42 303 282.44 34.30 7
50PSRFBS2009-01-12 11:07:092009-01-12 11:13:25 00:06:16 349 50.75 349 73.60 34.30 7
51PSRWB12009-01-12 11:18:372009-01-12 11:21:39 00:03:02 349 92.57 349 103.63 27.10 80
52PSRPLR2009-01-12 11:22:352009-01-12 11:24:35 00:02:00 349 107.09 349 114.39 21.50 127
53PSRWB12009-01-12 11:27:012009-01-12 11:40:42 00:13:41 349 123.20 349 173.10 27.10 80
54PSMOB12009-01-12 11:29:152009-01-12 11:32:39 00:03:24 349 131.34 349 143.74 -1.20 -
55PSRFBS2009-01-12 12:06:392009-01-12 12:10:01 00:03:22 349 267.73 349 280.01 34.30 7
56PSRFBS2009-01-12 12:17:412009-01-12 12:19:45 00:02:04 349 308.03 349 315.56 34.30 7
57PSRFBS2009-01-12 12:27:332009-01-12 12:31:37 00:04:04 349 344.01 349 358.84 34.30 7
58PSRFBS2009-01-12 12:42:352009-01-12 12:49:37 00:07:02 395 38.84 395 64.49 34.30 7
59AV2OBS2009-01-12 13:02:132009-01-12 13:04:05 00:01:52 395 110.37 395 117.18 0.00 -
60PSRFBS2009-01-12 13:48:452009-01-12 13:50:39 00:01:54 395 280.13 395 287.06 34.30 7
61PSRFBS2009-01-12 13:58:592009-01-12 14:15:03 00:16:04 395 317.45 441 16.05 34.30 7
62PSRFBD2009-01-12 14:18:122009-01-12 14:20:04 00:01:52 441 27.53 441 34.34 34.30 43
63PSRFBS2009-01-12 14:23:282009-01-12 14:32:40 00:09:12 441 46.74 441 80.29 34.30 7
64AV2OBS2009-01-12 14:37:062009-01-12 14:43:14 00:06:08 441 96.40 441 118.76 0.00 -
65PSMOB12009-01-12 14:38:232009-01-12 14:42:43 00:04:20 441 101.08 441 116.88 -1.20 -
66AV2OBS2009-01-12 15:06:022009-01-12 15:07:54 00:01:52 441 201.91 441 208.72 41.50 -
67PSRFBS2009-01-12 15:25:542009-01-12 15:31:00 00:05:06 441 274.42 441 293.02 34.30 7
68PSRFBS2009-01-12 15:46:052009-01-12 15:48:23 00:02:18 441 347.96 441 356.35 34.30 7
69PSRFBD2009-01-12 15:49:592009-01-12 15:51:51 00:01:52 487 2.25 487 9.06 34.30 43
70PSRFBS2009-01-12 15:54:562009-01-12 15:59:36 00:04:40 487 20.24 487 37.26 34.30 7
71PSRFBS2009-01-12 16:02:132009-01-12 16:04:05 00:01:52 487 46.80 487 53.61 34.30 7
72PSMOB12009-01-12 16:13:282009-01-12 16:18:56 00:05:28 487 87.83 487 107.76 -1.20 -
73PSRWB12009-01-12 16:13:342009-01-12 16:18:21 00:04:47 487 88.19 487 105.63 27.10 80
74PSRWB12009-01-12 16:20:272009-01-12 16:26:59 00:06:32 487 113.29 487 137.12 27.10 80
75PSRWB12009-01-12 16:29:252009-01-12 16:31:25 00:02:00 487 145.99 487 153.28 27.10 80
76PSMOB12009-01-12 16:32:412009-01-12 16:35:17 00:02:36 487 157.90 487 167.39 -1.20 -
77AV2OBS2009-01-12 16:33:272009-01-12 16:35:33 00:02:06 487 160.70 487 168.36 0.00 -
78PSMOB12009-01-12 16:45:482009-01-12 16:48:24 00:02:36 487 205.74 487 215.22 -1.20 -
79PSRFBS2009-01-12 17:02:482009-01-12 17:09:52 00:07:04 487 267.73 487 293.50 34.30 7
80PSRFBS2009-01-12 17:29:212009-01-12 17:40:19 00:10:58 533 4.56 533 44.55 34.30 7
81PSMOB12009-01-12 17:53:352009-01-12 17:56:31 00:02:56 533 92.93 533 103.63 -1.20 -
82AV2OBS2009-01-12 17:54:212009-01-12 17:56:13 00:01:52 533 95.73 533 102.53 0.00 -
83PSRFBS2009-01-12 18:08:002009-01-12 18:10:04 00:02:04 533 145.50 533 153.04 34.30 7
84AV2OBS2009-01-12 18:08:072009-01-12 18:11:15 00:03:08 533 145.93 533 157.36 0.00 -
85PSRFBS2009-01-12 18:39:262009-01-12 18:41:28 00:02:02 533 260.13 533 267.55 34.30 7
86PSRFBS2009-01-12 18:42:552009-01-12 18:48:21 00:05:26 533 272.90 533 292.71 34.30 7
87PSRFBS2009-01-12 18:51:442009-01-12 18:53:36 00:01:52 533 304.99 533 311.80 34.30 7
88PSRFBS2009-01-12 19:08:502009-01-12 19:25:00 00:16:10 579 7.35 579 66.31 34.30 7
89PSRWB12009-01-12 19:58:032009-01-12 19:59:55 00:01:52 579 186.83 579 193.64 27.10 80
90PSRWB12009-01-12 20:15:022009-01-12 20:18:56 00:03:54 579 248.77 579 262.99 27.10 80
91PSRFBS2009-01-12 20:20:152009-01-12 20:26:59 00:06:44 579 267.79 579 292.35 34.30 7
92PSRFBS2009-01-12 20:37:582009-01-12 21:00:08 00:22:10 579 332.40 625 53.24 34.30 7
93PSRPLR2009-01-12 21:03:402009-01-12 21:09:32 00:05:52 625 66.13 625 87.52 21.50 127
94PSMOB12009-01-12 21:37:342009-01-12 21:40:10 00:02:36 625 189.69 625 199.17 -1.20 -
95AV2OBS2009-01-12 21:38:162009-01-12 21:40:08 00:01:52 625 192.30 625 199.11 0.00 -
96PSMOB12009-01-12 21:47:202009-01-12 21:50:00 00:02:40 625 225.37 625 235.09 -1.20 -
97AV2OBS2009-01-12 21:48:062009-01-12 21:49:58 00:01:52 625 228.16 625 234.97 0.00 -
98PSRWB12009-01-12 21:52:482009-01-12 21:54:58 00:02:10 625 245.30 625 253.21 27.10 80
99PSRFBS2009-01-12 21:58:562009-01-12 22:05:10 00:06:14 625 267.67 625 290.40 34.30 7
100PSRFBS2009-01-12 22:24:182009-01-12 22:34:40 00:10:22 671 0.18 671 37.99 34.30 7
101PSRFBS2009-01-12 22:36:492009-01-12 22:40:53 00:04:04 671 45.83 671 60.66 34.30 7
102PSRFBS2009-01-12 22:43:552009-01-12 22:45:47 00:01:52 671 71.72 671 78.53 34.30 7
103PSRFBS2009-01-12 22:57:402009-01-12 23:00:10 00:02:30 671 121.86 671 130.98 34.30 7
104PSMOB12009-01-12 23:08:532009-01-12 23:13:39 00:04:46 671 162.77 671 180.15 -1.20 -
105AV2OBS2009-01-12 23:09:382009-01-12 23:13:30 00:03:52 671 165.50 671 179.60 0.00 -
106PSRFBS2009-01-12 23:39:302009-01-12 23:43:32 00:04:02 671 274.42 671 289.13 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
27-14.242842009-01-11 23:22:11153.417372009-01-12 00:11:32
73-38.922422009-01-12 01:00:54128.737782009-01-12 01:50:15
119-63.602012009-01-12 02:39:37104.058202009-01-12 03:28:58
165-88.281592009-01-12 04:18:20 79.378622009-01-12 05:07:41
211-112.961172009-01-12 05:57:03 54.699042009-01-12 06:46:25
257-137.640762009-01-12 07:35:46 30.019452009-01-12 08:25:08
303-162.320342009-01-12 09:14:29 5.339872009-01-12 10:03:51
349173.000082009-01-12 10:53:12-19.339712009-01-12 11:42:34
395148.320502009-01-12 12:31:55-44.019302009-01-12 13:21:17
441123.640912009-01-12 14:10:39-68.698882009-01-12 15:00:00
487 98.961332009-01-12 15:49:22-93.378462009-01-12 16:38:43
533 74.281752009-01-12 17:28:05-118.058042009-01-12 18:17:26
579 49.602172009-01-12 19:06:48-142.737632009-01-12 19:56:09
625 24.922582009-01-12 20:45:31-167.417212009-01-12 21:34:52
671 0.243002009-01-12 22:24:14167.903212009-01-12 23:13:36
