>ALOS Data Take Simulation(Feb. 27, 2009)

Observation Area

PRISM

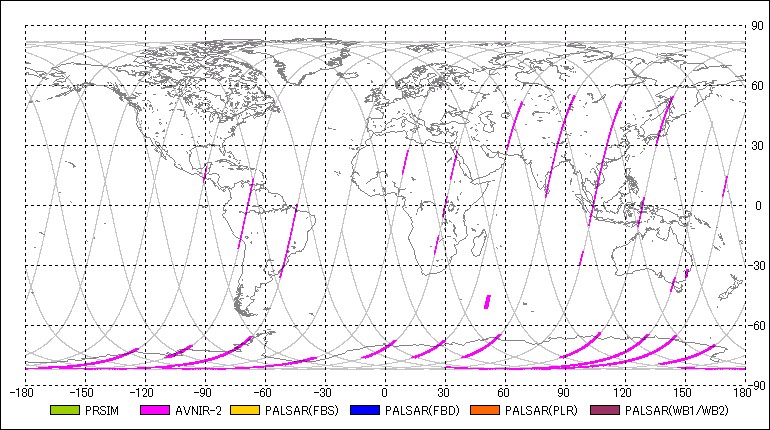

AVNIR-2

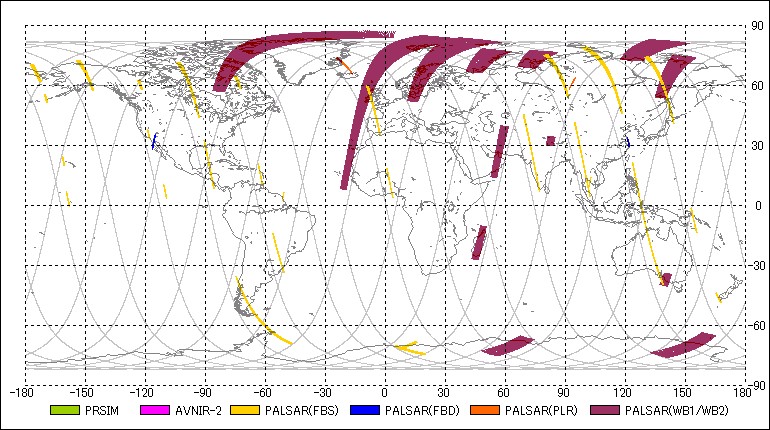

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12009-02-27 00:11:032009-02-27 00:17:29 00:06:26 27 178.14 27 201.60 1.20 -
2AV2OBS2009-02-27 00:20:162009-02-27 00:23:20 00:03:04 27 211.75 27 222.94 34.30 -
3PSRWB12009-02-27 00:20:432009-02-27 00:23:03 00:02:20 27 213.40 27 221.90 27.10 80
4AV2OBS2009-02-27 00:29:322009-02-27 00:37:24 00:07:52 27 245.55 27 274.23 0.00 -
5PSRFBS2009-02-27 00:38:202009-02-27 00:40:40 00:02:20 27 277.64 27 286.15 34.30 7
6PSRWB12009-02-27 01:29:172009-02-27 01:35:45 00:06:28 73 103.45 73 127.03 27.10 80
7PSMOB12009-02-27 01:34:182009-02-27 01:42:00 00:07:42 73 121.74 73 149.82 1.20 -
8AV2OBS2009-02-27 01:35:092009-02-27 01:42:01 00:06:52 73 124.84 73 149.88 0.00 -
9AV2OBS2009-02-27 01:49:092009-02-27 01:53:11 00:04:02 73 175.89 73 190.60 0.00 -
10PSMOB22009-02-27 01:49:102009-02-27 02:01:22 00:12:12 73 175.96 73 220.45 0.00 -
11PSMOB12009-02-27 02:07:162009-02-27 02:12:50 00:05:34 73 241.96 73 262.26 1.20 -
12AV2OBS2009-02-27 02:08:022009-02-27 02:11:52 00:03:50 73 244.76 73 258.74 0.00 -
13PSRFBS2009-02-27 02:29:432009-02-27 02:35:49 00:06:06 73 323.83 73 346.08 34.30 7
14PSRFBS2009-02-27 02:41:572009-02-27 02:45:23 00:03:26 119 8.45 119 20.97 34.30 7
15PSRFBS2009-02-27 02:55:112009-02-27 02:57:29 00:02:18 119 56.71 119 65.09 34.30 7
16PSRWB12009-02-27 03:05:412009-02-27 03:09:07 00:03:26 119 95.00 119 107.52 27.10 80
17AV2OBS2009-02-27 03:14:392009-02-27 03:31:50 00:17:11 119 127.70 119 190.36 0.00 -
18PSMOB22009-02-27 03:14:402009-02-27 03:32:06 00:17:26 119 127.76 119 191.33 0.00 -
19PSRFBS2009-02-27 03:24:522009-02-27 03:26:48 00:01:56 119 164.95 119 172.00 34.30 7
20AV2OBS2009-02-27 03:35:202009-02-27 03:37:12 00:01:52 119 203.12 119 209.93 0.00 -
21PSRWB12009-02-27 03:47:272009-02-27 03:50:53 00:03:26 119 247.31 119 259.83 27.10 80
22PSRFBS2009-02-27 03:57:502009-02-27 04:08:30 00:10:40 119 285.18 119 324.07 34.30 7
23PSRFBS2009-02-27 04:20:072009-02-27 04:27:21 00:07:14 165 6.44 165 32.82 34.30 7
24PSRFBS2009-02-27 04:29:482009-02-27 04:38:10 00:08:22 165 41.76 165 72.27 34.30 7
25PSMOB12009-02-27 04:46:192009-02-27 04:49:55 00:03:36 165 101.99 165 115.12 1.20 -
26PSRPLR2009-02-27 04:49:382009-02-27 04:52:00 00:02:22 165 114.08 165 122.71 21.50 127
27AV2OBS2009-02-27 04:52:322009-02-27 05:06:38 00:14:06 165 124.66 165 176.08 0.00 -
28PSMOB22009-02-27 04:53:232009-02-27 05:00:57 00:07:34 165 127.76 165 155.35 0.00 -
29PSRWB12009-02-27 04:57:542009-02-27 04:59:46 00:01:52 165 144.23 165 151.04 27.10 80
30AV2OBS2009-02-27 05:25:412009-02-27 05:29:17 00:03:36 165 245.55 165 258.68 0.00 -
31PSRFBS2009-02-27 05:57:252009-02-27 06:00:03 00:02:38 211 1.22 211 10.82 34.30 7
32PSRFBS2009-02-27 06:05:442009-02-27 06:07:36 00:01:52 211 31.61 211 38.41 21.50 3
33PSRFBS2009-02-27 06:12:322009-02-27 06:14:24 00:01:52 211 56.34 211 63.15 34.30 7
34PSRWB12009-02-27 06:24:392009-02-27 06:27:39 00:03:00 211 100.59 211 111.53 27.10 80
35AV2OBS2009-02-27 06:32:062009-02-27 06:38:46 00:06:40 211 127.76 211 152.07 0.00 -
36PSMOB22009-02-27 06:32:062009-02-27 06:39:26 00:07:20 211 127.76 211 154.50 0.00 -
37PSRWB12009-02-27 06:35:102009-02-27 06:42:52 00:07:42 211 138.94 211 167.02 27.10 80
38PSRWB12009-02-27 06:48:592009-02-27 06:54:13 00:05:14 211 189.33 211 208.41 27.10 80
39AV2OBS2009-02-27 06:58:362009-02-27 07:00:28 00:01:52 211 224.40 211 231.20 41.50 -
40PSMOB12009-02-27 07:04:352009-02-27 07:08:23 00:03:48 211 246.22 211 260.07 1.20 -
41AV2OBS2009-02-27 07:05:202009-02-27 07:08:00 00:02:40 211 248.95 211 258.68 0.00 -
42PSRFBS2009-02-27 07:05:422009-02-27 07:07:34 00:01:52 211 250.29 211 257.10 34.30 7
43PSRFBS2009-02-27 07:51:022009-02-27 07:55:56 00:04:54 257 55.61 257 73.48 34.30 7
44PSRWB12009-02-27 08:03:082009-02-27 08:07:00 00:03:52 257 99.74 257 113.84 27.10 80
45AV2OBS2009-02-27 08:17:432009-02-27 08:21:35 00:03:52 257 152.92 257 167.02 0.00 -
46AV2OBS2009-02-27 08:23:582009-02-27 08:26:46 00:02:48 257 175.71 257 185.92 0.00 -
47AV2OBS2009-02-27 08:29:212009-02-27 08:31:51 00:02:30 257 195.34 257 204.46 0.00 -
48PSMOB12009-02-27 08:43:172009-02-27 08:47:27 00:04:10 257 246.15 257 261.35 1.20 -
49AV2OBS2009-02-27 08:44:032009-02-27 08:46:45 00:02:42 257 248.95 257 258.80 0.00 -
50PSRFBS2009-02-27 09:13:422009-02-27 09:16:24 00:02:42 257 357.08 303 6.93 34.30 7
51PSRFBS2009-02-27 09:19:242009-02-27 09:21:16 00:01:52 303 17.81 303 24.62 41.50 10
52PSRFBS2009-02-27 09:28:032009-02-27 09:29:55 00:01:52 303 49.41 303 56.22 34.30 7
53PSRFBS2009-02-27 09:31:002009-02-27 09:34:02 00:03:02 303 60.17 303 71.23 34.30 7
54PSRWB12009-02-27 09:40:172009-02-27 09:49:46 00:09:29 303 94.03 303 128.61 27.10 80
55AV2OBS2009-02-27 09:56:152009-02-27 09:59:39 00:03:24 303 152.19 303 164.59 0.00 -
56AV2OBS2009-02-27 10:25:252009-02-27 10:29:23 00:03:58 303 258.61 303 273.08 0.00 -
57PSRWB12009-02-27 11:18:372009-02-27 11:40:43 00:22:06 349 92.57 349 173.16 27.10 80
58PSRFBS2009-02-27 12:17:432009-02-27 12:19:45 00:02:02 349 308.15 349 315.56 34.30 7
59PSRFBS2009-02-27 12:27:332009-02-27 12:31:37 00:04:04 349 344.01 349 358.84 34.30 7
60PSRFBS2009-02-27 12:42:352009-02-27 12:52:33 00:09:58 395 38.84 395 75.18 34.30 7
61PSRFBS2009-02-27 13:19:172009-02-27 13:21:09 00:01:52 395 172.61 395 179.42 50.00 16
62AV2OBS2009-02-27 13:21:142009-02-27 13:31:17 00:10:03 395 179.72 395 216.37 0.00 -
63PSMOB12009-02-27 13:38:582009-02-27 13:43:36 00:04:38 395 244.39 395 261.29 1.20 -
64AV2OBS2009-02-27 13:39:362009-02-27 13:47:12 00:07:36 395 246.76 395 274.48 0.00 -
65PSRFBS2009-02-27 13:58:592009-02-27 14:16:39 00:17:40 395 317.45 441 21.88 34.30 7
66PSRFBD2009-02-27 14:18:122009-02-27 14:20:04 00:01:52 441 27.53 441 34.34 34.30 43
67PSRFBS2009-02-27 14:22:412009-02-27 14:32:41 00:10:00 441 43.88 441 80.35 34.30 7
68AV2OBS2009-02-27 14:56:202009-02-27 15:06:00 00:09:40 441 166.53 441 201.79 0.00 -
69PSMOB12009-02-27 15:18:562009-02-27 15:22:20 00:03:24 441 248.95 441 261.35 1.20 -
70AV2OBS2009-02-27 15:19:422009-02-27 15:21:36 00:01:54 441 251.75 441 258.68 0.00 -
71PSRFBS2009-02-27 15:50:002009-02-27 16:00:54 00:10:54 487 2.25 487 42.00 34.30 7
72PSRFBS2009-02-27 16:03:402009-02-27 16:10:18 00:06:38 487 52.09 487 76.28 34.30 7
73PSRWB12009-02-27 16:13:342009-02-27 16:23:16 00:09:42 487 88.19 487 123.56 27.10 80
74PSMOB12009-02-27 16:32:412009-02-27 16:35:17 00:02:36 487 157.90 487 167.39 1.20 -
75AV2OBS2009-02-27 16:33:272009-02-27 16:35:33 00:02:06 487 160.70 487 168.36 0.00 -
76PSMOB12009-02-27 16:45:482009-02-27 16:48:24 00:02:36 487 205.74 487 215.22 1.20 -
77PSMOB12009-02-27 16:58:052009-02-27 17:01:01 00:02:56 487 250.59 487 261.29 1.20 -
78AV2OBS2009-02-27 16:58:522009-02-27 17:04:24 00:05:32 487 253.45 487 273.63 0.00 -
79PSRFBS2009-02-27 17:29:212009-02-27 17:40:39 00:11:18 533 4.56 533 45.77 34.30 7
80PSRFBD2009-02-27 18:07:242009-02-27 18:10:04 00:02:40 533 143.32 533 153.04 34.30 43
81PSMOB12009-02-27 21:37:302009-02-27 21:40:10 00:02:40 625 189.51 625 199.23 1.20 -
82PSRWB12009-02-27 21:52:482009-02-27 21:57:10 00:04:22 625 245.30 625 261.23 27.10 80
83PSMOB12009-02-27 21:53:252009-02-27 21:57:11 00:03:46 625 247.55 625 261.29 1.20 -
84AV2OBS2009-02-27 21:54:282009-02-27 21:57:40 00:03:12 625 251.38 625 263.05 0.00 -
85PSRFBS2009-02-27 22:24:452009-02-27 22:29:23 00:04:38 671 1.82 671 18.72 34.30 7
86PSRFBS2009-02-27 22:33:222009-02-27 22:40:54 00:07:32 671 33.19 671 60.66 34.30 7
87PSRPLR2009-02-27 22:41:542009-02-27 22:44:56 00:03:02 671 64.36 671 75.43 21.50 127
88PSMOB12009-02-27 23:09:002009-02-27 23:13:38 00:04:38 671 163.19 671 180.09 1.20 -
89AV2OBS2009-02-27 23:09:382009-02-27 23:12:26 00:02:48 671 165.50 671 175.71 0.00 -
90AV2OBS2009-02-27 23:31:482009-02-27 23:38:40 00:06:52 671 246.34 671 271.38 0.00 -
91PSMOB12009-02-27 23:32:122009-02-27 23:35:54 00:03:42 671 247.74 671 261.23 1.20 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
27-14.242842009-02-26 23:22:11153.417372009-02-27 00:11:32
73-38.922422009-02-27 01:00:54128.737782009-02-27 01:50:15
119-63.602012009-02-27 02:39:37104.058202009-02-27 03:28:58
165-88.281592009-02-27 04:18:20 79.378622009-02-27 05:07:41
211-112.961172009-02-27 05:57:03 54.699042009-02-27 06:46:25
257-137.640762009-02-27 07:35:46 30.019452009-02-27 08:25:08
303-162.320342009-02-27 09:14:29 5.339872009-02-27 10:03:51
349173.000082009-02-27 10:53:12-19.339712009-02-27 11:42:34
395148.320502009-02-27 12:31:55-44.019302009-02-27 13:21:17
441123.640912009-02-27 14:10:39-68.698882009-02-27 15:00:00
487 98.961332009-02-27 15:49:22-93.378462009-02-27 16:38:43
533 74.281752009-02-27 17:28:05-118.058042009-02-27 18:17:26
579 49.602172009-02-27 19:06:48-142.737632009-02-27 19:56:09
625 24.922582009-02-27 20:45:31-167.417212009-02-27 21:34:52
671 0.243002009-02-27 22:24:14167.903212009-02-27 23:13:36
