>ALOS Data Take Simulation(Feb. 23, 2009)

Observation Area

PRISM

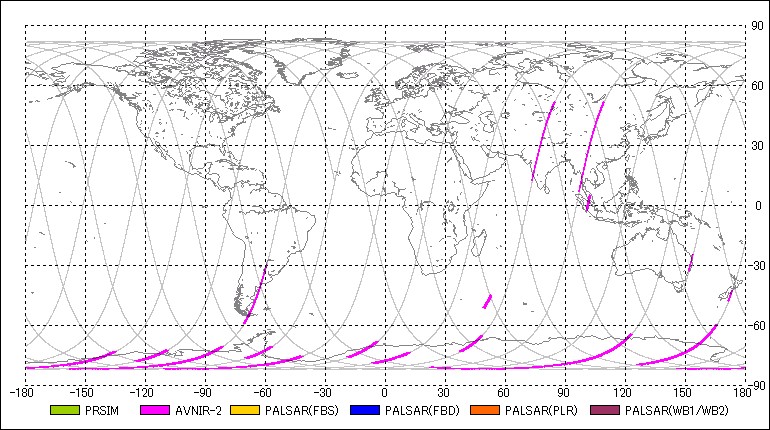

AVNIR-2

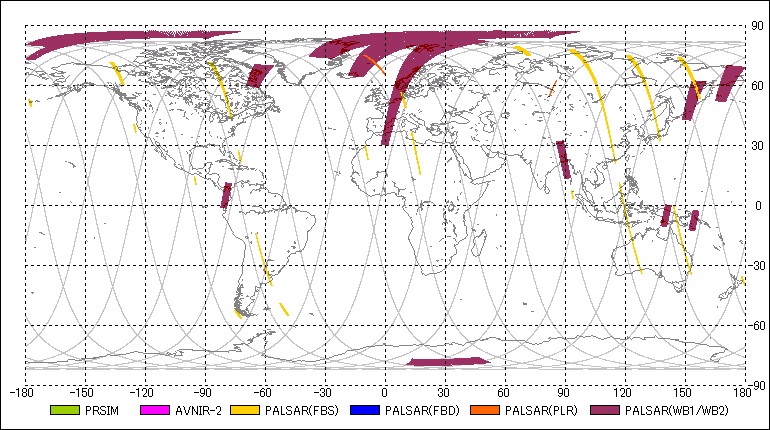

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12009-02-23 00:28:212009-02-23 00:34:25 00:06:04 43 116.03 43 138.15 27.10 80
2PSMOB12009-02-23 00:42:162009-02-23 00:45:06 00:02:50 43 166.78 43 177.11 1.20 -
3PSRWB12009-02-23 00:45:342009-02-23 00:49:04 00:03:30 43 178.81 43 191.58 27.10 80
4PSMOB12009-02-23 00:49:312009-02-23 00:57:13 00:07:42 43 193.22 43 221.30 1.20 -
5AV2OBS2009-02-23 01:03:492009-02-23 01:11:41 00:07:52 43 245.36 43 274.05 0.00 -
6PSMOB22009-02-23 02:08:482009-02-23 02:16:06 00:07:18 89 122.35 89 148.97 0.00 -
7PSMOB22009-02-23 02:18:502009-02-23 02:34:16 00:15:26 89 158.94 89 215.22 0.00 -
8PSMOB12009-02-23 02:41:362009-02-23 02:46:54 00:05:18 89 241.96 89 261.29 1.20 -
9PSRWB12009-02-23 02:47:212009-02-23 02:50:09 00:02:48 89 262.93 89 273.14 27.10 80
10PSRFBS2009-02-23 02:57:542009-02-23 03:00:16 00:02:22 89 301.40 89 310.03 34.30 7
11PSRFBS2009-02-23 03:02:112009-02-23 03:10:09 00:07:58 89 316.96 89 346.01 34.30 7
12PSRFBS2009-02-23 03:19:252009-02-23 03:21:31 00:02:06 135 19.87 135 27.53 34.30 7
13PSRFBS2009-02-23 03:25:252009-02-23 03:33:49 00:08:24 135 41.69 135 72.33 34.30 7
14AV2OBS2009-02-23 03:48:592009-02-23 04:03:37 00:14:38 135 127.70 135 181.06 0.00 -
15PSRFBS2009-02-23 04:36:082009-02-23 04:38:04 00:01:56 135 299.58 135 306.63 34.30 7
16PSRFBS2009-02-23 04:54:572009-02-23 04:56:43 00:01:46 181 8.27 181 14.71 34.30 7
17PSRPLR2009-02-23 05:24:192009-02-23 05:27:15 00:02:56 181 115.36 181 126.06 21.50 127
18AV2OBS2009-02-23 05:27:432009-02-23 05:38:35 00:10:52 181 127.76 181 167.39 0.00 -
19PSMOB22009-02-23 05:27:432009-02-23 05:34:23 00:06:40 181 127.76 181 152.07 0.00 -
20AV2OBS2009-02-23 05:54:452009-02-23 05:56:37 00:01:52 181 226.34 181 233.15 -34.30 -
21AV2OBS2009-02-23 06:00:112009-02-23 06:02:37 00:02:26 181 246.15 181 255.03 0.00 -
22PSRFBS2009-02-23 06:40:542009-02-23 06:42:34 00:01:40 227 34.64 227 40.72 34.30 7
23PSRFBS2009-02-23 06:47:262009-02-23 06:51:16 00:03:50 227 58.47 227 72.45 34.30 7
24PSMOB12009-02-23 07:38:552009-02-23 07:43:05 00:04:10 227 246.15 227 261.35 1.20 -
25AV2OBS2009-02-23 07:41:292009-02-23 07:43:21 00:01:52 227 255.58 227 262.38 0.00 -
26AV2OBS2009-02-23 09:18:302009-02-23 09:21:00 00:02:30 273 249.38 273 258.49 0.00 -
27PSRFBS2009-02-23 10:01:502009-02-23 10:03:32 00:01:42 319 47.41 319 53.61 34.30 7
28PSRWB12009-02-23 10:14:302009-02-23 10:30:11 00:15:41 319 93.60 319 150.79 27.10 80
29AV2OBS2009-02-23 10:59:322009-02-23 11:03:22 00:03:50 319 257.76 319 271.74 0.00 -
30PSRFBS2009-02-23 11:15:502009-02-23 11:17:42 00:01:52 319 317.21 319 324.01 34.30 7
31PSRFBS2009-02-23 11:41:402009-02-23 11:48:06 00:06:26 365 51.42 365 74.88 34.30 7
32PSRWB12009-02-23 11:51:222009-02-23 11:59:19 00:07:57 365 86.79 365 115.78 27.10 80
33PSMOB12009-02-23 12:36:062009-02-23 12:39:12 00:03:06 365 249.98 365 261.29 1.20 -
34AV2OBS2009-02-23 12:36:432009-02-23 12:38:35 00:01:52 365 252.17 365 258.98 0.00 -
35PSRFBS2009-02-23 12:56:082009-02-23 13:06:12 00:10:04 365 322.98 365 359.69 34.30 7
36PSRFBS2009-02-23 13:14:332009-02-23 13:27:09 00:12:36 411 30.15 411 76.10 34.30 7
37PSRWB12009-02-23 13:30:052009-02-23 13:35:22 00:05:17 411 86.79 411 106.06 27.10 80
38AV2OBS2009-02-23 14:03:452009-02-23 14:12:06 00:08:21 411 209.57 411 240.02 0.00 -
39PSMOB12009-02-23 14:14:432009-02-23 14:17:57 00:03:14 411 249.56 411 261.35 1.20 -
40AV2OBS2009-02-23 14:15:292009-02-23 14:20:43 00:05:14 411 252.35 411 271.44 0.00 -
41PSRFBS2009-02-23 14:34:542009-02-23 14:48:16 00:13:22 411 323.16 457 11.91 34.30 7
42PSRFBS2009-02-23 14:50:092009-02-23 15:06:39 00:16:30 457 18.78 457 78.95 34.30 7
43PSRWB12009-02-23 15:14:322009-02-23 15:18:14 00:03:42 457 107.70 457 121.19 27.10 80
44PSRWB12009-02-23 15:30:592009-02-23 15:35:01 00:04:02 457 167.69 457 182.40 27.10 80
45PSMOB12009-02-23 15:53:562009-02-23 15:56:40 00:02:44 457 251.38 457 261.35 1.20 -
46AV2OBS2009-02-23 15:54:422009-02-23 15:56:34 00:01:52 457 254.18 457 260.98 0.00 -
47PSRFBS2009-02-23 16:24:002009-02-23 16:25:52 00:01:52 503 1.03 503 7.84 34.30 7
48PSRWB12009-02-23 16:26:522009-02-23 16:32:37 00:05:45 503 11.49 503 32.46 27.10 80
49PSRFBS2009-02-23 16:43:562009-02-23 16:45:48 00:01:52 503 73.72 503 80.53 34.30 7
50AV2OBS2009-02-23 17:33:382009-02-23 17:38:26 00:04:48 503 254.97 503 272.47 0.00 -
51PSRCA22009-02-23 19:27:552009-02-23 19:34:41 00:06:46 549 311.74 549 336.41 34.30 7
52PSRCA22009-02-23 20:05:122009-02-23 20:08:18 00:03:06 595 87.64 595 98.95 34.30 7
53PSRCA22009-02-23 20:12:532009-02-23 20:15:59 00:03:06 595 115.66 595 126.97 34.30 7
54PSRCA22009-02-23 20:20:492009-02-23 20:23:55 00:03:06 595 144.65 595 155.96 34.30 7
55PSRCA22009-02-23 20:28:462009-02-23 20:31:52 00:03:06 595 173.58 595 184.89 34.30 7
56PSRCA22009-02-23 20:36:432009-02-23 20:39:49 00:03:06 595 202.64 595 213.94 34.30 7
57PSRCA22009-02-23 20:44:402009-02-23 20:47:46 00:03:06 595 231.63 595 242.93 34.30 7
58PSRCA22009-02-23 20:52:372009-02-23 20:55:43 00:03:06 595 260.62 595 271.93 34.30 7
59PSRFBS2009-02-23 21:23:312009-02-23 21:29:59 00:06:28 641 13.31 641 36.89 34.30 7
60PSRFBS2009-02-23 21:32:422009-02-23 21:35:30 00:02:48 641 46.80 641 57.01 34.30 7
61PSRPLR2009-02-23 21:37:312009-02-23 21:40:57 00:03:26 641 64.36 641 76.89 21.50 127
62PSMOB12009-02-23 22:19:572009-02-23 22:22:39 00:02:42 641 219.05 641 228.89 1.20 -
63AV2OBS2009-02-23 22:21:022009-02-23 22:22:28 00:01:26 641 223.06 641 228.29 0.00 -
64AV2OBS2009-02-23 22:25:492009-02-23 22:32:11 00:06:22 641 240.50 641 263.72 0.00 -
65PSMOB12009-02-23 22:27:232009-02-23 22:31:33 00:04:10 641 246.15 641 261.35 1.20 -
66PSRFBS2009-02-23 23:04:162009-02-23 23:06:54 00:02:38 16 20.73 16 30.33 34.30 7
67PSRWB12009-02-23 23:22:212009-02-23 23:33:56 00:11:35 16 86.61 16 128.85 27.10 80
68PSMOB12009-02-23 23:43:262009-02-23 23:52:22 00:08:56 16 163.50 16 196.07 1.20 -
69PSRWB12009-02-23 23:48:202009-02-23 23:51:42 00:03:22 16 181.43 16 193.70 27.10 80
70PSMOB12009-02-23 23:54:182009-02-23 23:56:54 00:02:36 16 203.12 16 212.60 1.20 -
71AV2OBS2009-02-23 23:54:452009-02-23 23:56:56 00:02:11 16 204.76 16 212.73 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
43-22.827042009-02-22 23:56:31144.833162009-02-23 00:45:52
89-47.506632009-02-23 01:35:14120.153582009-02-23 02:24:35
135-72.186212009-02-23 03:13:57 95.474002009-02-23 04:03:19
181-96.865792009-02-23 04:52:40 70.794422009-02-23 05:42:02
227-121.545382009-02-23 06:31:23 46.114832009-02-23 07:20:45
273-146.224962009-02-23 08:10:06 21.435252009-02-23 08:59:28
319-170.904542009-02-23 09:48:49 -3.244332009-02-23 10:38:11
365164.415882009-02-23 11:27:33-27.923922009-02-23 12:16:54
411139.736292009-02-23 13:06:16-52.603502009-02-23 13:55:37
457115.056712009-02-23 14:44:59-77.283082009-02-23 15:34:20
503 90.377132009-02-23 16:23:42-101.962662009-02-23 17:13:03
549 65.697552009-02-23 18:02:25-126.642252009-02-23 18:51:46
595 41.017962009-02-23 19:41:08-151.321832009-02-23 20:30:30
641 16.338382009-02-23 21:19:51-176.001412009-02-23 22:09:13
16 -8.341202009-02-23 22:58:34159.319012009-02-23 23:47:56
