>ALOS Data Take Simulation(Nov. 02, 2008)

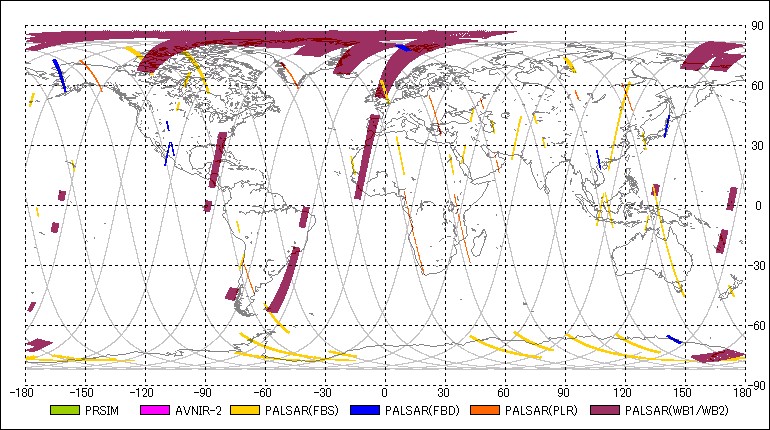

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRPLR2008-11-02 00:44:242008-11-02 00:48:38 00:04:14 58 57.19 58 72.63 21.50 127
2PSRWB12008-11-02 00:51:172008-11-02 00:59:33 00:08:16 58 82.29 58 112.44 27.10 80
3AV2OBS2008-11-02 01:04:582008-11-02 01:06:50 00:01:52 58 132.19 58 139.00 0.00 -
4PSMOB22008-11-02 01:04:582008-11-02 01:06:50 00:01:52 58 132.13 58 138.94 0.00 -
5PSRFBD2008-11-02 01:05:202008-11-02 01:09:08 00:03:48 58 133.47 58 147.33 34.30 43
6PSRWB12008-11-02 01:14:542008-11-02 01:17:00 00:02:06 58 168.42 58 176.08 27.10 80
7PSMOB22008-11-02 01:17:522008-11-02 01:28:10 00:10:18 58 179.18 58 216.74 0.00 -
8PSRFBS2008-11-02 01:19:132008-11-02 01:21:51 00:02:38 58 184.10 58 193.70 34.30 7
9AV2OBS2008-11-02 01:19:442008-11-02 01:27:54 00:08:10 58 185.98 58 215.77 0.00 -
10PSRFBS2008-11-02 02:39:262008-11-02 02:52:24 00:12:58 104 116.63 104 163.92 34.30 7
11AV2OBS2008-11-02 02:41:482008-11-02 02:52:26 00:10:38 104 125.33 104 164.10 0.00 -
12PSMOB22008-11-02 02:41:532008-11-02 02:51:39 00:09:46 104 125.57 104 161.19 0.00 -
13AV2OBS2008-11-02 02:54:262008-11-02 02:59:49 00:05:23 104 171.34 104 190.97 0.00 -
14PSRFBS2008-11-02 02:54:502008-11-02 02:59:52 00:05:02 104 172.86 104 191.21 34.30 7
15PSMOB22008-11-02 02:54:532008-11-02 03:00:21 00:05:28 104 172.98 104 192.91 0.00 -
16PSRFBS2008-11-02 03:23:012008-11-02 03:24:53 00:01:52 104 275.57 104 282.38 34.30 7
17PSRFBS2008-11-02 03:27:242008-11-02 03:32:28 00:05:04 104 291.62 104 310.09 34.30 7
18PSRPLR2008-11-02 03:33:232008-11-02 03:38:47 00:05:24 104 313.44 104 333.13 23.10 128
19PSRFBS2008-11-02 03:41:502008-11-02 03:44:00 00:02:10 104 344.25 104 352.15 34.30 7
20PSRFBS2008-11-02 04:01:002008-11-02 04:08:36 00:07:36 150 54.09 150 81.81 34.30 7
21AV2OBS2008-11-02 04:21:112008-11-02 04:32:28 00:11:17 150 127.76 150 168.90 0.00 -
22AV2OBS2008-11-02 04:49:472008-11-02 04:51:39 00:01:52 150 231.99 150 238.80 0.00 -
23PSRFBS2008-11-02 05:00:062008-11-02 05:06:44 00:06:38 150 269.62 150 293.81 34.30 7
24PSRFBD2008-11-02 05:31:072008-11-02 05:33:35 00:02:28 196 22.73 196 31.73 34.30 43
25PSRFBD2008-11-02 05:34:392008-11-02 05:36:31 00:01:52 196 35.62 196 42.42 34.30 43
26PSRFBS2008-11-02 05:42:252008-11-02 05:46:53 00:04:28 196 63.94 196 80.23 34.30 7
27AV2OBS2008-11-02 05:53:202008-11-02 05:55:18 00:01:58 196 103.81 196 110.98 0.00 -
28PSRFBS2008-11-02 06:01:362008-11-02 06:08:18 00:06:42 196 133.90 196 158.33 34.30 7
29AV2OBS2008-11-02 06:01:542008-11-02 06:04:46 00:02:52 196 135.05 196 145.50 0.00 -
30PSMOB22008-11-02 06:01:542008-11-02 06:05:20 00:03:26 196 135.05 196 147.57 0.00 -
31PSRFBS2008-11-02 06:38:182008-11-02 06:42:02 00:03:44 196 267.73 196 281.35 34.30 7
32PSRPLR2008-11-02 07:18:472008-11-02 07:23:57 00:05:10 242 55.37 242 74.21 21.50 127
33PSMOB12008-11-02 07:35:022008-11-02 08:02:28 00:27:26 242 114.63 242 214.67 1.20 -
34PSRFBS2008-11-02 07:39:222008-11-02 07:41:42 00:02:20 242 130.43 242 138.94 34.30 7
35PSRFBS2008-11-02 07:44:182008-11-02 07:47:34 00:03:16 242 148.42 242 160.33 34.30 7
36AV2OBS2008-11-02 07:49:292008-11-02 07:56:03 00:06:34 242 167.32 242 191.27 0.00 -
37PSRFBS2008-11-02 08:46:302008-11-02 08:48:40 00:02:10 288 15.26 288 23.16 21.50 3
38PSRFBD2008-11-02 08:57:202008-11-02 09:02:26 00:05:06 288 54.76 288 73.36 41.50 46
39PSMOB12008-11-02 09:13:442008-11-02 09:17:14 00:03:30 288 114.57 288 127.33 1.20 -
40AV2OBS2008-11-02 09:14:302008-11-02 09:16:28 00:01:58 288 117.36 288 124.54 0.00 -
41PSMOB12008-11-02 09:21:172008-11-02 09:35:01 00:13:44 288 142.10 288 192.18 1.20 -
42AV2OBS2008-11-02 09:26:332008-11-02 09:34:17 00:07:44 288 161.31 288 189.51 0.00 -
43PSRFBS2008-11-02 10:18:542008-11-02 10:20:46 00:01:52 288 352.21 288 359.02 34.30 7
44PSRWB12008-11-02 10:46:342008-11-02 10:55:44 00:09:10 334 93.11 334 126.54 27.10 80
45AV2OBS2008-11-02 10:56:372008-11-02 10:59:27 00:02:50 334 129.76 334 140.10 34.30 -
46PSRWB12008-11-02 10:57:352008-11-02 11:09:48 00:12:13 334 133.29 334 177.84 27.10 80
47PSRFBS2008-11-02 11:46:252008-11-02 11:48:41 00:02:16 334 311.37 334 319.64 34.30 7
48PSRWB12008-11-02 12:26:032008-11-02 12:31:13 00:05:10 380 95.91 380 114.75 27.10 80
49PSMOB12008-11-02 12:37:082008-11-02 12:39:44 00:02:36 380 136.33 380 145.81 1.20 -
50AV2OBS2008-11-02 12:37:512008-11-02 12:39:43 00:01:52 380 138.94 380 145.75 0.00 -
51PSRWB12008-11-02 12:49:002008-11-02 12:52:26 00:03:26 380 179.60 380 192.12 27.10 80
52PSRWB12008-11-02 12:54:372008-11-02 13:04:21 00:09:44 380 200.08 380 235.58 27.10 80
53PSRFBS2008-11-02 13:12:582008-11-02 13:16:16 00:03:18 380 266.94 380 278.98 34.30 7
54PSRFBS2008-11-02 13:25:072008-11-02 13:41:11 00:16:04 380 311.31 426 9.91 34.30 7
55PSRFBS2008-11-02 13:45:352008-11-02 13:48:29 00:02:54 426 25.95 426 36.53 34.30 7
56PSRPLR2008-11-02 13:50:572008-11-02 13:55:31 00:04:34 426 45.52 426 62.18 23.10 128
57PSRWB12008-11-02 14:02:152008-11-02 14:07:19 00:05:04 426 86.73 426 105.21 27.10 80
58AV2OBS2008-11-02 14:09:372008-11-02 14:11:29 00:01:52 426 113.60 426 120.40 0.00 -
59PSMOB12008-11-02 14:24:152008-11-02 14:33:03 00:08:48 426 166.90 426 198.99 1.20 -
60AV2OBS2008-11-02 14:25:012008-11-02 14:32:53 00:07:52 426 169.69 426 198.38 0.00 -
61PSRFBS2008-11-02 14:34:212008-11-02 14:37:05 00:02:44 426 203.73 426 213.70 34.30 7
62PSRWB12008-11-02 14:39:032008-11-02 14:41:15 00:02:12 426 220.93 426 228.95 27.10 80
63PSRFBS2008-11-02 14:50:412008-11-02 14:55:01 00:04:20 426 263.36 426 279.16 34.30 7
64PSRFBD2008-11-02 14:56:472008-11-02 14:58:39 00:01:52 426 285.54 426 292.35 34.30 43
65PSRFBS2008-11-02 15:13:342008-11-02 15:18:58 00:05:24 426 346.80 472 6.50 34.30 7
66PSRFBD2008-11-02 15:21:282008-11-02 15:24:46 00:03:18 472 15.62 472 27.65 34.30 43
67PSRPLR2008-11-02 15:31:172008-11-02 15:33:09 00:01:52 472 51.42 472 58.23 21.50 127
68PSRFBS2008-11-02 15:34:542008-11-02 15:37:42 00:02:48 472 64.61 472 74.82 34.30 7
69PSRWB12008-11-02 15:40:582008-11-02 15:44:50 00:03:52 472 86.73 472 100.83 27.10 80
70PSMOB12008-11-02 15:52:062008-11-02 16:01:02 00:08:56 472 127.33 472 159.91 1.20 -
71PSRWB12008-11-02 15:56:092008-11-02 16:04:21 00:08:12 472 142.10 472 172.00 27.10 80
72PSMOB22008-11-02 16:02:542008-11-02 16:05:22 00:02:28 472 166.72 472 175.71 0.00 -
73PSRWB12008-11-02 16:05:372008-11-02 16:07:43 00:02:06 472 176.62 472 184.28 27.10 80
74PSRFBS2008-11-02 16:30:562008-11-02 16:32:48 00:01:52 472 268.95 472 275.75 34.30 7
75PSRFBS2008-11-02 16:33:412008-11-02 16:37:35 00:03:54 472 278.98 472 293.20 34.30 7
76PSRFBS2008-11-02 17:03:182008-11-02 17:05:10 00:01:52 518 26.99 518 33.79 28.80 5
77PSRFBS2008-11-02 17:06:362008-11-02 17:08:32 00:01:56 518 39.02 518 46.07 21.50 21
78PSRWB12008-11-02 17:19:412008-11-02 17:23:07 00:03:26 518 86.73 518 99.25 27.10 80
79PSRFBS2008-11-02 17:26:322008-11-02 17:29:14 00:02:42 518 111.65 518 121.50 34.30 7
80PSRFBS2008-11-02 17:30:422008-11-02 17:32:34 00:01:52 518 126.85 518 133.65 34.30 7
81PSRFBD2008-11-02 17:36:132008-11-02 17:40:07 00:03:54 518 147.02 518 161.25 34.30 43
82PSRFBS2008-11-02 18:07:272008-11-02 18:16:19 00:08:52 518 260.92 518 293.26 34.30 7
83PSRPLR2008-11-02 18:38:332008-11-02 18:41:57 00:03:24 564 14.34 564 26.74 23.10 128
84PSRFBS2008-11-02 18:43:592008-11-02 18:46:21 00:02:22 564 34.16 564 42.79 34.30 7
85PSRPLR2008-11-02 18:47:292008-11-02 18:49:27 00:01:58 564 46.92 564 54.09 23.10 128
86PSRWB12008-11-02 18:58:242008-11-02 19:05:42 00:07:18 564 86.73 564 113.35 27.10 80
87PSMOB12008-11-02 19:09:302008-11-02 19:12:06 00:02:36 564 127.15 564 136.63 1.20 -
88AV2OBS2008-11-02 19:10:162008-11-02 19:12:08 00:01:52 564 129.95 564 136.75 0.00 -
89PSRWB12008-11-02 19:42:562008-11-02 19:47:18 00:04:22 564 249.07 564 265.00 27.10 80
90PSMOB12008-11-02 19:44:532008-11-02 19:47:47 00:02:54 564 256.18 564 266.76 1.20 -
91PSRFBS2008-11-02 19:51:332008-11-02 19:55:25 00:03:52 564 280.56 564 294.66 34.30 7
92PSRPLR2008-11-02 20:04:532008-11-02 20:15:03 00:10:10 564 329.18 610 6.26 23.10 128
93PSRFBS2008-11-02 20:17:002008-11-02 20:20:26 00:03:26 610 13.37 610 25.89 34.30 7
94PSRPLR2008-11-02 20:22:262008-11-02 20:28:36 00:06:10 610 33.19 610 55.67 21.50 127
95PSRFBD2008-11-02 20:34:102008-11-02 20:35:38 00:01:28 610 75.97 610 81.32 34.30 43
96PSRWB12008-11-02 21:00:242008-11-02 21:02:16 00:01:52 610 171.64 610 178.45 27.10 80
97PSMOB12008-11-02 21:04:032008-11-02 21:09:03 00:05:00 610 184.89 610 203.12 1.20 -
98PSRWB12008-11-02 21:04:472008-11-02 21:06:43 00:01:56 610 187.62 610 194.68 27.10 80
99PSRWB12008-11-02 21:15:502008-11-02 21:17:42 00:01:52 610 227.86 610 234.67 27.10 80
100PSRFBS2008-11-02 21:28:352008-11-02 21:33:29 00:04:54 610 274.42 610 292.29 34.30 7
101PSRPLR2008-11-02 21:41:562008-11-02 21:54:10 00:12:14 610 323.10 656 7.72 23.10 128
102PSRFBS2008-11-02 21:55:452008-11-02 22:01:37 00:05:52 656 13.43 656 34.83 34.30 7
103PSRFBS2008-11-02 22:05:302008-11-02 22:09:22 00:03:52 656 48.99 656 63.09 34.30 7
104PSRFBS2008-11-02 22:25:352008-11-02 22:28:07 00:02:32 656 122.29 656 131.53 34.30 7
105PSMOB12008-11-02 22:32:182008-11-02 22:34:54 00:02:36 656 146.72 656 156.20 1.20 -
106AV2OBS2008-11-02 22:33:042008-11-02 22:34:56 00:01:52 656 149.52 656 156.32 0.00 -
107PSRWB12008-11-02 22:38:372008-11-02 22:42:19 00:03:42 656 169.82 656 183.31 27.10 80
108PSMOB12008-11-02 22:40:212008-11-02 22:43:17 00:02:56 656 176.14 656 186.83 1.20 -
109PSRWB12008-11-02 22:44:302008-11-02 22:48:18 00:03:48 656 191.21 656 205.07 27.10 80
110AV2OBS2008-11-02 22:59:592008-11-02 23:02:05 00:02:06 656 247.67 656 255.33 0.00 -
111PSRFBS2008-11-02 23:34:282008-11-02 23:37:36 00:03:08 31 13.43 31 24.86 34.30 7
112PSRWB12008-11-02 23:54:152008-11-03 00:01:45 00:07:30 31 85.58 31 112.93 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
12 -6.195152008-11-01 22:49:59161.465062008-11-01 23:39:21
58-30.874732008-11-02 00:28:42136.785472008-11-02 01:18:04
104-55.554322008-11-02 02:07:25112.105892008-11-02 02:56:47
150-80.233902008-11-02 03:46:08 87.426312008-11-02 04:35:30
196-104.913482008-11-02 05:24:52 62.746732008-11-02 06:14:13
242-129.593072008-11-02 07:03:35 38.067142008-11-02 07:52:56
288-154.272652008-11-02 08:42:18 13.387562008-11-02 09:31:39
334-178.952232008-11-02 10:21:01-11.292022008-11-02 11:10:22
380156.368192008-11-02 11:59:44-35.971612008-11-02 12:49:06
426131.688602008-11-02 13:38:27-60.651192008-11-02 14:27:49
472107.009022008-11-02 15:17:10-85.330772008-11-02 16:06:32
518 82.329442008-11-02 16:55:53-110.010352008-11-02 17:45:15
564 57.649862008-11-02 18:34:36-134.689942008-11-02 19:23:58
610 32.970272008-11-02 20:13:19-159.369522008-11-02 21:02:41
656 8.290692008-11-02 21:52:03175.950902008-11-02 22:41:24
31-16.388892008-11-02 23:30:46151.271322008-11-03 00:20:07
