>ALOS Data Take Simulation(Oct. 24, 2008)

Observation Area

PRISM

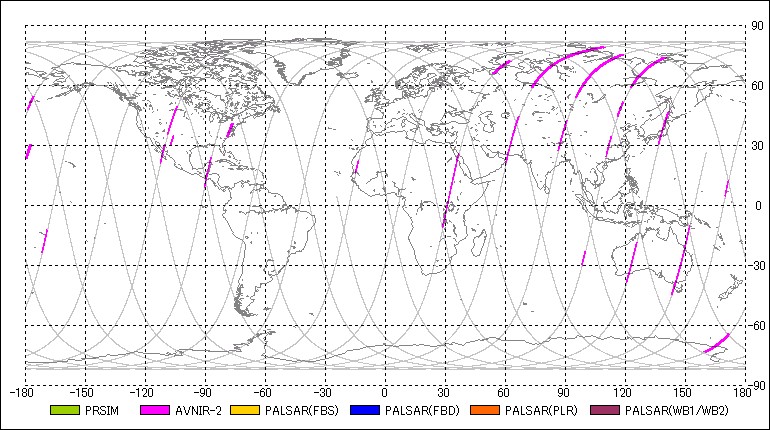

AVNIR-2

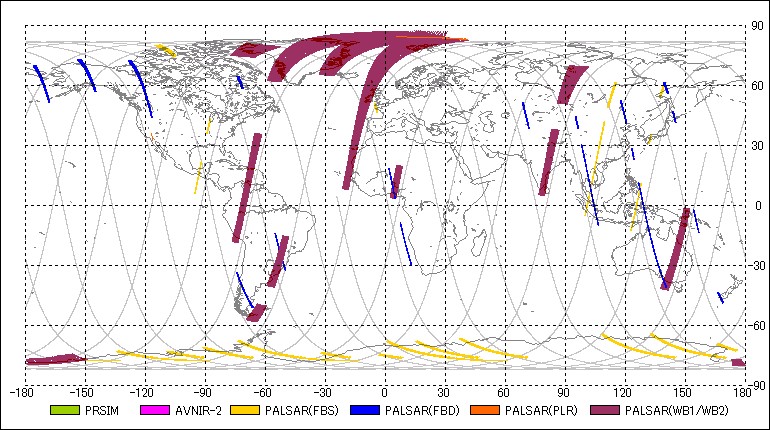

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12008-10-24 00:07:202008-10-24 00:19:18 00:11:58 25 180.27 25 223.91 27.10 80
2AV2OBS2008-10-24 00:10:062008-10-24 00:19:39 00:09:33 25 190.30 25 225.13 0.00 -
3PSRFBS2008-10-24 00:31:202008-10-24 00:37:12 00:05:52 25 267.73 25 289.13 34.30 7
4PSRFBS2008-10-24 01:28:372008-10-24 01:31:19 00:02:42 71 116.70 71 126.54 34.30 7
5AV2OBS2008-10-24 01:32:552008-10-24 01:37:33 00:04:38 71 132.38 71 149.27 0.00 -
6PSMOB22008-10-24 01:32:562008-10-24 01:37:34 00:04:38 71 132.38 71 149.27 0.00 -
7PSRFBS2008-10-24 01:35:572008-10-24 01:37:49 00:01:52 71 143.44 71 150.25 34.30 7
8PSRFBS2008-10-24 01:42:432008-10-24 01:49:49 00:07:06 71 168.05 71 193.95 34.30 7
9PSMOB12008-10-24 01:44:292008-10-24 01:50:13 00:05:44 71 174.50 71 195.40 -1.20 -
10AV2OBS2008-10-24 01:51:052008-10-24 01:56:35 00:05:30 71 198.56 71 218.62 0.00 -
11PSRFBS2008-10-24 02:11:472008-10-24 02:13:21 00:01:34 71 274.05 71 279.77 34.30 7
12PSRFBD2008-10-24 02:25:422008-10-24 02:31:32 00:05:50 71 324.80 71 346.08 34.30 43
13PSRFBD2008-10-24 02:50:542008-10-24 02:53:10 00:02:16 117 56.77 117 65.03 34.30 43
14AV2OBS2008-10-24 03:03:522008-10-24 03:08:20 00:04:28 117 104.05 117 120.34 0.00 -
15PSRFBS2008-10-24 03:07:202008-10-24 03:11:32 00:04:12 117 116.70 117 132.01 34.30 7
16AV2OBS2008-10-24 03:10:232008-10-24 03:12:25 00:02:02 117 127.76 117 135.17 0.00 -
17PSRFBS2008-10-24 03:12:532008-10-24 03:26:29 00:13:36 117 136.87 117 186.47 34.30 7
18AV2OBS2008-10-24 03:15:102008-10-24 03:17:58 00:02:48 117 145.20 117 155.41 0.00 -
19PSMOB12008-10-24 03:30:212008-10-24 03:32:57 00:02:36 117 200.57 117 210.05 -1.20 -
20AV2OBS2008-10-24 03:31:062008-10-24 03:32:58 00:01:52 117 203.31 117 210.11 0.00 -
21PSRFBS2008-10-24 03:50:352008-10-24 03:52:27 00:01:52 117 274.42 117 281.22 34.30 7
22PSRFBD2008-10-24 03:59:062008-10-24 04:04:48 00:05:42 117 305.41 117 326.20 34.30 43
23PSRFBS2008-10-24 04:34:092008-10-24 04:36:23 00:02:14 163 73.30 163 81.44 34.30 7
24PSMOB12008-10-24 04:41:232008-10-24 04:47:59 00:06:36 163 99.62 163 123.69 -1.20 -
25AV2OBS2008-10-24 04:42:092008-10-24 04:48:29 00:06:20 163 102.41 163 125.51 0.00 -
26PSRWB12008-10-24 04:43:462008-10-24 04:49:40 00:05:54 163 108.31 163 129.82 27.10 80
27AV2OBS2008-10-24 04:51:372008-10-24 04:55:55 00:04:18 163 137.00 163 152.68 0.00 -
28PSMOB22008-10-24 04:51:532008-10-24 04:56:41 00:04:48 163 137.97 163 155.47 0.00 -
29PSRWB12008-10-24 04:52:392008-10-24 05:02:19 00:09:40 163 140.70 163 175.96 27.10 80
30PSRFBS2008-10-24 05:27:292008-10-24 05:33:23 00:05:54 163 267.73 163 289.25 34.30 7
31PSRPLR2008-10-24 06:01:042008-10-24 06:02:56 00:01:52 209 30.21 209 37.01 23.10 128
32PSRFBD2008-10-24 06:04:142008-10-24 06:12:52 00:08:38 209 41.76 209 73.24 34.30 43
33PSMOB12008-10-24 06:18:442008-10-24 06:26:34 00:07:50 209 94.63 209 123.20 -1.20 -
34AV2OBS2008-10-24 06:19:272008-10-24 06:25:47 00:06:20 209 97.25 209 120.34 0.00 -
35AV2OBS2008-10-24 06:29:502008-10-24 06:36:22 00:06:32 209 135.11 209 158.94 0.00 -
36PSMOB22008-10-24 06:30:362008-10-24 06:35:22 00:04:46 209 137.97 209 155.35 0.00 -
37PSRFBS2008-10-24 07:07:582008-10-24 07:11:00 00:03:02 209 274.17 209 285.24 34.30 7
38PSRFBD2008-10-24 07:46:342008-10-24 07:51:44 00:05:10 255 54.94 255 73.79 34.30 43
39AV2OBS2008-10-24 08:00:342008-10-24 08:02:26 00:01:52 255 106.00 255 112.81 0.00 -
40PSMOB12008-10-24 08:02:542008-10-24 08:05:18 00:02:24 255 114.51 255 123.26 -1.20 -
41PSMOB12008-10-24 08:13:012008-10-24 08:31:39 00:18:38 255 151.40 255 219.35 -1.20 -
42AV2OBS2008-10-24 08:13:462008-10-24 08:23:58 00:10:12 255 154.14 255 191.33 0.00 -
43PSRFBS2008-10-24 08:46:392008-10-24 08:48:55 00:02:16 255 274.11 255 282.38 34.30 7
44PSRFBD2008-10-24 09:23:522008-10-24 09:29:36 00:05:44 301 49.78 301 70.69 34.30 43
45PSMOB12008-10-24 09:38:512008-10-24 09:42:11 00:03:20 301 104.42 301 116.57 -1.20 -
46PSMOB12008-10-24 09:47:432008-10-24 09:59:39 00:11:56 301 136.75 301 180.27 -1.20 -
47PSRWB12008-10-24 09:53:462008-10-24 09:58:52 00:05:06 301 158.82 301 177.41 27.10 80
48PSRFBS2008-10-24 10:23:392008-10-24 10:27:41 00:04:02 301 267.79 301 282.50 34.30 7
49PSRWB12008-10-24 11:14:222008-10-24 11:36:25 00:22:03 347 92.75 347 173.16 27.10 80
50PSMOB12008-10-24 11:29:202008-10-24 11:36:20 00:07:00 347 147.33 347 172.86 -1.20 -
51AV2OBS2008-10-24 11:32:032008-10-24 11:33:55 00:01:52 347 157.24 347 164.04 0.00 -
52PSRFBD2008-10-24 12:13:232008-10-24 12:15:33 00:02:10 347 307.97 347 315.87 34.30 43
53PSRFBD2008-10-24 12:23:152008-10-24 12:27:09 00:03:54 347 343.95 347 358.17 34.30 43
54PSRFBD2008-10-24 12:38:272008-10-24 12:40:41 00:02:14 393 39.38 393 47.53 34.30 43
55PSRFBD2008-10-24 12:42:302008-10-24 12:44:42 00:02:12 393 54.15 393 62.18 34.30 43
56PSRWB12008-10-24 12:52:292008-10-24 12:59:16 00:06:47 393 90.56 393 115.30 27.10 80
57PSRWB12008-10-24 13:20:532008-10-24 13:28:39 00:07:46 393 194.13 393 222.45 27.10 80
58PSRWB12008-10-24 13:30:342008-10-24 13:33:34 00:03:00 393 229.44 393 240.38 27.10 80
59PSRFBS2008-10-24 13:40:512008-10-24 13:43:21 00:02:30 393 266.94 393 276.06 34.30 7
60PSRFBS2008-10-24 13:44:352008-10-24 13:46:29 00:01:54 393 280.50 393 287.42 34.30 7
61PSRFBD2008-10-24 13:54:212008-10-24 14:09:35 00:15:14 393 316.17 439 11.73 34.30 43
62PSRFBD2008-10-24 14:12:012008-10-24 14:14:19 00:02:18 439 20.60 439 28.99 34.30 43
63PSRFBD2008-10-24 14:17:032008-10-24 14:20:55 00:03:52 439 38.96 439 53.06 34.30 43
64PSRWB12008-10-24 14:30:332008-10-24 14:38:50 00:08:17 439 88.19 439 118.40 27.10 80
65PSMOB12008-10-24 14:34:502008-10-24 14:37:26 00:02:36 439 103.81 439 113.29 -1.20 -
66PSMOB12008-10-24 14:40:282008-10-24 14:43:54 00:03:26 439 124.35 439 136.87 -1.20 -
67PSRWB12008-10-24 14:45:312008-10-24 15:01:05 00:15:34 439 142.77 439 199.54 27.10 80
68PSRFBS2008-10-24 15:21:342008-10-24 15:26:52 00:05:18 439 274.23 439 293.56 34.30 7
69PSRFBD2008-10-24 15:41:442008-10-24 15:53:34 00:11:50 439 347.78 485 30.94 34.30 43
70PSRFBD2008-10-24 15:55:072008-10-24 15:57:25 00:02:18 485 36.59 485 44.98 34.30 43
71PSRPLR2008-10-24 16:08:092008-10-24 16:10:01 00:01:52 485 84.12 485 90.93 21.50 127
72PSRWB12008-10-24 16:11:432008-10-24 16:14:03 00:02:20 485 97.12 485 105.63 27.10 80
73PSMOB12008-10-24 16:15:442008-10-24 16:21:32 00:05:48 485 111.77 485 132.92 -1.20 -
74PSRFBS2008-10-24 16:22:102008-10-24 16:24:52 00:02:42 485 135.23 485 145.08 34.30 7
75AV2OBS2008-10-24 16:22:522008-10-24 16:24:44 00:01:52 485 137.73 485 144.53 34.30 -
76AV2OBS2008-10-24 16:27:472008-10-24 16:32:01 00:04:14 485 155.72 485 171.15 0.00 -
77PSRFBS2008-10-24 16:28:092008-10-24 16:33:09 00:05:00 485 156.99 485 175.23 34.30 7
78PSRWB12008-10-24 16:56:262008-10-24 16:59:14 00:02:48 485 260.19 485 270.41 27.10 80
79PSRFBS2008-10-24 17:00:212008-10-24 17:05:33 00:05:12 485 274.42 485 293.38 34.30 7
80PSRFBD2008-10-24 17:33:502008-10-24 17:38:02 00:04:12 531 36.59 531 51.91 34.30 43
81PSMOB12008-10-24 17:58:412008-10-24 18:07:21 00:08:40 531 127.21 531 158.82 -1.20 -
82AV2OBS2008-10-24 17:59:272008-10-24 18:07:13 00:07:46 531 129.95 531 158.27 0.00 -
83PSMOB12008-10-24 21:33:162008-10-24 21:35:52 00:02:36 623 189.69 623 199.17 -1.20 -
84AV2OBS2008-10-24 21:33:582008-10-24 21:37:04 00:03:06 623 192.30 623 203.61 0.00 -
85AV2OBS2008-10-24 21:48:322008-10-24 21:51:16 00:02:44 623 245.36 623 255.33 0.00 -
86PSRFBS2008-10-24 21:56:292008-10-24 22:00:57 00:04:28 623 274.42 623 290.71 34.30 7
87PSRFBD2008-10-24 22:11:042008-10-24 22:17:36 00:06:32 623 327.54 623 351.36 34.30 43
88PSRFBD2008-10-24 22:20:182008-10-24 22:25:06 00:04:48 669 1.22 669 18.72 34.30 43
89PSRFBS2008-10-24 22:32:112008-10-24 22:34:03 00:01:52 669 44.61 669 51.42 34.30 7
90PSMOB12008-10-24 22:48:292008-10-24 22:56:25 00:07:56 669 103.99 669 132.92 -1.20 -
91AV2OBS2008-10-24 22:54:142008-10-24 22:56:06 00:01:52 669 124.96 669 131.77 0.00 -
92AV2OBS2008-10-24 23:00:382008-10-24 23:02:30 00:01:52 669 148.36 669 155.17 41.50 -
93AV2OBS2008-10-24 23:05:542008-10-24 23:08:04 00:02:10 669 167.51 669 175.41 0.00 -
94PSRFBS2008-10-24 23:35:122008-10-24 23:39:14 00:04:02 669 274.36 669 289.06 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
25-13.169822008-10-23 23:17:53154.490392008-10-24 00:07:15
71-37.849402008-10-24 00:56:36129.810812008-10-24 01:45:58
117-62.528982008-10-24 02:35:19105.131232008-10-24 03:24:41
163-87.208562008-10-24 04:14:02 80.451642008-10-24 05:03:24
209-111.888152008-10-24 05:52:45 55.772062008-10-24 06:42:07
255-136.567732008-10-24 07:31:29 31.092482008-10-24 08:20:50
301-161.247312008-10-24 09:10:12 6.412902008-10-24 09:59:33
347174.073102008-10-24 10:48:55-18.266692008-10-24 11:38:16
393149.393522008-10-24 12:27:38-42.946272008-10-24 13:16:59
439124.713942008-10-24 14:06:21-67.625852008-10-24 14:55:43
485100.034362008-10-24 15:45:04-92.305442008-10-24 16:34:26
531 75.354772008-10-24 17:23:47-116.985022008-10-24 18:13:09
577 50.675192008-10-24 19:02:30-141.664602008-10-24 19:51:52
623 25.995612008-10-24 20:41:13-166.344182008-10-24 21:30:35
669 1.316032008-10-24 22:19:56168.976232008-10-24 23:09:18
44-23.363562008-10-24 23:58:40144.296652008-10-25 00:48:01
