>ALOS Data Take Simulation(Jul. 22, 2008)

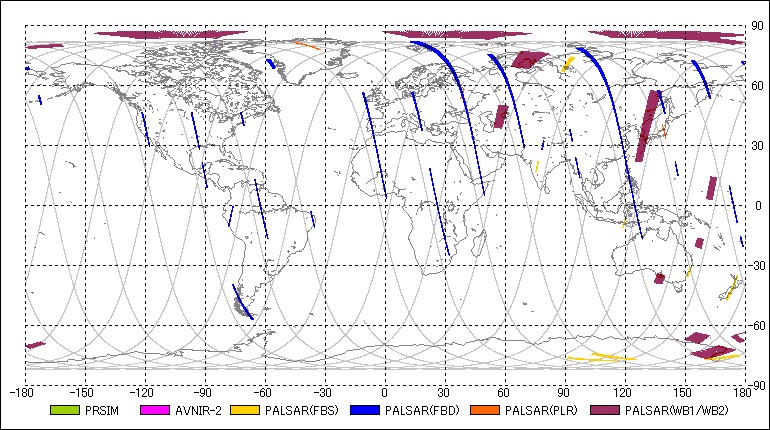

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSMOB12008-07-22 00:03:402008-07-22 00:10:28 00:06:48 33 104.30 33 129.09 -1.20 -
2AV2OBS2008-07-22 00:08:282008-07-22 00:10:20 00:01:52 33 121.80 33 128.61 0.00 -
3AV2OBS2008-07-22 00:21:302008-07-22 00:23:22 00:01:52 33 169.33 33 176.14 0.00 -
4PSMOB22008-07-22 00:28:292008-07-22 00:32:07 00:03:38 33 194.80 33 208.05 0.00 -
5AV2OBS2008-07-22 00:32:352008-07-22 00:35:57 00:03:22 33 209.75 33 222.03 -21.50 -
6PSRWB12008-07-22 00:33:412008-07-22 00:35:33 00:01:52 33 213.70 33 220.51 27.10 80
7PSRFBD2008-07-22 01:10:042008-07-22 01:13:02 00:02:58 33 346.44 33 357.26 34.30 43
8PSRFBD2008-07-22 01:32:112008-07-22 01:34:03 00:01:52 79 67.04 79 73.85 34.30 43
9PSMOB12008-07-22 01:41:542008-07-22 01:57:44 00:15:50 79 102.53 79 160.27 -1.20 -
10AV2OBS2008-07-22 01:46:022008-07-22 01:55:32 00:09:30 79 117.61 79 152.25 0.00 -
11PSRWB12008-07-22 01:47:002008-07-22 01:57:26 00:10:26 79 121.07 79 159.12 27.10 80
12AV2OBS2008-07-22 02:00:202008-07-22 02:06:30 00:06:10 79 169.69 79 192.18 0.00 -
13PSMOB22008-07-22 02:00:222008-07-22 02:09:50 00:09:28 79 169.82 79 204.34 0.00 -
14PSRFBS2008-07-22 02:04:382008-07-22 02:06:30 00:01:52 79 185.44 79 192.24 34.30 7
15AV2OBS2008-07-22 02:12:242008-07-22 02:14:40 00:02:16 79 213.70 79 221.96 0.00 -
16PSRFBD2008-07-22 02:47:192008-07-22 02:56:07 00:08:48 79 341.03 125 13.13 34.30 43
17PSRFBD2008-07-22 03:02:532008-07-22 03:05:23 00:02:30 125 37.80 125 46.92 34.30 43
18AV2OBS2008-07-22 03:24:442008-07-22 03:43:22 00:18:38 125 117.55 125 185.50 0.00 -
19PSMOB22008-07-22 03:25:492008-07-22 03:44:03 00:18:14 125 121.44 125 187.93 0.00 -
20PSRFBD2008-07-22 04:14:302008-07-22 04:20:12 00:05:42 125 298.97 125 319.76 34.30 43
21PSRFBD2008-07-22 04:33:032008-07-22 04:37:11 00:04:08 171 6.69 171 21.76 34.30 43
22PSRFBD2008-07-22 04:38:152008-07-22 04:44:05 00:05:50 171 25.65 171 46.92 34.30 43
23PSRFBS2008-07-22 04:59:432008-07-22 05:02:21 00:02:38 171 103.87 171 113.47 34.30 7
24PSMOB22008-07-22 05:00:462008-07-22 05:13:42 00:12:56 171 107.70 171 154.86 0.00 -
25AV2OBS2008-07-22 05:03:242008-07-22 05:12:56 00:09:32 171 117.36 171 152.13 0.00 -
26PSRFBD2008-07-22 05:11:232008-07-22 05:13:15 00:01:52 171 146.42 171 153.22 30.80 42
27PSRFBS2008-07-22 05:14:102008-07-22 05:16:18 00:02:08 171 156.57 171 164.35 34.30 7
28PSRFBD2008-07-22 06:17:312008-07-22 06:22:47 00:05:16 217 27.59 217 46.80 34.30 43
29PSMOB22008-07-22 06:37:142008-07-22 06:50:16 00:13:02 217 99.56 217 147.09 0.00 -
30PSRWB12008-07-22 06:37:442008-07-22 06:40:30 00:02:46 217 101.32 217 111.41 27.10 80
31AV2OBS2008-07-22 06:42:092008-07-22 06:51:07 00:08:58 217 117.42 217 150.12 0.00 -
32PSRWB12008-07-22 06:45:102008-07-22 06:48:54 00:03:44 217 128.49 217 142.10 27.10 80
33PSRWB12008-07-22 08:10:072008-07-22 08:13:50 00:03:43 263 78.22 263 91.78 27.10 80
34PSMOB12008-07-22 08:15:002008-07-22 08:29:08 00:14:08 263 96.03 263 147.57 -1.20 -
35AV2OBS2008-07-22 08:19:272008-07-22 08:26:23 00:06:56 263 112.26 263 137.54 0.00 -
36PSRPLR2008-07-22 08:21:392008-07-22 08:23:31 00:01:52 263 120.28 263 127.09 21.50 127
37AV2OBS2008-07-22 08:42:582008-07-22 08:44:50 00:01:52 263 198.02 263 204.83 0.00 -
38PSMOB12008-07-22 08:45:332008-07-22 08:48:49 00:03:16 263 207.44 263 219.35 -1.20 -
39PSRFBD2008-07-22 09:40:422008-07-22 09:42:38 00:01:56 309 48.56 309 55.61 34.30 43
40PSRFBD2008-07-22 09:45:312008-07-22 09:47:23 00:01:52 309 66.13 309 72.93 34.30 43
41PSMOB12008-07-22 09:55:442008-07-22 10:07:14 00:11:30 309 103.39 309 145.32 -1.20 -
42AV2OBS2008-07-22 09:58:322008-07-22 10:06:28 00:07:56 309 113.60 309 142.53 -34.30 -
43PSRFBD2008-07-22 10:59:452008-07-22 11:01:55 00:02:10 309 336.84 309 344.74 34.30 43
44PSRFBD2008-07-22 11:03:062008-07-22 11:08:50 00:05:44 309 349.05 355 9.97 34.30 43
45PSRFBD2008-07-22 11:20:112008-07-22 11:26:15 00:06:04 355 51.36 355 73.48 34.30 43
46AV2OBS2008-07-22 11:35:302008-07-22 11:41:34 00:06:04 355 107.21 355 129.34 34.30 -
47PSMOB12008-07-22 11:37:032008-07-22 11:42:21 00:05:18 355 112.87 355 132.19 -1.20 -
48PSRWB12008-07-22 12:24:022008-07-22 12:26:34 00:02:32 355 284.20 355 293.44 27.10 80
49PSRFBD2008-07-22 12:48:192008-07-22 12:50:51 00:02:32 401 12.76 401 22.00 34.30 43
50PSRPLR2008-07-22 12:53:322008-07-22 12:56:04 00:02:32 401 31.79 401 41.03 21.50 127
51PSRFBD2008-07-22 12:56:532008-07-22 13:00:45 00:03:52 401 44.00 401 58.10 34.30 43
52AV2OBS2008-07-22 13:15:062008-07-22 13:16:58 00:01:52 401 110.37 401 117.18 0.00 -
53AV2OBS2008-07-22 13:37:502008-07-22 13:39:42 00:01:52 401 193.28 401 200.08 0.00 -
54PSRFBD2008-07-22 14:18:192008-07-22 14:45:25 00:27:06 401 340.97 447 79.80 34.30 43
55PSRWB12008-07-22 14:46:542008-07-22 14:48:46 00:01:52 447 85.21 447 92.02 27.10 80
56AV2OBS2008-07-22 14:49:402008-07-22 14:55:48 00:06:08 447 95.30 447 117.67 0.00 -
57PSMOB12008-07-22 14:56:362008-07-22 15:01:50 00:05:14 447 120.59 447 139.67 -1.20 -
58PSMOB12008-07-22 15:05:452008-07-22 15:09:17 00:03:32 447 153.95 447 166.84 -1.20 -
59PSRFBD2008-07-22 15:12:462008-07-22 15:16:10 00:03:24 447 179.54 447 191.94 34.30 43
60PSRFBD2008-07-22 16:05:282008-07-22 16:08:54 00:03:26 493 11.73 493 24.25 34.30 43
61PSRFBD2008-07-22 16:10:292008-07-22 16:12:45 00:02:16 493 30.02 493 38.29 34.30 43
62PSMOB12008-07-22 16:32:512008-07-22 16:48:41 00:15:50 493 111.53 493 169.27 -1.20 -
63PSRFBD2008-07-22 17:48:172008-07-22 18:01:57 00:13:40 539 26.62 539 76.46 34.30 43
64AV2OBS2008-07-22 18:05:132008-07-22 18:08:43 00:03:30 539 88.43 539 101.20 0.00 -
65PSMOB12008-07-22 18:10:582008-07-22 18:19:00 00:08:02 539 109.34 539 138.64 -1.20 -
66AV2OBS2008-07-22 18:13:592008-07-22 18:23:05 00:09:06 539 120.34 539 153.53 0.00 -
67PSRFBS2008-07-22 18:52:182008-07-22 18:54:10 00:01:52 539 260.13 539 266.94 34.30 7
68PSRFBS2008-07-22 18:55:342008-07-22 18:57:54 00:02:20 539 272.05 539 280.56 34.30 7
69PSRFBD2008-07-22 19:20:232008-07-22 19:42:33 00:22:10 585 2.55 585 83.39 34.30 43
70PSMOB12008-07-22 19:43:432008-07-22 19:48:03 00:04:20 585 87.64 585 103.45 -1.20 -
71PSMOB12008-07-22 19:51:062008-07-22 19:55:42 00:04:36 585 114.57 585 131.34 -1.20 -
72AV2OBS2008-07-22 19:51:562008-07-22 19:54:58 00:03:02 585 117.55 585 128.61 0.00 -
73PSMOB12008-07-22 20:12:392008-07-22 20:15:15 00:02:36 585 193.09 585 202.58 -1.20 -
74AV2OBS2008-07-22 20:13:252008-07-22 20:15:17 00:01:52 585 195.89 585 202.70 0.00 -
75PSRWB12008-07-22 20:29:122008-07-22 20:31:28 00:02:16 585 253.45 585 261.71 27.10 80
76PSRFBS2008-07-22 20:33:242008-07-22 20:35:36 00:02:12 585 268.83 585 276.85 34.30 7
77PSRFBD2008-07-22 20:50:552008-07-22 21:03:31 00:12:36 585 332.70 631 18.66 34.30 43
78PSRFBD2008-07-22 21:08:082008-07-22 21:14:04 00:05:56 631 35.43 631 57.07 34.30 43
79PSMOB12008-07-22 21:47:092008-07-22 21:50:23 00:03:14 631 177.72 631 189.51 -1.20 -
80AV2OBS2008-07-22 21:47:552008-07-22 21:49:47 00:01:52 631 180.51 631 187.32 0.00 -
81PSRFBS2008-07-22 21:57:102008-07-22 22:01:22 00:04:12 631 214.25 631 229.56 34.30 7
82PSRWB12008-07-22 22:05:372008-07-22 22:07:29 00:01:52 631 245.06 631 251.87 27.10 80
83PSRFBD2008-07-22 22:37:302008-07-22 22:52:44 00:15:14 6 1.40 6 56.95 34.30 43
84PSRPLR2008-07-22 22:58:162008-07-22 23:00:08 00:01:52 6 77.07 6 83.88 25.20 130
85PSRWB12008-07-22 23:00:552008-07-22 23:02:47 00:01:52 6 86.73 6 93.54 27.10 80
86AV2OBS2008-07-22 23:05:392008-07-22 23:07:31 00:01:52 6 104.05 6 110.86 21.50 -
87PSMOB12008-07-22 23:10:442008-07-22 23:13:30 00:02:46 6 122.59 6 132.68 -1.20 -
88PSRWB12008-07-22 23:22:132008-07-22 23:25:55 00:03:42 6 164.47 6 177.96 27.10 80
89PSRWB12008-07-22 23:30:462008-07-22 23:32:38 00:01:52 6 195.59 6 202.39 27.10 80
90AV2OBS2008-07-22 23:33:492008-07-22 23:37:31 00:03:42 6 206.71 6 220.20 -34.30 -
91PSRFBS2008-07-22 23:34:502008-07-22 23:36:42 00:01:52 6 210.42 6 217.22 34.30 7

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
33-17.461922008-07-21 23:35:03150.198292008-07-22 00:24:25
79-42.141502008-07-22 01:13:46125.518712008-07-22 02:03:08
125-66.821082008-07-22 02:52:29100.839132008-07-22 03:41:51
171-91.500672008-07-22 04:31:12 76.159542008-07-22 05:20:34
217-116.180252008-07-22 06:09:56 51.479962008-07-22 06:59:17
263-140.859832008-07-22 07:48:39 26.800382008-07-22 08:38:00
309-165.539412008-07-22 09:27:22 2.120792008-07-22 10:16:43
355169.781002008-07-22 11:06:05-22.558792008-07-22 11:55:26
401145.101422008-07-22 12:44:48-47.238372008-07-22 13:34:10
447120.421842008-07-22 14:23:31-71.917952008-07-22 15:12:53
493 95.742252008-07-22 16:02:14-96.597542008-07-22 16:51:36
539 71.062672008-07-22 17:40:57-121.277122008-07-22 18:30:19
585 46.383092008-07-22 19:19:40-145.956702008-07-22 20:09:02
631 21.703512008-07-22 20:58:23-170.636282008-07-22 21:47:45
6 -2.976082008-07-22 22:37:07164.684132008-07-22 23:26:28
