>ALOS Data Take Simulation(Mar. 13, 2011)

Observation Area

PRISM

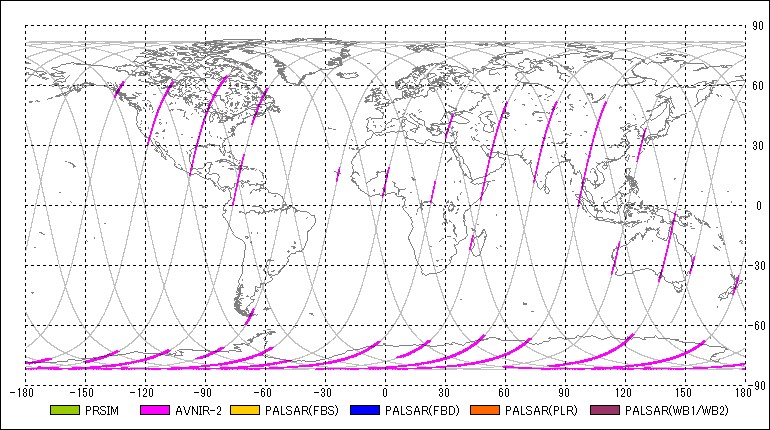

AVNIR-2

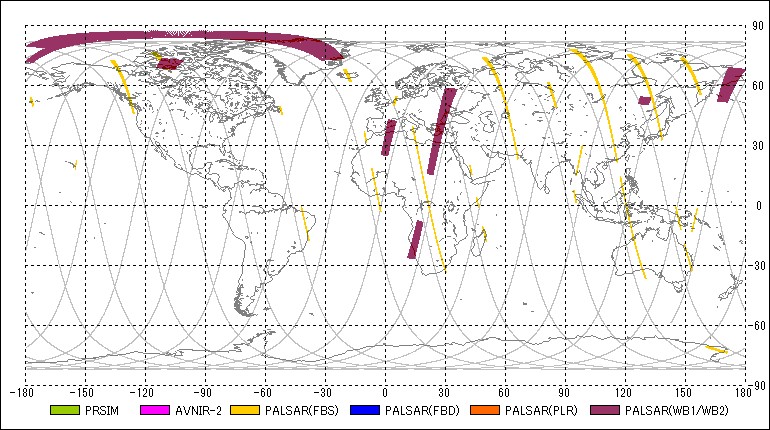

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB2	2011-03-13 00:41:44	2011-03-13 00:53:00	00:11:16	41	180.45	41	221.54	0.00	-
2	AV2	OBS	2011-03-13 00:42:31	2011-03-13 00:52:11	00:09:40	41	183.31	41	218.56	0.00	-
3	PSM	OB1	2011-03-13 00:58:46	2011-03-13 01:07:24	00:08:38	41	242.57	41	274.05	-1.20	-
4	AV2	OBS	2011-03-13 00:59:31	2011-03-13 01:04:55	00:05:24	41	245.36	41	265.06	0.00	-
5	PSR	FBS	2011-03-13 01:25:23	2011-03-13 01:30:47	00:05:24	41	339.63	41	359.33	34.30	7
6	PSR	FBS	2011-03-13 01:42:48	2011-03-13 01:44:40	00:01:52	87	43.21	87	50.02	34.30	7
7	PSM	OB2	2011-03-13 02:04:28	2011-03-13 02:06:56	00:02:28	87	122.17	87	131.16	0.00	-
8	PSR	WB1	2011-03-13 02:05:04	2011-03-13 02:06:42	00:01:38	87	124.35	87	130.31	27.10	80
9	AV2	OBS	2011-03-13 02:09:44	2011-03-13 02:14:20	00:04:36	87	141.37	87	158.15	0.00	-
10	PSM	OB1	2011-03-13 02:09:53	2011-03-13 02:12:29	00:02:36	87	141.92	87	151.40	-1.20	-
11	PSM	OB2	2011-03-13 02:15:50	2011-03-13 02:30:12	00:14:22	87	163.62	87	216.01	0.00	-
12	AV2	OBS	2011-03-13 02:25:21	2011-03-13 02:29:49	00:04:28	87	198.38	87	214.67	0.00	-
13	PSM	OB1	2011-03-13 02:37:23	2011-03-13 02:41:15	00:03:52	87	242.20	87	256.30	-1.20	-
14	AV2	OBS	2011-03-13 03:44:42	2011-03-13 03:59:15	00:14:33	133	127.76	133	180.82	0.00	-
15	PSM	OB2	2011-03-13 03:44:42	2011-03-13 03:59:54	00:15:12	133	127.70	133	183.13	0.00	-
16	PSR	FBS	2011-03-13 03:50:33	2011-03-13 03:55:23	00:04:50	133	149.03	133	166.66	34.30	7
17	PSM	OB1	2011-03-13 04:16:54	2011-03-13 04:21:18	00:04:24	133	245.18	133	261.23	-1.20	-
18	AV2	OBS	2011-03-13 04:17:40	2011-03-13 04:24:04	00:06:24	133	247.98	133	271.32	0.00	-
19	PSR	FBS	2011-03-13 05:06:34	2011-03-13 05:09:38	00:03:04	179	66.25	179	77.43	34.30	7
20	PSM	OB1	2011-03-13 05:22:41	2011-03-13 05:35:17	00:12:36	179	125.02	179	170.97	-1.20	-
21	AV2	OBS	2011-03-13 05:23:26	2011-03-13 05:34:36	00:11:10	179	127.76	179	168.48	0.00	-
22	AV2	OBS	2011-03-13 05:55:51	2011-03-13 06:02:53	00:07:02	179	245.97	179	271.62	0.00	-
23	PSR	FBS	2011-03-13 06:39:05	2011-03-13 06:47:11	00:08:06	225	43.70	225	73.24	34.30	7
24	PSM	OB1	2011-03-13 07:01:24	2011-03-13 07:16:40	00:15:16	225	125.02	225	180.70	-1.20	-
25	AV2	OBS	2011-03-13 07:02:08	2011-03-13 07:15:48	00:13:40	225	127.70	225	177.54	0.00	-
26	AV2	OBS	2011-03-13 07:20:39	2011-03-13 07:22:31	00:01:52	225	195.22	225	202.03	0.00	-
27	PSM	OB1	2011-03-13 07:34:38	2011-03-13 07:40:30	00:05:52	225	246.22	225	267.61	-1.20	-
28	AV2	OBS	2011-03-13 07:35:23	2011-03-13 07:38:03	00:02:40	225	248.95	225	258.68	0.00	-
29	PSR	WB1	2011-03-13 08:38:45	2011-03-13 08:51:17	00:12:32	271	120.04	271	165.74	27.10	80
30	PSM	OB1	2011-03-13 08:41:59	2011-03-13 08:46:55	00:04:56	271	131.83	271	149.82	-1.20	-
31	AV2	OBS	2011-03-13 08:42:37	2011-03-13 08:46:05	00:03:28	271	134.14	271	146.78	0.00	-
32	AV2	OBS	2011-03-13 08:51:57	2011-03-13 08:54:49	00:02:52	271	168.18	271	178.63	0.00	-
33	PSR	WB1	2011-03-13 08:57:09	2011-03-13 09:02:53	00:05:44	271	187.14	271	208.05	27.10	80
34	PSM	OB1	2011-03-13 09:13:27	2011-03-13 09:17:47	00:04:20	271	246.58	271	262.38	-1.20	-
35	AV2	OBS	2011-03-13 09:14:13	2011-03-13 09:20:15	00:06:02	271	249.38	271	271.38	0.00	-
36	PSR	FBS	2011-03-13 09:57:36	2011-03-13 09:59:28	00:01:52	317	47.59	317	54.40	34.30	7
37	PSR	FBS	2011-03-13 10:18:37	2011-03-13 10:20:29	00:01:52	317	124.23	317	131.04	34.30	7
38	PSR	WB1	2011-03-13 10:21:55	2011-03-13 10:27:24	00:05:29	317	136.27	317	156.26	27.10	80
39	PSM	OB1	2011-03-13 10:28:01	2011-03-13 10:33:39	00:05:38	317	158.51	317	179.05	-1.20	-
40	AV2	OBS	2011-03-13 10:28:44	2011-03-13 10:32:54	00:04:10	317	161.13	317	176.32	0.00	-
41	AV2	OBS	2011-03-13 10:55:58	2011-03-13 10:59:10	00:03:12	317	260.44	317	272.11	0.00	-
42	PSR	FBS	2011-03-13 11:37:57	2011-03-13 11:43:43	00:05:46	363	53.55	363	74.58	34.30	7
43	AV2	OBS	2011-03-13 12:07:27	2011-03-13 12:09:19	00:01:52	363	161.13	363	167.93	0.00	-
44	PSM	OB1	2011-03-13 12:31:49	2011-03-13 12:34:59	00:03:10	363	249.98	363	261.53	-1.20	-
45	AV2	OBS	2011-03-13 12:32:35	2011-03-13 12:37:41	00:05:06	363	252.78	363	271.38	0.00	-
46	PSR	FBS	2011-03-13 12:52:13	2011-03-13 12:56:37	00:04:24	363	324.38	363	340.42	34.30	7
47	PSR	FBS	2011-03-13 12:57:55	2011-03-13 13:01:49	00:03:54	363	345.16	363	359.39	34.30	7
48	PSR	FBS	2011-03-13 13:10:19	2011-03-13 13:22:55	00:12:36	409	30.39	409	76.34	34.30	7
49	AV2	OBS	2011-03-13 14:05:42	2011-03-13 14:07:58	00:02:16	409	232.36	409	240.62	0.00	-
50	PSM	OB1	2011-03-13 14:10:29	2011-03-13 14:13:43	00:03:14	409	249.80	409	261.59	-1.20	-
51	AV2	OBS	2011-03-13 14:11:15	2011-03-13 14:13:07	00:01:52	409	252.60	409	259.40	0.00	-
52	AV2	OBS	2011-03-13 14:15:16	2011-03-13 14:17:08	00:01:52	409	267.18	409	273.99	0.00	-
53	PSR	FBS	2011-03-13 14:18:29	2011-03-13 14:20:21	00:01:52	409	278.98	409	285.78	34.30	7
54	PSR	FBS	2011-03-13 14:29:50	2011-03-13 14:44:36	00:14:46	409	320.37	455	14.22	34.30	7
55	PSR	FBS	2011-03-13 14:45:58	2011-03-13 15:02:24	00:16:26	455	19.21	455	79.13	34.30	7
56	PSM	OB1	2011-03-13 15:13:03	2011-03-13 15:19:19	00:06:16	455	117.97	455	140.82	-1.20	-
57	AV2	OBS	2011-03-13 15:13:49	2011-03-13 15:18:59	00:05:10	455	120.71	455	139.55	0.00	-
58	PSM	OB1	2011-03-13 15:22:15	2011-03-13 15:34:15	00:12:00	455	151.46	455	195.22	-1.20	-
59	AV2	OBS	2011-03-13 15:23:01	2011-03-13 15:30:07	00:07:06	455	154.32	455	180.21	0.00	-
60	PSM	OB1	2011-03-13 15:49:41	2011-03-13 15:52:25	00:02:44	455	251.56	455	261.53	-1.20	-
61	AV2	OBS	2011-03-13 15:50:24	2011-03-13 15:55:08	00:04:44	455	254.18	455	271.44	0.00	-
62	PSR	FBS	2011-03-13 16:19:06	2011-03-13 16:21:30	00:02:24	455	358.84	501	7.54	34.30	7
63	PSR	FBS	2011-03-13 16:32:15	2011-03-13 16:36:27	00:04:12	501	46.80	501	62.12	34.30	7
64	AV2	OBS	2011-03-13 16:50:43	2011-03-13 17:04:45	00:14:02	501	114.14	501	165.32	0.00	-
65	PSM	OB1	2011-03-13 17:28:38	2011-03-13 17:31:14	00:02:36	501	252.35	501	261.84	-1.20	-
66	AV2	OBS	2011-03-13 17:29:17	2011-03-13 17:31:09	00:01:52	501	254.79	501	261.59	0.00	-
67	PSR	FBS	2011-03-13 18:03:50	2011-03-13 18:18:40	00:14:50	547	20.79	547	74.88	34.30	7
68	PSR	WB1	2011-03-13 18:26:57	2011-03-13 18:28:49	00:01:52	547	105.09	547	111.89	27.10	80
69	PSM	OB1	2011-03-13 18:29:34	2011-03-13 18:39:48	00:10:14	547	114.63	547	151.95	-1.20	-
70	AV2	OBS	2011-03-13 18:30:19	2011-03-13 18:39:05	00:08:46	547	117.36	547	149.33	0.00	-
71	AV2	OBS	2011-03-13 19:09:13	2011-03-13 19:12:33	00:03:20	547	259.22	547	271.38	0.00	-
72	PSR	FBS	2011-03-13 19:31:08	2011-03-13 19:33:54	00:02:46	547	339.15	547	349.24	34.30	7
73	PSR	FBS	2011-03-13 19:35:56	2011-03-13 19:37:58	00:02:02	547	356.65	593	4.07	34.30	7
74	PSR	FBS	2011-03-13 19:40:27	2011-03-13 19:42:19	00:01:52	593	13.13	593	19.94	34.30	7
75	PSM	OB1	2011-03-13 20:08:17	2011-03-13 20:11:49	00:03:32	593	114.57	593	127.45	-1.20	-
76	AV2	OBS	2011-03-13 20:09:03	2011-03-13 20:11:13	00:02:10	593	117.36	593	125.27	0.00	-
77	PSR	FBS	2011-03-13 20:20:02	2011-03-13 20:21:54	00:01:52	593	157.42	593	164.22	50.80	17
78	PSM	OB1	2011-03-13 20:48:48	2011-03-13 20:51:24	00:02:36	593	262.32	593	271.80	-1.20	-
79	AV2	OBS	2011-03-13 20:50:08	2011-03-13 20:51:34	00:01:26	593	267.18	593	272.41	0.00	-
80	PSR	FBS	2011-03-13 21:05:33	2011-03-13 21:26:27	00:20:54	593	323.40	639	39.63	34.30	7
81	AV2	OBS	2011-03-13 22:14:41	2011-03-13 22:17:19	00:02:38	639	215.52	639	225.13	0.00	-
82	PSM	OB1	2011-03-13 22:23:08	2011-03-13 22:27:18	00:04:10	639	246.40	639	261.59	-1.20	-
83	AV2	OBS	2011-03-13 22:23:53	2011-03-13 22:30:53	00:07:00	639	249.13	639	274.66	0.00	-
84	PSR	FBS	2011-03-13 22:52:43	2011-03-13 22:59:25	00:06:42	639	354.22	14	18.66	34.30	7
85	PSR	FBS	2011-03-13 23:02:15	2011-03-13 23:04:27	00:02:12	14	28.99	14	37.01	34.30	7
86	PSR	FBS	2011-03-13 23:10:45	2011-03-13 23:13:07	00:02:22	14	59.99	14	68.62	34.30	7
87	PSR	WB1	2011-03-13 23:13:58	2011-03-13 23:29:41	00:15:43	14	71.78	14	129.09	27.10	80
88	PSR	FBS	2011-03-13 23:43:53	2011-03-13 23:47:41	00:03:48	14	180.82	14	194.68	34.30	7
89	PSM	OB2	2011-03-13 23:44:45	2011-03-13 23:48:05	00:03:20	14	183.98	14	196.13	0.00	-
90	AV2	OBS	2011-03-13 23:50:42	2011-03-13 23:53:03	00:02:21	14	205.68	14	214.25	0.00	-
91	PSM	OB2	2011-03-13 23:50:53	2011-03-13 23:53:21	00:02:28	14	206.34	14	215.34	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
41	-21.75402	2011-03-12 23:52:13	145.90619	2011-03-13 00:41:35
87	-46.43360	2011-03-13 01:30:56	121.22661	2011-03-13 02:20:18
133	-71.11318	2011-03-13 03:09:39	96.54702	2011-03-13 03:59:01
179	-95.79277	2011-03-13 04:48:23	71.86744	2011-03-13 05:37:44
225	-120.47235	2011-03-13 06:27:06	47.18786	2011-03-13 07:16:27
271	-145.15193	2011-03-13 08:05:49	22.50828	2011-03-13 08:55:10
317	-169.83152	2011-03-13 09:44:32	-2.17131	2011-03-13 10:33:53
363	165.48890	2011-03-13 11:23:15	-26.85089	2011-03-13 12:12:37
409	140.80932	2011-03-13 13:01:58	-51.53047	2011-03-13 13:51:20
455	116.12974	2011-03-13 14:40:41	-76.21006	2011-03-13 15:30:03
501	91.45015	2011-03-13 16:19:24	-100.88964	2011-03-13 17:08:46
547	66.77057	2011-03-13 17:58:07	-125.56922	2011-03-13 18:47:29
593	42.09099	2011-03-13 19:36:50	-150.24880	2011-03-13 20:26:12
639	17.41141	2011-03-13 21:15:34	-174.92839	2011-03-13 22:04:55
14	-7.26818	2011-03-13 22:54:17	160.39203	2011-03-13 23:43:38
