>ALOS Data Take Simulation(Nov. 02, 2010)

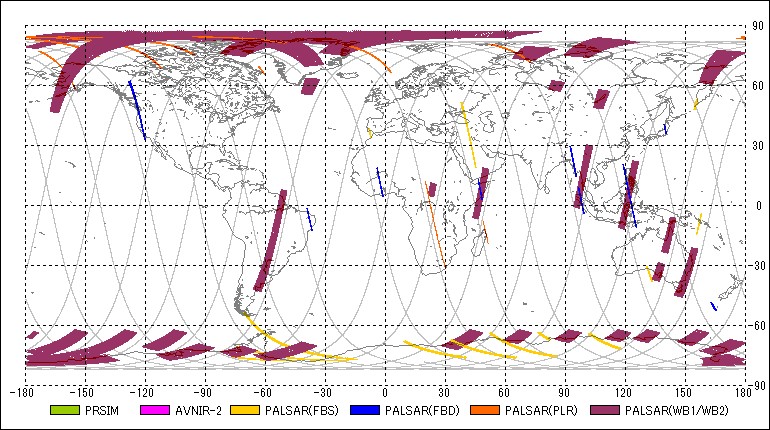

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-11-02 00:00:15	2010-11-02 00:14:19	00:14:04	36	68.38	36	119.67	27.10	80
2	PSR	FBS	2010-11-02 00:15:56	2010-11-02 00:18:06	00:02:10	36	125.51	36	133.41	34.30	7
3	AV2	OBS	2010-11-02 00:23:37	2010-11-02 00:25:29	00:01:52	36	153.53	36	160.33	0.00	-
4	PSM	OB2	2010-11-02 00:23:38	2010-11-02 00:25:30	00:01:52	36	153.59	36	160.40	0.00	-
5	PSM	OB2	2010-11-02 00:30:49	2010-11-02 00:42:49	00:12:00	36	179.78	36	223.55	0.00	-
6	PSR	WB1	2010-11-02 00:32:19	2010-11-02 00:37:45	00:05:26	36	185.25	36	205.07	27.10	80
7	PSR	WB1	2010-11-02 00:38:40	2010-11-02 00:41:38	00:02:58	36	208.41	36	219.23	27.10	80
8	PSR	WB1	2010-11-02 00:48:24	2010-11-02 00:50:24	00:02:00	36	243.91	36	251.20	27.10	80
9	PSR	FBD	2010-11-02 01:16:01	2010-11-02 01:19:45	00:03:44	36	344.62	36	358.23	34.30	43
10	PSR	PLR	2010-11-02 01:37:46	2010-11-02 01:39:38	00:01:52	82	63.94	82	70.75	21.50	127
11	PSM	OB2	2010-11-02 01:53:57	2010-11-02 02:02:23	00:08:26	82	122.96	82	153.71	0.00	-
12	AV2	OBS	2010-11-02 01:54:21	2010-11-02 02:03:09	00:08:48	82	124.41	82	156.51	0.00	-
13	PSR	WB1	2010-11-02 02:03:10	2010-11-02 02:13:10	00:10:00	82	156.63	82	193.09	27.10	80
14	PSM	OB2	2010-11-02 02:05:54	2010-11-02 02:20:46	00:14:52	82	166.53	82	220.75	0.00	-
15	PSR	WB1	2010-11-02 02:27:06	2010-11-02 02:29:16	00:02:10	82	243.85	82	251.75	27.10	80
16	PSR	PLR	2010-11-02 03:19:28	2010-11-02 03:24:08	00:04:40	128	74.82	128	91.84	21.50	127
17	PSR	WB1	2010-11-02 03:32:06	2010-11-02 03:35:14	00:03:08	128	120.89	128	132.32	27.10	80
18	PSM	OB2	2010-11-02 03:33:58	2010-11-02 03:50:00	00:16:02	128	127.70	128	186.17	0.00	-
19	AV2	OBS	2010-11-02 03:33:59	2010-11-02 03:49:25	00:15:26	128	127.76	128	184.04	0.00	-
20	PSR	WB1	2010-11-02 03:39:43	2010-11-02 03:49:01	00:09:18	128	148.67	128	182.58	27.10	80
21	PSR	WB1	2010-11-02 04:05:49	2010-11-02 04:08:09	00:02:20	128	243.91	128	252.42	27.10	80
22	PSR	FBS	2010-11-02 04:13:33	2010-11-02 04:22:39	00:09:06	128	272.05	128	305.23	34.30	7
23	PSR	PLR	2010-11-02 04:56:11	2010-11-02 05:02:21	00:06:10	174	67.53	174	90.01	21.50	127
24	PSR	WB1	2010-11-02 05:03:27	2010-11-02 05:06:41	00:03:14	174	94.03	174	105.82	27.10	80
25	PSR	WB1	2010-11-02 05:09:34	2010-11-02 05:11:30	00:01:56	174	116.33	174	123.38	27.10	80
26	PSM	OB1	2010-11-02 05:11:57	2010-11-02 05:25:43	00:13:46	174	125.02	174	175.23	-1.20	-
27	AV2	OBS	2010-11-02 05:12:41	2010-11-02 05:24:59	00:12:18	174	127.76	174	172.61	0.00	-
28	PSR	WB1	2010-11-02 05:44:33	2010-11-02 05:47:49	00:03:16	174	243.91	174	255.82	27.10	80
29	PSR	FBS	2010-11-02 05:51:04	2010-11-02 05:56:02	00:04:58	174	267.67	174	285.78	34.30	7
30	PSR	FBD	2010-11-02 06:24:44	2010-11-02 06:33:34	00:08:50	220	30.45	220	62.66	34.30	43
31	PSR	PLR	2010-11-02 06:36:31	2010-11-02 06:40:23	00:03:52	220	73.42	220	87.52	21.50	127
32	PSR	WB1	2010-11-02 06:43:24	2010-11-02 06:45:52	00:02:28	220	98.52	220	107.52	27.10	80
33	PSM	OB1	2010-11-02 06:50:40	2010-11-02 06:59:56	00:09:16	220	125.02	220	158.82	-1.20	-
34	AV2	OBS	2010-11-02 06:51:25	2010-11-02 06:59:09	00:07:44	220	127.76	220	155.96	0.00	-
35	PSR	WB1	2010-11-02 07:00:24	2010-11-02 07:07:52	00:07:28	220	160.52	220	187.75	27.10	80
36	PSR	FBS	2010-11-02 07:29:54	2010-11-02 07:32:32	00:02:38	220	268.10	220	277.70	34.30	7
37	PSM	DCA	2010-11-02 07:46:28	2010-11-02 07:52:16	00:05:48	220	328.51	220	349.66	0.00	-
38	PSM	ECA	2010-11-02 07:57:27	2010-11-02 08:03:15	00:05:48	266	8.51	266	29.66	0.00	-
39	PSR	PLR	2010-11-02 08:10:46	2010-11-02 08:16:46	00:06:00	266	57.13	266	79.01	21.50	127
40	AV2	OBS	2010-11-02 08:27:18	2010-11-02 08:40:10	00:12:52	266	117.42	266	164.35	0.00	-
41	PSM	OB1	2010-11-02 08:30:26	2010-11-02 08:36:10	00:05:44	266	128.85	266	149.76	-1.20	-
42	PSR	WB1	2010-11-02 08:41:09	2010-11-02 08:43:33	00:02:24	266	167.93	266	176.68	27.10	80
43	AV2	OBS	2010-11-02 10:11:27	2010-11-02 10:22:08	00:10:41	312	137.18	312	176.14	0.00	-
44	PSM	OB1	2010-11-02 10:11:35	2010-11-02 10:22:51	00:11:16	312	137.73	312	178.81	-1.20	-
45	PSR	WB1	2010-11-02 10:42:42	2010-11-02 10:46:02	00:03:20	312	251.20	312	263.36	27.10	80
46	PSM	OB1	2010-11-02 11:52:40	2010-11-02 11:55:24	00:02:44	358	146.36	358	156.32	-1.20	-
47	AV2	OBS	2010-11-02 11:56:50	2010-11-02 11:58:42	00:01:52	358	161.49	358	168.30	-21.50	-
48	PSR	WB1	2010-11-02 12:22:10	2010-11-02 12:24:02	00:01:52	358	253.87	358	260.68	27.10	80
49	PSR	FBD	2010-11-02 12:35:50	2010-11-02 12:37:42	00:01:52	358	303.77	358	310.58	34.30	43
50	PSR	FBD	2010-11-02 13:00:31	2010-11-02 13:02:23	00:01:52	404	33.79	404	40.60	34.30	43
51	PSR	WB1	2010-11-02 13:15:02	2010-11-02 13:19:54	00:04:52	404	86.67	404	104.42	27.10	80
52	PSR	WB1	2010-11-02 13:22:46	2010-11-02 13:25:34	00:02:48	404	114.93	404	125.14	27.10	80
53	PSR	WB1	2010-11-02 13:38:12	2010-11-02 13:52:52	00:14:40	404	171.21	404	224.70	27.10	80
54	PSM	OB1	2010-11-02 13:39:14	2010-11-02 13:52:30	00:13:16	404	174.92	404	223.30	-1.20	-
55	PSM	OB1	2010-11-02 13:54:35	2010-11-02 13:57:15	00:02:40	404	230.96	404	240.68	-1.20	-
56	AV2	OBS	2010-11-02 13:55:22	2010-11-02 13:57:38	00:02:16	404	233.76	404	242.02	0.00	-
57	PSR	WB1	2010-11-02 14:00:25	2010-11-02 14:03:23	00:02:58	404	252.23	404	263.05	27.10	80
58	PSR	FBS	2010-11-02 14:18:39	2010-11-02 14:21:31	00:02:52	404	318.73	404	329.18	34.30	7
59	PSR	FBD	2010-11-02 14:26:10	2010-11-02 14:35:36	00:09:26	404	346.14	450	20.54	34.30	43
60	PSR	WB1	2010-11-02 14:53:45	2010-11-02 14:56:53	00:03:08	450	86.73	450	98.16	27.10	80
61	PSM	OB1	2010-11-02 15:02:46	2010-11-02 15:08:16	00:05:30	450	119.61	450	139.67	-1.20	-
62	AV2	OBS	2010-11-02 15:03:32	2010-11-02 15:08:16	00:04:44	450	122.35	450	139.61	0.00	-
63	AV2	OBS	2010-11-02 15:12:40	2010-11-02 15:23:40	00:11:00	450	155.65	450	195.77	0.00	-
64	PSR	WB1	2010-11-02 15:36:51	2010-11-02 15:40:17	00:03:26	450	243.91	450	256.43	27.10	80
65	PSR	WB1	2010-11-02 15:41:32	2010-11-02 15:44:44	00:03:12	450	260.92	450	272.59	27.10	80
66	PSR	FBD	2010-11-02 16:06:50	2010-11-02 16:11:08	00:04:18	450	353.25	496	8.93	34.30	43
67	PSR	FBD	2010-11-02 16:12:03	2010-11-02 16:16:51	00:04:48	496	12.22	496	29.72	34.30	43
68	PSR	PLR	2010-11-02 16:28:03	2010-11-02 16:31:29	00:03:26	496	70.56	496	83.08	21.50	127
69	PSR	WB1	2010-11-02 16:32:28	2010-11-02 16:37:28	00:05:00	496	86.67	496	104.90	27.10	80
70	AV2	OBS	2010-11-02 16:52:03	2010-11-02 16:54:13	00:02:10	496	158.15	496	166.05	0.00	-
71	PSR	WB1	2010-11-02 17:15:35	2010-11-02 17:23:17	00:07:42	496	243.91	496	271.99	27.10	80
72	PSR	FBS	2010-11-02 17:25:59	2010-11-02 17:29:13	00:03:14	496	281.83	496	293.62	34.30	7
73	AV2	OBS	2010-11-02 18:14:38	2010-11-02 18:16:30	00:01:52	542	99.25	542	106.06	0.00	-
74	PSM	OB1	2010-11-02 18:18:50	2010-11-02 18:29:52	00:11:02	542	114.63	542	154.86	-1.20	-
75	AV2	OBS	2010-11-02 18:19:36	2010-11-02 18:29:06	00:09:30	542	117.36	542	152.01	0.00	-
76	PSR	WB1	2010-11-02 18:54:18	2010-11-02 19:00:36	00:06:18	542	243.91	542	266.88	27.10	80
77	PSR	FBS	2010-11-02 19:06:13	2010-11-02 19:08:05	00:01:52	542	287.36	542	294.17	34.30	7
78	PSR	PLR	2010-11-02 19:20:15	2010-11-02 19:24:07	00:03:52	542	338.54	542	352.64	21.50	127
79	PSR	FBD	2010-11-02 19:26:14	2010-11-02 19:29:38	00:03:24	588	0.36	588	12.76	34.30	43
80	PSR	FBS	2010-11-02 19:30:42	2010-11-02 19:40:20	00:09:38	588	16.65	588	51.78	34.30	7
81	PSR	WB1	2010-11-02 19:49:55	2010-11-02 19:52:28	00:02:33	588	86.73	588	96.03	27.10	80
82	PSM	OB1	2010-11-02 19:57:33	2010-11-02 20:01:49	00:04:16	588	114.57	588	130.13	-1.20	-
83	AV2	OBS	2010-11-02 19:58:19	2010-11-02 20:02:11	00:03:52	588	117.36	588	131.46	0.00	-
84	AV2	OBS	2010-11-02 20:17:36	2010-11-02 20:19:28	00:01:52	588	187.69	588	194.49	0.00	-
85	PSM	OB2	2010-11-02 20:17:36	2010-11-02 20:19:34	00:01:58	588	187.69	588	194.86	0.00	-
86	PSR	WB1	2010-11-02 20:33:01	2010-11-02 20:37:19	00:04:18	588	243.91	588	259.59	27.10	80
87	PSR	FBS	2010-11-02 20:41:43	2010-11-02 20:46:43	00:05:00	588	275.63	588	293.87	34.30	7
88	PSR	PLR	2010-11-02 20:55:30	2010-11-02 21:08:18	00:12:48	588	325.90	634	12.58	21.50	127
89	PSR	PLR	2010-11-02 21:22:44	2010-11-02 21:27:34	00:04:50	634	65.22	634	82.84	21.50	127
90	PSR	WB1	2010-11-02 21:28:38	2010-11-02 21:41:41	00:13:03	634	86.73	634	134.32	27.10	80
91	PSM	OB1	2010-11-02 22:03:28	2010-11-02 22:06:18	00:02:50	634	213.76	634	224.09	-1.20	-
92	PSR	WB1	2010-11-02 22:11:43	2010-11-02 22:14:19	00:02:36	634	243.85	634	253.33	27.10	80
93	PSR	FBS	2010-11-02 22:20:04	2010-11-02 22:24:20	00:04:16	634	274.30	634	289.85	34.30	7
94	PSR	FBD	2010-11-02 22:44:08	2010-11-02 22:48:42	00:04:34	9	2.07	9	18.72	34.30	43
95	PSR	FBS	2010-11-02 22:52:14	2010-11-02 22:54:06	00:01:52	9	31.61	9	38.41	34.30	7
96	PSR	PLR	2010-11-02 23:05:56	2010-11-02 23:08:28	00:02:32	9	81.57	9	90.80	21.50	127
97	AV2	OBS	2010-11-02 23:29:04	2010-11-02 23:30:56	00:01:52	9	165.93	9	172.73	0.00	-
98	PSR	FBS	2010-11-02 23:33:45	2010-11-02 23:37:21	00:03:36	9	183.01	9	196.13	34.30	7
99	PSM	OB2	2010-11-02 23:34:19	2010-11-02 23:37:19	00:03:00	9	185.07	9	196.01	0.00	-
100	AV2	OBS	2010-11-02 23:34:20	2010-11-02 23:36:34	00:02:14	9	185.13	9	193.28	0.00	-
101	PSR	WB1	2010-11-02 23:38:34	2010-11-02 23:45:56	00:07:22	9	200.57	9	227.43	27.10	80
102	PSR	WB1	2010-11-02 23:50:25	2010-11-02 23:52:35	00:02:10	9	243.78	9	251.69	27.10	80
103	PSR	FBS	2010-11-02 23:58:48	2010-11-03 00:02:50	00:04:02	9	274.36	9	289.06	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
36	-19.07146	2010-11-01 23:41:29	148.58875	2010-11-02 00:30:51
82	-43.75104	2010-11-02 01:20:13	123.90917	2010-11-02 02:09:34
128	-68.43062	2010-11-02 02:58:56	99.22959	2010-11-02 03:48:17
174	-93.11020	2010-11-02 04:37:39	74.55000	2010-11-02 05:27:00
220	-117.78979	2010-11-02 06:16:22	49.87042	2010-11-02 07:05:43
266	-142.46937	2010-11-02 07:55:05	25.19084	2010-11-02 08:44:27
312	-167.14895	2010-11-02 09:33:48	0.51126	2010-11-02 10:23:10
358	168.17146	2010-11-02 11:12:31	-24.16833	2010-11-02 12:01:53
404	143.49188	2010-11-02 12:51:14	-48.84791	2010-11-02 13:40:36
450	118.81230	2010-11-02 14:29:57	-73.52749	2010-11-02 15:19:19
496	94.13272	2010-11-02 16:08:40	-98.20707	2010-11-02 16:58:02
542	69.45313	2010-11-02 17:47:24	-122.88666	2010-11-02 18:36:45
588	44.77355	2010-11-02 19:26:07	-147.56624	2010-11-02 20:15:28
634	20.09397	2010-11-02 21:04:50	-172.24582	2010-11-02 21:54:11
9	-4.58561	2010-11-02 22:43:33	163.07459	2010-11-02 23:32:54
