>ALOS Data Take Simulation(Oct. 16, 2010)

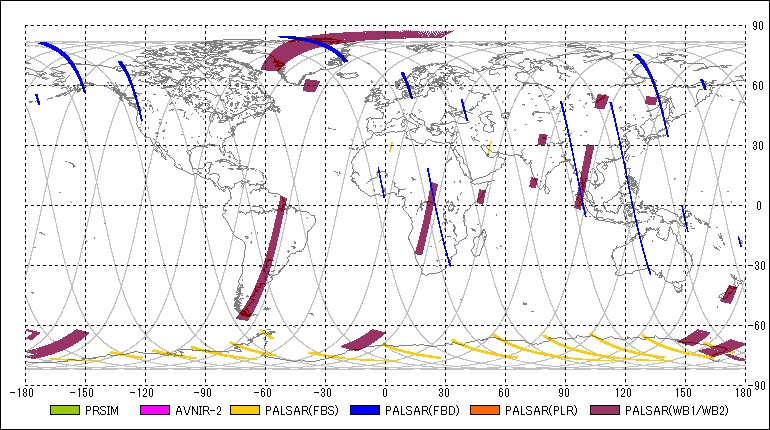

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2010-10-16 00:21:322010-10-16 00:23:24 00:01:52 35 153.77 35 160.58 0.00 -
2PSMOB22010-10-16 00:30:362010-10-16 00:40:36 00:10:00 35 186.83 35 223.30 0.00 -
3AV2OBS2010-10-16 00:31:252010-10-16 00:40:31 00:09:06 35 189.81 35 223.00 0.00 -
4PSRFBS2010-10-16 00:54:302010-10-16 00:58:08 00:03:38 35 273.99 35 287.24 34.30 7
5AV2OBS2010-10-16 01:49:142010-10-16 01:59:28 00:10:14 81 113.60 81 150.91 0.00 -
6PSMOB22010-10-16 01:51:482010-10-16 02:00:00 00:08:12 81 122.96 81 152.86 0.00 -
7PSRWB12010-10-16 01:52:122010-10-16 01:53:50 00:01:38 81 124.41 81 130.37 27.10 80
8PSMOB22010-10-16 02:04:052010-10-16 02:18:35 00:14:30 81 167.75 81 220.63 0.00 -
9AV2OBS2010-10-16 02:04:112010-10-16 02:17:47 00:13:36 81 168.11 81 217.71 0.00 -
10PSRWB12010-10-16 03:30:412010-10-16 03:33:07 00:02:26 127 123.56 127 132.44 27.10 80
11AV2OBS2010-10-16 03:31:492010-10-16 03:47:17 00:15:28 127 127.70 127 184.10 0.00 -
12PSRWB12010-10-16 03:37:342010-10-16 03:47:00 00:09:26 127 148.67 127 183.07 27.10 80
13PSMOB22010-10-16 03:41:592010-10-16 03:48:05 00:06:06 127 164.71 127 186.96 0.00 -
14PSRFBS2010-10-16 04:10:132010-10-16 04:13:57 00:03:44 127 267.73 127 281.35 34.30 7
15PSRFBS2010-10-16 04:15:512010-10-16 04:17:51 00:02:00 127 288.27 127 295.57 34.30 7
16PSMOB12010-10-16 05:02:202010-10-16 05:23:40 00:21:20 173 97.73 173 175.53 1.20 -
17AV2OBS2010-10-16 05:10:332010-10-16 05:22:53 00:12:20 173 127.76 173 172.73 0.00 -
18PSRWB12010-10-16 05:14:512010-10-16 05:16:53 00:02:02 173 143.44 173 150.85 27.10 80
19PSRWB12010-10-16 05:20:512010-10-16 05:22:43 00:01:52 173 165.32 173 172.13 27.10 80
20PSRFBS2010-10-16 05:51:222010-10-16 05:54:38 00:03:16 173 276.61 173 288.52 34.30 7
21PSRFBD2010-10-16 06:25:192010-10-16 06:34:11 00:08:52 219 40.42 219 72.75 34.30 43
22PSMOB12010-10-16 06:41:452010-10-16 06:53:59 00:12:14 219 100.35 219 144.96 1.20 -
23AV2OBS2010-10-16 06:49:162010-10-16 06:53:56 00:04:40 219 127.76 219 144.78 0.00 -
24PSRFBS2010-10-16 06:54:332010-10-16 06:57:07 00:02:34 219 147.02 219 156.38 34.30 7
25AV2OBS2010-10-16 06:57:382010-10-16 06:58:34 00:00:56 219 158.27 219 161.67 0.00 -
26PSRWB12010-10-16 07:01:142010-10-16 07:03:44 00:02:30 219 171.40 219 180.51 27.10 80
27PSMOB12010-10-16 07:06:012010-10-16 07:11:47 00:05:46 219 188.84 219 209.87 1.20 -
28AV2OBS2010-10-16 07:06:452010-10-16 07:10:57 00:04:12 219 191.51 219 206.83 0.00 -
29PSRFBS2010-10-16 07:28:562010-10-16 07:32:32 00:03:36 219 272.41 219 285.54 34.30 7
30PSRFBD2010-10-16 08:07:552010-10-16 08:15:37 00:07:42 265 54.58 265 82.66 34.30 43
31PSMOB12010-10-16 08:19:192010-10-16 08:29:23 00:10:04 265 96.09 265 132.80 1.20 -
32AV2OBS2010-10-16 08:20:042010-10-16 08:26:00 00:05:56 265 98.83 265 120.46 0.00 -
33AV2OBS2010-10-16 08:33:172010-10-16 08:38:33 00:05:16 265 147.02 265 166.23 0.00 -
34PSRWB12010-10-16 08:39:012010-10-16 08:49:27 00:10:26 265 167.93 265 205.98 27.10 80
35PSRWB12010-10-16 08:59:502010-10-16 09:03:16 00:03:26 265 243.91 265 256.43 27.10 80
36PSRFBS2010-10-16 09:08:012010-10-16 09:10:33 00:02:32 265 273.75 265 282.99 34.30 7
37PSRFBD2010-10-16 09:44:572010-10-16 09:46:59 00:02:02 311 48.38 311 55.80 34.30 43
38AV2OBS2010-10-16 10:02:332010-10-16 10:12:27 00:09:54 311 112.62 311 148.73 0.00 -
39PSRFBS2010-10-16 10:12:062010-10-16 10:13:58 00:01:52 311 147.45 311 154.26 34.30 7
40PSMOB12010-10-16 10:15:072010-10-16 10:20:41 00:05:34 311 158.45 311 178.75 1.20 -
41AV2OBS2010-10-16 10:15:512010-10-16 10:19:53 00:04:02 311 161.06 311 175.77 0.00 -
42PSRFBS2010-10-16 10:46:552010-10-16 10:48:57 00:02:02 311 274.42 311 281.83 34.30 7
43PSRFBD2010-10-16 11:04:022010-10-16 11:06:04 00:02:02 311 336.84 311 344.25 34.30 43
44PSRFBD2010-10-16 11:25:412010-10-16 11:27:47 00:02:06 357 55.80 357 63.45 34.30 43
45PSMOB12010-10-16 11:50:352010-10-16 11:53:11 00:02:36 357 146.54 357 156.02 1.20 -
46AV2OBS2010-10-16 11:51:212010-10-16 11:53:13 00:01:52 357 149.33 357 156.14 0.00 -
47PSRFBD2010-10-16 12:44:492010-10-16 12:49:07 00:04:18 357 344.37 403 0.06 34.30 43
48PSRFBD2010-10-16 12:57:552010-10-16 13:10:01 00:12:06 403 32.15 403 76.28 34.30 43
49PSRWB12010-10-16 13:20:532010-10-16 13:23:01 00:02:08 403 115.91 403 123.69 27.10 80
50PSRWB12010-10-16 13:37:082010-10-16 13:54:52 00:17:44 403 175.10 403 239.77 27.10 80
51PSRFBS2010-10-16 14:02:312010-10-16 14:04:47 00:02:16 403 267.67 403 275.94 34.30 7
52PSRFBS2010-10-16 14:05:372010-10-16 14:08:09 00:02:32 403 278.98 403 288.21 34.30 7
53PSRFBD2010-10-16 14:17:372010-10-16 14:42:05 00:24:28 403 322.74 449 51.97 34.30 43
54PSRWB12010-10-16 14:51:542010-10-16 14:58:47 00:06:53 449 87.76 449 112.87 27.10 80
55AV2OBS2010-10-16 14:58:292010-10-16 15:06:07 00:07:38 449 111.77 449 139.61 0.00 -
56PSMOB12010-10-16 15:00:472010-10-16 15:06:05 00:05:18 449 120.16 449 139.49 1.20 -
57PSRFBS2010-10-16 15:43:052010-10-16 15:48:05 00:05:00 449 274.42 449 292.65 34.30 7
58PSRFBD2010-10-16 16:04:222010-10-16 16:20:50 00:16:28 449 352.03 495 52.09 34.30 43
59PSMOB12010-10-16 16:34:532010-10-16 16:52:55 00:18:02 495 103.32 495 169.09 1.20 -
60PSRFBS2010-10-16 17:21:472010-10-16 17:27:03 00:05:16 495 274.42 495 293.62 34.30 7
61PSMOB12010-10-16 18:10:562010-10-16 18:27:52 00:16:56 541 93.60 541 155.35 1.20 -
62AV2OBS2010-10-16 18:13:002010-10-16 18:27:08 00:14:08 541 101.14 541 152.68 0.00 -
63PSRWB12010-10-16 18:52:092010-10-16 18:57:35 00:05:26 541 243.91 541 263.72 27.10 80
64PSRFBS2010-10-16 18:58:412010-10-16 19:05:27 00:06:46 541 267.73 541 292.41 34.30 7
65PSRFBD2010-10-16 19:35:002010-10-16 19:38:34 00:03:34 587 40.17 587 53.18 34.30 43
66PSMOB12010-10-16 19:48:032010-10-16 20:00:01 00:11:58 587 87.76 587 131.40 1.20 -
67AV2OBS2010-10-16 19:48:422010-10-16 20:00:02 00:11:20 587 90.14 587 131.46 0.00 -
68PSRWB12010-10-16 20:30:512010-10-16 20:35:17 00:04:26 587 243.85 587 260.01 27.10 80
69PSRFBS2010-10-16 20:37:372010-10-16 20:44:19 00:06:42 587 268.52 587 292.95 34.30 7
70PSRFBD2010-10-16 20:53:352010-10-16 21:07:49 00:14:14 587 326.75 633 18.66 34.30 43
71PSRFBD2010-10-16 21:16:472010-10-16 21:21:07 00:04:20 633 51.36 633 67.16 34.30 43
72PSMOB12010-10-16 21:26:272010-10-16 21:37:41 00:11:14 633 86.61 633 127.58 1.20 -
73AV2OBS2010-10-16 21:31:502010-10-16 21:36:54 00:05:04 633 106.24 633 124.72 0.00 -
74PSMOB22010-10-16 22:02:022010-10-16 22:04:02 00:02:00 633 216.31 633 223.61 0.00 -
75PSRWB12010-10-16 22:03:012010-10-16 22:06:01 00:03:00 633 219.96 633 230.90 27.10 80
76PSRWB12010-10-16 22:09:342010-10-16 22:12:12 00:02:38 633 243.85 633 253.45 27.10 80
77PSRFBS2010-10-16 22:17:552010-10-16 22:22:09 00:04:14 633 274.30 633 289.73 34.30 7
78PSRFBD2010-10-16 22:41:462010-10-16 22:46:34 00:04:48 8 1.22 8 18.72 34.30 43
79PSRFBD2010-10-16 23:00:392010-10-16 23:05:09 00:04:30 8 70.14 8 86.55 34.30 43
80PSMOB12010-10-16 23:10:462010-10-16 23:14:02 00:03:16 8 107.03 8 118.94 1.20 -
81AV2OBS2010-10-16 23:11:292010-10-16 23:13:21 00:01:52 8 109.58 8 116.39 0.00 -
82AV2OBS2010-10-16 23:35:322010-10-16 23:37:24 00:01:52 8 197.29 8 204.10 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
35-18.534942010-10-15 23:39:21149.125272010-10-16 00:28:42
81-43.214532010-10-16 01:18:04124.445682010-10-16 02:07:25
127-67.894112010-10-16 02:56:47 99.766102010-10-16 03:46:08
173-92.573692010-10-16 04:35:30 75.086522010-10-16 05:24:52
219-117.253272010-10-16 06:14:13 50.406932010-10-16 07:03:35
265-141.932862010-10-16 07:52:56 25.727352010-10-16 08:42:18
311-166.612442010-10-16 09:31:39 1.047772010-10-16 10:21:01
357168.707982010-10-16 11:10:22-23.631812010-10-16 11:59:44
403144.028392010-10-16 12:49:06-48.311402010-10-16 13:38:27
449119.348812010-10-16 14:27:49-72.990982010-10-16 15:17:10
495 94.669232010-10-16 16:06:32-97.670562010-10-16 16:55:53
541 69.989652010-10-16 17:45:15-122.350142010-10-16 18:34:36
587 45.310062010-10-16 19:23:58-147.029732010-10-16 20:13:19
633 20.630482010-10-16 21:02:41-171.709312010-10-16 21:52:03
8 -4.049102010-10-16 22:41:24163.611112010-10-16 23:30:46
