>ALOS Data Take Simulation(Oct. 09, 2010)

Observation Area

PRISM

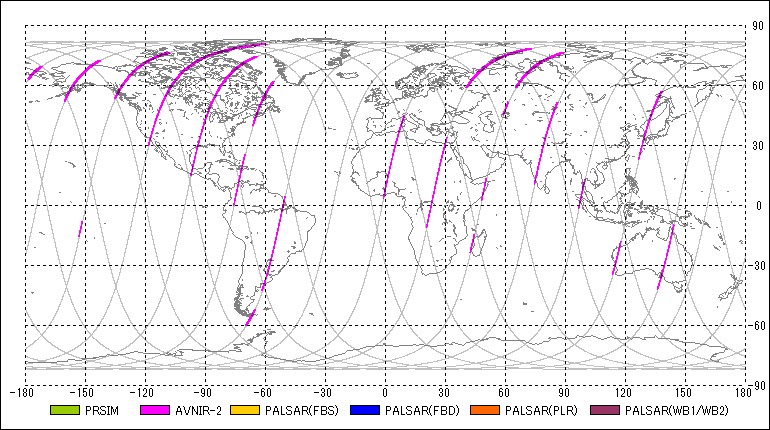

AVNIR-2

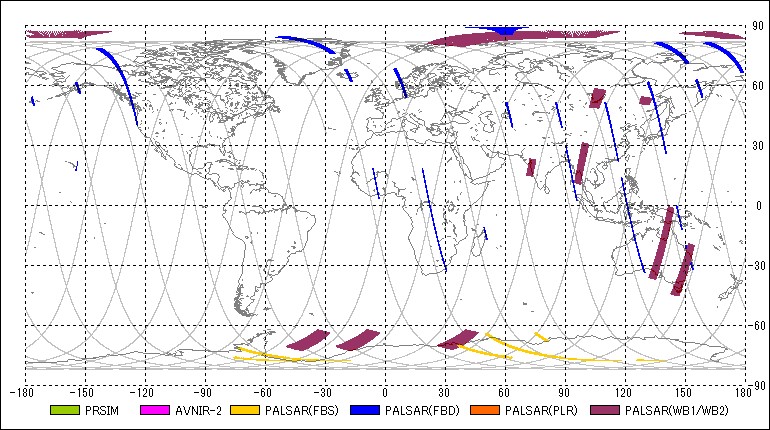

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12010-10-09 00:39:282010-10-09 00:50:00 00:10:32 40 180.03 40 218.44 27.10 80
2AV2OBS2010-10-09 00:42:082010-10-09 00:51:01 00:08:53 40 189.81 40 222.21 0.00 -
3PSMOB22010-10-09 00:42:242010-10-09 00:50:54 00:08:30 40 190.72 40 221.72 0.00 -
4PSMOB22010-10-09 01:59:182010-10-09 02:12:04 00:12:46 86 111.16 86 157.72 0.00 -
5AV2OBS2010-10-09 02:02:222010-10-09 02:11:52 00:09:30 86 122.35 86 156.99 0.00 -
6PSRWB12010-10-09 02:02:572010-10-09 02:04:35 00:01:38 86 124.48 86 130.43 27.10 80
7PSMOB22010-10-09 02:13:532010-10-09 02:28:41 00:14:48 86 164.35 86 218.32 0.00 -
8AV2OBS2010-10-09 02:23:052010-10-09 02:27:41 00:04:36 86 197.90 86 214.67 0.00 -
9PSRWB12010-10-09 03:31:192010-10-09 03:33:11 00:01:52 132 86.73 132 93.54 27.10 80
10PSMOB22010-10-09 03:35:552010-10-09 03:58:05 00:22:10 132 103.51 132 184.34 0.00 -
11PSRWB12010-10-09 03:40:342010-10-09 03:43:48 00:03:14 132 120.46 132 132.26 27.10 80
12PSRWB12010-10-09 03:48:052010-10-09 03:54:15 00:06:10 132 147.88 132 170.36 27.10 80
13AV2OBS2010-10-09 03:53:162010-10-09 03:57:23 00:04:07 132 166.78 132 181.79 0.00 -
14PSMOB12010-10-09 05:12:482010-10-09 05:33:28 00:20:40 178 96.82 178 172.19 1.20 -
15AV2OBS2010-10-09 05:21:182010-10-09 05:32:42 00:11:24 178 127.82 178 169.39 0.00 -
16PSRWB12010-10-09 05:28:582010-10-09 05:31:54 00:02:56 178 155.78 178 166.47 27.10 80
17PSRWB12010-10-09 05:53:082010-10-09 05:56:24 00:03:16 178 243.91 178 255.82 27.10 80
18PSRFBS2010-10-09 05:59:272010-10-09 06:04:21 00:04:54 178 266.94 178 284.81 34.30 7
19PSRFBD2010-10-09 06:35:172010-10-09 06:46:45 00:11:28 224 37.62 224 79.44 34.30 43
20AV2OBS2010-10-09 06:52:432010-10-09 06:57:59 00:05:16 224 101.20 224 120.40 0.00 -
21AV2OBS2010-10-09 07:00:002010-10-09 07:01:52 00:01:52 224 127.76 224 134.56 0.00 -
22AV2OBS2010-10-09 07:10:392010-10-09 07:13:43 00:03:04 224 166.53 224 177.72 0.00 -
23AV2OBS2010-10-09 07:18:182010-10-09 07:20:48 00:02:30 224 194.49 224 203.61 0.00 -
24PSRFBS2010-10-09 07:38:132010-10-09 07:40:55 00:02:42 224 267.12 224 276.97 34.30 7
25PSRFBD2010-10-09 08:18:262010-10-09 08:20:38 00:02:12 270 53.79 270 61.81 34.30 43
26PSMOB12010-10-09 08:29:532010-10-09 08:37:29 00:07:36 270 95.54 270 123.26 1.20 -
27AV2OBS2010-10-09 08:30:412010-10-09 08:36:43 00:06:02 270 98.40 270 120.40 0.00 -
28PSMOB12010-10-09 08:42:582010-10-09 08:56:56 00:13:58 270 143.26 270 194.19 1.20 -
29AV2OBS2010-10-09 08:43:432010-10-09 08:56:09 00:12:26 270 145.93 270 191.27 0.00 -
30PSRWB12010-10-09 09:10:342010-10-09 09:14:00 00:03:26 270 243.91 270 256.43 27.10 80
31PSRFBD2010-10-09 09:55:312010-10-09 09:57:23 00:01:52 316 47.77 316 54.58 34.30 43
32PSRFBD2010-10-09 10:00:052010-10-09 10:05:05 00:05:00 316 64.49 316 82.72 34.30 43
33PSRWB12010-10-09 10:06:192010-10-09 10:09:41 00:03:22 316 87.16 316 99.43 27.10 80
34AV2OBS2010-10-09 10:19:192010-10-09 10:30:47 00:11:28 316 134.56 316 176.38 0.00 -
35PSMOB12010-10-09 10:20:352010-10-09 10:31:29 00:10:54 316 139.24 316 178.99 1.20 -
36PSRWB12010-10-09 10:49:172010-10-09 10:52:43 00:03:26 316 243.91 316 256.43 27.10 80
37PSRFBD2010-10-09 11:35:242010-10-09 11:38:28 00:03:04 362 52.09 362 63.27 34.30 43
38PSRFBD2010-10-09 11:40:092010-10-09 11:43:47 00:03:38 362 69.41 362 82.66 34.30 43
39PSRFBD2010-10-09 12:50:182010-10-09 12:54:12 00:03:54 362 325.23 362 339.45 34.30 43
40PSRFBD2010-10-09 12:55:472010-10-09 12:59:45 00:03:58 362 345.22 362 359.69 34.30 43
41PSRFBD2010-10-09 13:06:182010-10-09 13:16:54 00:10:36 408 23.58 408 62.24 34.30 43
42AV2OBS2010-10-09 13:47:552010-10-09 14:00:59 00:13:04 408 175.35 408 223.00 0.00 -
43AV2OBS2010-10-09 14:03:402010-10-09 14:05:56 00:02:16 408 232.78 408 241.05 0.00 -
44PSRFBD2010-10-09 14:28:302010-10-09 14:42:22 00:13:52 408 323.34 454 13.92 34.30 43
45PSRFBD2010-10-09 14:43:512010-10-09 14:52:47 00:08:56 454 19.33 454 51.91 34.30 43
46AV2OBS2010-10-09 15:10:392010-10-09 15:16:51 00:06:12 454 117.00 454 139.61 0.00 -
47PSMOB12010-10-09 15:20:132010-10-09 15:32:19 00:12:06 454 151.95 454 196.07 1.20 -
48AV2OBS2010-10-09 15:20:562010-10-09 15:27:58 00:07:02 454 154.56 454 180.21 0.00 -
49PSRFBD2010-10-09 16:17:172010-10-09 16:25:29 00:08:12 500 0.00 500 29.90 34.30 43
50PSRFBD2010-10-09 16:27:192010-10-09 16:31:31 00:04:12 500 36.59 500 51.91 34.30 43
51PSMOB12010-10-09 16:45:262010-10-09 17:03:28 00:18:02 500 102.66 500 168.42 1.20 -
52AV2OBS2010-10-09 16:45:382010-10-09 17:02:38 00:17:00 500 103.39 500 165.38 0.00 -
53PSRFBD2010-10-09 18:06:012010-10-09 18:10:13 00:04:12 546 36.59 546 51.91 34.30 43
54PSRFBD2010-10-09 18:18:542010-10-09 18:20:38 00:01:44 546 83.57 546 89.89 49.00 51
55PSMOB12010-10-09 18:21:242010-10-09 18:37:54 00:16:30 546 92.63 546 152.80 1.20 -
56AV2OBS2010-10-09 18:21:592010-10-09 18:37:09 00:15:10 546 94.75 546 150.06 0.00 -
57PSRFBS2010-10-09 19:09:312010-10-09 19:10:59 00:01:28 546 268.16 546 273.51 34.30 7
58PSRFBS2010-10-09 19:14:402010-10-09 19:16:34 00:01:54 546 286.88 546 293.81 34.30 7
59PSRFBD2010-10-09 19:29:172010-10-09 19:31:37 00:02:20 546 340.18 546 348.69 34.30 43
60AV2OBS2010-10-09 20:02:282010-10-09 20:09:14 00:06:46 592 101.20 592 125.87 0.00 -
61PSMOB12010-10-09 20:02:322010-10-09 20:10:00 00:07:28 592 101.44 592 128.67 1.20 -
62PSRFBD2010-10-09 20:17:592010-10-09 20:19:51 00:01:52 592 157.84 592 164.65 50.80 53
63PSMOB22010-10-09 20:26:142010-10-09 20:28:32 00:02:18 592 187.93 592 196.32 0.00 -
64AV2OBS2010-10-09 20:26:152010-10-09 20:28:27 00:02:12 592 187.93 592 195.95 0.00 -
65PSRFBS2010-10-09 20:48:032010-10-09 20:55:15 00:07:12 592 267.43 592 293.68 34.30 7
66PSRFBD2010-10-09 21:03:392010-10-09 21:18:33 00:14:54 592 324.32 638 18.66 34.30 43
67PSRFBD2010-10-09 21:27:382010-10-09 21:32:20 00:04:42 638 51.78 638 68.92 34.30 43
68PSMOB12010-10-09 21:36:542010-10-09 21:48:28 00:11:34 638 85.58 638 127.76 1.20 -
69AV2OBS2010-10-09 21:42:292010-10-09 21:48:23 00:05:54 638 105.94 638 127.45 0.00 -
70PSRFBS2010-10-09 22:28:382010-10-09 22:31:58 00:03:20 638 274.23 638 286.39 34.30 7
71PSRFBD2010-10-09 22:52:262010-10-09 22:57:16 00:04:50 13 1.03 13 18.66 34.30 43
72PSRFBD2010-10-09 23:08:362010-10-09 23:10:58 00:02:22 13 59.99 13 68.62 34.30 43
73PSRFBD2010-10-09 23:12:342010-10-09 23:15:50 00:03:16 13 74.45 13 86.37 34.30 43
74PSMOB12010-10-09 23:21:172010-10-09 23:24:43 00:03:26 13 106.18 13 118.70 1.20 -
75AV2OBS2010-10-09 23:22:032010-10-09 23:23:57 00:01:54 13 108.98 13 115.91 0.00 -
76PSRWB12010-10-09 23:46:372010-10-09 23:54:21 00:07:44 13 198.63 13 226.83 27.10 80
77PSMOB22010-10-09 23:49:172010-10-09 23:51:17 00:02:00 13 208.35 13 215.64 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
40-21.217512010-10-08 23:50:05146.442702010-10-09 00:39:26
86-45.897092010-10-09 01:28:48121.763122010-10-09 02:18:09
132-70.576672010-10-09 03:07:31 97.083542010-10-09 03:56:52
178-95.256252010-10-09 04:46:14 72.403952010-10-09 05:35:35
224-119.935842010-10-09 06:24:57 47.724372010-10-09 07:14:18
270-144.615422010-10-09 08:03:40 23.044792010-10-09 08:53:02
316-169.295002010-10-09 09:42:23 -1.634792010-10-09 10:31:45
362166.025412010-10-09 11:21:06-26.314382010-10-09 12:10:28
408141.345832010-10-09 12:59:49-50.993962010-10-09 13:49:11
454116.666252010-10-09 14:38:32-75.673542010-10-09 15:27:54
500 91.986672010-10-09 16:17:16-100.353132010-10-09 17:06:37
546 67.307082010-10-09 17:55:59-125.032712010-10-09 18:45:20
592 42.627502010-10-09 19:34:42-149.712292010-10-09 20:24:03
638 17.947922010-10-09 21:13:25-174.391872010-10-09 22:02:46
13 -6.731662010-10-09 22:52:08160.928542010-10-09 23:41:29
