>ALOS Data Take Simulation(Sep. 18, 2010)

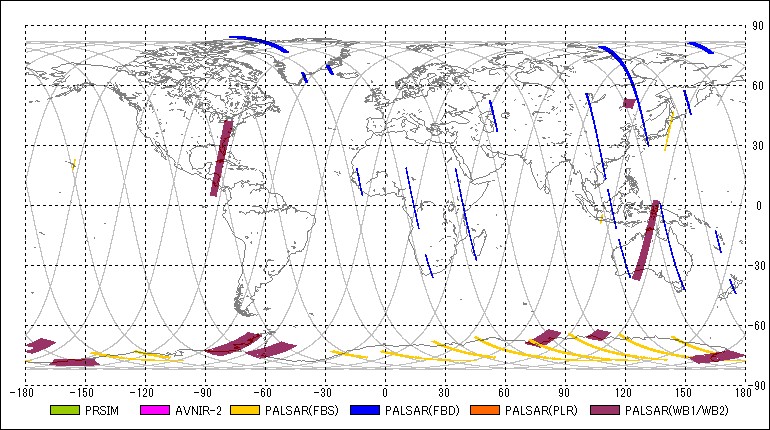

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBD	2010-09-18 00:38:37	2010-09-18 00:40:39	00:02:02	55	59.56	55	66.98	34.30	43
2	PSR	FBD	2010-09-18 00:42:51	2010-09-18 00:45:59	00:03:08	55	75.00	55	86.43	34.30	43
3	PSR	FBS	2010-09-18 00:58:30	2010-09-18 01:04:26	00:05:56	55	132.07	55	153.71	34.30	7
4	AV2	OBS	2010-09-18 00:58:58	2010-09-18 01:06:20	00:07:22	55	133.77	55	160.64	-34.30	-
5	PSR	WB1	2010-09-18 01:10:44	2010-09-18 01:22:16	00:11:32	55	176.68	55	218.74	27.10	80
6	PSM	OB2	2010-09-18 01:11:34	2010-09-18 01:21:40	00:10:06	55	179.72	55	216.56	0.00	-
7	AV2	OBS	2010-09-18 01:12:11	2010-09-18 01:21:27	00:09:16	55	181.97	55	215.77	0.00	-
8	PSR	WB1	2010-09-18 01:29:10	2010-09-18 01:31:02	00:01:52	55	243.91	55	250.71	27.10	80
9	PSR	FBS	2010-09-18 01:35:40	2010-09-18 01:39:44	00:04:04	55	267.61	55	282.44	34.30	7
10	PSM	OB2	2010-09-18 02:29:42	2010-09-18 02:44:54	00:15:12	101	104.66	101	160.09	0.00	-
11	AV2	OBS	2010-09-18 02:32:31	2010-09-18 02:44:31	00:12:00	101	114.93	101	158.69	0.00	-
12	PSR	WB1	2010-09-18 02:35:24	2010-09-18 02:37:14	00:01:50	101	125.39	101	132.07	27.10	80
13	PSM	OB2	2010-09-18 02:47:46	2010-09-18 02:50:58	00:03:12	101	170.55	101	182.22	0.00	-
14	PSR	FBS	2010-09-18 02:51:25	2010-09-18 02:53:17	00:01:52	101	183.86	101	190.66	34.30	7
15	PSR	WB1	2010-09-18 03:07:53	2010-09-18 03:10:45	00:02:52	101	243.91	101	254.36	27.10	80
16	PSR	FBS	2010-09-18 03:16:16	2010-09-18 03:18:28	00:02:12	101	274.48	101	282.50	34.30	7
17	AV2	OBS	2010-09-18 04:09:41	2010-09-18 04:11:39	00:01:58	147	109.22	147	116.39	0.00	-
18	PSM	OB2	2010-09-18 04:14:48	2010-09-18 04:25:36	00:10:48	147	127.88	147	167.26	0.00	-
19	AV2	OBS	2010-09-18 05:55:28	2010-09-18 05:58:10	00:02:42	193	135.05	193	144.90	0.00	-
20	PSM	OB1	2010-09-18 05:56:30	2010-09-18 06:02:50	00:06:20	193	138.76	193	161.85	1.20	-
21	PSR	FBS	2010-09-18 09:51:07	2010-09-18 09:53:19	00:02:12	285	274.42	285	282.44	34.30	7
22	PSR	FBD	2010-09-18 10:35:02	2010-09-18 10:37:16	00:02:14	331	74.52	331	82.66	34.30	43
23	PSM	OB1	2010-09-18 10:43:07	2010-09-18 10:47:15	00:04:08	331	103.99	331	119.07	1.20	-
24	PSM	OB1	2010-09-18 10:49:15	2010-09-18 11:03:55	00:14:40	331	126.36	331	179.85	1.20	-
25	AV2	OBS	2010-09-18 10:51:23	2010-09-18 11:03:09	00:11:46	331	134.14	331	177.05	0.00	-
26	PSR	WB1	2010-09-18 11:23:29	2010-09-18 11:26:17	00:02:48	331	251.20	331	261.41	27.10	80
27	PSR	FBS	2010-09-18 11:27:53	2010-09-18 11:31:43	00:03:50	331	267.31	331	281.29	34.30	7
28	PSR	FBD	2010-09-18 11:40:19	2010-09-18 11:42:57	00:02:38	331	312.59	331	322.19	34.30	43
29	PSR	FBD	2010-09-18 11:46:07	2010-09-18 11:49:51	00:03:44	331	333.80	331	347.41	34.30	43
30	PSR	FBD	2010-09-18 12:05:13	2010-09-18 12:09:09	00:03:56	377	43.46	377	57.80	34.30	43
31	PSM	OB1	2010-09-18 12:30:55	2010-09-18 12:33:31	00:02:36	377	137.12	377	146.60	1.20	-
32	AV2	OBS	2010-09-18 12:31:41	2010-09-18 12:33:33	00:01:52	377	139.91	377	146.72	0.00	-
33	PSM	OB1	2010-09-18 12:42:49	2010-09-18 12:46:59	00:04:10	377	180.51	377	195.71	1.20	-
34	PSR	WB1	2010-09-18 13:00:38	2010-09-18 13:04:36	00:03:58	377	245.49	377	259.95	27.10	80
35	PSR	FBD	2010-09-18 13:19:38	2010-09-18 13:32:20	00:12:42	377	314.77	423	1.09	34.30	43
36	PSR	FBD	2010-09-18 13:39:29	2010-09-18 13:54:09	00:14:40	423	27.17	423	80.65	34.30	43
37	AV2	OBS	2010-09-18 14:19:01	2010-09-18 14:36:43	00:17:42	423	171.34	423	235.88	0.00	-
38	PSR	WB1	2010-09-18 14:45:00	2010-09-18 14:46:52	00:01:52	423	266.15	423	272.96	27.10	80
39	PSR	FBS	2010-09-18 14:47:46	2010-09-18 14:52:04	00:04:18	423	276.18	423	291.86	34.30	7
40	PSR	FBD	2010-09-18 15:00:06	2010-09-18 15:06:00	00:05:54	423	321.16	423	342.67	34.30	43
41	PSR	FBD	2010-09-18 15:06:51	2010-09-18 15:12:57	00:06:06	423	345.77	469	8.02	34.30	43
42	PSR	FBD	2010-09-18 15:13:42	2010-09-18 15:26:10	00:12:28	469	10.76	469	56.22	34.30	43
43	AV2	OBS	2010-09-18 15:41:57	2010-09-18 15:43:49	00:01:52	469	113.78	469	120.59	0.00	-
44	PSR	WB1	2010-09-18 15:48:13	2010-09-18 15:59:10	00:10:57	469	136.63	469	176.56	27.10	80
45	PSR	FBS	2010-09-18 16:24:09	2010-09-18 16:31:07	00:06:58	469	267.67	469	293.08	34.30	7
46	PSM	OB1	2010-09-18 17:17:07	2010-09-18 17:34:47	00:17:40	515	100.77	515	165.20	1.20	-
47	AV2	OBS	2010-09-18 17:17:49	2010-09-18 17:34:01	00:16:12	515	103.32	515	162.40	0.00	-
48	PSR	FBS	2010-09-18 18:03:55	2010-09-18 18:09:57	00:06:02	515	271.50	515	293.50	34.30	7
49	PSR	FBD	2010-09-18 18:37:43	2010-09-18 18:42:43	00:05:00	561	34.77	561	53.00	34.30	43
50	AV2	OBS	2010-09-18 18:55:52	2010-09-18 19:07:16	00:11:24	561	100.95	561	142.53	0.00	-
51	PSM	OB1	2010-09-18 18:58:07	2010-09-18 19:08:03	00:09:56	561	109.16	561	145.38	1.20	-
52	PSR	WB1	2010-09-18 19:36:28	2010-09-18 19:41:06	00:04:38	561	248.95	561	265.85	27.10	80
53	PSR	FBS	2010-09-18 19:41:59	2010-09-18 19:47:41	00:05:42	561	269.13	561	289.92	34.30	7
54	PSR	FBD	2010-09-18 19:58:39	2010-09-18 20:11:59	00:13:20	561	329.91	607	18.54	34.30	43
55	AV2	OBS	2010-09-18 20:31:25	2010-09-18 20:40:25	00:09:00	607	89.35	607	122.17	0.00	-
56	PSM	OB1	2010-09-18 20:33:54	2010-09-18 20:41:00	00:07:06	607	98.40	607	124.29	1.20	-
57	PSR	FBS	2010-09-18 20:49:38	2010-09-18 20:51:34	00:01:56	607	155.84	607	162.89	21.50	3
58	PSR	FBS	2010-09-18 21:20:05	2010-09-18 21:26:53	00:06:48	607	266.88	607	291.68	34.30	7
59	PSR	FBD	2010-09-18 21:34:55	2010-09-18 21:38:49	00:03:54	607	320.97	607	335.20	34.30	43
60	PSR	FBD	2010-09-18 21:41:48	2010-09-18 21:50:46	00:08:58	607	346.01	653	18.72	34.30	43
61	PSM	OB1	2010-09-18 22:09:22	2010-09-18 22:11:58	00:02:36	653	86.55	653	96.03	1.20	-
62	PSM	OB1	2010-09-18 22:13:50	2010-09-18 22:21:22	00:07:32	653	102.84	653	130.31	1.20	-
63	AV2	OBS	2010-09-18 22:14:35	2010-09-18 22:21:27	00:06:52	653	105.57	653	130.61	0.00	-
64	PSR	FBS	2010-09-18 23:00:53	2010-09-18 23:04:55	00:04:02	653	274.42	653	289.13	34.30	7
65	PSR	FBD	2010-09-18 23:25:04	2010-09-18 23:29:28	00:04:24	28	2.61	28	18.66	34.30	43
66	PSR	FBD	2010-09-18 23:41:50	2010-09-18 23:43:42	00:01:52	28	63.76	28	70.56	34.30	43
67	PSM	OB1	2010-09-18 23:52:55	2010-09-18 23:55:31	00:02:36	28	104.24	28	113.72	1.20	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
9	-4.58561	2010-09-17 22:43:33	163.07459	2010-09-17 23:32:54
55	-29.26520	2010-09-18 00:22:16	138.39501	2010-09-18 01:11:38
101	-53.94478	2010-09-18 02:00:59	113.71543	2010-09-18 02:50:21
147	-78.62436	2010-09-18 03:39:42	89.03585	2010-09-18 04:29:04
193	-103.30394	2010-09-18 05:18:25	64.35626	2010-09-18 06:07:47
239	-127.98353	2010-09-18 06:57:08	39.67668	2010-09-18 07:46:30
285	-152.66311	2010-09-18 08:35:51	14.99710	2010-09-18 09:25:13
331	-177.34269	2010-09-18 10:14:35	-9.68248	2010-09-18 11:03:56
377	157.97772	2010-09-18 11:53:18	-34.36207	2010-09-18 12:42:39
423	133.29814	2010-09-18 13:32:01	-59.04165	2010-09-18 14:21:22
469	108.61856	2010-09-18 15:10:44	-83.72123	2010-09-18 16:00:05
515	83.93898	2010-09-18 16:49:27	-108.40082	2010-09-18 17:38:49
561	59.25939	2010-09-18 18:28:10	-133.08040	2010-09-18 19:17:32
607	34.57981	2010-09-18 20:06:53	-157.75998	2010-09-18 20:56:15
653	9.90023	2010-09-18 21:45:36	177.56044	2010-09-18 22:34:58
28	-14.77935	2010-09-18 23:24:19	152.88085	2010-09-19 00:13:41
