>ALOS Data Take Simulation(Sep. 04, 2010)

Observation Area

PRISM

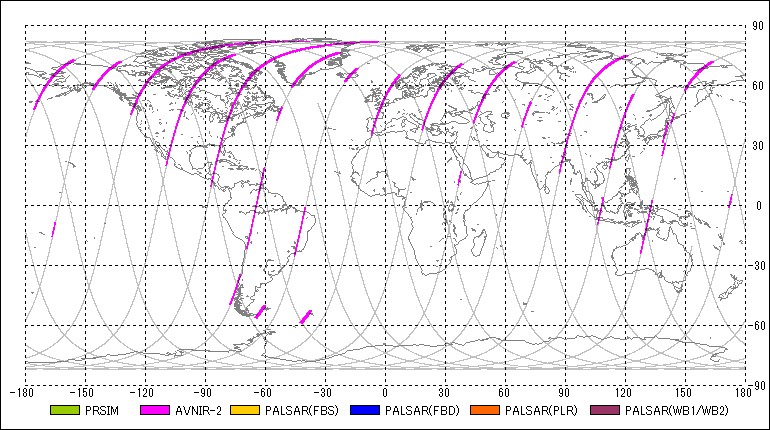

AVNIR-2

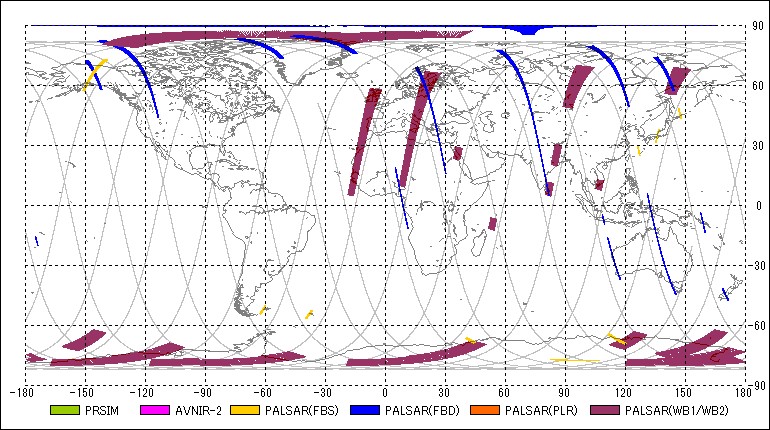

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRWB12010-09-04 00:12:102010-09-04 00:15:04 00:02:54 19 244.88 19 255.45 27.10 80
2PSRFBD2010-09-04 01:03:292010-09-04 01:07:03 00:03:34 65 72.02 65 85.03 34.30 43
3PSMOB12010-09-04 01:12:102010-09-04 01:17:54 00:05:44 65 103.63 65 124.54 -1.20 -
4AV2OBS2010-09-04 01:12:562010-09-04 01:17:08 00:04:12 65 106.42 65 121.74 0.00 -
5PSRWB12010-09-04 01:13:512010-09-04 01:18:05 00:04:14 65 109.77 65 125.20 27.10 80
6PSMOB12010-09-04 01:19:562010-09-04 01:26:00 00:06:04 65 131.95 65 154.07 1.20 -
7AV2OBS2010-09-04 01:20:222010-09-04 01:26:12 00:05:50 65 133.59 65 154.86 0.00 -
8PSRFBS2010-09-04 01:22:202010-09-04 01:24:50 00:02:30 65 140.70 65 149.82 34.30 7
9PSMOB22010-09-04 01:30:162010-09-04 01:39:46 00:09:30 65 169.63 65 204.28 0.00 -
10AV2OBS2010-09-04 01:32:252010-09-04 01:39:42 00:07:17 65 177.54 65 204.10 0.00 -
11PSMOB22010-09-04 02:50:552010-09-04 03:06:59 00:16:04 111 103.75 111 162.34 0.00 -
12AV2OBS2010-09-04 02:56:232010-09-04 03:06:47 00:10:24 111 123.69 111 161.61 0.00 -
13PSRWB12010-09-04 03:08:022010-09-04 03:10:02 00:02:00 111 166.17 111 173.46 27.10 80
14PSMOB22010-09-04 03:10:302010-09-04 03:15:12 00:04:42 111 175.17 111 192.30 0.00 -
15AV2OBS2010-09-04 03:10:452010-09-04 03:14:25 00:03:40 111 176.14 111 189.51 0.00 -
16PSMOB12010-09-04 04:28:362010-09-04 04:45:54 00:17:18 157 99.98 157 163.07 -1.20 -
17AV2OBS2010-09-04 04:29:212010-09-04 04:46:07 00:16:46 157 102.78 157 163.92 0.00 -
18PSRWB12010-09-04 04:30:582010-09-04 04:37:24 00:06:26 157 108.61 157 132.07 27.10 80
19PSRWB12010-09-04 04:41:542010-09-04 04:45:20 00:03:26 157 148.48 157 161.00 27.10 80
20PSRWB12010-09-04 04:47:092010-09-04 04:49:35 00:02:26 157 167.63 157 176.50 27.10 80
21PSRWB12010-09-04 05:09:462010-09-04 05:15:46 00:06:00 157 250.11 157 271.99 27.10 80
22PSRFBD2010-09-04 05:51:222010-09-04 06:02:52 00:11:30 203 41.82 203 83.75 34.30 43
23PSMOB12010-09-04 06:09:052010-09-04 06:23:35 00:14:30 203 106.42 203 159.30 -1.20 -
24AV2OBS2010-09-04 06:14:562010-09-04 06:18:28 00:03:32 203 127.76 203 140.64 0.00 -
25PSRWB12010-09-04 06:30:502010-09-04 06:32:58 00:02:08 203 185.68 203 193.46 27.10 80
26PSRFBD2010-09-04 07:33:552010-09-04 07:38:41 00:04:46 249 55.80 249 73.18 34.30 43
27PSMOB12010-09-04 07:47:072010-09-04 07:57:27 00:10:20 249 103.93 249 141.62 -1.20 -
28AV2OBS2010-09-04 07:47:502010-09-04 07:56:44 00:08:54 249 106.55 249 139.00 0.00 -
29PSRWB12010-09-04 07:59:422010-09-04 08:01:58 00:02:16 249 149.82 249 158.09 27.10 80
30AV2OBS2010-09-04 08:03:202010-09-04 08:05:12 00:01:52 249 163.01 249 169.82 0.00 -
31PSMOB12010-09-04 08:09:352010-09-04 08:16:03 00:06:28 249 185.86 249 209.44 -1.20 -
32PSMOB12010-09-04 09:26:092010-09-04 09:36:53 00:10:44 295 105.09 295 144.23 -1.20 -
33AV2OBS2010-09-04 09:26:532010-09-04 09:36:19 00:09:26 295 107.76 295 142.16 0.00 -
34PSRWB12010-09-04 09:27:562010-09-04 09:44:28 00:16:32 295 111.59 295 171.88 27.10 80
35PSRWB12010-09-04 10:08:052010-09-04 10:11:51 00:03:46 295 258.01 295 271.74 27.10 80
36PSRFBD2010-09-04 10:29:522010-09-04 10:31:44 00:01:52 295 337.44 295 344.25 34.30 43
37PSMOB12010-09-04 11:06:422010-09-04 11:16:32 00:09:50 341 111.71 341 147.57 -1.20 -
38AV2OBS2010-09-04 11:07:152010-09-04 11:15:45 00:08:30 341 113.72 341 144.71 0.00 -
39PSRWB12010-09-04 11:09:022010-09-04 11:24:22 00:15:20 341 120.28 341 176.20 27.10 80
40PSRFBS2010-09-04 11:39:542010-09-04 11:41:46 00:01:52 341 232.84 341 239.65 34.30 7
41AV2OBS2010-09-04 11:40:222010-09-04 11:42:16 00:01:54 341 234.55 341 241.47 -34.30 -
42PSRWB12010-09-04 11:48:322010-09-04 11:50:38 00:02:06 341 264.27 341 271.93 27.10 80
43PSRFBD2010-09-04 12:00:472010-09-04 12:03:09 00:02:22 341 309.00 341 317.63 34.30 43
44PSRFBD2010-09-04 12:10:232010-09-04 12:13:47 00:03:24 341 344.01 341 356.41 34.30 43
45PSRFBS2010-09-04 12:26:042010-09-04 12:28:06 00:02:02 387 41.21 387 48.62 34.30 7
46PSRFBD2010-09-04 12:30:012010-09-04 12:35:21 00:05:20 387 55.61 387 75.06 34.30 43
47PSMOB12010-09-04 12:44:202010-09-04 12:47:36 00:03:16 387 107.82 387 119.73 -1.20 -
48AV2OBS2010-09-04 12:45:032010-09-04 12:46:55 00:01:52 387 110.37 387 117.18 0.00 -
49PSMOB12010-09-04 13:03:402010-09-04 13:11:56 00:08:16 387 178.33 387 208.47 -1.20 -
50AV2OBS2010-09-04 13:04:232010-09-04 13:11:11 00:06:48 387 180.94 387 205.74 0.00 -
51PSRFBS2010-09-04 13:17:552010-09-04 13:19:47 00:01:52 387 230.23 387 237.04 34.30 7
52AV2OBS2010-09-04 13:18:232010-09-04 13:20:15 00:01:52 387 231.93 387 238.74 -34.30 -
53PSRFBD2010-09-04 13:40:252010-09-04 13:55:07 00:14:42 387 312.34 433 5.96 34.30 43
54PSRFBS2010-09-04 13:59:402010-09-04 14:01:32 00:01:52 433 22.55 433 29.36 34.30 7
55PSRFBD2010-09-04 14:06:252010-09-04 14:15:41 00:09:16 433 47.16 433 80.96 34.30 43
56PSRWB12010-09-04 14:17:322010-09-04 14:20:20 00:02:48 433 87.70 433 97.91 27.10 80
57AV2OBS2010-09-04 14:21:112010-09-04 14:26:29 00:05:18 433 101.01 433 120.34 0.00 -
58PSMOB12010-09-04 14:28:282010-09-04 14:31:04 00:02:36 433 127.58 433 137.06 -1.20 -
59AV2OBS2010-09-04 14:29:132010-09-04 14:31:07 00:01:54 433 130.31 433 137.24 0.00 -
60AV2OBS2010-09-04 14:37:342010-09-04 14:48:50 00:11:16 433 160.76 433 201.85 0.00 -
61AV2OBS2010-09-04 14:52:232010-09-04 14:56:39 00:04:16 433 214.73 433 230.29 0.00 -
62PSRWB12010-09-04 15:02:342010-09-04 15:08:04 00:05:30 433 251.87 433 271.93 27.10 80
63PSRFBD2010-09-04 15:21:132010-09-04 15:27:41 00:06:28 433 319.94 433 343.52 34.30 43
64PSRFBD2010-09-04 15:28:512010-09-04 15:30:57 00:02:06 433 347.78 433 355.44 34.30 43
65AV2OBS2010-09-04 15:57:182010-09-04 16:19:02 00:21:44 479 91.47 479 170.73 0.00 -
66PSRFBS2010-09-04 16:50:192010-09-04 16:52:39 00:02:20 479 284.87 479 293.38 34.30 7
67PSRFBD2010-09-04 17:11:372010-09-04 17:32:27 00:20:50 525 2.55 525 78.53 34.30 43
68PSRFBD2010-09-04 17:33:532010-09-04 17:35:55 00:02:02 525 83.75 525 91.17 49.00 51
69PSMOB12010-09-04 17:34:402010-09-04 17:55:18 00:20:38 525 86.55 525 161.79 -1.20 -
70AV2OBS2010-09-04 17:39:002010-09-04 17:54:52 00:15:52 525 102.35 525 160.21 0.00 -
71PSRWB12010-09-04 18:17:482010-09-04 18:21:14 00:03:26 525 243.91 525 256.43 27.10 80
72PSRWB12010-09-04 18:22:122010-09-04 18:25:32 00:03:20 525 259.95 525 272.11 27.10 80
73PSMOB12010-09-04 19:13:222010-09-04 19:26:58 00:13:36 571 86.49 571 136.08 -1.20 -
74AV2OBS2010-09-04 19:14:102010-09-04 19:26:26 00:12:16 571 89.41 571 134.14 0.00 -
75PSRWB12010-09-04 19:59:132010-09-04 20:04:09 00:04:56 571 253.69 571 271.68 27.10 80
76PSRFBD2010-09-04 20:32:012010-09-04 20:47:31 00:15:30 617 13.31 617 69.84 34.30 43
77PSRWB12010-09-04 20:51:182010-09-04 20:55:49 00:04:31 617 83.63 617 100.10 27.10 80
78PSRFBS2010-09-04 20:57:022010-09-04 21:02:12 00:05:10 617 104.54 617 123.38 21.50 3
79AV2OBS2010-09-04 20:57:322010-09-04 21:01:40 00:04:08 617 106.36 617 121.44 0.00 -
80AV2OBS2010-09-04 21:20:072010-09-04 21:21:59 00:01:52 617 188.72 617 195.53 0.00 -
81PSMOB22010-09-04 21:20:072010-09-04 21:22:11 00:02:04 617 188.72 617 196.26 0.00 -
82PSRWB12010-09-04 21:35:152010-09-04 21:40:11 00:04:56 617 243.91 617 261.90 27.10 80
83PSRFBS2010-09-04 21:41:342010-09-04 21:43:42 00:02:08 617 266.94 617 274.72 34.30 7
84PSRFBS2010-09-04 21:46:422010-09-04 21:48:10 00:01:28 617 285.66 617 291.01 34.30 7
85PSRFBD2010-09-04 22:03:152010-09-04 22:12:13 00:08:58 617 346.01 663 18.72 34.30 43
86PSRFBD2010-09-04 22:27:322010-09-04 22:30:54 00:03:22 663 74.58 663 86.85 34.30 43
87PSMOB12010-09-04 22:35:112010-09-04 22:43:17 00:08:06 663 102.47 663 132.01 -1.20 -
88AV2OBS2010-09-04 22:35:592010-09-04 22:43:09 00:07:10 663 105.39 663 131.53 0.00 -
89AV2OBS2010-09-04 22:54:532010-09-04 22:56:45 00:01:52 663 174.31 663 181.12 0.00 -
90PSMOB22010-09-04 22:54:542010-09-04 22:57:22 00:02:28 663 174.37 663 183.37 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
19 -9.950742010-09-03 23:05:01157.709472010-09-03 23:54:22
65-34.630322010-09-04 00:43:44133.029892010-09-04 01:33:05
111-59.309912010-09-04 02:22:27108.350302010-09-04 03:11:48
157-83.989492010-09-04 04:01:10 83.670722010-09-04 04:50:31
203-108.669072010-09-04 05:39:53 58.991142010-09-04 06:29:14
249-133.348652010-09-04 07:18:36 34.311552010-09-04 08:07:58
295-158.028242010-09-04 08:57:19 9.631972010-09-04 09:46:41
341177.292182010-09-04 10:36:02-15.047612010-09-04 11:25:24
387152.612602010-09-04 12:14:45-39.727192010-09-04 13:04:07
433127.933012010-09-04 13:53:28-64.406782010-09-04 14:42:50
479103.253432010-09-04 15:32:12-89.086362010-09-04 16:21:33
525 78.573852010-09-04 17:10:55-113.765942010-09-04 18:00:16
571 53.894272010-09-04 18:49:38-138.445522010-09-04 19:38:59
617 29.214682010-09-04 20:28:21-163.125112010-09-04 21:17:42
663 4.535102010-09-04 22:07:04172.195312010-09-04 22:56:25
38-20.144482010-09-04 23:45:47147.515732010-09-05 00:35:09
