>ALOS Data Take Simulation(Aug. 23, 2010)

Observation Area

PRISM

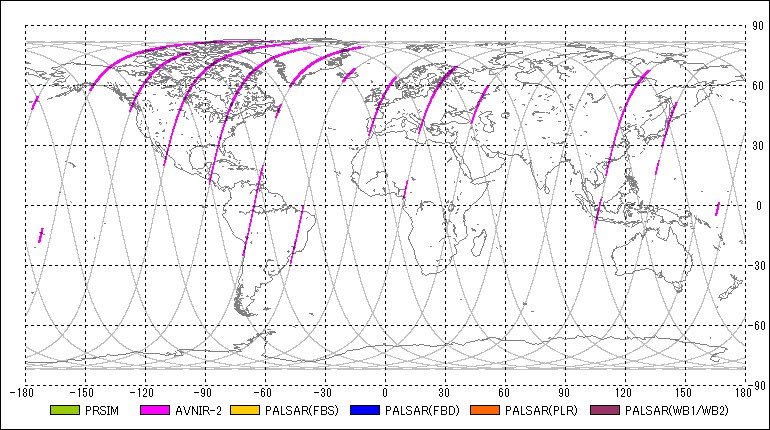

AVNIR-2

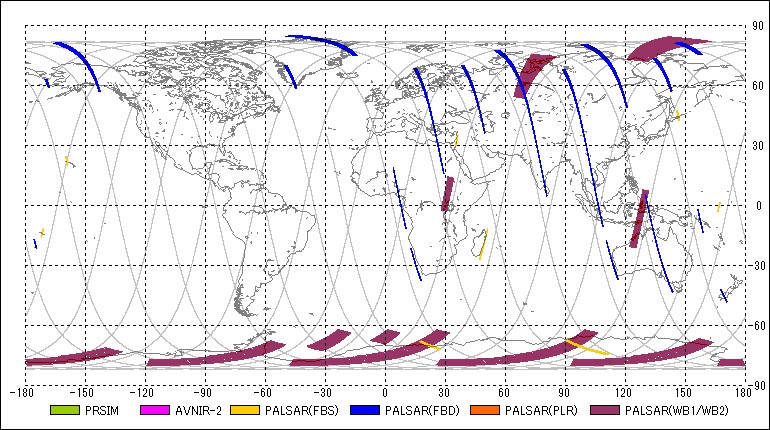

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBD	2010-08-23 01:03:30	2010-08-23 01:07:24	00:03:54	67	56.34	67	70.56	34.30	43
2	PSM	OB2	2010-08-23 01:17:08	2010-08-23 01:29:32	00:12:24	67	106.12	67	151.34	0.00	-
3	AV2	OBS	2010-08-23 01:23:08	2010-08-23 01:29:22	00:06:14	67	128.00	67	150.73	0.00	-
4	PSM	OB2	2010-08-23 01:31:14	2010-08-23 01:33:06	00:01:52	67	157.54	67	164.35	0.00	-
5	AV2	OBS	2010-08-23 01:31:15	2010-08-23 01:33:07	00:01:52	67	157.60	67	164.41	0.00	-
6	PSR	WB1	2010-08-23 01:35:00	2010-08-23 01:43:32	00:08:32	67	171.28	67	202.39	27.10	80
7	PSM	OB2	2010-08-23 01:36:36	2010-08-23 01:44:04	00:07:28	67	177.11	67	204.34	0.00	-
8	PSR	WB1	2010-08-23 01:54:54	2010-08-23 02:02:46	00:07:52	67	243.85	67	272.53	27.10	80
9	PSR	WB1	2010-08-23 02:52:24	2010-08-23 02:56:18	00:03:54	113	93.48	113	107.70	27.10	80
10	AV2	OBS	2010-08-23 02:57:17	2010-08-23 03:12:07	00:14:50	113	111.29	113	165.38	0.00	-
11	PSM	OB2	2010-08-23 03:14:25	2010-08-23 03:19:27	00:05:02	113	173.77	113	192.12	0.00	-
12	AV2	OBS	2010-08-23 03:15:18	2010-08-23 03:19:10	00:03:52	113	177.05	113	191.15	0.00	-
13	PSM	OB1	2010-08-23 04:32:49	2010-08-23 04:50:27	00:17:38	159	99.74	159	164.04	-1.20	-
14	PSR	WB1	2010-08-23 06:12:22	2010-08-23 06:19:02	00:06:40	205	102.72	205	127.03	27.10	80
15	PSM	OB1	2010-08-23 06:13:24	2010-08-23 06:27:56	00:14:32	205	106.48	205	159.48	-1.20	-
16	PSR	FBS	2010-08-23 06:36:33	2010-08-23 06:41:31	00:04:58	205	190.91	205	209.02	34.30	7
17	PSR	WB1	2010-08-23 06:51:04	2010-08-23 06:58:54	00:07:50	205	243.91	205	272.47	27.10	80
18	PSR	FBD	2010-08-23 07:37:59	2010-08-23 07:45:35	00:07:36	251	54.94	251	82.66	34.30	43
19	PSM	OB1	2010-08-23 07:51:21	2010-08-23 08:01:51	00:10:30	251	103.69	251	141.98	-1.20	-
20	AV2	OBS	2010-08-23 07:55:46	2010-08-23 08:01:02	00:05:16	251	119.80	251	139.00	0.00	-
21	PSR	FBS	2010-08-23 08:02:19	2010-08-23 08:04:35	00:02:16	251	143.68	251	151.95	34.30	7
22	PSR	WB1	2010-08-23 08:08:09	2010-08-23 08:13:25	00:05:16	251	164.95	251	184.16	27.10	80
23	PSM	OB1	2010-08-23 08:13:53	2010-08-23 08:22:55	00:09:02	251	185.86	251	218.80	-1.20	-
24	PSR	WB1	2010-08-23 08:29:47	2010-08-23 08:32:09	00:02:22	251	243.91	251	252.54	27.10	80
25	PSR	FBS	2010-08-23 09:06:31	2010-08-23 09:08:23	00:01:52	297	17.81	297	24.62	34.30	7
26	PSR	FBD	2010-08-23 09:17:15	2010-08-23 09:19:05	00:01:50	297	56.95	297	63.64	34.30	43
27	AV2	OBS	2010-08-23 09:31:35	2010-08-23 09:41:03	00:09:28	297	109.22	297	143.74	0.00	-
28	AV2	OBS	2010-08-23 09:47:32	2010-08-23 09:50:00	00:02:28	297	167.39	297	176.38	0.00	-
29	PSR	WB1	2010-08-23 10:08:30	2010-08-23 10:11:56	00:03:26	297	243.91	297	256.43	27.10	80
30	PSR	FBD	2010-08-23 10:33:43	2010-08-23 10:35:39	00:01:56	297	335.86	297	342.92	34.30	43
31	PSR	FBD	2010-08-23 11:00:36	2010-08-23 11:03:00	00:02:24	343	73.91	343	82.66	34.30	43
32	AV2	OBS	2010-08-23 11:11:49	2010-08-23 11:20:07	00:08:18	343	114.75	343	145.02	0.00	-
33	PSM	OB1	2010-08-23 11:12:42	2010-08-23 11:20:52	00:08:10	343	117.97	343	147.75	-1.20	-
34	PSR	WB1	2010-08-23 11:48:59	2010-08-23 11:54:55	00:05:56	343	250.29	343	271.93	27.10	80
35	PSR	FBD	2010-08-23 12:04:53	2010-08-23 12:07:17	00:02:24	343	308.27	343	317.02	34.30	43
36	PSR	FBD	2010-08-23 12:14:40	2010-08-23 12:18:32	00:03:52	343	343.95	343	358.05	34.30	43
37	PSR	FBS	2010-08-23 12:30:08	2010-08-23 12:32:10	00:02:02	389	40.36	389	47.77	34.30	7
38	PSR	FBD	2010-08-23 12:34:12	2010-08-23 12:39:28	00:05:16	389	55.19	389	74.39	34.30	43
39	PSM	OB1	2010-08-23 12:48:38	2010-08-23 12:51:52	00:03:14	389	107.82	389	119.61	-1.20	-
40	AV2	OBS	2010-08-23 12:49:20	2010-08-23 12:51:12	00:01:52	389	110.37	389	117.18	0.00	-
41	PSM	OB1	2010-08-23 13:07:51	2010-08-23 13:16:27	00:08:36	389	177.90	389	209.26	-1.20	-
42	AV2	OBS	2010-08-23 13:08:37	2010-08-23 13:16:29	00:07:52	389	180.70	389	209.38	0.00	-
43	PSR	FBD	2010-08-23 13:45:02	2010-08-23 13:59:16	00:14:14	389	313.50	435	5.41	34.30	43
44	PSR	FBD	2010-08-23 14:10:36	2010-08-23 14:20:10	00:09:34	435	46.74	435	81.63	34.30	43
45	AV2	OBS	2010-08-23 14:24:27	2010-08-23 14:30:43	00:06:16	435	97.25	435	120.10	0.00	-
46	PSM	OB1	2010-08-23 14:32:26	2010-08-23 14:35:20	00:02:54	435	126.36	435	136.94	-1.20	-
47	AV2	OBS	2010-08-23 14:33:12	2010-08-23 14:35:04	00:01:52	435	129.16	435	135.96	0.00	-
48	AV2	OBS	2010-08-23 14:41:41	2010-08-23 14:54:01	00:12:20	435	160.09	435	205.07	0.00	-
49	PSR	FBD	2010-08-23 15:25:30	2010-08-23 15:31:40	00:06:10	435	319.88	435	342.37	34.30	43
50	PSR	FBD	2010-08-23 15:32:56	2010-08-23 15:55:20	00:22:24	435	346.99	481	68.68	34.30	43
51	AV2	OBS	2010-08-23 16:03:14	2010-08-23 16:23:01	00:19:47	481	97.49	481	169.63	0.00	-
52	PSM	OB1	2010-08-23 16:18:56	2010-08-23 16:21:42	00:02:46	481	154.74	481	164.83	-1.20	-
53	PSR	WB1	2010-08-23 16:46:20	2010-08-23 16:51:06	00:04:46	481	254.66	481	272.05	27.10	80
54	PSR	FBD	2010-08-23 17:15:49	2010-08-23 17:36:47	00:20:58	527	2.19	527	78.65	34.30	43
55	PSM	OB1	2010-08-23 17:38:57	2010-08-23 17:59:25	00:20:28	527	86.49	527	161.13	-1.20	-
56	AV2	OBS	2010-08-23 17:40:59	2010-08-23 17:59:07	00:18:08	527	93.90	527	160.03	0.00	-
57	PSR	FBS	2010-08-23 18:31:21	2010-08-23 18:34:41	00:03:20	527	277.64	527	289.79	34.30	7
58	PSR	FBD	2010-08-23 19:03:14	2010-08-23 19:13:20	00:10:06	573	33.91	573	70.75	34.30	43
59	PSM	OB1	2010-08-23 19:17:40	2010-08-23 19:31:02	00:13:22	573	86.49	573	135.23	-1.20	-
60	AV2	OBS	2010-08-23 19:21:41	2010-08-23 19:30:21	00:08:40	573	101.14	573	132.74	0.00	-
61	PSR	FBD	2010-08-23 20:36:19	2010-08-23 20:51:35	00:15:16	619	13.37	619	69.04	34.30	43
62	PSM	OB1	2010-08-23 20:56:24	2010-08-23 21:06:50	00:10:26	619	86.55	619	124.60	-1.20	-
63	AV2	OBS	2010-08-23 20:56:54	2010-08-23 21:06:04	00:09:10	619	88.37	619	121.80	0.00	-
64	PSR	FBS	2010-08-23 21:25:02	2010-08-23 21:26:54	00:01:52	619	191.03	619	197.84	34.30	7
65	AV2	OBS	2010-08-23 21:25:30	2010-08-23 21:27:22	00:01:52	619	192.73	619	199.54	-34.30	-
66	PSR	WB1	2010-08-23 21:40:58	2010-08-23 21:47:14	00:06:16	619	249.07	619	271.93	27.10	80
67	PSR	FBD	2010-08-23 22:00:16	2010-08-23 22:05:20	00:05:04	619	319.52	619	337.99	34.30	43
68	PSR	FBD	2010-08-23 22:07:33	2010-08-23 22:16:31	00:08:58	619	346.01	665	18.72	34.30	43
69	PSR	FBD	2010-08-23 22:31:32	2010-08-23 22:35:14	00:03:42	665	73.54	665	87.04	34.30	43
70	PSM	OB1	2010-08-23 22:39:27	2010-08-23 22:47:39	00:08:12	665	102.41	665	132.32	-1.20	-
71	AV2	OBS	2010-08-23 22:45:35	2010-08-23 22:47:27	00:01:52	665	124.78	665	131.59	0.00	-
72	PSR	FBS	2010-08-23 23:00:05	2010-08-23 23:01:57	00:01:52	665	177.66	665	184.46	34.30	7
73	AV2	OBS	2010-08-23 23:00:33	2010-08-23 23:02:25	00:01:52	665	179.30	665	186.11	-34.30	-
74	PSR	FBS	2010-08-23 23:28:35	2010-08-23 23:30:37	00:02:02	665	281.53	665	288.94	34.30	7

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
21	-11.02377	2010-08-22 23:09:18	156.63644	2010-08-22 23:58:40
67	-35.70335	2010-08-23 00:48:01	131.95686	2010-08-23 01:37:23
113	-60.38293	2010-08-23 02:26:44	107.27728	2010-08-23 03:16:06
159	-85.06251	2010-08-23 04:05:27	82.59769	2010-08-23 04:54:49
205	-109.74210	2010-08-23 05:44:10	57.91811	2010-08-23 06:33:32
251	-134.42168	2010-08-23 07:22:54	33.23853	2010-08-23 08:12:15
297	-159.10126	2010-08-23 09:01:37	8.55895	2010-08-23 09:50:58
343	176.21915	2010-08-23 10:40:20	-16.12064	2010-08-23 11:29:41
389	151.53957	2010-08-23 12:19:03	-40.80022	2010-08-23 13:08:24
435	126.85999	2010-08-23 13:57:46	-65.47980	2010-08-23 14:47:07
481	102.18041	2010-08-23 15:36:29	-90.15938	2010-08-23 16:25:51
527	77.50082	2010-08-23 17:15:12	-114.83897	2010-08-23 18:04:34
573	52.82124	2010-08-23 18:53:55	-139.51855	2010-08-23 19:43:17
619	28.14166	2010-08-23 20:32:38	-164.19813	2010-08-23 21:22:00
665	3.46208	2010-08-23 22:11:21	171.12228	2010-08-23 23:00:43
40	-21.21751	2010-08-23 23:50:05	146.44270	2010-08-24 00:39:26
