>ALOS Data Take Simulation(Aug. 02, 2010)

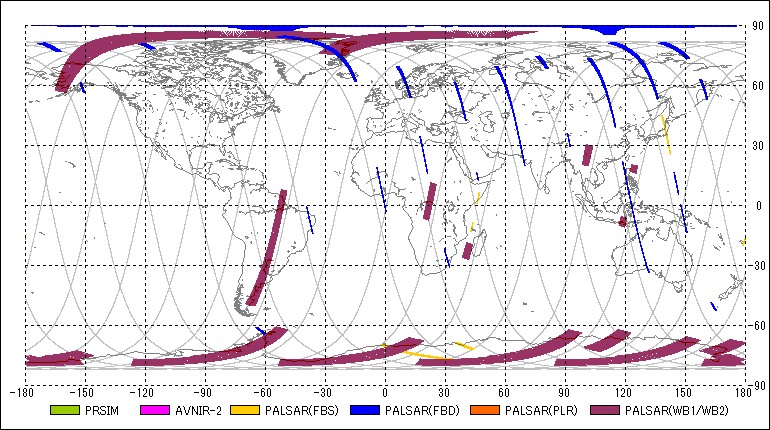

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	AV2	OBS	2010-08-02 00:10:47	2010-08-02 00:16:37	00:05:50	36	106.79	36	128.06	0.00	-
2	PSM	OB1	2010-08-02 00:14:08	2010-08-02 00:16:48	00:02:40	36	118.94	36	128.67	-1.20	-
3	PSM	OB1	2010-08-02 00:22:52	2010-08-02 00:25:28	00:02:36	36	150.79	36	160.27	-1.20	-
4	AV2	OBS	2010-08-02 00:23:37	2010-08-02 00:25:29	00:01:52	36	153.53	36	160.33	0.00	-
5	PSM	OB2	2010-08-02 00:27:48	2010-08-02 00:42:36	00:14:48	36	168.78	36	222.75	0.00	-
6	PSR	WB1	2010-08-02 00:48:24	2010-08-02 00:52:00	00:03:36	36	243.91	36	257.03	27.10	80
7	PSR	FBS	2010-08-02 00:54:42	2010-08-02 01:00:12	00:05:30	36	266.88	36	286.94	34.30	7
8	PSR	FBD	2010-08-02 01:15:41	2010-08-02 01:20:03	00:04:22	36	343.40	36	359.33	34.30	43
9	PSR	FBD	2010-08-02 01:43:08	2010-08-02 01:45:24	00:02:16	82	83.57	82	91.84	49.00	51
10	PSM	OB1	2010-08-02 01:48:17	2010-08-02 02:02:23	00:14:06	82	102.35	82	153.77	-1.20	-
11	AV2	OBS	2010-08-02 01:52:49	2010-08-02 02:03:09	00:10:20	82	118.82	82	156.51	0.00	-
12	PSR	WB1	2010-08-02 02:03:47	2010-08-02 02:05:27	00:01:40	82	158.82	82	164.89	27.10	80
13	PSM	OB2	2010-08-02 02:05:54	2010-08-02 02:20:34	00:14:40	82	166.53	82	220.02	0.00	-
14	PSR	WB1	2010-08-02 02:11:01	2010-08-02 02:12:53	00:01:52	82	185.19	82	192.00	27.10	80
15	PSR	WB1	2010-08-02 02:27:06	2010-08-02 02:35:06	00:08:00	82	243.85	82	273.02	27.10	80
16	AV2	OBS	2010-08-02 03:32:06	2010-08-02 03:35:30	00:03:24	128	120.89	128	133.29	0.00	-
17	PSR	WB1	2010-08-02 03:39:43	2010-08-02 03:43:09	00:03:26	128	148.67	128	161.19	27.10	80
18	PSM	OB2	2010-08-02 03:40:07	2010-08-02 03:44:53	00:04:46	128	150.12	128	167.51	0.00	-
19	AV2	OBS	2010-08-02 03:44:50	2010-08-02 03:50:42	00:05:52	128	167.39	128	188.78	0.00	-
20	PSR	FBD	2010-08-02 04:18:34	2010-08-02 04:20:26	00:01:52	128	290.34	128	297.15	34.30	43
21	PSR	FBD	2010-08-02 04:58:46	2010-08-02 05:00:38	00:01:52	174	76.95	174	83.75	34.30	43
22	AV2	OBS	2010-08-02 05:05:01	2010-08-02 05:25:01	00:20:00	174	99.80	174	172.73	0.00	-
23	PSM	OB1	2010-08-02 05:07:09	2010-08-02 05:25:45	00:18:36	174	107.52	174	175.35	-1.20	-
24	PSM	OB1	2010-08-02 06:43:25	2010-08-02 06:56:29	00:13:04	220	98.58	220	146.23	-1.20	-
25	AV2	OBS	2010-08-02 06:43:49	2010-08-02 06:49:21	00:05:32	220	100.04	220	120.22	0.00	-
26	AV2	OBS	2010-08-02 07:02:04	2010-08-02 07:03:14	00:01:10	220	166.60	220	170.85	0.00	-
27	PSR	FBS	2010-08-02 07:03:42	2010-08-02 07:05:52	00:02:10	220	172.55	220	180.45	34.30	7
28	PSR	FBS	2010-08-02 07:07:56	2010-08-02 07:09:48	00:01:52	220	187.99	220	194.80	34.30	7
29	PSM	OB1	2010-08-02 07:08:23	2010-08-02 07:13:57	00:05:34	220	189.63	220	209.93	-1.20	-
30	PSR	WB1	2010-08-02 07:10:45	2010-08-02 07:13:33	00:02:48	220	198.20	220	208.41	27.10	80
31	PSR	WB1	2010-08-02 07:24:28	2010-08-02 07:30:58	00:06:30	220	248.28	220	271.99	27.10	80
32	PSM	DCA	2010-08-02 07:46:28	2010-08-02 07:52:16	00:05:48	220	328.51	220	349.66	0.00	-
33	PSM	ECA	2010-08-02 07:57:27	2010-08-02 08:03:15	00:05:48	266	8.51	266	29.66	0.00	-
34	PSR	FBD	2010-08-02 08:10:01	2010-08-02 08:12:03	00:02:02	266	54.40	266	61.81	34.30	43
35	PSR	FBD	2010-08-02 08:15:47	2010-08-02 08:17:45	00:01:58	266	75.43	266	82.60	34.30	43
36	AV2	OBS	2010-08-02 08:22:07	2010-08-02 08:33:21	00:11:14	266	98.52	266	139.49	0.00	-
37	PSR	WB1	2010-08-02 08:41:09	2010-08-02 08:46:47	00:05:38	266	167.93	266	188.48	27.10	80
38	AV2	OBS	2010-08-02 10:09:36	2010-08-02 10:12:48	00:03:12	312	130.43	312	142.10	0.00	-
39	PSR	FBD	2010-08-02 11:26:31	2010-08-02 11:29:57	00:03:26	358	50.99	358	63.51	34.30	43
40	PSR	FBD	2010-08-02 11:32:12	2010-08-02 11:35:12	00:03:00	358	71.72	358	82.66	34.30	43
41	PSM	OB1	2010-08-02 11:43:22	2010-08-02 11:48:50	00:05:28	358	112.38	358	132.32	-1.20	-
42	AV2	OBS	2010-08-02 11:44:07	2010-08-02 11:48:08	00:04:01	358	115.18	358	129.82	0.00	-
43	PSR	WB1	2010-08-02 12:18:59	2010-08-02 12:27:07	00:08:08	358	242.27	358	271.93	27.10	80
44	PSR	FBD	2010-08-02 12:35:50	2010-08-02 12:37:42	00:01:52	358	303.77	358	310.58	34.30	43
45	PSR	FBD	2010-08-02 12:46:49	2010-08-02 12:51:17	00:04:28	358	343.83	404	0.12	34.30	43
46	PSR	FBD	2010-08-02 12:52:08	2010-08-02 12:55:48	00:03:40	404	3.22	404	16.59	34.30	43
47	PSR	FBS	2010-08-02 12:57:33	2010-08-02 13:03:41	00:06:08	404	22.97	404	45.34	34.30	7
48	PSR	FBD	2010-08-02 13:05:17	2010-08-02 13:13:57	00:08:40	404	51.18	404	82.78	34.30	43
49	PSR	WB1	2010-08-02 13:15:03	2010-08-02 13:19:55	00:04:52	404	86.79	404	104.54	27.10	80
50	PSR	WB1	2010-08-02 13:38:12	2010-08-02 13:54:52	00:16:40	404	171.21	404	231.99	27.10	80
51	PSM	OB1	2010-08-02 13:43:33	2010-08-02 13:46:35	00:03:02	404	190.72	404	201.79	-1.20	-
52	PSM	OB1	2010-08-02 13:54:35	2010-08-02 13:57:15	00:02:40	404	230.96	404	240.68	-1.20	-
53	PSR	FBD	2010-08-02 14:19:58	2010-08-02 14:35:56	00:15:58	404	323.53	450	21.76	34.30	43
54	PSR	FBD	2010-08-02 14:39:59	2010-08-02 14:50:21	00:10:22	450	36.53	450	74.33	34.30	43
55	PSR	FBD	2010-08-02 14:52:53	2010-08-02 14:55:27	00:02:34	450	83.57	450	92.93	49.00	51
56	PSM	OB1	2010-08-02 14:55:13	2010-08-02 15:08:17	00:13:04	450	92.08	450	139.73	-1.20	-
57	AV2	OBS	2010-08-02 15:03:32	2010-08-02 15:08:16	00:04:44	450	122.35	450	139.61	0.00	-
58	AV2	OBS	2010-08-02 15:12:40	2010-08-02 15:23:40	00:11:00	450	155.65	450	195.77	0.00	-
59	PSR	WB1	2010-08-02 15:42:37	2010-08-02 15:44:45	00:02:08	450	264.87	450	272.65	27.10	80
60	PSR	FBD	2010-08-02 16:16:09	2010-08-02 16:18:35	00:02:26	496	27.23	496	36.10	34.30	43
61	PSR	FBD	2010-08-02 16:26:57	2010-08-02 16:29:25	00:02:28	496	66.55	496	75.55	34.30	43
62	AV2	OBS	2010-08-02 16:37:45	2010-08-02 16:45:55	00:08:10	496	106.00	496	135.78	0.00	-
63	PSM	OB1	2010-08-02 16:51:21	2010-08-02 16:55:01	00:03:40	496	155.53	496	168.90	-1.20	-
64	PSR	WB1	2010-08-02 17:19:15	2010-08-02 17:23:17	00:04:02	496	257.34	496	272.05	27.10	80
65	PSR	FBD	2010-08-02 17:52:16	2010-08-02 18:06:42	00:14:26	542	17.75	542	70.38	34.30	43
66	PSM	OB1	2010-08-02 18:11:09	2010-08-02 18:29:49	00:18:40	542	86.61	542	154.68	-1.20	-
67	AV2	OBS	2010-08-02 18:22:47	2010-08-02 18:29:05	00:06:18	542	128.97	542	151.95	0.00	-
68	PSR	WB1	2010-08-02 18:58:18	2010-08-02 19:00:10	00:01:52	542	258.49	542	265.30	27.10	80
69	PSR	FBD	2010-08-02 19:28:49	2010-08-02 19:30:41	00:01:52	588	9.79	588	16.59	34.30	43
70	PSR	FBD	2010-08-02 19:37:09	2010-08-02 19:43:11	00:06:02	588	40.17	588	62.18	34.30	43
71	PSM	OB1	2010-08-02 19:49:52	2010-08-02 20:01:52	00:12:00	588	86.55	588	130.31	-1.20	-
72	AV2	OBS	2010-08-02 19:53:52	2010-08-02 20:01:24	00:07:32	588	101.14	588	128.61	0.00	-
73	AV2	OBS	2010-08-02 20:17:36	2010-08-02 20:19:28	00:01:52	588	187.69	588	194.49	0.00	-
74	PSR	WB1	2010-08-02 20:33:57	2010-08-02 20:37:19	00:03:22	588	247.31	588	259.59	27.10	80
75	PSR	FBD	2010-08-02 20:55:37	2010-08-02 20:58:49	00:03:12	588	326.32	588	337.99	34.30	43
76	PSR	FBD	2010-08-02 21:08:30	2010-08-02 21:14:20	00:05:50	634	13.31	634	34.58	34.30	43
77	PSR	FBD	2010-08-02 21:19:03	2010-08-02 21:24:09	00:05:06	634	51.78	634	70.38	34.30	43
78	PSR	WB1	2010-08-02 21:27:46	2010-08-02 21:38:48	00:11:02	634	83.57	634	123.81	27.10	80
79	PSM	OB1	2010-08-02 21:28:35	2010-08-02 21:31:31	00:02:56	634	86.55	634	97.25	-1.20	-
80	PSM	OB1	2010-08-02 21:33:13	2010-08-02 21:39:49	00:06:36	634	103.45	634	127.51	-1.20	-
81	PSR	FBS	2010-08-02 21:57:56	2010-08-02 22:00:12	00:02:16	634	193.64	634	201.91	34.30	7
82	AV2	OBS	2010-08-02 21:58:24	2010-08-02 22:00:16	00:01:52	634	195.34	634	202.15	-34.30	-
83	PSR	WB1	2010-08-02 22:12:49	2010-08-02 22:19:25	00:06:36	634	247.86	634	271.93	27.10	80
84	PSR	FBS	2010-08-02 22:22:02	2010-08-02 22:23:52	00:01:50	634	281.47	634	288.15	34.30	7
85	PSR	FBD	2010-08-02 22:41:59	2010-08-02 22:48:43	00:06:44	634	354.22	9	18.78	34.30	43
86	PSR	FBD	2010-08-02 23:00:04	2010-08-02 23:07:20	00:07:16	9	60.17	9	86.67	34.30	43
87	PSM	OB1	2010-08-02 23:12:48	2010-08-02 23:19:50	00:07:02	9	106.61	9	132.26	-1.20	-
88	AV2	OBS	2010-08-02 23:17:50	2010-08-02 23:19:42	00:01:52	9	124.96	9	131.77	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
36	-19.07146	2010-08-01 23:41:29	148.58875	2010-08-02 00:30:51
82	-43.75104	2010-08-02 01:20:13	123.90917	2010-08-02 02:09:34
128	-68.43062	2010-08-02 02:58:56	99.22959	2010-08-02 03:48:17
174	-93.11020	2010-08-02 04:37:39	74.55000	2010-08-02 05:27:00
220	-117.78979	2010-08-02 06:16:22	49.87042	2010-08-02 07:05:43
266	-142.46937	2010-08-02 07:55:05	25.19084	2010-08-02 08:44:27
312	-167.14895	2010-08-02 09:33:48	0.51126	2010-08-02 10:23:10
358	168.17146	2010-08-02 11:12:31	-24.16833	2010-08-02 12:01:53
404	143.49188	2010-08-02 12:51:14	-48.84791	2010-08-02 13:40:36
450	118.81230	2010-08-02 14:29:57	-73.52749	2010-08-02 15:19:19
496	94.13272	2010-08-02 16:08:40	-98.20707	2010-08-02 16:58:02
542	69.45313	2010-08-02 17:47:24	-122.88666	2010-08-02 18:36:45
588	44.77355	2010-08-02 19:26:07	-147.56624	2010-08-02 20:15:28
634	20.09397	2010-08-02 21:04:50	-172.24582	2010-08-02 21:54:11
9	-4.58561	2010-08-02 22:43:33	163.07459	2010-08-02 23:32:54
