>ALOS Data Take Simulation(Jul. 30, 2010)

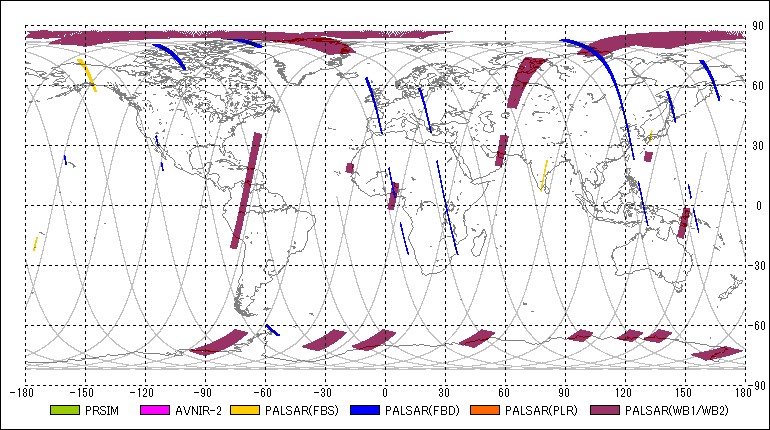

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-07-30 00:07:20	2010-07-30 00:12:04	00:04:44	25	180.27	25	197.53	27.10	80
2	PSM	OB2	2010-07-30 00:12:30	2010-07-30 00:20:04	00:07:34	25	199.11	25	226.71	0.00	-
3	AV2	OBS	2010-07-30 00:12:31	2010-07-30 00:19:39	00:07:08	25	199.17	25	225.19	0.00	-
4	PSR	WB1	2010-07-30 00:24:47	2010-07-30 00:26:49	00:02:02	25	243.91	25	251.32	27.10	80
5	PSR	FBD	2010-07-30 01:18:00	2010-07-30 01:20:16	00:02:16	71	77.92	71	86.18	34.30	43
6	PSM	OB2	2010-07-30 01:25:41	2010-07-30 01:37:35	00:11:54	71	106.00	71	149.39	0.00	-
7	AV2	OBS	2010-07-30 01:31:00	2010-07-30 01:37:20	00:06:20	71	125.39	71	148.48	0.00	-
8	PSR	FBS	2010-07-30 01:35:29	2010-07-30 01:37:35	00:02:06	71	141.68	71	149.33	34.30	7
9	PSR	WB1	2010-07-30 01:38:22	2010-07-30 01:40:14	00:01:52	71	152.25	71	159.06	27.10	80
10	AV2	OBS	2010-07-30 01:44:58	2010-07-30 01:56:08	00:11:10	71	176.32	71	217.04	0.00	-
11	PSM	OB2	2010-07-30 01:45:00	2010-07-30 01:57:04	00:12:04	71	176.38	71	220.38	0.00	-
12	PSR	WB1	2010-07-30 02:03:30	2010-07-30 02:05:32	00:02:02	71	243.91	71	251.32	27.10	80
13	PSR	WB1	2010-07-30 02:59:07	2010-07-30 03:02:53	00:03:46	117	86.73	117	100.47	27.10	80
14	AV2	OBS	2010-07-30 03:03:51	2010-07-30 03:27:36	00:23:45	117	103.93	117	190.54	0.00	-
15	PSM	OB2	2010-07-30 03:08:03	2010-07-30 03:10:45	00:02:42	117	119.25	117	129.09	0.00	-
16	PSR	FBD	2010-07-30 03:54:51	2010-07-30 03:57:11	00:02:20	117	289.92	117	298.42	34.30	43
17	PSR	FBD	2010-07-30 04:32:15	2010-07-30 04:36:29	00:04:14	163	66.37	163	81.81	34.30	43
18	PSR	WB1	2010-07-30 04:37:50	2010-07-30 04:42:54	00:05:04	163	86.73	163	105.21	27.10	80
19	PSM	OB1	2010-07-30 04:43:43	2010-07-30 05:02:57	00:19:14	163	108.13	163	178.26	1.20	-
20	PSR	FBS	2010-07-30 04:56:56	2010-07-30 05:01:52	00:04:56	163	156.32	163	174.31	34.30	7
21	AV2	OBS	2010-07-30 05:00:52	2010-07-30 05:02:44	00:01:52	163	170.73	163	177.54	0.00	-
22	AV2	OBS	2010-07-30 05:13:14	2010-07-30 05:15:06	00:01:52	163	215.77	163	222.57	34.30	-
23	PSR	WB1	2010-07-30 05:20:57	2010-07-30 05:23:49	00:02:52	163	243.91	163	254.36	27.10	80
24	PSR	FBD	2010-07-30 05:56:54	2010-07-30 05:58:38	00:01:44	209	15.01	209	21.33	34.30	43
25	PSR	FBD	2010-07-30 06:00:28	2010-07-30 06:02:20	00:01:52	209	28.02	209	34.83	34.30	43
26	PSM	OB1	2010-07-30 06:18:40	2010-07-30 06:36:18	00:17:38	209	94.45	209	158.75	1.20	-
27	AV2	OBS	2010-07-30 06:19:28	2010-07-30 06:36:20	00:16:52	209	97.37	209	158.88	0.00	-
28	PSR	WB1	2010-07-30 06:21:25	2010-07-30 06:29:01	00:07:36	209	104.42	209	132.13	27.10	80
29	PSR	WB1	2010-07-30 06:32:16	2010-07-30 06:37:04	00:04:48	209	143.99	209	161.49	27.10	80
30	PSR	FBS	2010-07-30 07:46:34	2010-07-30 07:51:44	00:05:10	255	54.94	255	73.79	34.30	7
31	PSM	OB1	2010-07-30 07:59:48	2010-07-30 08:15:40	00:15:52	255	103.20	255	161.06	1.20	-
32	AV2	OBS	2010-07-30 08:03:09	2010-07-30 08:15:29	00:12:20	255	115.42	255	160.40	0.00	-
33	PSM	OB1	2010-07-30 08:22:27	2010-07-30 08:31:33	00:09:06	255	185.80	255	218.99	1.20	-
34	AV2	OBS	2010-07-30 08:25:19	2010-07-30 08:30:47	00:05:28	255	196.32	255	216.25	0.00	-
35	PSR	WB1	2010-07-30 08:38:22	2010-07-30 08:41:48	00:03:26	255	243.91	255	256.43	27.10	80
36	PSR	FBD	2010-07-30 09:15:06	2010-07-30 09:16:58	00:01:52	301	17.81	301	24.62	41.50	46
37	PSM	OB1	2010-07-30 09:38:40	2010-07-30 09:51:16	00:12:36	301	103.75	301	149.70	1.20	-
38	AV2	OBS	2010-07-30 09:39:36	2010-07-30 09:50:24	00:10:48	301	107.15	301	146.54	0.00	-
39	PSR	WB1	2010-07-30 09:56:14	2010-07-30 10:00:26	00:04:12	301	167.81	301	183.13	27.10	80
40	PSR	WB1	2010-07-30 10:17:05	2010-07-30 10:20:31	00:03:26	301	243.91	301	256.43	27.10	80
41	PSR	FBD	2010-07-30 11:02:48	2010-07-30 11:09:04	00:06:16	347	50.57	347	73.42	34.30	43
42	PSM	OB1	2010-07-30 11:20:27	2010-07-30 11:29:07	00:08:40	347	114.93	347	146.54	1.20	-
43	AV2	OBS	2010-07-30 11:21:02	2010-07-30 11:29:32	00:08:30	347	117.06	347	148.06	0.00	-
44	PSR	WB1	2010-07-30 11:32:17	2010-07-30 11:34:09	00:01:52	347	158.09	347	164.89	27.10	80
45	PSR	FBD	2010-07-30 12:23:17	2010-07-30 12:27:13	00:03:56	347	344.07	347	358.41	34.30	43
46	PSR	FBD	2010-07-30 12:27:58	2010-07-30 12:30:30	00:02:32	393	1.15	393	10.39	34.30	43
47	PSR	FBD	2010-07-30 12:38:28	2010-07-30 12:43:22	00:04:54	393	39.45	393	57.31	34.30	43
48	PSM	OB1	2010-07-30 12:57:13	2010-07-30 13:00:27	00:03:14	393	107.82	393	119.61	1.20	-
49	AV2	OBS	2010-07-30 12:57:56	2010-07-30 12:59:48	00:01:52	393	110.37	393	117.18	0.00	-
50	PSM	OB1	2010-07-30 13:16:16	2010-07-30 13:26:34	00:10:18	393	177.29	393	214.85	1.20	-
51	AV2	OBS	2010-07-30 13:17:02	2010-07-30 13:26:59	00:09:57	393	180.09	393	216.37	0.00	-
52	PSR	WB1	2010-07-30 13:34:32	2010-07-30 13:38:50	00:04:18	393	243.91	393	259.59	27.10	80
53	PSR	FBD	2010-07-30 14:02:56	2010-07-30 14:09:36	00:06:40	393	347.47	439	11.79	34.30	43
54	PSR	FBD	2010-07-30 14:12:01	2010-07-30 14:29:31	00:17:30	439	20.60	439	84.42	34.30	43
55	PSM	OB1	2010-07-30 14:32:12	2010-07-30 14:43:56	00:11:44	439	94.21	439	137.00	1.20	-
56	AV2	OBS	2010-07-30 14:41:08	2010-07-30 14:43:08	00:02:00	439	126.78	439	134.08	0.00	-
57	PSR	WB1	2010-07-30 14:45:32	2010-07-30 15:01:59	00:16:27	439	142.83	439	202.82	27.10	80
58	PSR	WB1	2010-07-30 16:08:52	2010-07-30 16:10:44	00:01:52	485	86.73	485	93.54	27.10	80
59	AV2	OBS	2010-07-30 16:11:45	2010-07-30 16:31:10	00:19:25	485	97.25	485	168.05	0.00	-
60	PSR	WB1	2010-07-30 20:12:10	2010-07-30 20:14:38	00:02:28	577	254.00	577	262.99	27.10	80
61	PSR	FBD	2010-07-30 20:33:46	2010-07-30 20:47:20	00:13:34	577	332.76	623	22.25	34.30	43
62	PSR	FBD	2010-07-30 20:50:34	2010-07-30 20:57:26	00:06:52	623	33.98	623	59.02	34.30	43
63	PSM	OB1	2010-07-30 21:04:59	2010-07-30 21:15:31	00:10:32	623	86.55	623	124.96	1.20	-
64	AV2	OBS	2010-07-30 21:10:29	2010-07-30 21:14:51	00:04:22	623	106.61	623	122.53	0.00	-
65	AV2	OBS	2010-07-30 21:24:07	2010-07-30 21:25:59	00:01:52	623	156.32	623	163.13	34.30	-
66	AV2	OBS	2010-07-30 21:33:59	2010-07-30 21:37:05	00:03:06	623	192.30	623	203.61	0.00	-
67	PSR	FBS	2010-07-30 21:34:50	2010-07-30 21:37:16	00:02:26	623	195.40	623	204.28	34.30	7
68	PSR	FBD	2010-07-30 22:12:31	2010-07-30 22:17:35	00:05:04	623	332.83	623	351.30	34.30	43
69	PSR	FBD	2010-07-30 22:20:18	2010-07-30 22:25:06	00:04:48	669	1.22	669	18.72	34.30	43
70	PSR	FBD	2010-07-30 22:29:11	2010-07-30 22:37:35	00:08:24	669	33.61	669	64.24	34.30	43
71	PSR	WB1	2010-07-30 22:40:28	2010-07-30 22:47:10	00:06:42	669	74.82	669	99.25	27.10	80
72	PSM	OB1	2010-07-30 22:48:12	2010-07-30 22:56:22	00:08:10	669	102.96	669	132.74	1.20	-
73	AV2	OBS	2010-07-30 22:54:14	2010-07-30 22:56:06	00:01:52	669	124.96	669	131.77	0.00	-
74	AV2	OBS	2010-07-30 23:00:38	2010-07-30 23:02:30	00:01:52	669	148.36	669	155.17	41.50	-
75	AV2	OBS	2010-07-30 23:05:54	2010-07-30 23:08:04	00:02:10	669	167.51	669	175.41	0.00	-
76	AV2	OBS	2010-07-30 23:14:27	2010-07-30 23:16:19	00:01:52	669	198.75	669	205.55	0.00	-
77	PSR	WB1	2010-07-30 23:26:50	2010-07-30 23:29:02	00:02:12	669	243.85	669	251.87	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
25	-13.16982	2010-07-29 23:17:53	154.49039	2010-07-30 00:07:15
71	-37.84940	2010-07-30 00:56:36	129.81081	2010-07-30 01:45:58
117	-62.52898	2010-07-30 02:35:19	105.13123	2010-07-30 03:24:41
163	-87.20856	2010-07-30 04:14:02	80.45164	2010-07-30 05:03:24
209	-111.88815	2010-07-30 05:52:45	55.77206	2010-07-30 06:42:07
255	-136.56773	2010-07-30 07:31:29	31.09248	2010-07-30 08:20:50
301	-161.24731	2010-07-30 09:10:12	6.41290	2010-07-30 09:59:33
347	174.07310	2010-07-30 10:48:55	-18.26669	2010-07-30 11:38:16
393	149.39352	2010-07-30 12:27:38	-42.94627	2010-07-30 13:16:59
439	124.71394	2010-07-30 14:06:21	-67.62585	2010-07-30 14:55:43
485	100.03436	2010-07-30 15:45:04	-92.30544	2010-07-30 16:34:26
531	75.35477	2010-07-30 17:23:47	-116.98502	2010-07-30 18:13:09
577	50.67519	2010-07-30 19:02:30	-141.66460	2010-07-30 19:51:52
623	25.99561	2010-07-30 20:41:13	-166.34418	2010-07-30 21:30:35
669	1.31603	2010-07-30 22:19:56	168.97623	2010-07-30 23:09:18
44	-23.36356	2010-07-30 23:58:40	144.29665	2010-07-31 00:48:01
