>ALOS Data Take Simulation(Jul. 22, 2010)

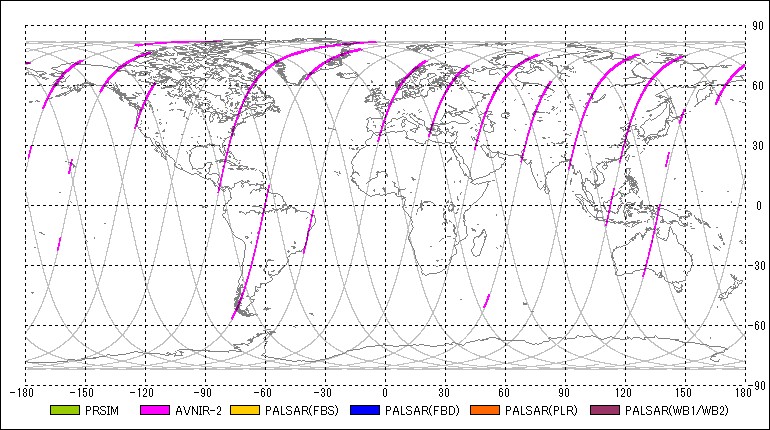

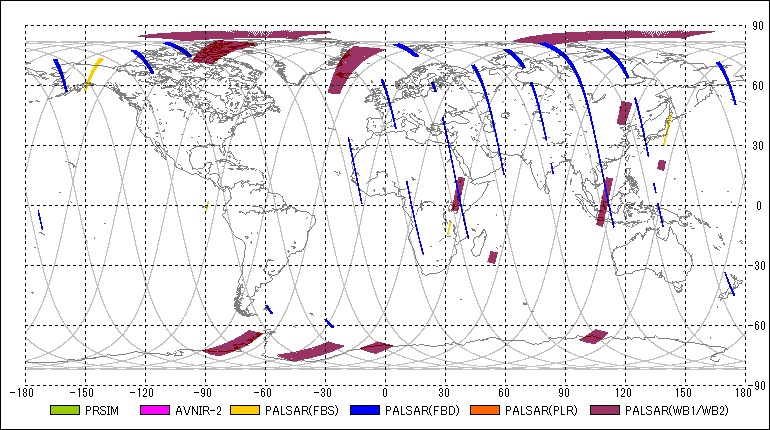

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSM	OB1	2010-07-22 00:55:02	2010-07-22 01:04:40	00:09:38	57	103.75	57	138.88	1.20	-
2	AV2	OBS	2010-07-22 01:02:43	2010-07-22 01:04:41	00:01:58	57	131.77	57	138.94	0.00	-
3	PSR	FBS	2010-07-22 01:03:08	2010-07-22 01:08:04	00:04:56	57	133.29	57	151.28	34.30	7
4	AV2	OBS	2010-07-22 01:08:44	2010-07-22 01:10:36	00:01:52	57	153.71	57	160.52	-9.72	-
5	PSR	WB1	2010-07-22 01:09:30	2010-07-22 01:11:22	00:01:52	57	156.51	57	163.31	27.10	80
6	PSM	OB2	2010-07-22 01:12:36	2010-07-22 01:27:00	00:14:24	57	167.81	57	220.32	0.00	-
7	AV2	OBS	2010-07-22 01:15:45	2010-07-22 01:25:44	00:09:59	57	179.36	57	215.77	0.00	-
8	PSR	WB1	2010-07-22 01:33:27	2010-07-22 01:35:45	00:02:18	57	243.91	57	252.29	27.10	80
9	PSR	FBD	2010-07-22 01:47:21	2010-07-22 01:49:17	00:01:56	57	294.53	57	301.59	34.30	43
10	AV2	OBS	2010-07-22 02:33:41	2010-07-22 02:48:45	00:15:04	103	103.51	103	158.45	0.00	-
11	PSM	OB2	2010-07-22 02:36:44	2010-07-22 02:49:16	00:12:32	103	114.63	103	160.33	0.00	-
12	PSR	WB1	2010-07-22 02:40:08	2010-07-22 02:43:50	00:03:42	103	127.03	103	140.52	27.10	80
13	PSR	WB1	2010-07-22 02:50:37	2010-07-22 02:57:47	00:07:10	103	165.26	103	191.39	27.10	80
14	AV2	OBS	2010-07-22 02:52:17	2010-07-22 02:57:27	00:05:10	103	171.34	103	190.18	0.00	-
15	PSM	OB2	2010-07-22 02:52:31	2010-07-22 02:58:21	00:05:50	103	172.19	103	193.46	0.00	-
16	PSR	FBD	2010-07-22 03:28:10	2010-07-22 03:30:02	00:01:52	103	302.19	103	309.00	34.30	43
17	PSR	FBD	2010-07-22 04:04:02	2010-07-22 04:06:40	00:02:38	149	73.06	149	82.66	34.30	43
18	AV2	OBS	2010-07-22 04:12:05	2010-07-22 04:28:25	00:16:20	149	102.35	149	161.92	0.00	-
19	PSM	OB2	2010-07-22 04:13:56	2010-07-22 04:29:32	00:15:36	149	109.10	149	165.99	0.00	-
20	PSR	FBD	2010-07-22 05:40:18	2010-07-22 05:44:14	00:03:56	195	64.06	195	78.40	34.30	43
21	PSM	OB1	2010-07-22 05:52:00	2010-07-22 06:06:58	00:14:58	195	106.73	195	161.31	1.20	-
22	AV2	OBS	2010-07-22 05:54:54	2010-07-22 06:06:08	00:11:14	195	117.30	195	158.27	0.00	-
23	PSR	WB1	2010-07-22 06:18:17	2010-07-22 06:20:25	00:02:08	195	202.58	195	210.36	27.10	80
24	PSM	OB1	2010-07-22 06:23:43	2010-07-22 06:26:19	00:02:36	195	222.39	195	231.87	1.20	-
25	AV2	OBS	2010-07-22 06:24:28	2010-07-22 06:26:20	00:01:52	195	225.13	195	231.93	0.00	-
26	PSR	WB1	2010-07-22 07:25:14	2010-07-22 07:28:22	00:03:08	241	86.73	241	98.16	27.10	80
27	PSM	OB1	2010-07-22 07:28:49	2010-07-22 07:46:17	00:17:28	241	99.80	241	163.50	1.20	-
28	AV2	OBS	2010-07-22 07:29:35	2010-07-22 07:43:07	00:13:32	241	102.59	241	151.95	0.00	-
29	PSR	WB1	2010-07-22 07:46:44	2010-07-22 07:51:56	00:05:12	241	165.14	241	184.10	27.10	80
30	PSM	OB1	2010-07-22 07:52:24	2010-07-22 08:00:04	00:07:40	241	185.80	241	213.76	1.20	-
31	PSR	FBS	2010-07-22 07:52:51	2010-07-22 07:55:17	00:02:26	241	187.44	241	196.32	34.30	7
32	PSR	WB1	2010-07-22 08:10:20	2010-07-22 08:12:12	00:01:52	241	251.20	241	258.01	27.10	80
33	PSR	FBD	2010-07-22 08:55:11	2010-07-22 09:00:17	00:05:06	287	54.76	287	73.36	41.50	46
34	AV2	OBS	2010-07-22 09:09:57	2010-07-22 09:20:05	00:10:08	287	108.61	287	145.57	0.00	-
35	PSM	OB1	2010-07-22 09:11:36	2010-07-22 09:15:06	00:03:30	287	114.57	287	127.33	1.20	-
36	PSR	WB1	2010-07-22 09:49:03	2010-07-22 09:52:29	00:03:26	287	251.20	287	263.72	27.10	80
37	PSR	FBD	2010-07-22 10:14:51	2010-07-22 10:18:09	00:03:18	287	345.29	287	357.32	34.30	43
38	PSR	FBD	2010-07-22 10:32:06	2010-07-22 10:38:46	00:06:40	333	48.20	333	72.51	34.30	43
39	PSM	OB1	2010-07-22 10:47:13	2010-07-22 10:59:07	00:11:54	333	103.32	333	146.72	1.20	-
40	AV2	OBS	2010-07-22 10:47:57	2010-07-22 10:59:30	00:11:33	333	106.00	333	148.12	0.00	-
41	PSR	FBD	2010-07-22 11:44:23	2010-07-22 11:48:15	00:03:52	333	311.80	333	325.90	34.30	43
42	PSR	WB1	2010-07-22 12:24:42	2010-07-22 12:31:49	00:07:07	379	98.83	379	124.78	27.10	80
43	PSM	OB1	2010-07-22 12:47:00	2010-07-22 12:53:24	00:06:24	379	180.15	379	203.49	1.20	-
44	AV2	OBS	2010-07-22 12:47:43	2010-07-22 12:53:35	00:05:52	379	182.70	379	204.10	0.00	-
45	PSR	WB1	2010-07-22 13:04:32	2010-07-22 13:08:52	00:04:20	379	244.09	379	259.89	27.10	80
46	PSR	FBD	2010-07-22 13:32:44	2010-07-22 13:36:36	00:03:52	379	346.93	425	1.03	34.30	43
47	PSR	FBD	2010-07-22 13:37:24	2010-07-22 13:39:16	00:01:52	425	3.95	425	10.76	34.30	43
48	PSR	FBD	2010-07-22 13:42:24	2010-07-22 13:51:10	00:08:46	425	22.18	425	54.15	34.30	43
49	PSR	FBD	2010-07-22 13:53:21	2010-07-22 13:58:05	00:04:44	425	62.12	425	79.38	34.30	43
50	PSM	OB1	2010-07-22 14:02:46	2010-07-22 14:07:28	00:04:42	425	96.46	425	113.60	1.20	-
51	AV2	OBS	2010-07-22 14:03:24	2010-07-22 14:08:10	00:04:46	425	98.77	425	116.15	0.00	-
52	AV2	OBS	2010-07-22 14:22:59	2010-07-22 14:41:29	00:18:30	425	170.12	425	237.59	0.00	-
53	PSR	FBD	2010-07-22 15:11:21	2010-07-22 15:37:39	00:26:18	425	346.56	471	82.48	34.30	43
54	AV2	OBS	2010-07-22 15:40:21	2010-07-22 16:02:41	00:22:20	471	92.26	471	173.71	0.00	-
55	PSM	OB1	2010-07-22 15:55:44	2010-07-22 15:58:52	00:03:08	471	148.36	471	159.79	1.20	-
56	PSR	FBS	2010-07-22 16:03:38	2010-07-22 16:05:34	00:01:56	471	177.23	471	184.28	34.30	7
57	PSR	FBD	2010-07-22 16:57:30	2010-07-22 16:59:30	00:02:00	517	13.61	517	20.91	34.30	43
58	PSR	FBD	2010-07-22 17:02:04	2010-07-22 17:10:48	00:08:44	517	30.33	517	62.18	34.30	43
59	PSR	FBD	2010-07-22 17:12:08	2010-07-22 17:15:26	00:03:18	517	67.04	517	79.07	34.30	43
60	PSM	OB1	2010-07-22 17:17:28	2010-07-22 17:38:52	00:21:24	517	86.43	517	164.47	1.20	-
61	PSR	WB1	2010-07-22 17:19:59	2010-07-22 17:23:34	00:03:35	517	95.61	517	108.67	27.10	80
62	PSR	FBD	2010-07-22 18:36:06	2010-07-22 18:51:56	00:15:50	563	13.19	563	70.93	34.30	43
63	PSM	OB1	2010-07-22 18:56:13	2010-07-22 19:12:07	00:15:54	563	86.55	563	144.53	1.20	-
64	AV2	OBS	2010-07-22 19:04:49	2010-07-22 19:11:18	00:06:29	563	117.91	563	141.55	0.00	-
65	PSR	FBD	2010-07-22 20:05:58	2010-07-22 20:23:20	00:17:22	563	340.91	609	44.25	34.30	43
66	PSR	FBD	2010-07-22 20:26:15	2010-07-22 20:28:13	00:01:58	609	54.88	609	62.06	34.30	43
67	PSR	FBD	2010-07-22 20:31:15	2010-07-22 20:33:41	00:02:26	609	73.12	609	81.99	34.30	43
68	PSR	WB1	2010-07-22 20:34:53	2010-07-22 20:37:23	00:02:30	609	86.37	609	95.48	27.10	80
69	PSM	OB1	2010-07-22 20:34:56	2010-07-22 20:37:32	00:02:36	609	86.55	609	96.03	1.20	-
70	AV2	OBS	2010-07-22 20:38:55	2010-07-22 20:44:50	00:05:55	609	101.08	609	122.65	0.00	-
71	PSR	FBS	2010-07-22 20:39:58	2010-07-22 20:45:08	00:05:10	609	104.90	609	123.75	34.30	7
72	AV2	OBS	2010-07-22 20:54:24	2010-07-22 20:56:16	00:01:52	609	157.54	609	164.35	-21.50	-
73	AV2	OBS	2010-07-22 21:04:55	2010-07-22 21:06:47	00:01:52	609	195.89	609	202.70	0.00	-
74	PSR	FBD	2010-07-22 21:42:26	2010-07-22 21:53:14	00:10:48	609	332.70	655	12.10	34.30	43
75	PSR	FBD	2010-07-22 21:59:50	2010-07-22 22:07:18	00:07:28	655	36.16	655	63.39	34.30	43
76	PSM	OB1	2010-07-22 22:13:39	2010-07-22 22:16:15	00:02:36	655	86.55	655	96.03	1.20	-
77	AV2	OBS	2010-07-22 22:14:25	2010-07-22 22:16:17	00:01:52	655	89.35	655	96.15	0.00	-
78	PSM	OB1	2010-07-22 22:18:04	2010-07-22 22:25:52	00:07:48	655	102.66	655	131.10	1.20	-
79	AV2	OBS	2010-07-22 22:18:52	2010-07-22 22:25:52	00:07:00	655	105.57	655	131.10	0.00	-
80	PSM	OB1	2010-07-22 22:30:12	2010-07-22 22:32:48	00:02:36	655	146.96	655	156.45	1.20	-
81	AV2	OBS	2010-07-22 22:30:58	2010-07-22 22:32:50	00:01:52	655	149.76	655	156.57	0.00	-
82	PSM	OB2	2010-07-22 22:38:59	2010-07-22 22:41:33	00:02:34	655	178.93	655	188.29	0.00	-
83	PSR	FBD	2010-07-22 23:28:12	2010-07-22 23:38:02	00:09:50	655	358.41	30	34.28	34.30	43
84	AV2	OBS	2010-07-22 23:57:55	2010-07-23 00:04:01	00:06:06	30	106.79	30	129.03	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
11	-5.65864	2010-07-21 22:47:50	162.00157	2010-07-21 23:37:12
57	-30.33822	2010-07-22 00:26:33	137.32199	2010-07-22 01:15:55
103	-55.01780	2010-07-22 02:05:17	112.64240	2010-07-22 02:54:38
149	-79.69739	2010-07-22 03:44:00	87.96282	2010-07-22 04:33:21
195	-104.37697	2010-07-22 05:22:43	63.28324	2010-07-22 06:12:04
241	-129.05655	2010-07-22 07:01:26	38.60366	2010-07-22 07:50:47
287	-153.73614	2010-07-22 08:40:09	13.92407	2010-07-22 09:29:31
333	-178.41572	2010-07-22 10:18:52	-10.75551	2010-07-22 11:08:14
379	156.90470	2010-07-22 11:57:35	-35.43509	2010-07-22 12:46:57
425	132.22512	2010-07-22 13:36:18	-60.11468	2010-07-22 14:25:40
471	107.54553	2010-07-22 15:15:01	-84.79426	2010-07-22 16:04:23
517	82.86595	2010-07-22 16:53:44	-109.47384	2010-07-22 17:43:06
563	58.18637	2010-07-22 18:32:28	-134.15342	2010-07-22 19:21:49
609	33.50679	2010-07-22 20:11:11	-158.83301	2010-07-22 21:00:32
655	8.82720	2010-07-22 21:49:54	176.48741	2010-07-22 22:39:15
30	-15.85238	2010-07-22 23:28:37	151.80783	2010-07-23 00:17:58
