>ALOS Data Take Simulation(Jul. 05, 2010)

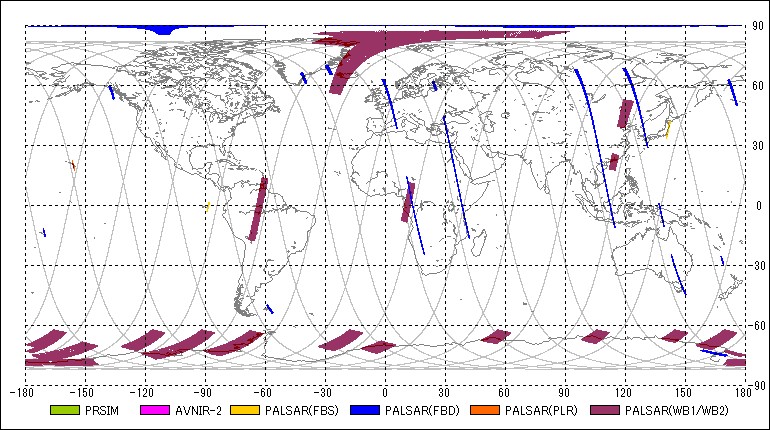

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBD	2010-07-05 00:40:40	2010-07-05 00:42:46	00:02:06	56	59.20	56	66.86	34.30	43
2	PSM	OB1	2010-07-05 00:55:07	2010-07-05 00:58:07	00:03:00	56	111.89	56	122.83	1.20	-
3	AV2	OBS	2010-07-05 01:00:27	2010-07-05 01:02:33	00:02:06	56	131.34	56	139.00	0.00	-
4	PSR	FBS	2010-07-05 01:01:57	2010-07-05 01:04:59	00:03:02	56	136.81	56	147.88	34.30	7
5	AV2	OBS	2010-07-05 01:06:35	2010-07-05 01:08:27	00:01:52	56	153.71	56	160.52	-13.92	-
6	PSM	OB2	2010-07-05 01:10:26	2010-07-05 01:24:48	00:14:22	56	167.75	56	220.14	0.00	-
7	PSR	WB1	2010-07-05 01:31:18	2010-07-05 01:33:36	00:02:18	56	243.85	56	252.23	27.10	80
8	PSM	OB2	2010-07-05 02:31:32	2010-07-05 02:47:04	00:15:32	102	103.51	102	160.15	0.00	-
9	AV2	OBS	2010-07-05 02:34:37	2010-07-05 02:46:27	00:11:50	102	114.75	102	157.90	0.00	-
10	PSR	WB1	2010-07-05 02:37:42	2010-07-05 02:42:04	00:04:22	102	125.99	102	141.92	27.10	80
11	PSR	WB1	2010-07-05 02:45:13	2010-07-05 02:47:59	00:02:46	102	153.41	102	163.50	27.10	80
12	AV2	OBS	2010-07-05 02:50:02	2010-07-05 02:55:20	00:05:18	102	170.97	102	190.30	0.00	-
13	PSM	OB2	2010-07-05 02:50:05	2010-07-05 02:56:15	00:06:10	102	171.15	102	193.64	0.00	-
14	PSR	FBD	2010-07-05 03:26:04	2010-07-05 03:27:56	00:01:52	102	302.38	102	309.18	34.30	43
15	AV2	OBS	2010-07-05 04:09:52	2010-07-05 04:27:49	00:17:57	148	102.11	148	167.57	0.00	-
16	PSM	OB2	2010-07-05 04:11:48	2010-07-05 04:27:32	00:15:44	148	109.16	148	166.53	0.00	-
17	PSR	WB1	2010-07-05 04:48:45	2010-07-05 04:51:05	00:02:20	148	243.91	148	252.42	27.10	80
18	PSR	FBD	2010-07-05 05:43:30	2010-07-05 05:45:46	00:02:16	194	83.57	194	91.84	49.00	51
19	PSM	OB1	2010-07-05 05:49:50	2010-07-05 06:04:54	00:15:04	194	106.67	194	161.61	1.20	-
20	AV2	OBS	2010-07-05 05:52:46	2010-07-05 06:04:08	00:11:22	194	117.30	194	158.75	0.00	-
21	PSM	OB1	2010-07-05 06:21:34	2010-07-05 06:24:10	00:02:36	194	222.39	194	231.87	1.20	-
22	AV2	OBS	2010-07-05 06:22:19	2010-07-05 06:24:11	00:01:52	194	225.13	194	231.93	0.00	-
23	PSR	FBD	2010-07-05 07:13:21	2010-07-05 07:15:47	00:02:26	240	51.18	240	60.05	34.30	43
24	PSM	OB1	2010-07-05 07:26:38	2010-07-05 07:46:08	00:19:30	240	99.68	240	170.79	1.20	-
25	AV2	OBS	2010-07-05 07:27:23	2010-07-05 07:45:17	00:17:54	240	102.35	240	167.63	0.00	-
26	PSM	OB1	2010-07-05 07:50:16	2010-07-05 07:57:40	00:07:24	240	185.86	240	212.85	1.20	-
27	AV2	OBS	2010-07-05 07:51:00	2010-07-05 07:56:54	00:05:54	240	188.54	240	210.05	0.00	-
28	PSR	WB1	2010-07-05 08:07:59	2010-07-05 08:10:03	00:02:04	240	250.47	240	258.01	27.10	80
29	PSR	PLR	2010-07-05 08:42:15	2010-07-05 08:44:21	00:02:06	286	15.44	286	23.10	13.80	121
30	PSM	OB1	2010-07-05 09:07:05	2010-07-05 09:18:45	00:11:40	286	106.00	286	148.54	1.20	-
31	AV2	OBS	2010-07-05 09:10:16	2010-07-05 09:12:46	00:02:30	286	117.55	286	126.66	0.00	-
32	PSR	WB1	2010-07-05 09:24:02	2010-07-05 09:29:58	00:05:56	286	167.81	286	189.45	27.10	80
33	PSR	WB1	2010-07-05 09:44:54	2010-07-05 09:48:20	00:03:26	286	243.91	286	256.43	27.10	80
34	PSR	FBD	2010-07-05 10:11:42	2010-07-05 10:13:34	00:01:52	286	341.64	286	348.45	34.30	43
35	PSR	FBD	2010-07-05 10:29:54	2010-07-05 10:34:06	00:04:12	332	48.02	332	63.33	34.30	43
36	PSM	OB1	2010-07-05 10:44:59	2010-07-05 10:56:55	00:11:56	332	103.02	332	146.54	1.20	-
37	AV2	OBS	2010-07-05 10:45:45	2010-07-05 10:56:43	00:10:58	332	105.82	332	145.81	0.00	-
38	PSR	FBD	2010-07-05 11:46:31	2010-07-05 11:48:23	00:01:52	332	327.42	332	334.22	34.30	43
39	PSR	WB1	2010-07-05 12:19:13	2010-07-05 12:29:41	00:10:28	378	86.67	378	124.84	27.10	80
40	PSM	OB1	2010-07-05 12:44:54	2010-07-05 12:50:52	00:05:58	378	180.27	378	202.03	1.20	-
41	AV2	OBS	2010-07-05 12:45:41	2010-07-05 12:50:29	00:04:48	378	183.13	378	200.63	0.00	-
42	PSR	WB1	2010-07-05 13:02:23	2010-07-05 13:06:43	00:04:20	378	244.09	378	259.89	27.10	80
43	PSR	FBD	2010-07-05 13:21:04	2010-07-05 13:27:18	00:06:14	378	312.16	378	334.89	34.30	43
44	PSR	FBD	2010-07-05 13:30:36	2010-07-05 13:34:28	00:03:52	378	346.93	424	1.03	34.30	43
45	PSR	FBD	2010-07-05 13:41:28	2010-07-05 13:53:12	00:11:44	424	26.56	424	69.35	34.30	43
46	PSR	WB1	2010-07-05 13:57:58	2010-07-05 14:01:24	00:03:26	424	86.73	424	99.25	27.10	80
47	PSM	OB1	2010-07-05 14:00:41	2010-07-05 14:06:23	00:05:42	424	96.64	424	117.42	1.20	-
48	AV2	OBS	2010-07-05 14:01:19	2010-07-05 14:06:02	00:04:43	424	99.01	424	116.21	0.00	-
49	PSR	WB1	2010-07-05 14:19:29	2010-07-05 14:28:43	00:09:14	424	165.20	424	198.87	27.10	80
50	PSR	WB1	2010-07-05 14:41:03	2010-07-05 14:46:03	00:05:00	424	243.91	424	262.14	27.10	80
51	PSR	WB1	2010-07-05 14:47:09	2010-07-05 14:49:01	00:01:52	424	266.15	424	272.96	27.10	80
52	PSR	FBD	2010-07-05 14:49:57	2010-07-05 14:51:49	00:01:52	424	276.36	424	283.17	34.30	43
53	PSR	FBD	2010-07-05 15:09:09	2010-07-05 15:31:41	00:22:32	424	346.38	470	68.56	34.30	43
54	PSR	WB1	2010-07-05 15:36:41	2010-07-05 15:38:37	00:01:56	470	86.73	470	93.78	27.10	80
55	AV2	OBS	2010-07-05 15:39:59	2010-07-05 16:00:41	00:20:42	470	98.77	470	174.25	0.00	-
56	PSR	FBS	2010-07-05 16:01:39	2010-07-05 16:03:31	00:01:52	470	177.84	470	184.65	34.30	7
57	PSR	WB1	2010-07-05 16:19:46	2010-07-05 16:23:12	00:03:26	470	243.91	470	256.43	27.10	80
58	PSR	WB1	2010-07-05 16:25:47	2010-07-05 16:27:39	00:01:52	470	265.79	470	272.59	27.10	80
59	PSM	OB1	2010-07-05 17:15:20	2010-07-05 17:36:54	00:21:34	516	86.55	516	165.20	1.20	-
60	AV2	OBS	2010-07-05 17:18:18	2010-07-05 17:36:08	00:17:50	516	97.31	516	162.34	0.00	-
61	PSR	WB1	2010-07-05 18:00:30	2010-07-05 18:03:56	00:03:26	516	251.20	516	263.72	27.10	80
62	PSM	OB1	2010-07-05 18:54:04	2010-07-05 19:10:04	00:16:00	562	86.55	562	144.90	1.20	-
63	AV2	OBS	2010-07-05 18:58:02	2010-07-05 19:09:16	00:11:14	562	101.01	562	141.98	0.00	-
64	PSR	WB1	2010-07-05 19:37:13	2010-07-05 19:41:43	00:04:30	562	243.91	562	260.32	27.10	80
65	PSR	FBD	2010-07-05 20:03:49	2010-07-05 20:21:17	00:17:28	562	340.91	608	44.61	34.30	43
66	PSR	FBD	2010-07-05 20:24:17	2010-07-05 20:26:09	00:01:52	608	55.55	608	62.36	34.30	43
67	PSM	OB1	2010-07-05 20:32:47	2010-07-05 20:43:05	00:10:18	608	86.55	608	124.11	1.20	-
68	AV2	OBS	2010-07-05 20:36:46	2010-07-05 20:42:24	00:05:38	608	101.01	608	121.56	0.00	-
69	AV2	OBS	2010-07-05 21:00:32	2010-07-05 21:02:24	00:01:52	608	187.69	608	194.49	0.00	-
70	PSM	OB2	2010-07-05 21:00:32	2010-07-05 21:02:42	00:02:10	608	187.69	608	195.59	0.00	-
71	PSR	WB1	2010-07-05 21:15:56	2010-07-05 21:19:12	00:03:16	608	243.91	608	255.82	27.10	80
72	PSR	FBD	2010-07-05 21:40:17	2010-07-05 21:51:41	00:11:24	608	332.70	654	14.28	34.30	43
73	PSR	FBD	2010-07-05 21:57:45	2010-07-05 22:05:13	00:07:28	654	36.41	654	63.64	34.30	43
74	PSM	OB1	2010-07-05 22:11:31	2010-07-05 22:14:07	00:02:36	654	86.55	654	96.03	1.20	-
75	PSM	OB1	2010-07-05 22:15:54	2010-07-05 22:23:38	00:07:44	654	102.59	654	130.80	1.20	-
76	AV2	OBS	2010-07-05 22:16:40	2010-07-05 22:23:40	00:07:00	654	105.39	654	130.92	0.00	-
77	AV2	OBS	2010-07-05 22:36:50	2010-07-05 22:39:24	00:02:34	654	178.93	654	188.29	0.00	-
78	PSM	OB2	2010-07-05 22:36:50	2010-07-05 22:40:10	00:03:20	654	178.93	654	191.09	0.00	-
79	PSR	WB1	2010-07-05 22:54:39	2010-07-05 22:56:45	00:02:06	654	243.91	654	251.56	27.10	80
80	PSR	FBD	2010-07-05 23:43:59	2010-07-05 23:45:51	00:01:52	29	63.76	29	70.56	34.30	43
81	PSM	OB1	2010-07-05 23:55:03	2010-07-06 00:02:03	00:07:00	29	104.11	29	129.64	1.20	-
82	AV2	OBS	2010-07-05 23:55:46	2010-07-06 00:01:52	00:06:06	29	106.79	29	129.03	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
10	-5.12213	2010-07-04 22:45:42	162.53808	2010-07-04 23:35:03
56	-29.80171	2010-07-05 00:24:25	137.85850	2010-07-05 01:13:46
102	-54.48129	2010-07-05 02:03:08	113.17892	2010-07-05 02:52:29
148	-79.16087	2010-07-05 03:41:51	88.49933	2010-07-05 04:31:12
194	-103.84046	2010-07-05 05:20:34	63.81975	2010-07-05 06:09:56
240	-128.52004	2010-07-05 06:59:17	39.14017	2010-07-05 07:48:39
286	-153.19962	2010-07-05 08:38:00	14.46059	2010-07-05 09:27:22
332	-177.87921	2010-07-05 10:16:43	-10.21900	2010-07-05 11:06:05
378	157.44121	2010-07-05 11:55:26	-34.89858	2010-07-05 12:44:48
424	132.76163	2010-07-05 13:34:10	-59.57816	2010-07-05 14:23:31
470	108.08205	2010-07-05 15:12:53	-84.25775	2010-07-05 16:02:14
516	83.40246	2010-07-05 16:51:36	-108.93733	2010-07-05 17:40:57
562	58.72288	2010-07-05 18:30:19	-133.61691	2010-07-05 19:19:40
608	34.04330	2010-07-05 20:09:02	-158.29649	2010-07-05 20:58:23
654	9.36372	2010-07-05 21:47:45	177.02392	2010-07-05 22:37:07
29	-15.31587	2010-07-05 23:26:28	152.34434	2010-07-06 00:15:50
