>ALOS Data Take Simulation(Jun. 27, 2010)

Observation Area

PRISM

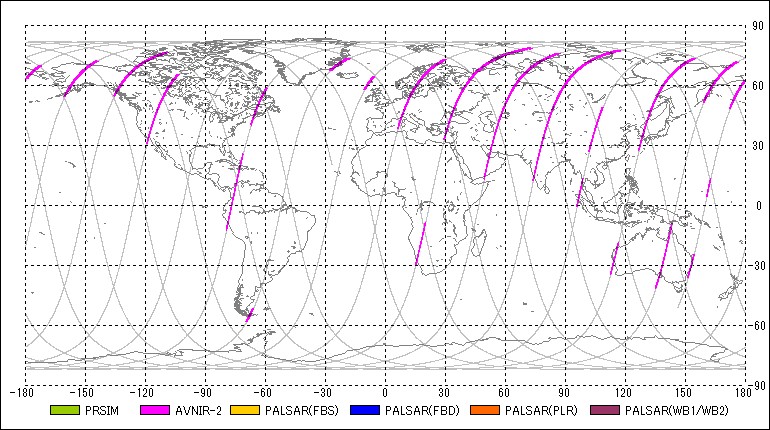

AVNIR-2

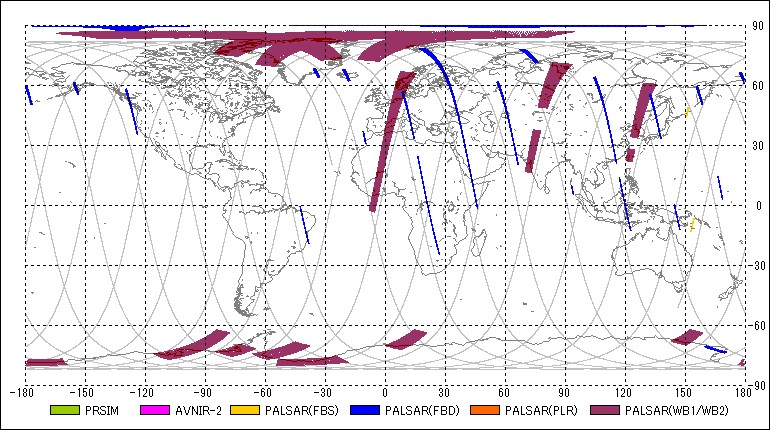

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	FBD	2010-06-27 00:11:26	2010-06-27 00:13:18	00:01:52	42	62.18	42	68.98	34.30	43
2	PSR	WB1	2010-06-27 00:18:10	2010-06-27 00:20:02	00:01:52	42	86.73	42	93.54	27.10	80
3	PSM	OB1	2010-06-27 00:22:51	2010-06-27 00:30:05	00:07:14	42	103.81	42	130.19	1.20	-
4	AV2	OBS	2010-06-27 00:23:36	2010-06-27 00:29:30	00:05:54	42	106.55	42	128.06	0.00	-
5	PSR	FBS	2010-06-27 00:30:00	2010-06-27 00:31:52	00:01:52	42	129.88	42	136.69	34.30	7
6	PSM	OB2	2010-06-27 00:43:58	2010-06-27 00:55:08	00:11:10	42	180.82	42	221.54	0.00	-
7	AV2	OBS	2010-06-27 00:46:17	2010-06-27 00:55:12	00:08:55	42	189.27	42	221.78	0.00	-
8	PSR	FBD	2010-06-27 01:27:12	2010-06-27 01:32:58	00:05:46	42	338.42	42	359.45	34.30	43
9	AV2	OBS	2010-06-27 02:01:46	2010-06-27 02:14:52	00:13:06	88	104.54	88	152.31	0.00	-
10	PSR	WB1	2010-06-27 02:05:19	2010-06-27 02:13:23	00:08:04	88	117.49	88	146.90	27.10	80
11	PSM	OB1	2010-06-27 02:05:28	2010-06-27 02:13:50	00:08:22	88	118.03	88	148.54	1.20	-
12	PSR	WB1	2010-06-27 02:14:25	2010-06-27 02:16:43	00:02:18	88	150.67	88	159.06	27.10	80
13	PSM	OB2	2010-06-27 02:17:11	2010-06-27 02:32:01	00:14:50	88	160.76	88	214.85	0.00	-
14	AV2	OBS	2010-06-27 02:27:34	2010-06-27 02:31:59	00:04:25	88	198.56	88	214.67	0.00	-
15	PSM	OB2	2010-06-27 03:44:49	2010-06-27 03:54:33	00:09:44	134	120.28	134	155.78	0.00	-
16	AV2	OBS	2010-06-27 03:47:35	2010-06-27 03:53:47	00:06:12	134	130.43	134	153.04	0.00	-
17	AV2	OBS	2010-06-27 03:57:27	2010-06-27 04:01:24	00:03:57	134	166.35	134	180.76	0.00	-
18	PSM	OB2	2010-06-27 03:58:37	2010-06-27 04:01:53	00:03:16	134	170.61	134	182.52	0.00	-
19	PSM	OB1	2010-06-27 05:17:02	2010-06-27 05:37:16	00:20:14	180	96.64	180	170.42	1.20	-
20	AV2	OBS	2010-06-27 05:17:50	2010-06-27 05:36:32	00:18:42	180	99.56	180	167.75	0.00	-
21	PSR	WB1	2010-06-27 05:19:57	2010-06-27 05:26:47	00:06:50	180	107.21	180	132.13	27.10	80
22	PSR	WB1	2010-06-27 05:29:14	2010-06-27 05:35:44	00:06:30	180	141.07	180	164.77	27.10	80
23	PSR	FBD	2010-06-27 06:38:18	2010-06-27 06:45:22	00:07:04	226	32.94	226	58.71	34.30	43
24	PSR	FBD	2010-06-27 06:52:10	2010-06-27 06:54:26	00:02:16	226	83.57	226	91.84	49.00	51
25	PSM	OB1	2010-06-27 06:56:22	2010-06-27 07:15:48	00:19:26	226	98.83	226	169.69	1.20	-
26	AV2	OBS	2010-06-27 06:57:06	2010-06-27 07:15:00	00:17:54	226	101.56	226	166.84	0.00	-
27	PSR	WB1	2010-06-27 07:36:08	2010-06-27 07:39:24	00:03:16	226	243.91	226	255.82	27.10	80
28	PSR	WB1	2010-06-27 07:41:12	2010-06-27 07:43:44	00:02:32	226	262.32	226	271.56	27.10	80
29	PSR	FBD	2010-06-27 08:22:37	2010-06-27 08:24:59	00:02:22	272	53.36	272	61.99	34.30	43
30	PSM	OB1	2010-06-27 08:34:06	2010-06-27 08:49:06	00:15:00	272	95.24	272	149.94	1.20	-
31	AV2	OBS	2010-06-27 08:34:50	2010-06-27 08:48:18	00:13:28	272	97.98	272	147.09	0.00	-
32	PSM	OB1	2010-06-27 08:58:56	2010-06-27 09:06:24	00:07:28	272	185.80	272	213.03	1.20	-
33	AV2	OBS	2010-06-27 08:59:40	2010-06-27 09:05:34	00:05:54	272	188.54	272	210.05	0.00	-
34	PSR	FBD	2010-06-27 09:59:59	2010-06-27 10:05:03	00:05:04	318	48.44	318	66.92	34.30	43
35	PSM	OB1	2010-06-27 10:14:46	2010-06-27 10:26:10	00:11:24	318	102.35	318	143.92	1.20	-
36	AV2	OBS	2010-06-27 10:15:32	2010-06-27 10:25:24	00:09:52	318	105.21	318	141.19	0.00	-
37	PSR	WB1	2010-06-27 10:17:17	2010-06-27 10:37:15	00:19:58	318	111.59	318	184.40	27.10	80
38	PSR	WB1	2010-06-27 10:55:35	2010-06-27 10:58:41	00:03:06	318	251.20	318	262.50	27.10	80
39	PSR	FBD	2010-06-27 11:25:29	2010-06-27 11:29:21	00:03:52	364	0.24	364	14.34	34.30	43
40	PSR	FBD	2010-06-27 11:38:42	2010-06-27 11:41:50	00:03:08	364	48.44	364	59.87	34.30	43
41	PSR	WB1	2010-06-27 11:49:16	2010-06-27 11:54:59	00:05:43	364	86.97	364	107.82	27.10	80
42	PSM	OB1	2010-06-27 11:56:04	2010-06-27 11:59:00	00:02:56	364	111.77	364	122.47	1.20	-
43	AV2	OBS	2010-06-27 11:56:50	2010-06-27 11:58:42	00:01:52	364	114.57	364	121.38	0.00	-
44	PSR	WB1	2010-06-27 12:34:43	2010-06-27 12:36:49	00:02:06	364	252.72	364	260.38	27.10	80
45	PSR	FBD	2010-06-27 13:00:07	2010-06-27 13:04:09	00:04:02	364	345.35	410	0.06	34.30	43
46	PSR	FBD	2010-06-27 13:12:38	2010-06-27 13:19:32	00:06:54	410	31.00	410	56.16	34.30	43
47	PSM	OB1	2010-06-27 13:32:10	2010-06-27 13:35:16	00:03:06	410	102.23	410	113.54	1.20	-
48	AV2	OBS	2010-06-27 13:32:46	2010-06-27 13:34:38	00:01:52	410	104.42	410	111.23	0.00	-
49	AV2	OBS	2010-06-27 14:07:48	2010-06-27 14:09:40	00:01:52	410	232.18	410	238.98	0.00	-
50	PSR	WB1	2010-06-27 14:11:01	2010-06-27 14:16:07	00:05:06	410	243.91	410	262.50	27.10	80
51	PSR	FBD	2010-06-27 14:20:38	2010-06-27 14:22:30	00:01:52	410	278.98	410	285.78	34.30	43
52	PSR	FBD	2010-06-27 14:38:44	2010-06-27 14:46:38	00:07:54	410	344.98	456	13.80	34.30	43
53	PSR	FBD	2010-06-27 14:47:57	2010-06-27 15:00:37	00:12:40	456	18.60	456	64.79	34.30	43
54	PSR	WB1	2010-06-27 15:06:38	2010-06-27 15:13:10	00:06:32	456	86.73	456	110.56	27.10	80
55	PSM	OB1	2010-06-27 15:11:02	2010-06-27 15:21:26	00:10:24	456	102.78	456	140.70	1.20	-
56	AV2	OBS	2010-06-27 15:15:54	2010-06-27 15:21:08	00:05:14	456	120.52	456	139.61	0.00	-
57	AV2	OBS	2010-06-27 15:25:08	2010-06-27 15:35:40	00:10:32	456	154.14	456	192.55	0.00	-
58	PSR	WB1	2010-06-27 15:55:44	2010-06-27 15:57:36	00:01:52	456	265.79	456	272.59	27.10	80
59	PSR	FBD	2010-06-27 16:22:24	2010-06-27 16:24:16	00:01:52	502	3.04	502	9.85	34.30	43
60	PSR	FBD	2010-06-27 16:40:40	2010-06-27 16:43:16	00:02:36	502	69.59	502	79.07	34.30	43
61	PSR	WB1	2010-06-27 16:45:21	2010-06-27 16:50:19	00:04:58	502	86.73	502	104.84	27.10	80
62	PSM	OB1	2010-06-27 16:45:59	2010-06-27 17:07:37	00:21:38	502	89.04	502	167.93	1.20	-
63	PSR	FBD	2010-06-27 18:05:13	2010-06-27 18:17:21	00:12:08	548	17.99	548	62.24	34.30	43
64	PSM	OB1	2010-06-27 18:24:01	2010-06-27 18:41:55	00:17:54	548	86.49	548	151.77	1.20	-
65	AV2	OBS	2010-06-27 18:31:23	2010-06-27 18:41:09	00:09:46	548	113.35	548	148.97	0.00	-
66	PSR	FBD	2010-06-27 19:37:57	2010-06-27 20:00:49	00:22:52	548	356.16	594	79.56	34.30	43
67	PSM	OB1	2010-06-27 20:02:44	2010-06-27 20:13:58	00:11:14	594	86.49	594	127.45	1.20	-
68	AV2	OBS	2010-06-27 20:06:42	2010-06-27 20:13:12	00:06:30	594	100.95	594	124.66	0.00	-
69	PSR	FBD	2010-06-27 21:10:15	2010-06-27 21:24:23	00:14:08	594	332.76	640	24.31	34.30	43
70	PSR	FBD	2010-06-27 21:26:13	2010-06-27 21:33:23	00:07:10	640	31.00	640	57.13	34.30	43
71	PSM	OB1	2010-06-27 21:41:28	2010-06-27 21:52:50	00:11:22	640	86.55	640	128.00	1.20	-
72	AV2	OBS	2010-06-27 21:46:48	2010-06-27 21:52:04	00:05:16	640	106.00	640	125.20	0.00	-
73	PSR	WB1	2010-06-27 22:24:36	2010-06-27 22:27:06	00:02:30	640	243.91	640	253.02	27.10	80
74	PSR	FBD	2010-06-27 23:04:18	2010-06-27 23:06:38	00:02:20	15	28.63	15	37.14	34.30	43
75	PSR	FBD	2010-06-27 23:13:00	2010-06-27 23:15:14	00:02:14	15	60.35	15	68.50	34.30	43
76	PSR	WB1	2010-06-27 23:16:06	2010-06-27 23:22:05	00:05:59	15	71.72	15	93.54	27.10	80
77	PSM	OB1	2010-06-27 23:25:30	2010-06-27 23:32:30	00:07:00	15	105.94	15	131.46	1.20	-
78	AV2	OBS	2010-06-27 23:26:13	2010-06-27 23:32:23	00:06:10	15	108.55	15	131.04	0.00	-
79	AV2	OBS	2010-06-27 23:42:03	2010-06-27 23:44:41	00:02:38	15	166.29	15	175.89	0.00	-
80	PSM	OB2	2010-06-27 23:47:18	2010-06-27 23:50:42	00:03:24	15	185.44	15	197.84	0.00	-
81	PSR	FBS	2010-06-27 23:47:20	2010-06-27 23:49:50	00:02:30	15	185.62	15	194.74	34.30	7
82	PSM	OB2	2010-06-27 23:52:29	2010-06-27 23:56:25	00:03:56	15	204.34	15	218.68	0.00	-
83	AV2	OBS	2010-06-27 23:52:32	2010-06-27 23:55:48	00:03:16	15	204.52	15	216.43	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
42	-22.29053	2010-06-26 23:54:22	145.36968	2010-06-27 00:43:44
88	-46.97011	2010-06-27 01:33:05	120.69009	2010-06-27 02:22:27
134	-71.64970	2010-06-27 03:11:48	96.01051	2010-06-27 04:01:10
180	-96.32928	2010-06-27 04:50:31	71.33093	2010-06-27 05:39:53
226	-121.00886	2010-06-27 06:29:14	46.65135	2010-06-27 07:18:36
272	-145.68845	2010-06-27 08:07:58	21.97176	2010-06-27 08:57:19
318	-170.36803	2010-06-27 09:46:41	-2.70782	2010-06-27 10:36:02
364	164.95239	2010-06-27 11:25:24	-27.38740	2010-06-27 12:14:45
410	140.27281	2010-06-27 13:04:07	-52.06699	2010-06-27 13:53:28
456	115.59322	2010-06-27 14:42:50	-76.74657	2010-06-27 15:32:12
502	90.91364	2010-06-27 16:21:33	-101.42615	2010-06-27 17:10:55
548	66.23406	2010-06-27 18:00:16	-126.10573	2010-06-27 18:49:38
594	41.55448	2010-06-27 19:38:59	-150.78532	2010-06-27 20:28:21
640	16.87489	2010-06-27 21:17:42	-175.46490	2010-06-27 22:07:04
15	-7.80469	2010-06-27 22:56:25	159.85552	2010-06-27 23:45:47
