>ALOS Data Take Simulation(May. 16, 2010)

Observation Area

PRISM

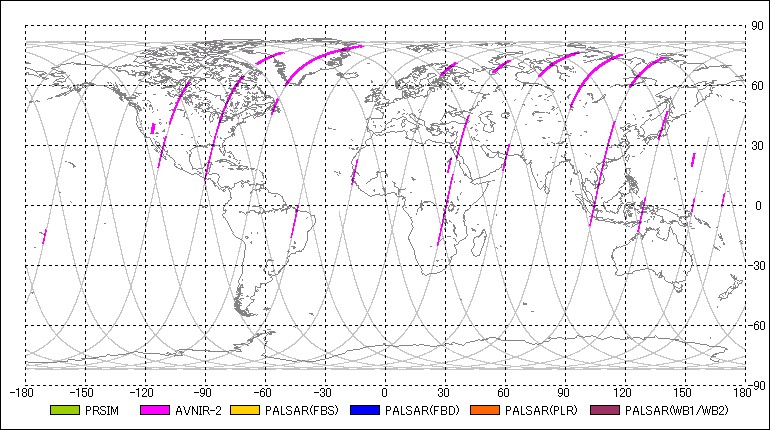

AVNIR-2

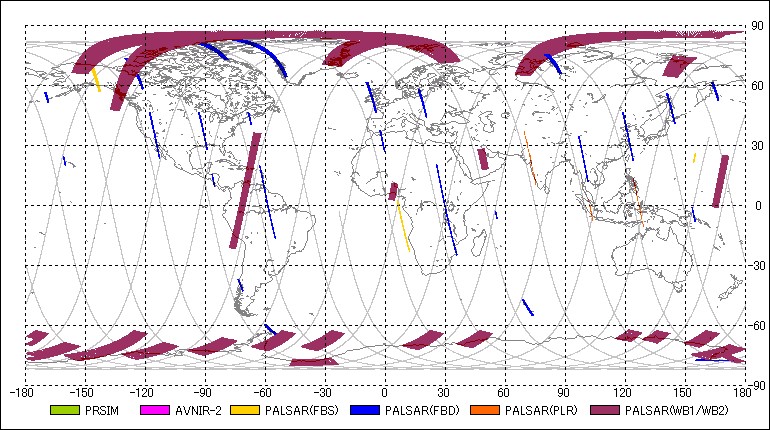

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2010-05-16 00:01:552010-05-16 00:03:47 00:01:52 26 152.68 26 159.48 34.30 7
2AV2OBS2010-05-16 00:02:222010-05-16 00:04:14 00:01:52 26 154.32 26 161.13 -34.30 -
3PSMOB22010-05-16 00:07:482010-05-16 00:17:28 00:09:40 26 174.13 26 209.38 0.00 -
4AV2OBS2010-05-16 00:08:272010-05-16 00:10:19 00:01:52 26 176.50 26 183.31 0.00 -
5PSRWB12010-05-16 00:26:552010-05-16 00:28:57 00:02:02 26 243.85 26 251.26 27.10 80
6PSRFBD2010-05-16 01:15:552010-05-16 01:23:15 00:07:20 72 62.54 72 89.28 34.30 43
7PSRWB12010-05-16 01:27:092010-05-16 01:30:35 00:03:26 72 103.51 72 116.03 27.10 80
8PSMOB22010-05-16 01:33:022010-05-16 01:39:42 00:06:40 72 124.96 72 149.27 0.00 -
9AV2OBS2010-05-16 01:35:042010-05-16 01:39:04 00:04:00 72 132.38 72 146.96 0.00 -
10AV2OBS2010-05-16 01:47:042010-05-16 01:51:42 00:04:38 72 176.14 72 193.03 0.00 -
11PSMOB22010-05-16 01:47:042010-05-16 01:59:06 00:12:02 72 176.14 72 220.02 0.00 -
12PSRFBD2010-05-16 02:32:172010-05-16 02:43:03 00:10:46 72 341.03 118 20.30 34.30 43
13PSRFBD2010-05-16 02:47:582010-05-16 02:50:22 00:02:24 118 38.23 118 46.98 34.30 43
14PSRFBD2010-05-16 02:57:022010-05-16 03:00:34 00:03:32 118 71.29 118 84.18 34.30 43
15AV2OBS2010-05-16 03:06:012010-05-16 03:10:29 00:04:28 118 104.05 118 120.34 0.00 -
16PSMOB22010-05-16 03:12:322010-05-16 03:30:10 00:17:38 118 127.76 118 192.06 0.00 -
17AV2OBS2010-05-16 03:15:182010-05-16 03:29:41 00:14:23 118 137.91 118 190.36 0.00 -
18PSRFBD2010-05-16 03:57:002010-05-16 03:59:24 00:02:24 118 289.98 118 298.73 34.30 43
19PSRFBD2010-05-16 04:03:382010-05-16 04:06:00 00:02:22 118 314.17 118 322.80 34.30 43
20PSRFBD2010-05-16 04:18:082010-05-16 04:20:28 00:02:20 164 7.05 164 15.56 34.30 43
21PSRFBD2010-05-16 04:23:142010-05-16 04:29:04 00:05:50 164 25.65 164 46.92 34.30 43
22AV2OBS2010-05-16 04:44:182010-05-16 04:52:00 00:07:42 164 102.41 164 130.49 0.00 -
23PSMOB12010-05-16 04:50:282010-05-16 05:05:00 00:14:32 164 124.96 164 177.96 -1.20 -
24PSRWB12010-05-16 05:23:052010-05-16 05:26:01 00:02:56 164 243.91 164 254.60 27.10 80
25PSRFBD2010-05-16 06:00:512010-05-16 06:07:47 00:06:56 210 21.58 210 46.86 34.30 43
26PSRFBD2010-05-16 06:10:232010-05-16 06:15:21 00:04:58 210 56.40 210 74.52 34.30 43
27PSRWB12010-05-16 06:18:422010-05-16 06:26:32 00:07:50 210 86.67 210 115.24 27.10 80
28AV2OBS2010-05-16 06:22:412010-05-16 06:26:23 00:03:42 210 101.20 210 114.69 0.00 -
29PSMOB12010-05-16 06:29:142010-05-16 06:39:32 00:10:18 210 125.08 210 162.64 -1.20 -
30AV2OBS2010-05-16 06:35:502010-05-16 06:39:30 00:03:40 210 149.15 210 162.52 0.00 -
31PSRWB12010-05-16 07:01:482010-05-16 07:05:04 00:03:16 210 243.91 210 255.82 27.10 80
32PSRWB12010-05-16 07:07:372010-05-16 07:09:29 00:01:52 210 265.12 210 271.93 27.10 80
33PSRFBS2010-05-16 07:48:402010-05-16 07:53:46 00:05:06 256 54.76 256 73.36 41.50 10
34AV2OBS2010-05-16 08:02:412010-05-16 08:04:33 00:01:52 256 105.88 256 112.68 0.00 -
35AV2OBS2010-05-16 08:10:362010-05-16 08:28:22 00:17:46 256 134.75 256 199.54 0.00 -
36PSMOB12010-05-16 08:13:142010-05-16 08:26:52 00:13:38 256 144.35 256 194.07 -1.20 -
37PSRFBD2010-05-16 09:17:152010-05-16 09:19:07 00:01:52 302 17.81 302 24.62 41.50 46
38PSRFBD2010-05-16 09:25:572010-05-16 09:27:57 00:02:00 302 49.60 302 56.89 34.30 43
39AV2OBS2010-05-16 09:41:462010-05-16 09:43:40 00:01:54 302 107.21 302 114.14 0.00 -
40PSMOB12010-05-16 09:41:522010-05-16 09:53:14 00:11:22 302 107.58 302 149.03 -1.20 -
41PSMOB12010-05-16 09:55:512010-05-16 10:01:43 00:05:52 302 158.57 302 179.97 -1.20 -
42PSRWB12010-05-16 09:58:232010-05-16 10:01:15 00:02:52 302 167.81 302 178.26 27.10 80
43PSRWB12010-05-16 10:19:142010-05-16 10:22:40 00:03:26 302 243.91 302 256.43 27.10 80
44PSRFBD2010-05-16 11:05:002010-05-16 11:08:08 00:03:08 348 50.75 348 62.18 34.30 43
45PSMOB12010-05-16 11:22:132010-05-16 11:30:49 00:08:36 348 113.54 348 144.90 -1.20 -
46AV2OBS2010-05-16 11:34:112010-05-16 11:37:39 00:03:28 348 157.17 348 169.82 0.00 -
47PSMOB12010-05-16 11:34:332010-05-16 11:38:23 00:03:50 348 158.51 348 172.49 -1.20 -
48PSRWB12010-05-16 11:57:572010-05-16 12:01:23 00:03:26 348 243.91 348 256.43 27.10 80
49PSRFBD2010-05-16 12:27:002010-05-16 12:29:30 00:02:30 348 349.78 348 358.90 34.30 43
50PSRFBD2010-05-16 12:40:262010-05-16 12:45:16 00:04:50 394 38.78 394 56.40 34.30 43
51PSRWB12010-05-16 12:54:582010-05-16 13:00:04 00:05:06 394 91.84 394 110.44 27.10 80
52PSMOB12010-05-16 13:18:232010-05-16 13:29:01 00:10:38 394 177.17 394 215.95 -1.20 -
53AV2OBS2010-05-16 13:19:082010-05-16 13:23:40 00:04:32 394 179.91 394 196.44 0.00 -
54PSMOB12010-05-16 13:32:182010-05-16 13:34:54 00:02:36 394 227.92 394 237.40 -1.20 -
55PSRWB12010-05-16 13:37:532010-05-16 13:40:59 00:03:06 394 248.28 394 259.59 27.10 80
56PSRPLR2010-05-16 14:05:032010-05-16 14:12:37 00:07:34 394 347.35 440 14.95 23.10 128
57PSRFBD2010-05-16 14:14:062010-05-16 14:21:26 00:07:20 440 20.36 440 47.10 34.30 43
58AV2OBS2010-05-16 14:35:002010-05-16 14:41:18 00:06:18 440 96.58 440 119.55 0.00 -
59AV2OBS2010-05-16 14:43:072010-05-16 14:45:19 00:02:12 440 126.18 440 134.20 0.00 -
60PSRWB12010-05-16 14:47:342010-05-16 15:04:08 00:16:34 440 142.41 440 202.82 27.10 80
61PSMOB12010-05-16 14:53:282010-05-16 15:04:06 00:10:38 440 163.92 440 202.70 -1.20 -
62PSRWB12010-05-16 15:17:242010-05-16 15:20:30 00:03:06 440 251.20 440 262.50 27.10 80
63PSRPLR2010-05-16 15:44:272010-05-16 15:48:19 00:03:52 440 349.84 486 3.95 23.10 128
64PSRFBD2010-05-16 15:49:522010-05-16 15:56:46 00:06:54 486 9.60 486 34.77 34.30 43
65PSRFBD2010-05-16 16:04:482010-05-16 16:08:12 00:03:24 486 64.06 486 76.46 34.30 43
66PSMOB12010-05-16 16:11:222010-05-16 16:16:50 00:05:28 486 88.01 486 107.94 -1.20 -
67AV2OBS2010-05-16 16:14:562010-05-16 16:16:48 00:01:52 486 101.01 486 107.82 0.00 -
68AV2OBS2010-05-16 16:18:352010-05-16 16:33:13 00:14:38 486 114.33 486 167.69 0.00 -
69PSMOB12010-05-16 16:30:362010-05-16 16:33:12 00:02:36 486 158.15 486 167.63 -1.20 -
70PSRWB12010-05-16 16:54:072010-05-16 16:59:33 00:05:26 486 243.91 486 263.72 27.10 80
71PSRFBD2010-05-16 17:00:322010-05-16 17:02:24 00:01:52 486 267.31 486 274.11 34.30 43
72PSRPLR2010-05-16 17:28:182010-05-16 17:36:10 00:07:52 532 8.57 532 37.26 23.10 128
73PSMOB12010-05-16 17:49:392010-05-16 18:09:31 00:19:52 532 86.43 532 158.88 -1.20 -
74AV2OBS2010-05-16 17:58:082010-05-16 18:09:50 00:11:42 532 117.36 532 160.03 0.00 -
75PSRWB12010-05-16 18:34:502010-05-16 18:38:42 00:03:52 532 251.20 532 265.30 27.10 80
76PSRFBD2010-05-16 18:48:322010-05-16 18:51:30 00:02:58 532 301.16 532 311.98 34.30 43
77PSRFBD2010-05-16 19:02:182010-05-16 19:03:54 00:01:36 532 351.36 532 357.20 34.30 43
78PSRWB12010-05-16 19:09:032010-05-16 19:12:31 00:03:28 578 15.98 578 28.63 27.10 80
79PSRWB12010-05-16 19:23:592010-05-16 19:41:11 00:17:12 578 70.44 578 133.17 27.10 80
80PSMOB12010-05-16 19:28:252010-05-16 19:40:59 00:12:34 578 86.55 578 132.38 -1.20 -
81PSRWB12010-05-16 20:11:332010-05-16 20:16:43 00:05:10 578 243.91 578 262.75 27.10 80
82PSRFBD2010-05-16 20:35:542010-05-16 20:49:08 00:13:14 578 332.70 624 20.97 34.30 43
83PSRFBD2010-05-16 20:54:582010-05-16 20:59:28 00:04:30 624 42.18 624 58.59 34.30 43
84PSMOB12010-05-16 21:07:072010-05-16 21:17:45 00:10:38 624 86.55 624 125.33 -1.20 -
85PSRWB12010-05-16 21:07:102010-05-16 21:14:43 00:07:33 624 86.73 624 114.26 27.10 80
86AV2OBS2010-05-16 21:36:072010-05-16 21:37:59 00:01:52 624 192.30 624 199.11 0.00 -
87PSRWB12010-05-16 21:50:162010-05-16 21:53:08 00:02:52 624 243.91 624 254.36 27.10 80
88PSRFBS2010-05-16 22:14:592010-05-16 22:22:45 00:07:46 624 334.04 670 2.37 41.50 10
89PSRFBD2010-05-16 22:28:562010-05-16 22:32:32 00:03:36 670 24.86 670 37.99 34.30 43
90PSRFBD2010-05-16 22:34:202010-05-16 22:39:10 00:04:50 670 44.61 670 62.24 34.30 43
91PSMOB12010-05-16 22:50:472010-05-16 22:58:33 00:07:46 670 104.60 670 132.92 -1.20 -
92PSRWB12010-05-16 23:04:172010-05-16 23:12:03 00:07:46 670 153.83 670 182.15 27.10 80
93AV2OBS2010-05-16 23:09:462010-05-16 23:11:38 00:01:52 670 173.83 670 180.64 0.00 -
94PSRWB12010-05-16 23:29:002010-05-16 23:31:12 00:02:12 670 243.91 670 251.93 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
26-13.706332010-05-15 23:20:02153.953882010-05-16 00:09:23
72-38.385912010-05-16 00:58:45129.274302010-05-16 01:48:06
118-63.065492010-05-16 02:37:28104.594712010-05-16 03:26:50
164-87.745082010-05-16 04:16:11 79.915132010-05-16 05:05:33
210-112.424662010-05-16 05:54:54 55.235552010-05-16 06:44:16
256-137.104242010-05-16 07:33:37 30.555972010-05-16 08:22:59
302-161.783832010-05-16 09:12:20 5.876382010-05-16 10:01:42
348173.536592010-05-16 10:51:04-18.803202010-05-16 11:40:25
394148.857012010-05-16 12:29:47-43.482782010-05-16 13:19:08
440124.177432010-05-16 14:08:30-68.162372010-05-16 14:57:51
486 99.497842010-05-16 15:47:13-92.841952010-05-16 16:36:34
532 74.818262010-05-16 17:25:56-117.521532010-05-16 18:15:17
578 50.138682010-05-16 19:04:39-142.201112010-05-16 19:54:01
624 25.459102010-05-16 20:43:22-166.880702010-05-16 21:32:44
670 0.779512010-05-16 22:22:05168.439722010-05-16 23:11:27
