>ALOS Data Take Simulation(May. 11, 2010)

Observation Area

PRISM

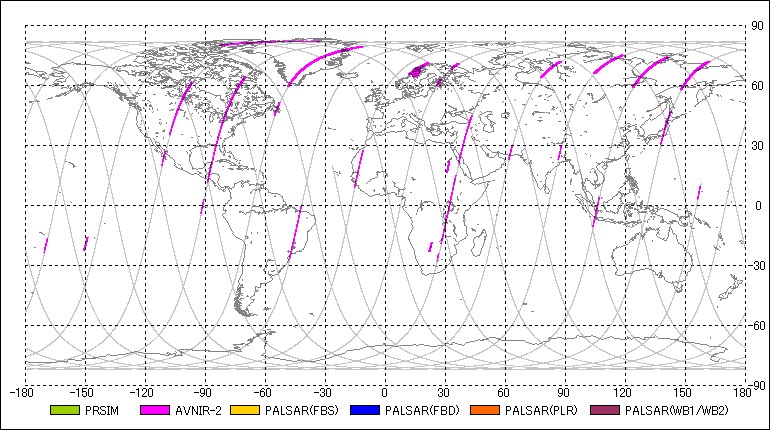

AVNIR-2

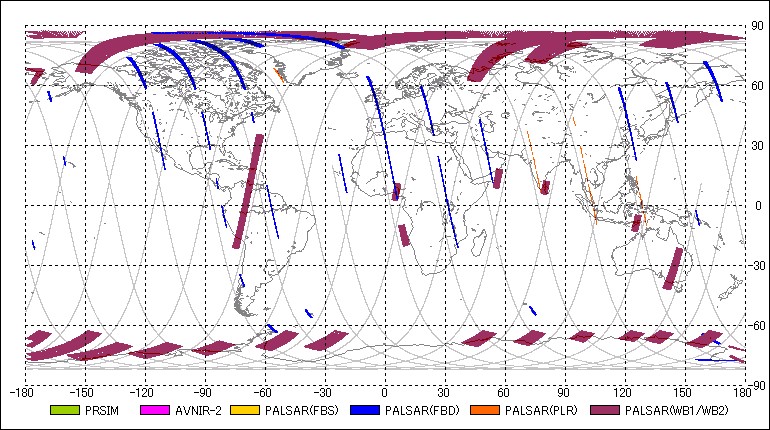

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1AV2OBS2010-05-11 00:00:192010-05-11 00:02:11 00:01:52 23 170.30 23 177.11 0.00 -
2PSMOB22010-05-11 00:08:302010-05-11 00:16:18 00:07:48 23 200.15 23 228.59 0.00 -
3PSRWB12010-05-11 00:08:362010-05-11 00:14:54 00:06:18 23 200.51 23 223.48 27.10 80
4PSRWB12010-05-11 00:20:292010-05-11 00:22:31 00:02:02 23 243.91 23 251.32 27.10 80
5PSRPLR2010-05-11 01:08:472010-05-11 01:11:29 00:02:42 69 59.99 69 69.84 21.50 127
6PSRFBD2010-05-11 01:13:452010-05-11 01:15:57 00:02:12 69 78.16 69 86.18 34.30 43
7AV2OBS2010-05-11 01:21:272010-05-11 01:25:39 00:04:12 69 106.24 69 121.56 0.00 -
8PSMOB22010-05-11 01:27:102010-05-11 01:33:30 00:06:20 69 127.03 69 150.12 0.00 -
9AV2OBS2010-05-11 01:28:392010-05-11 01:33:19 00:04:40 69 132.44 69 149.46 0.00 -
10PSMOB22010-05-11 01:40:492010-05-11 01:52:41 00:11:52 69 176.81 69 220.08 0.00 -
11PSRWB12010-05-11 01:42:412010-05-11 01:45:33 00:02:52 69 183.61 69 194.07 27.10 80
12PSRWB12010-05-11 01:59:162010-05-11 02:01:16 00:02:00 69 244.09 69 251.38 27.10 80
13PSRFBD2010-05-11 02:14:362010-05-11 02:16:28 00:01:52 69 300.01 69 306.81 34.30 43
14PSRFBD2010-05-11 02:25:512010-05-11 02:33:53 00:08:02 69 341.03 115 10.33 34.30 43
15PSRFBD2010-05-11 02:41:542010-05-11 02:43:54 00:02:00 115 39.63 115 46.92 34.30 43
16PSRFBD2010-05-11 02:46:302010-05-11 02:54:12 00:07:42 115 56.34 115 84.42 34.30 43
17PSRWB12010-05-11 02:55:102010-05-11 02:58:36 00:03:26 115 87.95 115 100.47 27.10 80
18AV2OBS2010-05-11 02:59:312010-05-11 03:04:03 00:04:32 115 103.81 115 120.34 0.00 -
19PSMOB22010-05-11 03:06:052010-05-11 03:23:57 00:17:52 115 127.76 115 192.91 0.00 -
20AV2OBS2010-05-11 03:19:202010-05-11 03:23:21 00:04:01 115 176.08 115 190.72 0.00 -
21PSRWB12010-05-11 03:37:552010-05-11 03:40:31 00:02:36 115 243.91 115 253.39 27.10 80
22PSRFBD2010-05-11 03:51:032010-05-11 03:52:55 00:01:52 115 291.80 115 298.61 34.30 43
23PSRFBD2010-05-11 03:57:492010-05-11 04:00:15 00:02:26 115 316.42 115 325.29 34.30 43
24PSRFBD2010-05-11 04:06:062010-05-11 04:09:48 00:03:42 115 346.62 161 0.12 34.30 43
25PSRFBD2010-05-11 04:11:252010-05-11 04:13:29 00:02:04 161 6.02 161 13.55 34.30 43
26PSRFBD2010-05-11 04:16:482010-05-11 04:22:38 00:05:50 161 25.65 161 46.92 34.30 43
27PSRFBD2010-05-11 04:25:132010-05-11 04:32:17 00:07:04 161 56.34 161 82.11 34.30 43
28AV2OBS2010-05-11 04:37:542010-05-11 04:40:42 00:02:48 161 102.59 161 112.81 0.00 -
29PSMOB12010-05-11 04:44:032010-05-11 04:55:01 00:10:58 161 125.02 161 165.01 -1.20 -
30AV2OBS2010-05-11 04:50:562010-05-11 04:52:48 00:01:52 161 150.12 161 156.93 0.00 -
31PSRWB12010-05-11 04:55:292010-05-11 04:57:53 00:02:24 161 166.72 161 175.47 27.10 80
32PSRWB12010-05-11 05:16:392010-05-11 05:19:27 00:02:48 161 243.91 161 254.12 27.10 80
33PSRFBD2010-05-11 05:52:462010-05-11 06:01:22 00:08:36 207 15.62 207 46.98 34.30 43
34PSRFBD2010-05-11 06:03:572010-05-11 06:09:03 00:05:06 207 56.40 207 75.00 34.30 43
35PSRWB12010-05-11 06:14:402010-05-11 06:18:22 00:03:42 207 95.42 207 108.92 27.10 80
36AV2OBS2010-05-11 06:17:402010-05-11 06:20:00 00:02:20 207 106.42 207 114.93 0.00 -
37PSMOB12010-05-11 06:22:462010-05-11 06:32:04 00:09:18 207 125.02 207 158.94 -1.20 -
38AV2OBS2010-05-11 06:29:362010-05-11 06:31:28 00:01:52 207 149.94 207 156.75 0.00 -
39PSRWB12010-05-11 06:32:312010-05-11 06:35:47 00:03:16 207 160.58 207 172.49 27.10 80
40PSRWB12010-05-11 07:50:592010-05-11 07:59:40 00:08:41 253 86.73 253 118.40 27.10 80
41PSMOB12010-05-11 07:59:142010-05-11 08:11:26 00:12:12 253 116.82 253 161.31 -1.20 -
42AV2OBS2010-05-11 08:04:102010-05-11 08:23:36 00:19:26 253 134.81 253 205.68 0.00 -
43PSRFBD2010-05-11 09:10:522010-05-11 09:12:44 00:01:52 299 18.05 299 24.86 34.30 43
44PSRFBD2010-05-11 09:19:392010-05-11 09:21:41 00:02:02 299 50.02 299 57.44 34.30 43
45AV2OBS2010-05-11 09:35:222010-05-11 09:38:18 00:02:56 299 107.40 299 118.09 0.00 -
46PSMOB12010-05-11 09:41:492010-05-11 09:47:05 00:05:16 299 130.92 299 150.12 -1.20 -
47PSMOB12010-05-11 09:49:232010-05-11 09:55:29 00:06:06 299 158.51 299 180.76 -1.20 -
48PSRWB12010-05-11 09:51:562010-05-11 09:54:52 00:02:56 299 167.81 299 178.51 27.10 80
49PSRWB12010-05-11 10:12:482010-05-11 10:16:14 00:03:26 299 243.91 299 256.43 27.10 80
50PSRFBD2010-05-11 10:37:542010-05-11 10:39:46 00:01:52 299 335.44 299 342.25 34.30 43
51PSRFBD2010-05-11 10:58:242010-05-11 11:04:36 00:06:12 345 50.14 345 72.75 34.30 43
52AV2OBS2010-05-11 11:13:362010-05-11 11:15:28 00:01:52 345 105.63 345 112.44 21.50 -
53PSMOB12010-05-11 11:16:262010-05-11 11:24:54 00:08:28 345 115.97 345 146.84 -1.20 -
54AV2OBS2010-05-11 11:26:292010-05-11 11:31:36 00:05:07 345 152.56 345 171.21 0.00 -
55PSMOB12010-05-11 11:28:072010-05-11 11:32:19 00:04:12 345 158.51 345 173.83 -1.20 -
56PSRWB12010-05-11 11:51:312010-05-11 11:54:57 00:03:26 345 243.91 345 256.43 27.10 80
57PSRFBD2010-05-11 12:19:582010-05-11 12:22:38 00:02:40 345 347.66 345 357.38 34.30 43
58PSRFBD2010-05-11 12:34:132010-05-11 12:40:23 00:06:10 391 39.63 391 62.12 34.30 43
59PSRWB12010-05-11 12:47:082010-05-11 12:51:05 00:03:57 391 86.73 391 101.14 27.10 80
60PSMOB12010-05-11 12:54:202010-05-11 12:57:40 00:03:20 391 112.99 391 125.14 0.00 -
61PSMOB12010-05-11 13:12:032010-05-11 13:21:51 00:09:48 391 177.54 391 213.27 -1.20 -
62AV2OBS2010-05-11 13:12:482010-05-11 13:20:12 00:07:24 391 180.33 391 207.32 0.00 -
63PSRWB12010-05-11 13:31:582010-05-11 13:34:32 00:02:34 391 250.23 391 259.59 27.10 80
64PSRFBD2010-05-11 13:41:332010-05-11 13:43:49 00:02:16 391 285.18 391 293.44 34.30 43
65PSRPLR2010-05-11 13:58:432010-05-11 14:06:13 00:07:30 391 347.78 437 15.13 23.10 128
66PSRFBD2010-05-11 14:07:422010-05-11 14:18:24 00:10:42 437 20.54 437 59.56 34.30 43
67AV2OBS2010-05-11 14:28:412010-05-11 14:34:53 00:06:12 437 97.00 437 119.61 0.00 -
68AV2OBS2010-05-11 14:37:102010-05-11 14:39:02 00:01:52 437 127.94 437 134.75 0.00 -
69PSRWB12010-05-11 14:41:202010-05-11 14:57:41 00:16:21 437 143.20 437 202.82 27.10 80
70PSMOB12010-05-11 14:47:062010-05-11 14:58:00 00:10:54 437 164.16 437 203.91 -1.20 -
71PSRWB12010-05-11 15:10:572010-05-11 15:13:51 00:02:54 437 251.20 437 261.78 27.10 80
72PSRPLR2010-05-11 15:37:322010-05-11 15:49:00 00:11:28 437 348.14 483 29.96 23.10 128
73PSRPLR2010-05-11 15:51:122010-05-11 15:53:04 00:01:52 483 37.99 483 44.79 23.10 128
74PSMOB12010-05-11 16:04:592010-05-11 16:13:53 00:08:54 483 88.19 483 120.65 -1.20 -
75AV2OBS2010-05-11 16:12:152010-05-11 16:27:03 00:14:48 483 114.75 483 168.72 0.00 -
76PSMOB12010-05-11 16:28:422010-05-11 16:31:36 00:02:54 483 174.74 483 185.32 -1.20 -
77AV2OBS2010-05-11 16:29:222010-05-11 16:31:14 00:01:52 483 177.11 483 183.92 0.00 -
78PSRWB12010-05-11 16:49:412010-05-11 16:53:07 00:03:26 483 251.20 483 263.72 27.10 80
79PSRFBD2010-05-11 16:54:132010-05-11 16:56:05 00:01:52 483 267.73 483 274.54 34.30 43
80PSRPLR2010-05-11 17:20:462010-05-11 17:29:56 00:09:10 529 4.56 529 37.99 23.10 128
81PSMOB12010-05-11 17:43:152010-05-11 17:53:19 00:10:04 529 86.55 529 123.26 -1.20 -
82AV2OBS2010-05-11 17:51:422010-05-11 17:59:04 00:07:22 529 117.36 529 144.23 0.00 -
83AV2OBS2010-05-11 18:01:302010-05-11 18:03:22 00:01:52 529 153.10 529 159.91 0.00 -
84PSRWB12010-05-11 18:26:242010-05-11 18:32:10 00:05:46 529 243.91 529 264.94 27.10 80
85PSRFBD2010-05-11 18:42:132010-05-11 18:44:05 00:01:52 529 301.59 529 308.39 34.30 43
86PSRFBD2010-05-11 19:00:482010-05-11 19:10:08 00:09:20 575 9.36 575 43.40 34.30 43
87PSMOB12010-05-11 19:21:582010-05-11 19:35:00 00:13:02 575 86.55 575 134.08 -1.20 -
88AV2OBS2010-05-11 19:22:292010-05-11 19:24:37 00:02:08 575 88.43 575 96.21 0.00 -
89AV2OBS2010-05-11 19:52:102010-05-11 19:54:02 00:01:52 575 196.74 575 203.55 -34.30 -
90PSRWB12010-05-11 20:05:062010-05-11 20:08:32 00:03:26 575 243.91 575 256.43 27.10 80
91PSRFBD2010-05-11 20:30:312010-05-11 20:43:43 00:13:12 575 336.53 621 24.68 34.30 43
92PSRFBD2010-05-11 20:45:592010-05-11 20:53:25 00:07:26 621 32.94 621 60.05 34.30 43
93PSRWB12010-05-11 20:59:442010-05-11 21:08:14 00:08:30 621 83.08 621 114.08 27.10 80
94PSMOB12010-05-11 21:00:402010-05-11 21:11:14 00:10:34 621 86.49 621 125.02 -1.20 -
95AV2OBS2010-05-11 21:30:542010-05-11 21:32:46 00:01:52 621 196.74 621 203.55 0.00 -
96PSMOB22010-05-11 21:30:542010-05-11 21:32:46 00:01:52 621 196.74 621 203.55 0.00 -
97PSRWB12010-05-11 21:43:502010-05-11 21:46:46 00:02:56 621 243.91 621 254.60 27.10 80
98PSRWB12010-05-11 22:09:312010-05-11 22:13:01 00:03:30 621 337.57 621 350.33 27.10 80
99PSRFBD2010-05-11 22:15:512010-05-11 22:33:31 00:17:40 667 0.67 667 65.09 34.30 43
100PSRFBD2010-05-11 22:36:562010-05-11 22:40:58 00:04:02 667 77.49 667 92.20 34.30 43
101PSMOB12010-05-11 22:43:552010-05-11 22:52:01 00:08:06 667 103.02 667 132.56 -1.20 -
102PSRWB12010-05-11 22:45:452010-05-11 22:48:33 00:02:48 667 109.71 667 119.92 27.10 80
103PSRWB12010-05-11 23:22:332010-05-11 23:24:49 00:02:16 667 243.91 667 252.17 27.10 80
104PSRFBD2010-05-11 23:55:362010-05-12 00:01:28 00:05:52 42 4.44 42 25.83 34.30 43

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
23-12.096792010-05-10 23:13:36155.563422010-05-11 00:02:57
69-36.776372010-05-11 00:52:19130.883832010-05-11 01:41:40
115-61.455962010-05-11 02:31:02106.204252010-05-11 03:20:23
161-86.135542010-05-11 04:09:45 81.524672010-05-11 04:59:06
207-110.815122010-05-11 05:48:28 56.845092010-05-11 06:37:50
253-135.494702010-05-11 07:27:11 32.165502010-05-11 08:16:33
299-160.174292010-05-11 09:05:54 7.485922010-05-11 09:55:16
345175.146132010-05-11 10:44:37-17.193662010-05-11 11:33:59
391150.466552010-05-11 12:23:20-41.873242010-05-11 13:12:42
437125.786962010-05-11 14:02:03-66.552832010-05-11 14:51:25
483101.107382010-05-11 15:40:47-91.232412010-05-11 16:30:08
529 76.427802010-05-11 17:19:30-115.911992010-05-11 18:08:51
575 51.748222010-05-11 18:58:13-140.591582010-05-11 19:47:34
621 27.068632010-05-11 20:36:56-165.271162010-05-11 21:26:17
667 2.389052010-05-11 22:15:39170.049262010-05-11 23:05:01
42-22.290532010-05-11 23:54:22145.369682010-05-12 00:43:44
