>ALOS Data Take Simulation(Apr. 27, 2010)

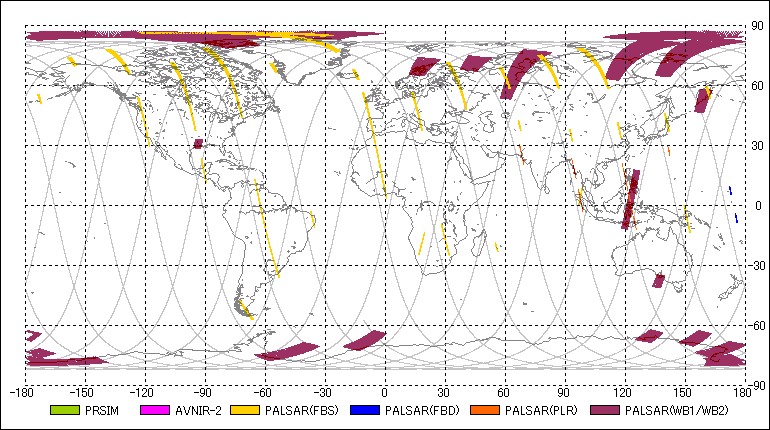

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	WB1	2010-04-27 00:08:05	2010-04-27 00:11:51	00:03:46	33	120.40	33	134.14	27.10	80
2	PSM	OB2	2010-04-27 00:24:18	2010-04-27 00:27:52	00:03:34	33	179.54	33	192.55	0.00	-
3	PSR	WB1	2010-04-27 00:33:47	2010-04-27 00:36:07	00:02:20	33	214.12	33	222.63	27.10	80
4	PSR	FBS	2010-04-27 01:10:04	2010-04-27 01:13:02	00:02:58	33	346.44	33	357.26	34.30	7
5	PSR	FBS	2010-04-27 01:31:30	2010-04-27 01:33:30	00:02:00	79	64.61	79	71.90	34.30	7
6	PSR	WB1	2010-04-27 01:35:21	2010-04-27 01:45:35	00:10:14	79	78.59	79	115.91	27.10	80
7	PSM	OB2	2010-04-27 01:47:35	2010-04-27 01:57:45	00:10:10	79	123.20	79	160.27	0.00	-
8	AV2	OBS	2010-04-27 01:47:56	2010-04-27 01:57:04	00:09:08	79	124.54	79	157.84	0.00	-
9	PSR	WB1	2010-04-27 01:57:58	2010-04-27 02:06:42	00:08:44	79	161.06	79	192.91	27.10	80
10	PSM	OB2	2010-04-27 02:00:22	2010-04-27 02:14:18	00:13:56	79	169.82	79	220.63	0.00	-
11	PSR	FBS	2010-04-27 02:41:53	2010-04-27 02:56:07	00:14:14	79	321.22	125	13.13	34.30	7
12	PSR	FBS	2010-04-27 03:03:58	2010-04-27 03:14:24	00:10:26	125	41.76	125	79.80	34.30	7
13	PSR	WB1	2010-04-27 03:18:34	2010-04-27 03:24:46	00:06:12	125	95.00	125	117.61	27.10	80
14	PSM	OB2	2010-04-27 03:27:33	2010-04-27 03:43:59	00:16:26	125	127.76	125	187.69	0.00	-
15	AV2	OBS	2010-04-27 03:30:24	2010-04-27 03:43:22	00:12:58	125	138.15	125	185.44	0.00	-
16	PSR	FBS	2010-04-27 03:38:55	2010-04-27 03:42:03	00:03:08	125	169.21	125	180.64	34.30	7
17	PSR	FBS	2010-04-27 04:14:30	2010-04-27 04:17:56	00:03:26	125	298.97	125	311.49	34.30	7
18	PSR	FBS	2010-04-27 04:33:49	2010-04-27 04:37:45	00:03:56	171	9.42	171	23.76	34.30	7
19	PSR	FBS	2010-04-27 04:40:52	2010-04-27 04:51:04	00:10:12	171	35.19	171	72.39	34.30	7
20	PSR	WB1	2010-04-27 04:55:01	2010-04-27 04:57:35	00:02:34	171	86.73	171	96.09	27.10	80
21	PSM	OB1	2010-04-27 05:05:31	2010-04-27 05:19:29	00:13:58	171	125.02	171	175.96	1.20	-
22	AV2	OBS	2010-04-27 05:09:02	2010-04-27 05:18:42	00:09:40	171	137.91	171	173.16	0.00	-
23	AV2	OBS	2010-04-27 05:40:03	2010-04-27 05:41:55	00:01:52	171	250.96	171	257.76	-21.50	-
24	PSR	FBS	2010-04-27 06:17:31	2010-04-27 06:24:51	00:07:20	217	27.59	217	54.34	34.30	7
25	PSR	FBS	2010-04-27 06:27:31	2010-04-27 06:31:39	00:04:08	217	64.06	217	79.13	34.30	7
26	PSR	WB1	2010-04-27 06:37:29	2010-04-27 06:44:55	00:07:26	217	100.41	217	127.51	27.10	80
27	AV2	OBS	2010-04-27 06:47:46	2010-04-27 06:49:38	00:01:52	217	137.97	217	144.78	0.00	-
28	AV2	OBS	2010-04-27 06:53:10	2010-04-27 06:56:38	00:03:28	217	157.60	217	170.24	-34.30	-
29	AV2	OBS	2010-04-27 07:07:20	2010-04-27 07:08:16	00:00:56	217	209.26	217	212.67	0.00	-
30	AV2	OBS	2010-04-27 07:19:23	2010-04-27 07:21:15	00:01:52	217	253.21	217	260.01	41.50	-
31	PSR	FBS	2010-04-27 08:07:21	2010-04-27 08:09:13	00:01:52	263	68.13	263	74.94	34.30	7
32	PSR	WB1	2010-04-27 08:17:03	2010-04-27 08:19:39	00:02:36	263	103.51	263	112.99	27.10	80
33	PSM	OB1	2010-04-27 08:20:06	2010-04-27 08:48:52	00:28:46	263	114.63	263	219.53	1.20	-
34	PSR	FBS	2010-04-27 08:41:23	2010-04-27 08:45:07	00:03:44	263	192.30	263	205.92	34.30	7
35	AV2	OBS	2010-04-27 08:42:56	2010-04-27 08:44:48	00:01:52	263	197.90	263	204.70	0.00	-
36	PSR	WB1	2010-04-27 08:55:32	2010-04-27 08:58:58	00:03:26	263	243.91	263	256.43	27.10	80
37	PSR	FBS	2010-04-27 09:40:50	2010-04-27 09:42:42	00:01:52	309	49.05	309	55.86	34.30	7
38	PSR	WB1	2010-04-27 09:55:58	2010-04-27 09:59:02	00:03:04	309	104.24	309	115.42	27.10	80
39	PSM	OB1	2010-04-27 10:10:48	2010-04-27 10:16:20	00:05:32	309	158.33	309	178.51	1.20	-
40	AV2	OBS	2010-04-27 10:11:34	2010-04-27 10:15:36	00:04:02	309	161.13	309	175.83	0.00	-
41	PSR	WB1	2010-04-27 10:36:16	2010-04-27 10:39:40	00:03:24	309	251.20	309	263.60	27.10	80
42	PSR	FBD	2010-04-27 11:03:06	2010-04-27 11:05:02	00:01:56	309	349.05	309	356.10	34.30	43
43	PSR	FBD	2010-04-27 11:06:56	2010-04-27 11:08:48	00:01:52	355	3.04	355	9.85	34.30	43
44	PSR	FBS	2010-04-27 11:20:12	2010-04-27 11:22:32	00:02:20	355	51.42	355	59.93	34.30	7
45	PSM	OB1	2010-04-27 11:31:41	2010-04-27 11:34:37	00:02:56	355	93.30	355	103.99	1.20	-
46	AV2	OBS	2010-04-27 11:32:23	2010-04-27 11:34:15	00:01:52	355	95.85	355	102.66	0.00	-
47	PSM	OB1	2010-04-27 11:38:30	2010-04-27 11:43:54	00:05:24	355	118.15	355	137.85	0.00	-
48	PSM	OB1	2010-04-27 11:47:36	2010-04-27 11:50:36	00:03:00	355	151.34	355	162.28	0.00	-
49	PSM	OB1	2010-04-27 12:09:16	2010-04-27 12:11:52	00:02:36	355	230.35	355	239.83	1.20	-
50	AV2	OBS	2010-04-27 12:10:02	2010-04-27 12:11:54	00:01:52	355	233.15	355	239.96	0.00	-
51	PSR	FBS	2010-04-27 12:40:29	2010-04-27 12:44:53	00:04:24	355	344.19	401	0.24	34.30	7
52	AV2	OBS	2010-04-27 12:43:20	2010-04-27 12:45:38	00:02:18	355	354.58	401	2.98	0.00	-
53	PSR	PLR	2010-04-27 12:51:11	2010-04-27 12:53:03	00:01:52	401	23.22	401	30.02	21.50	127
54	PSR	FBS	2010-04-27 12:54:21	2010-04-27 12:57:29	00:03:08	401	34.77	401	46.19	34.30	7
55	PSM	OB1	2010-04-27 13:09:27	2010-04-27 13:12:31	00:03:04	401	89.83	401	101.01	1.20	-
56	PSM	OB1	2010-04-27 13:15:49	2010-04-27 13:18:43	00:02:54	401	113.05	401	123.62	0.00	-
57	PSM	OB1	2010-04-27 13:33:03	2010-04-27 13:44:59	00:11:56	401	175.89	401	219.41	1.20	-
58	AV2	OBS	2010-04-27 13:33:49	2010-04-27 13:40:17	00:06:28	401	178.69	401	202.27	0.00	-
59	PSM	OB1	2010-04-27 13:47:16	2010-04-27 13:49:52	00:02:36	401	227.74	401	237.22	1.20	-
60	AV2	OBS	2010-04-27 13:48:02	2010-04-27 13:49:56	00:01:54	401	230.53	401	237.46	0.00	-
61	PSR	PLR	2010-04-27 14:19:36	2010-04-27 14:29:32	00:09:56	401	345.65	447	21.88	21.50	127
62	PSR	FBS	2010-04-27 14:32:15	2010-04-27 14:35:01	00:02:46	447	31.79	447	41.88	34.30	7
63	PSR	FBS	2010-04-27 14:39:06	2010-04-27 14:45:22	00:06:16	447	56.77	447	79.62	34.30	7
64	AV2	OBS	2010-04-27 14:51:01	2010-04-27 14:57:17	00:06:16	447	100.22	447	123.08	0.00	-
65	PSM	OB1	2010-04-27 15:08:19	2010-04-27 15:18:27	00:10:08	447	163.31	447	200.27	1.20	-
66	AV2	OBS	2010-04-27 15:09:05	2010-04-27 15:18:52	00:09:47	447	166.11	447	201.79	0.00	-
67	PSR	WB1	2010-04-27 15:35:34	2010-04-27 15:38:18	00:02:44	447	262.63	447	272.59	27.10	80
68	PSR	PLR	2010-04-27 16:00:44	2010-04-27 16:04:42	00:03:58	447	354.46	493	8.93	21.50	127
69	PSR	PLR	2010-04-27 16:05:27	2010-04-27 16:08:53	00:03:26	493	11.61	493	24.13	21.50	127
70	PSR	FBS	2010-04-27 16:10:29	2010-04-27 16:12:45	00:02:16	493	30.02	493	38.29	34.30	7
71	PSR	FBS	2010-04-27 16:17:49	2010-04-27 16:23:09	00:05:20	493	56.77	493	76.22	34.30	7
72	PSM	OB1	2010-04-27 16:27:37	2010-04-27 16:33:01	00:05:24	493	92.51	493	112.20	0.00	-
73	AV2	OBS	2010-04-27 16:31:26	2010-04-27 16:34:30	00:03:04	493	106.42	493	117.61	0.00	-
74	PSM	OB1	2010-04-27 16:41:53	2010-04-27 16:44:29	00:02:36	493	144.53	493	154.01	1.20	-
75	PSR	WB1	2010-04-27 16:42:11	2010-04-27 16:44:03	00:01:52	493	145.63	493	152.43	27.10	80
76	PSR	WB1	2010-04-27 17:14:29	2010-04-27 17:16:51	00:02:22	493	263.42	493	272.05	27.10	80
77	PSR	PLR	2010-04-27 17:46:07	2010-04-27 17:49:29	00:03:22	539	18.78	539	31.06	21.50	127
78	PSR	FBS	2010-04-27 17:50:42	2010-04-27 17:52:40	00:01:58	539	35.49	539	42.67	34.30	7
79	PSR	FBS	2010-04-27 17:56:32	2010-04-27 18:00:04	00:03:32	539	56.77	539	69.65	34.30	7
80	AV2	OBS	2010-04-27 18:06:10	2010-04-27 18:14:00	00:07:50	539	91.84	539	120.40	0.00	-
81	PSM	OB1	2010-04-27 18:13:29	2010-04-27 18:23:51	00:10:22	539	118.52	539	156.32	1.20	-
82	PSR	WB1	2010-04-27 18:51:03	2010-04-27 18:54:09	00:03:06	539	255.58	539	266.88	27.10	80
83	PSR	FBS	2010-04-27 19:12:39	2010-04-27 19:14:35	00:01:56	539	334.35	539	341.40	34.30	7
84	PSR	FBS	2010-04-27 19:32:17	2010-04-27 19:39:31	00:07:14	585	45.95	585	72.33	34.30	7
85	PSR	WB1	2010-04-27 19:43:03	2010-04-27 19:46:17	00:03:14	585	85.21	585	97.00	27.10	80
86	AV2	OBS	2010-04-27 19:47:24	2010-04-27 19:52:48	00:05:24	585	101.01	585	120.71	0.00	-
87	PSM	OB1	2010-04-27 19:51:06	2010-04-27 19:55:44	00:04:38	585	114.51	585	131.40	1.20	-
88	PSR	WB1	2010-04-27 20:26:35	2010-04-27 20:31:13	00:04:38	585	243.97	585	260.86	27.10	80
89	PSR	FBS	2010-04-27 20:50:49	2010-04-27 20:55:59	00:05:10	585	332.34	585	351.18	34.30	7
90	PSR	FBS	2010-04-27 21:08:08	2010-04-27 21:14:04	00:05:56	631	35.43	631	57.07	34.30	7
91	PSR	FBS	2010-04-27 21:21:36	2010-04-27 21:23:28	00:01:52	631	84.54	631	91.35	34.30	7
92	AV2	OBS	2010-04-27 21:22:55	2010-04-27 21:24:47	00:01:52	631	89.35	631	96.15	0.00	-
93	AV2	OBS	2010-04-27 21:27:35	2010-04-27 21:32:39	00:05:04	631	106.42	631	124.90	0.00	-
94	PSM	OB1	2010-04-27 21:28:21	2010-04-27 21:30:57	00:02:36	631	109.22	631	118.70	1.20	-
95	AV2	OBS	2010-04-27 21:47:55	2010-04-27 21:49:47	00:01:52	631	180.51	631	187.32	0.00	-
96	PSM	OB2	2010-04-27 21:47:58	2010-04-27 21:50:18	00:02:20	631	180.70	631	189.20	0.00	-
97	PSR	WB1	2010-04-27 22:05:17	2010-04-27 22:07:59	00:02:42	631	243.91	631	253.75	27.10	80
98	PSR	FBS	2010-04-27 22:37:30	2010-04-27 22:52:44	00:15:14	6	1.40	6	56.95	34.30	7
99	PSR	FBS	2010-04-27 22:53:54	2010-04-27 22:56:00	00:02:06	6	61.20	6	68.86	34.30	7
100	PSR	FBS	2010-04-27 22:57:49	2010-04-27 23:02:25	00:04:36	6	75.43	6	92.20	34.30	7
101	AV2	OBS	2010-04-27 23:07:11	2010-04-27 23:09:03	00:01:52	6	109.58	6	116.39	0.00	-
102	AV2	OBS	2010-04-27 23:22:44	2010-04-27 23:24:36	00:01:52	6	166.29	6	173.10	0.00	-
103	AV2	OBS	2010-04-27 23:29:25	2010-04-27 23:31:19	00:01:54	6	190.66	6	197.59	0.00	-
104	AV2	OBS	2010-04-27 23:33:49	2010-04-27 23:37:31	00:03:42	6	206.71	6	220.20	-34.30	-
105	PSR	WB1	2010-04-27 23:44:00	2010-04-27 23:46:10	00:02:10	6	243.85	6	251.75	27.10	80

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
33	-17.46192	2010-04-26 23:35:03	150.19829	2010-04-27 00:24:25
79	-42.14150	2010-04-27 01:13:46	125.51871	2010-04-27 02:03:08
125	-66.82108	2010-04-27 02:52:29	100.83913	2010-04-27 03:41:51
171	-91.50067	2010-04-27 04:31:12	76.15954	2010-04-27 05:20:34
217	-116.18025	2010-04-27 06:09:56	51.47996	2010-04-27 06:59:17
263	-140.85983	2010-04-27 07:48:39	26.80038	2010-04-27 08:38:00
309	-165.53941	2010-04-27 09:27:22	2.12079	2010-04-27 10:16:43
355	169.78100	2010-04-27 11:06:05	-22.55879	2010-04-27 11:55:26
401	145.10142	2010-04-27 12:44:48	-47.23837	2010-04-27 13:34:10
447	120.42184	2010-04-27 14:23:31	-71.91795	2010-04-27 15:12:53
493	95.74225	2010-04-27 16:02:14	-96.59754	2010-04-27 16:51:36
539	71.06267	2010-04-27 17:40:57	-121.27712	2010-04-27 18:30:19
585	46.38309	2010-04-27 19:19:40	-145.95670	2010-04-27 20:09:02
631	21.70351	2010-04-27 20:58:23	-170.63628	2010-04-27 21:47:45
6	-2.97608	2010-04-27 22:37:07	164.68413	2010-04-27 23:26:28
