>ALOS Data Take Simulation(Apr. 21, 2010)

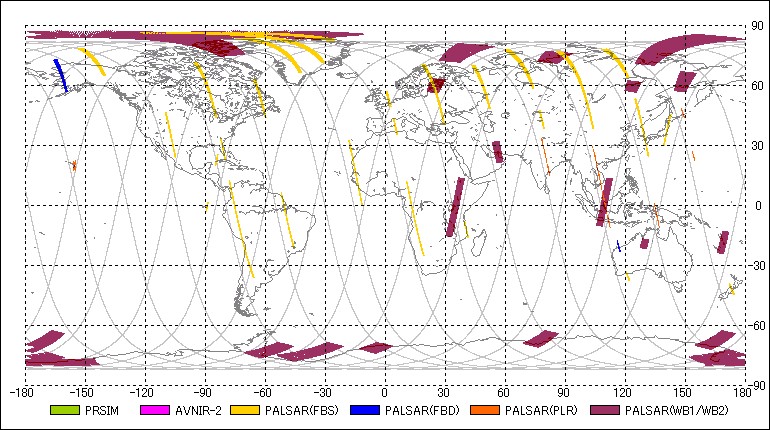

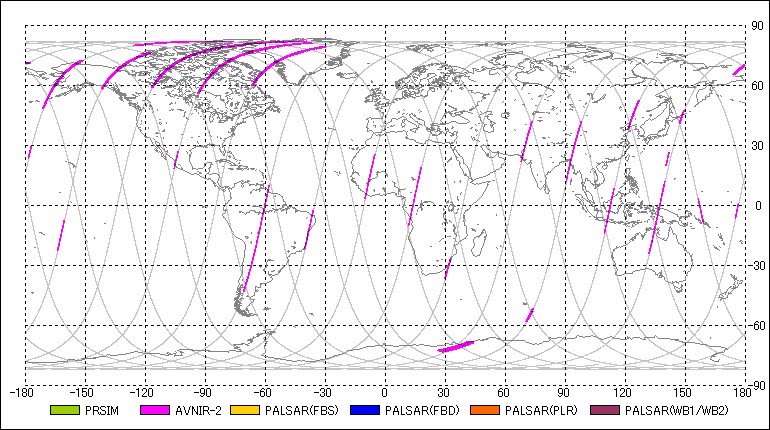

Observation Area

PRISM

AVNIR-2

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2010-04-21 00:44:172010-04-21 00:51:21 00:07:04 57 64.61 57 90.38 34.30 7
2PSRWB12010-04-21 00:57:122010-04-21 01:00:30 00:03:18 57 111.65 57 123.69 27.10 80
3AV2OBS2010-04-21 01:02:492010-04-21 01:04:41 00:01:52 57 132.13 57 138.94 0.00 -
4PSRFBS2010-04-21 01:03:082010-04-21 01:08:04 00:04:56 57 133.29 57 151.28 34.30 7
5AV2OBS2010-04-21 01:08:382010-04-21 01:10:30 00:01:52 57 153.35 57 160.15 -9.80 -
6AV2OBS2010-04-21 01:12:362010-04-21 01:22:34 00:09:58 57 167.81 57 204.16 0.00 -
7PSMOB22010-04-21 01:15:452010-04-21 01:22:39 00:06:54 57 179.30 57 204.46 0.00 -
8PSRWB12010-04-21 01:20:152010-04-21 01:22:13 00:01:58 57 195.71 57 202.88 27.10 80
9PSRFBS2010-04-21 01:58:502010-04-21 02:07:04 00:08:14 57 336.41 103 6.44 34.30 7
10PSRFBS2010-04-21 02:16:452010-04-21 02:22:45 00:06:00 103 41.76 103 63.64 34.30 7
11PSRWB12010-04-21 02:25:302010-04-21 02:35:23 00:09:53 103 73.72 103 109.77 27.10 80
12PSRWB12010-04-21 02:37:112010-04-21 02:39:13 00:02:02 103 116.27 103 123.69 27.10 80
13PSMOB22010-04-21 02:39:402010-04-21 02:49:16 00:09:36 103 125.33 103 160.33 0.00 -
14AV2OBS2010-04-21 02:40:092010-04-21 02:44:13 00:04:04 103 127.09 103 141.92 0.00 -
15PSRWB12010-04-21 02:50:372010-04-21 02:57:47 00:07:10 103 165.26 103 191.39 27.10 80
16AV2OBS2010-04-21 02:52:172010-04-21 02:58:31 00:06:14 103 171.34 103 194.07 0.00 -
17PSMOB22010-04-21 02:52:302010-04-21 02:58:20 00:05:50 103 172.13 103 193.40 0.00 -
18PSRWB12010-04-21 03:12:102010-04-21 03:15:02 00:02:52 103 243.91 103 254.36 27.10 80
19PSRFBS2010-04-21 03:33:242010-04-21 03:47:26 00:14:02 103 321.28 149 12.46 34.30 7
20PSRFBS2010-04-21 03:49:402010-04-21 03:53:06 00:03:26 149 20.60 149 33.12 34.30 7
21PSRFBS2010-04-21 03:55:292010-04-21 04:03:51 00:08:22 149 41.82 149 72.33 34.30 7
22AV2OBS2010-04-21 04:21:502010-04-21 04:30:03 00:08:13 149 137.91 149 167.87 0.00 -
23AV2OBS2010-04-21 04:47:372010-04-21 04:49:29 00:01:52 149 231.93 149 238.74 0.00 -
24AV2OBS2010-04-21 04:53:272010-04-21 04:55:25 00:01:58 149 253.21 149 260.38 -41.50 -
25PSRFBS2010-04-21 05:28:402010-04-21 05:35:36 00:06:56 195 21.64 195 46.92 34.30 7
26PSRWB12010-04-21 05:50:302010-04-21 05:52:36 00:02:06 195 101.26 195 108.92 27.10 80
27PSMOB12010-04-21 05:57:012010-04-21 06:06:55 00:09:54 195 125.02 195 161.13 1.20 -
28AV2OBS2010-04-21 06:00:332010-04-21 06:06:07 00:05:34 195 137.91 195 158.21 0.00 -
29PSMOB12010-04-21 06:23:432010-04-21 06:26:19 00:02:36 195 222.39 195 231.87 1.20 -
30PSRFBS2010-04-21 07:18:502010-04-21 07:23:18 00:04:28 241 63.39 241 79.68 34.30 7
31PSMOB12010-04-21 07:32:532010-04-21 07:54:43 00:21:50 241 114.63 241 194.25 1.20 -
32PSRWB12010-04-21 07:46:422010-04-21 07:55:22 00:08:40 241 165.01 241 196.62 27.10 80
33PSMOB12010-04-21 07:57:252010-04-21 08:01:41 00:04:16 241 204.10 241 219.66 0.00 -
34AV2OBS2010-04-21 07:58:062010-04-21 08:00:58 00:02:52 241 206.53 241 216.98 0.00 -
35PSRWB12010-04-21 08:10:202010-04-21 08:12:12 00:01:52 241 251.20 241 258.01 27.10 80
36PSRPLR2010-04-21 08:44:272010-04-21 08:46:19 00:01:52 287 15.62 287 22.43 21.50 127
37PSRFBD2010-04-21 08:55:112010-04-21 09:00:17 00:05:06 287 54.76 287 73.36 41.50 46
38PSRWB12010-04-21 09:06:472010-04-21 09:09:51 00:03:04 287 97.00 287 108.19 27.10 80
39PSMOB12010-04-21 09:11:362010-04-21 09:15:06 00:03:30 287 114.57 287 127.33 1.20 -
40PSRWB12010-04-21 09:11:442010-04-21 09:14:14 00:02:30 287 115.05 287 124.17 27.10 80
41PSMOB12010-04-21 09:23:352010-04-21 09:32:59 00:09:24 287 158.33 287 192.61 1.20 -
42AV2OBS2010-04-21 09:24:212010-04-21 09:32:17 00:07:56 287 161.13 287 190.06 0.00 -
43PSRWB12010-04-21 09:49:032010-04-21 09:52:29 00:03:26 287 251.20 287 263.72 27.10 80
44PSMOB12010-04-21 10:53:222010-04-21 10:55:58 00:02:36 333 125.75 333 135.23 1.20 -
45AV2OBS2010-04-21 11:01:152010-04-21 11:07:21 00:06:06 333 154.44 333 176.68 0.00 -
46PSMOB12010-04-21 11:02:182010-04-21 11:08:06 00:05:48 333 158.33 333 179.48 1.20 -
47PSRWB12010-04-21 11:27:462010-04-21 11:30:30 00:02:44 333 251.20 333 261.17 27.10 80
48PSRFBS2010-04-21 11:44:302010-04-21 11:46:42 00:02:12 333 312.22 333 320.24 34.30 7
49AV2OBS2010-04-21 11:55:102010-04-21 11:58:34 00:03:24 333 351.06 379 3.46 0.00 -
50PSRPLR2010-04-21 12:03:182010-04-21 12:05:10 00:01:52 379 20.79 379 27.59 21.50 127
51PSRPLR2010-04-21 12:09:102010-04-21 12:11:02 00:01:52 379 42.18 379 48.99 21.50 127
52PSMOB12010-04-21 12:36:332010-04-21 12:39:25 00:02:52 379 141.98 379 152.43 0.00 -
53PSMOB12010-04-21 12:47:002010-04-21 12:53:24 00:06:24 379 180.15 379 203.49 1.20 -
54AV2OBS2010-04-21 12:47:432010-04-21 12:53:03 00:05:20 379 182.70 379 202.15 0.00 -
55PSRPLR2010-04-21 13:32:512010-04-21 13:36:49 00:03:58 379 347.35 425 1.82 21.50 127
56PSRFBS2010-04-21 13:42:242010-04-21 13:51:04 00:08:40 425 22.18 425 53.79 34.30 7
57PSRFBS2010-04-21 13:53:212010-04-21 13:58:05 00:04:44 425 62.12 425 79.38 34.30 7
58PSMOB12010-04-21 14:04:052010-04-21 14:10:19 00:06:14 425 101.26 425 123.99 0.00 -
59PSMOB12010-04-21 14:22:152010-04-21 14:41:37 00:19:22 425 167.51 425 238.13 1.20 -
60AV2OBS2010-04-21 14:22:592010-04-21 14:37:37 00:14:38 425 170.12 425 223.48 0.00 -
61PSRWB12010-04-21 14:49:152010-04-21 14:51:07 00:01:52 425 265.91 425 272.72 27.10 80
62PSRFBS2010-04-21 15:03:572010-04-21 15:05:49 00:01:52 425 319.58 425 326.38 34.30 7
63PSRFBD2010-04-21 15:08:032010-04-21 15:10:09 00:02:06 425 334.53 425 342.19 34.30 43
64PSRPLR2010-04-21 15:11:242010-04-21 15:23:16 00:11:52 425 346.74 471 30.02 21.50 127
65PSRFBS2010-04-21 15:25:032010-04-21 15:36:29 00:11:26 471 36.53 471 78.22 34.30 7
66AV2OBS2010-04-21 15:41:402010-04-21 15:47:44 00:06:04 471 97.06 471 119.19 0.00 -
67PSRFBS2010-04-21 15:57:002010-04-21 15:59:16 00:02:16 471 153.04 471 161.31 34.30 7
68PSRFBS2010-04-21 16:03:382010-04-21 16:05:34 00:01:56 471 177.23 471 184.28 34.30 7
69PSRWB12010-04-21 16:27:322010-04-21 16:30:00 00:02:28 471 264.33 471 273.32 27.10 80
70PSRPLR2010-04-21 16:57:202010-04-21 17:03:02 00:05:42 517 13.01 517 33.79 21.50 127
71PSRFBS2010-04-21 17:03:482010-04-21 17:06:56 00:03:08 517 36.59 517 48.02 34.30 7
72PSRFBS2010-04-21 17:09:192010-04-21 17:15:25 00:06:06 517 56.77 517 79.01 34.30 7
73AV2OBS2010-04-21 17:19:232010-04-21 17:27:35 00:08:12 517 93.48 517 123.38 0.00 -
74AV2OBS2010-04-21 17:35:452010-04-21 17:38:05 00:02:20 517 153.10 517 161.61 0.00 -
75PSRWB12010-04-21 18:04:392010-04-21 18:07:43 00:03:04 517 258.49 517 269.68 27.10 80
76PSRWB12010-04-21 18:37:492010-04-21 18:41:19 00:03:30 563 19.45 563 32.21 27.10 80
77PSRFBS2010-04-21 18:45:182010-04-21 18:51:56 00:06:38 563 46.74 563 70.93 34.30 7
78AV2OBS2010-04-21 18:57:132010-04-21 19:05:31 00:08:18 563 90.20 563 120.46 0.00 -
79PSMOB12010-04-21 19:03:542010-04-21 19:12:04 00:08:10 563 114.57 563 144.35 1.20 -
80PSRWB12010-04-21 19:39:222010-04-21 19:45:16 00:05:54 563 243.91 563 265.42 27.10 80
81PSRFBS2010-04-21 20:06:062010-04-21 20:09:00 00:02:54 563 341.40 563 351.97 34.30 7
82PSRFBS2010-04-21 20:21:422010-04-21 20:30:44 00:09:02 609 38.29 609 71.23 34.30 7
83PSRWB12010-04-21 20:34:292010-04-21 20:37:17 00:02:48 609 84.91 609 95.12 27.10 80
84AV2OBS2010-04-21 20:38:542010-04-21 20:44:24 00:05:30 609 101.08 609 121.13 0.00 -
85PSRPLR2010-04-21 20:53:562010-04-21 20:55:58 00:02:02 609 155.84 609 163.25 9.70 120
86AV2OBS2010-04-21 21:02:402010-04-21 21:06:48 00:04:08 609 187.69 609 202.76 0.00 -
87PSMOB22010-04-21 21:02:402010-04-21 21:06:54 00:04:14 609 187.69 609 203.12 0.00 -
88PSRWB12010-04-21 21:18:042010-04-21 21:21:16 00:03:12 609 243.91 609 255.58 27.10 80
89PSRFBS2010-04-21 21:42:212010-04-21 21:53:15 00:10:54 609 332.40 655 12.16 34.30 7
90PSRFBS2010-04-21 21:59:032010-04-21 22:01:59 00:02:56 655 33.31 655 44.00 34.30 7
91PSRFBS2010-04-21 22:02:552010-04-21 22:05:43 00:02:48 655 47.41 655 57.62 34.30 7
92PSRFBS2010-04-21 22:12:232010-04-21 22:15:11 00:02:48 655 81.93 655 92.14 34.30 7
93AV2OBS2010-04-21 22:14:102010-04-21 22:16:18 00:02:08 655 88.43 655 96.21 0.00 -
94AV2OBS2010-04-21 22:18:522010-04-21 22:25:52 00:07:00 655 105.57 655 131.10 0.00 -
95PSMOB12010-04-21 22:23:052010-04-21 22:25:41 00:02:36 655 120.95 655 130.43 1.20 -
96PSMOB12010-04-21 22:30:122010-04-21 22:32:48 00:02:36 655 146.96 655 156.45 1.20 -
97AV2OBS2010-04-21 22:30:582010-04-21 22:32:50 00:01:52 655 149.76 655 156.57 0.00 -
98AV2OBS2010-04-21 22:38:592010-04-21 22:41:07 00:02:08 655 178.93 655 186.71 0.00 -
99PSRWB12010-04-21 22:42:352010-04-21 22:46:13 00:03:38 655 192.06 655 205.31 27.10 80
100PSRFBS2010-04-21 23:28:122010-04-21 23:37:36 00:09:24 655 358.41 30 32.70 34.30 7
101PSRFBS2010-04-21 23:47:512010-04-21 23:53:41 00:05:50 30 70.08 30 91.35 34.30 7
102AV2OBS2010-04-21 23:57:552010-04-21 23:59:47 00:01:52 30 106.79 30 113.60 0.00 -

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
11 -5.658642010-04-20 22:47:50162.001572010-04-20 23:37:12
57-30.338222010-04-21 00:26:33137.321992010-04-21 01:15:55
103-55.017802010-04-21 02:05:17112.642402010-04-21 02:54:38
149-79.697392010-04-21 03:44:00 87.962822010-04-21 04:33:21
195-104.376972010-04-21 05:22:43 63.283242010-04-21 06:12:04
241-129.056552010-04-21 07:01:26 38.603662010-04-21 07:50:47
287-153.736142010-04-21 08:40:09 13.924072010-04-21 09:29:31
333-178.415722010-04-21 10:18:52-10.755512010-04-21 11:08:14
379156.904702010-04-21 11:57:35-35.435092010-04-21 12:46:57
425132.225122010-04-21 13:36:18-60.114682010-04-21 14:25:40
471107.545532010-04-21 15:15:01-84.794262010-04-21 16:04:23
517 82.865952010-04-21 16:53:44-109.473842010-04-21 17:43:06
563 58.186372010-04-21 18:32:28-134.153422010-04-21 19:21:49
609 33.506792010-04-21 20:11:11-158.833012010-04-21 21:00:32
655 8.827202010-04-21 21:49:54176.487412010-04-21 22:39:15
30-15.852382010-04-21 23:28:37151.807832010-04-22 00:17:58
