>ALOS Data Take Simulation(Apr. 11, 2010)

Observation Area

PRISM

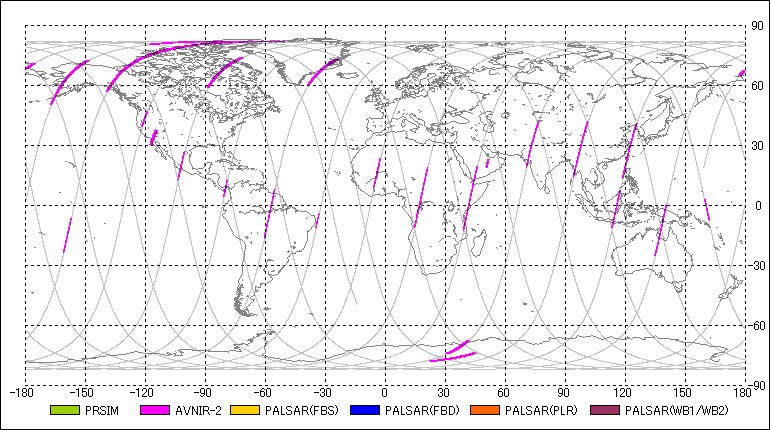

AVNIR-2

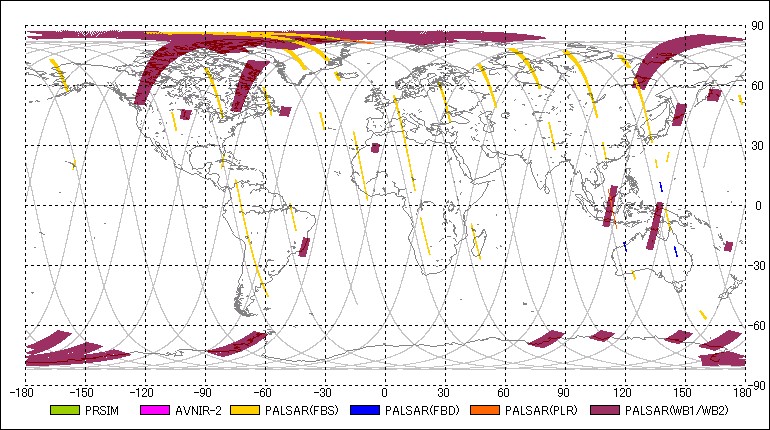

PALSAR

Observation Plan

No.SensorModeStart DateEnd Date Obs. Time Start Path Start Arg. Lat. End Path End Arg. Lat. Angle Tbable
1PSRFBS2010-04-11 00:23:312010-04-11 00:26:31 00:03:00 51 35.80 51 46.74 34.30 7
2PSRFBS2010-04-11 00:31:542010-04-11 00:38:32 00:06:38 51 66.37 51 90.56 34.30 7
3PSRWB12010-04-11 00:48:452010-04-11 00:52:21 00:03:36 51 127.82 51 140.95 27.10 80
4PSRFBS2010-04-11 00:55:272010-04-11 00:57:19 00:01:52 51 152.25 51 159.06 34.30 7
5PSRWB12010-04-11 01:02:222010-04-11 01:09:26 00:07:04 51 177.47 51 203.24 27.10 80
6PSMOB22010-04-11 01:02:552010-04-11 01:14:03 00:11:08 51 179.48 51 220.08 0.00 -
7AV2OBS2010-04-11 01:02:562010-04-11 01:10:00 00:07:04 51 179.54 51 205.31 0.00 -
8PSRWB12010-04-11 01:20:352010-04-11 01:22:31 00:01:56 51 243.91 51 250.96 27.10 80
9PSRFBS2010-04-11 01:48:222010-04-11 01:52:42 00:04:20 51 345.22 97 1.03 34.30 7
10PSRFBS2010-04-11 02:04:162010-04-11 02:08:44 00:04:28 97 43.21 97 59.50 34.30 7
11PSRWB12010-04-11 02:13:072010-04-11 02:25:55 00:12:48 97 75.49 97 122.17 27.10 80
12PSMOB22010-04-11 02:26:282010-04-11 02:28:44 00:02:16 97 124.17 97 132.44 0.00 -
13AV2OBS2010-04-11 02:30:242010-04-11 02:38:08 00:07:44 97 138.52 97 166.72 0.00 -
14PSRWB12010-04-11 02:38:472010-04-11 02:44:59 00:06:12 97 169.09 97 191.70 27.10 80
15AV2OBS2010-04-11 02:39:412010-04-11 02:44:49 00:05:08 97 172.37 97 191.09 0.00 -
16PSMOB22010-04-11 02:40:112010-04-11 02:45:35 00:05:24 97 174.19 97 193.88 0.00 -
17PSRWB12010-04-11 02:59:182010-04-11 03:02:16 00:02:58 97 243.91 97 254.72 27.10 80
18PSRFBS2010-04-11 03:17:462010-04-11 03:34:42 00:16:56 97 311.25 143 13.01 34.30 7
19PSRFBS2010-04-11 03:42:362010-04-11 03:50:06 00:07:30 143 41.82 143 69.17 34.30 7
20PSMOB22010-04-11 04:06:442010-04-11 04:19:36 00:12:52 143 129.76 143 176.68 0.00 -
21AV2OBS2010-04-11 04:08:592010-04-11 04:16:39 00:07:40 143 137.97 143 165.93 0.00 -
22AV2OBS2010-04-11 04:41:492010-04-11 04:43:41 00:01:52 143 257.76 143 264.57 -21.50 -
23PSRFBS2010-04-11 05:19:312010-04-11 05:22:43 00:03:12 189 35.19 189 46.86 34.30 7
24PSMOB12010-04-11 05:44:102010-04-11 05:54:54 00:10:44 189 125.08 189 164.22 1.20 -
25AV2OBS2010-04-11 05:47:412010-04-11 05:54:01 00:06:20 189 137.91 189 161.00 0.00 -
26PSMOB12010-04-11 06:17:322010-04-11 06:20:08 00:02:36 189 246.76 189 256.24 1.20 -
27AV2OBS2010-04-11 06:18:082010-04-11 06:20:10 00:02:02 189 248.95 189 256.37 0.00 -
28PSMOB12010-04-11 07:20:132010-04-11 07:41:55 00:21:42 235 115.36 235 194.49 1.20 -
29AV2OBS2010-04-11 07:31:272010-04-11 07:41:21 00:09:54 235 156.32 235 192.43 34.30 -
30PSRFBS2010-04-11 08:42:222010-04-11 08:47:32 00:05:10 281 54.94 281 73.79 34.30 7
31PSMOB12010-04-11 08:58:442010-04-11 09:20:34 00:21:50 281 114.63 281 194.25 1.20 -
32AV2OBS2010-04-11 09:11:282010-04-11 09:19:44 00:08:16 281 161.13 281 191.27 0.00 -
33PSRFBS2010-04-11 10:19:192010-04-11 10:21:11 00:01:52 327 48.50 327 55.31 34.30 7
34PSMOB12010-04-11 10:42:352010-04-11 10:45:11 00:02:36 327 133.35 327 142.83 1.20 -
35PSRWB12010-04-11 10:46:312010-04-11 10:48:23 00:01:52 327 147.69 327 154.50 27.10 80
36AV2OBS2010-04-11 10:48:572010-04-11 10:53:07 00:04:10 327 156.57 327 171.76 0.00 -
37PSMOB12010-04-11 10:49:262010-04-11 10:55:18 00:05:52 327 158.33 327 179.72 1.20 -
38AV2OBS2010-04-11 11:42:492010-04-11 11:45:33 00:02:44 327 353.00 373 2.98 0.00 -
39PSMOB12010-04-11 12:24:102010-04-11 12:26:42 00:02:32 373 143.80 373 153.04 0.00 -
40AV2OBS2010-04-11 12:35:162010-04-11 12:37:08 00:01:52 373 184.28 373 191.09 0.00 -
41PSRWB12010-04-11 12:38:192010-04-11 12:41:25 00:03:06 373 195.40 373 206.71 27.10 80
42PSRWB12010-04-11 12:51:502010-04-11 12:56:04 00:04:14 373 244.70 373 260.13 27.10 80
43PSRFBS2010-04-11 13:06:492010-04-11 13:08:41 00:01:52 373 299.34 373 306.14 34.30 7
44PSRFBD2010-04-11 13:15:462010-04-11 13:17:48 00:02:02 373 331.97 373 339.39 34.30 43
45PSRFBS2010-04-11 13:19:262010-04-11 13:23:12 00:03:46 373 345.35 373 359.08 34.30 7
46PSRFBD2010-04-11 13:24:462010-04-11 13:26:38 00:01:52 419 4.80 419 11.61 34.30 43
47PSRFBS2010-04-11 13:28:002010-04-11 13:29:52 00:01:52 419 16.59 419 23.40 34.30 7
48PSRFBS2010-04-11 13:31:272010-04-11 13:40:51 00:09:24 419 29.17 419 63.45 34.30 7
49PSRFBS2010-04-11 13:41:582010-04-11 13:44:20 00:02:22 419 67.53 419 76.16 34.30 7
50AV2OBS2010-04-11 13:52:172010-04-11 13:56:07 00:03:50 419 105.15 419 119.13 0.00 -
51PSRWB12010-04-11 13:58:532010-04-11 14:00:45 00:01:52 419 129.28 419 136.08 27.10 80
52PSMOB12010-04-11 14:09:532010-04-11 14:29:15 00:19:22 419 169.33 419 239.96 1.20 -
53AV2OBS2010-04-11 14:10:392010-04-11 14:17:19 00:06:40 419 172.13 419 196.44 0.00 -
54PSRFBS2010-04-11 14:51:192010-04-11 14:53:11 00:01:52 419 320.43 419 327.23 34.30 7
55PSRFBD2010-04-11 14:55:122010-04-11 14:57:04 00:01:52 419 334.59 419 341.40 34.30 43
56PSRPLR2010-04-11 14:58:232010-04-11 15:04:25 00:06:02 419 346.20 465 8.21 21.50 127
57PSRFBS2010-04-11 15:07:522010-04-11 15:10:56 00:03:04 465 20.79 465 31.97 34.30 7
58PSRFBS2010-04-11 15:13:442010-04-11 15:23:38 00:09:54 465 42.18 465 78.28 34.30 7
59PSRWB12010-04-11 15:24:472010-04-11 15:29:54 00:05:07 465 82.48 465 101.14 27.10 80
60PSRWB12010-04-11 15:31:082010-04-11 15:38:50 00:07:42 465 105.63 465 133.71 27.10 80
61PSRFBS2010-04-11 15:44:082010-04-11 15:46:46 00:02:38 465 153.04 465 162.64 34.30 7
62PSMOB12010-04-11 15:47:232010-04-11 15:50:43 00:03:20 465 164.89 465 177.05 1.20 -
63AV2OBS2010-04-11 15:48:062010-04-11 15:50:22 00:02:16 465 167.51 465 175.77 0.00 -
64PSRWB12010-04-11 16:12:312010-04-11 16:16:55 00:04:24 465 256.55 465 272.59 27.10 80
65PSRFBS2010-04-11 16:48:012010-04-11 16:52:25 00:04:24 511 26.01 511 42.06 34.30 7
66PSRFBS2010-04-11 16:56:272010-04-11 17:02:43 00:06:16 511 56.71 511 79.56 34.30 7
67PSRWB12010-04-11 17:04:412010-04-11 17:08:07 00:03:26 511 86.79 511 99.31 27.10 80
68AV2OBS2010-04-11 17:09:242010-04-11 17:13:54 00:04:30 511 103.99 511 120.40 0.00 -
69PSRWB12010-04-11 17:16:462010-04-11 17:18:38 00:01:52 511 130.86 511 137.66 27.10 80
70AV2OBS2010-04-11 17:22:522010-04-11 17:26:44 00:03:52 511 153.10 511 167.20 0.00 -
71PSMOB12010-04-11 17:24:062010-04-11 17:26:42 00:02:36 511 157.60 511 167.08 1.20 -
72PSRWB12010-04-11 17:49:462010-04-11 17:55:04 00:05:18 511 251.20 511 270.53 27.10 80
73PSRFBS2010-04-11 18:32:262010-04-11 18:39:12 00:06:46 557 46.80 557 71.48 34.30 7
74PSRWB12010-04-11 18:41:432010-04-11 18:55:19 00:13:36 557 80.65 557 130.25 27.10 80
75PSMOB12010-04-11 18:51:002010-04-11 18:59:56 00:08:56 557 114.51 557 147.09 1.20 -
76AV2OBS2010-04-11 18:56:002010-04-11 19:00:08 00:04:08 557 132.74 557 147.81 0.00 -
77PSRWB12010-04-11 19:26:292010-04-11 19:32:17 00:05:48 557 243.91 557 265.06 27.10 80
78PSRFBS2010-04-11 19:50:142010-04-11 19:55:50 00:05:36 557 330.52 557 350.94 34.30 7
79PSRFBS2010-04-11 20:09:092010-04-11 20:15:17 00:06:08 603 39.51 603 61.87 34.30 7
80PSRPLR2010-04-11 20:20:312010-04-11 20:22:41 00:02:10 603 80.96 603 88.86 21.50 127
81AV2OBS2010-04-11 20:22:402010-04-11 20:31:50 00:09:10 603 88.80 603 122.23 0.00 -
82PSRFBS2010-04-11 20:41:062010-04-11 20:43:06 00:02:00 603 156.02 603 163.31 34.30 7
83AV2OBS2010-04-11 20:49:312010-04-11 20:54:11 00:04:40 603 186.71 603 203.73 0.00 -
84PSMOB22010-04-11 20:49:312010-04-11 20:54:47 00:05:16 603 186.71 603 205.92 0.00 -
85PSRWB12010-04-11 21:05:122010-04-11 21:08:34 00:03:22 603 243.91 603 256.18 27.10 80
86PSRFBS2010-04-11 21:29:342010-04-11 21:35:26 00:05:52 603 332.76 603 354.16 34.30 7
87PSRFBS2010-04-11 21:38:282010-04-11 21:52:12 00:13:44 649 5.23 649 55.31 34.30 7
88PSRFBS2010-04-11 21:59:362010-04-11 22:02:24 00:02:48 649 82.29 649 92.51 34.30 7
89AV2OBS2010-04-11 22:01:172010-04-11 22:03:09 00:01:52 649 88.43 649 95.24 0.00 -
90AV2OBS2010-04-11 22:06:012010-04-11 22:12:25 00:06:24 649 105.63 649 128.97 0.00 -
91PSRWB12010-04-11 22:31:072010-04-11 22:32:59 00:01:52 649 197.23 649 204.04 27.10 80
92PSRWB12010-04-11 22:43:552010-04-11 22:46:11 00:02:16 649 243.91 649 252.17 27.10 80
93PSRFBS2010-04-11 23:15:522010-04-11 23:26:02 00:10:10 24 0.43 24 37.50 34.30 7
94PSRFBS2010-04-11 23:32:222010-04-11 23:34:14 00:01:52 24 60.60 24 67.40 34.30 7
95PSRFBS2010-04-11 23:35:102010-04-11 23:40:50 00:05:40 24 70.81 24 91.47 34.30 7
96AV2OBS2010-04-11 23:45:132010-04-11 23:47:05 00:01:52 24 107.40 24 114.20 0.00 -
97PSRWB12010-04-11 23:48:472010-04-11 23:50:57 00:02:10 24 120.46 24 128.37 27.10 80

Node information(Nominal Time)

PathAscending NodeDescending Node
LongitudeTime(UTC)LongitudeTime(UTC)
5 -2.439562010-04-10 22:34:58165.220652010-04-10 23:24:19
51-27.119152010-04-11 00:13:41140.541062010-04-11 01:03:02
97-51.798732010-04-11 01:52:24115.861482010-04-11 02:41:46
143-76.478312010-04-11 03:31:07 91.181902010-04-11 04:20:29
189-101.157892010-04-11 05:09:50 66.502312010-04-11 05:59:12
235-125.837482010-04-11 06:48:33 41.822732010-04-11 07:37:55
281-150.517062010-04-11 08:27:16 17.143152010-04-11 09:16:38
327-175.196642010-04-11 10:06:00 -7.536432010-04-11 10:55:21
373160.123772010-04-11 11:44:43-32.216022010-04-11 12:34:04
419135.444192010-04-11 13:23:26-56.895602010-04-11 14:12:47
465110.764612010-04-11 15:02:09-81.575182010-04-11 15:51:30
511 86.085032010-04-11 16:40:52-106.254762010-04-11 17:30:13
557 61.405442010-04-11 18:19:35-130.934352010-04-11 19:08:57
603 36.725862010-04-11 19:58:18-155.613932010-04-11 20:47:40
649 12.046282010-04-11 21:37:01179.706492010-04-11 22:26:23
24-12.633302010-04-11 23:15:44155.026902010-04-12 00:05:06
