>ALOS Data Take Simulation(Apr. 04, 2010)

Observation Area

PRISM

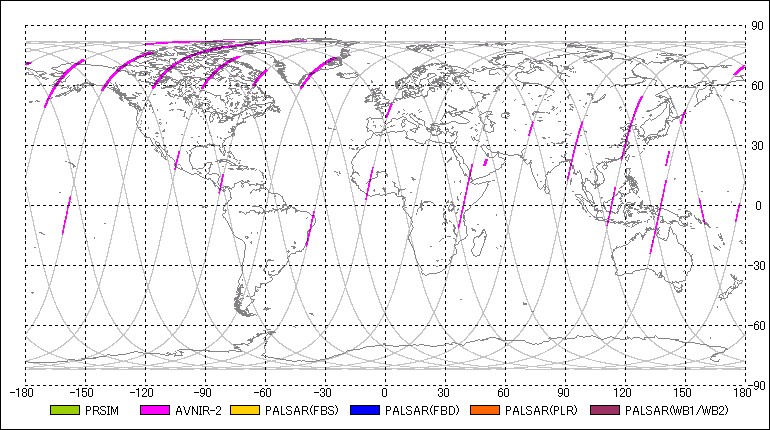

AVNIR-2

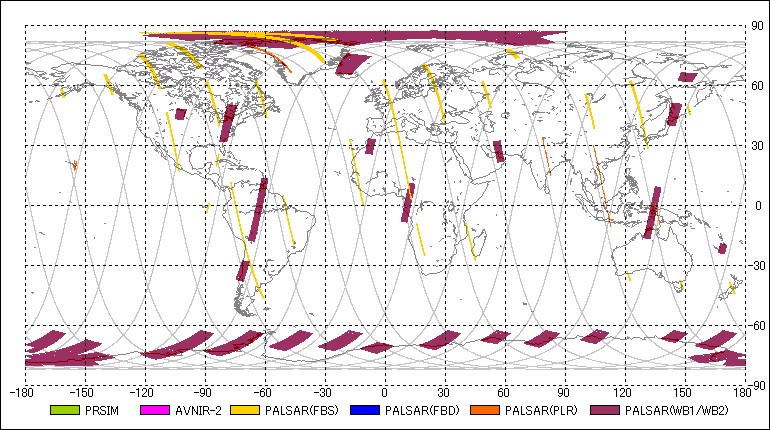

PALSAR

Observation Plan

No.	Sensor	Mode	Start Date	End Date	Obs. Time	Start Path	Start Arg. Lat.	End Path	End Arg. Lat.	Angle	Tbable
1	PSR	PLR	2010-04-04 00:42:16	2010-04-04 00:47:18	00:05:02	56	65.03	56	83.39	21.50	127
2	PSR	WB1	2010-04-04 00:55:07	2010-04-04 00:56:57	00:01:50	56	111.89	56	118.58	27.10	80
3	PSR	WB1	2010-04-04 00:59:26	2010-04-04 01:03:04	00:03:38	56	127.64	56	140.89	27.10	80
4	AV2	OBS	2010-04-04 01:00:40	2010-04-04 01:02:32	00:01:52	56	132.13	56	138.94	0.00	-
5	AV2	OBS	2010-04-04 01:06:29	2010-04-04 01:08:21	00:01:52	56	153.35	56	160.15	-14.00	-
6	AV2	OBS	2010-04-04 01:10:23	2010-04-04 01:20:25	00:10:02	56	167.57	56	204.16	0.00	-
7	PSR	WB1	2010-04-04 01:10:56	2010-04-04 01:18:40	00:07:44	56	169.57	56	197.77	27.10	80
8	PSM	OB2	2010-04-04 01:13:33	2010-04-04 01:21:25	00:07:52	56	179.18	56	207.86	0.00	-
9	PSR	WB1	2010-04-04 01:31:18	2010-04-04 01:33:36	00:02:18	56	243.85	56	252.23	27.10	80
10	PSR	FBS	2010-04-04 01:57:04	2010-04-04 02:04:38	00:07:34	56	337.81	102	5.41	34.30	7
11	PSR	FBS	2010-04-04 02:14:40	2010-04-04 02:20:22	00:05:42	102	42.00	102	62.78	34.30	7
12	AV2	OBS	2010-04-04 02:37:25	2010-04-04 02:46:17	00:08:52	102	124.96	102	157.30	0.00	-
13	PSM	OB2	2010-04-04 02:37:28	2010-04-04 02:47:04	00:09:36	102	125.14	102	160.15	0.00	-
14	AV2	OBS	2010-04-04 02:50:02	2010-04-04 02:55:20	00:05:18	102	170.97	102	190.30	0.00	-
15	PSM	OB2	2010-04-04 02:50:05	2010-04-04 02:56:15	00:06:10	102	171.15	102	193.64	0.00	-
16	PSR	WB1	2010-04-04 03:10:02	2010-04-04 03:12:54	00:02:52	102	243.91	102	254.36	27.10	80
17	PSR	FBS	2010-04-04 03:28:13	2010-04-04 03:45:05	00:16:52	102	310.22	148	11.73	34.30	7
18	PSR	FBS	2010-04-04 03:52:12	2010-04-04 03:59:02	00:06:50	148	37.68	148	62.60	34.30	7
19	PSR	FBS	2010-04-04 04:00:14	2010-04-04 04:04:32	00:04:18	148	66.98	148	82.66	34.30	7
20	PSM	OB2	2010-04-04 04:16:54	2010-04-04 04:27:32	00:10:38	148	127.76	148	166.53	0.00	-
21	AV2	OBS	2010-04-04 04:19:41	2010-04-04 04:27:49	00:08:08	148	137.91	148	167.57	0.00	-
22	PSR	WB1	2010-04-04 04:48:45	2010-04-04 04:51:05	00:02:20	148	243.91	148	252.42	27.10	80
23	PSR	FBS	2010-04-04 05:24:36	2010-04-04 05:33:28	00:08:52	194	14.65	194	46.98	34.30	7
24	PSR	FBS	2010-04-04 05:36:09	2010-04-04 05:41:35	00:05:26	194	56.77	194	76.58	34.30	7
25	PSM	OB1	2010-04-04 05:54:51	2010-04-04 06:03:47	00:08:56	194	124.96	194	157.54	1.20	-
26	AV2	OBS	2010-04-04 05:58:25	2010-04-04 06:00:19	00:01:54	194	137.97	194	144.90	0.00	-
27	PSM	OB1	2010-04-04 06:21:34	2010-04-04 06:24:10	00:02:36	194	222.39	194	231.87	1.20	-
28	PSR	WB1	2010-04-04 06:27:28	2010-04-04 06:30:44	00:03:16	194	243.91	194	255.82	27.10	80
29	PSR	FBS	2010-04-04 07:14:03	2010-04-04 07:17:31	00:03:28	240	53.79	240	66.43	34.30	7
30	PSM	OB1	2010-04-04 07:30:44	2010-04-04 07:52:36	00:21:52	240	114.63	240	194.37	1.20	-
31	AV2	OBS	2010-04-04 07:42:04	2010-04-04 07:51:46	00:09:42	240	155.90	240	191.27	41.50	-
32	PSR	WB1	2010-04-04 08:08:11	2010-04-04 08:10:03	00:01:52	240	251.20	240	258.01	27.10	80
33	PSR	PLR	2010-04-04 08:42:25	2010-04-04 08:44:17	00:01:52	286	16.05	286	22.85	21.50	127
34	PSR	FBS	2010-04-04 08:52:17	2010-04-04 08:54:09	00:01:52	286	51.97	286	58.77	34.30	7
35	PSM	OB1	2010-04-04 09:09:28	2010-04-04 09:13:00	00:03:32	286	114.63	286	127.51	1.20	-
36	PSM	OB1	2010-04-04 09:21:26	2010-04-04 09:31:04	00:09:38	286	158.33	286	193.46	1.20	-
37	PSR	WB1	2010-04-04 09:24:02	2010-04-04 09:29:58	00:05:56	286	167.81	286	189.45	27.10	80
38	PSR	WB1	2010-04-04 09:44:54	2010-04-04 09:48:20	00:03:26	286	243.91	286	256.43	27.10	80
39	PSM	OB1	2010-04-04 10:51:20	2010-04-04 10:53:56	00:02:36	332	126.18	332	135.66	1.20	-
40	AV2	OBS	2010-04-04 10:52:03	2010-04-04 10:53:55	00:01:52	332	128.79	332	135.60	0.00	-
41	PSR	WB1	2010-04-04 10:56:38	2010-04-04 10:59:19	00:02:41	332	145.44	332	155.23	27.10	80
42	PSM	OB1	2010-04-04 11:00:09	2010-04-04 11:06:03	00:05:54	332	158.33	332	179.85	1.20	-
43	AV2	OBS	2010-04-04 11:00:55	2010-04-04 11:05:17	00:04:22	332	161.13	332	177.05	0.00	-
44	PSR	WB1	2010-04-04 11:23:37	2010-04-04 11:27:03	00:03:26	332	243.91	332	256.43	27.10	80
45	PSR	FBS	2010-04-04 11:42:31	2010-04-04 11:44:47	00:02:16	332	312.83	332	321.10	34.30	7
46	AV2	OBS	2010-04-04 11:53:03	2010-04-04 11:56:27	00:03:24	332	351.18	378	3.59	0.00	-
47	PSR	FBS	2010-04-04 12:07:22	2010-04-04 12:09:14	00:01:52	378	43.40	378	50.20	34.30	7
48	PSR	WB1	2010-04-04 12:19:14	2010-04-04 12:21:16	00:02:02	378	86.73	378	94.15	27.10	80
49	PSR	WB1	2010-04-04 12:23:34	2010-04-04 12:26:56	00:03:22	378	102.47	378	114.75	27.10	80
50	PSM	OB1	2010-04-04 12:34:27	2010-04-04 12:37:17	00:02:50	378	142.16	378	152.49	0.00	-
51	PSM	OB1	2010-04-04 12:44:54	2010-04-04 12:50:48	00:05:54	378	180.27	378	201.79	1.20	-
52	AV2	OBS	2010-04-04 12:45:41	2010-04-04 12:50:27	00:04:46	378	183.13	378	200.51	0.00	-
53	PSR	WB1	2010-04-04 13:02:23	2010-04-04 13:06:43	00:04:20	378	244.09	378	259.89	27.10	80
54	PSR	FBS	2010-04-04 13:21:57	2010-04-04 13:23:49	00:01:52	378	315.38	378	322.19	34.30	7
55	PSR	PLR	2010-04-04 13:30:43	2010-04-04 13:34:39	00:03:56	378	347.35	424	1.70	21.50	127
56	PSR	FBS	2010-04-04 13:41:28	2010-04-04 13:51:24	00:09:56	424	26.56	424	62.78	34.30	7
57	PSR	WB1	2010-04-04 13:57:54	2010-04-04 14:01:13	00:03:19	424	86.55	424	98.64	27.10	80
58	PSM	OB1	2010-04-04 14:01:59	2010-04-04 14:08:03	00:06:04	424	101.44	424	123.56	0.00	-
59	AV2	OBS	2010-04-04 14:02:42	2010-04-04 14:07:20	00:04:38	424	104.05	424	120.95	0.00	-
60	PSR	WB1	2010-04-04 14:19:29	2010-04-04 14:28:43	00:09:14	424	165.26	424	198.93	27.10	80
61	PSM	OB1	2010-04-04 14:20:19	2010-04-04 14:39:35	00:19:16	424	168.24	424	238.50	1.20	-
62	PSR	WB1	2010-04-04 14:30:53	2010-04-04 14:34:15	00:03:22	424	206.83	424	219.11	27.10	80
63	PSR	WB1	2010-04-04 14:41:03	2010-04-04 14:46:03	00:05:00	424	243.91	424	262.14	27.10	80
64	PSR	WB1	2010-04-04 14:47:09	2010-04-04 14:49:01	00:01:52	424	266.15	424	272.96	27.10	80
65	PSR	FBS	2010-04-04 15:01:51	2010-04-04 15:03:43	00:01:52	424	319.76	424	326.57	34.30	7
66	PSR	PLR	2010-04-04 15:09:12	2010-04-04 15:21:12	00:12:00	424	346.56	470	30.33	21.50	127
67	PSR	FBS	2010-04-04 15:22:55	2010-04-04 15:28:19	00:05:24	470	36.59	470	56.28	34.30	7
68	PSR	WB1	2010-04-04 15:34:51	2010-04-04 15:40:33	00:05:42	470	80.05	470	100.83	27.10	80
69	AV2	OBS	2010-04-04 15:43:20	2010-04-04 15:45:34	00:02:14	470	110.98	470	119.13	0.00	-
70	PSR	WB1	2010-04-04 15:48:04	2010-04-04 15:53:47	00:05:43	470	128.24	470	149.09	27.10	80
71	PSR	FBS	2010-04-04 15:54:51	2010-04-04 15:57:11	00:02:20	470	153.04	470	161.55	34.30	7
72	AV2	OBS	2010-04-04 15:57:57	2010-04-04 16:00:35	00:02:38	470	164.29	470	173.89	0.00	-
73	PSR	FBS	2010-04-04 16:01:39	2010-04-04 16:03:31	00:01:52	470	177.84	470	184.65	34.30	7
74	PSR	WB1	2010-04-04 16:23:47	2010-04-04 16:27:39	00:03:52	470	258.49	470	272.59	27.10	80
75	PSR	PLR	2010-04-04 16:55:15	2010-04-04 17:00:57	00:05:42	516	13.25	516	34.04	21.50	127
76	PSR	FBS	2010-04-04 17:11:27	2010-04-04 17:13:19	00:01:52	516	72.33	516	79.13	34.30	7
77	PSR	WB1	2010-04-04 17:15:24	2010-04-04 17:18:50	00:03:26	516	86.73	516	99.25	27.10	80
78	AV2	OBS	2010-04-04 17:19:59	2010-04-04 17:24:49	00:04:50	516	103.45	516	121.07	0.00	-
79	PSR	WB1	2010-04-04 17:27:23	2010-04-04 17:29:23	00:02:00	516	130.43	516	137.73	27.10	80
80	PSM	OB1	2010-04-04 17:30:45	2010-04-04 17:33:21	00:02:36	516	142.77	516	152.25	1.20	-
81	AV2	OBS	2010-04-04 17:33:36	2010-04-04 17:36:04	00:02:28	516	153.10	516	162.10	0.00	-
82	PSR	WB1	2010-04-04 18:00:06	2010-04-04 18:04:42	00:04:36	516	249.74	516	266.52	27.10	80
83	PSR	WB1	2010-04-04 18:35:44	2010-04-04 18:39:14	00:03:30	562	19.69	562	32.46	27.10	80
84	PSR	FBS	2010-04-04 18:43:10	2010-04-04 18:47:26	00:04:16	562	46.80	562	62.36	34.30	7
85	AV2	OBS	2010-04-04 18:55:05	2010-04-04 19:03:27	00:08:22	562	90.26	562	120.77	0.00	-
86	PSM	OB1	2010-04-04 19:01:45	2010-04-04 19:10:01	00:08:16	562	114.57	562	144.71	1.20	-
87	PSR	WB1	2010-04-04 19:37:13	2010-04-04 19:43:11	00:05:58	562	243.91	562	265.66	27.10	80
88	PSR	FBS	2010-04-04 20:00:48	2010-04-04 20:06:38	00:05:50	562	329.91	562	351.18	34.30	7
89	PSR	FBS	2010-04-04 20:19:37	2010-04-04 20:28:39	00:09:02	608	38.53	608	71.48	34.30	7
90	PSR	WB1	2010-04-04 20:32:21	2010-04-04 20:35:09	00:02:48	608	84.97	608	95.18	27.10	80
91	AV2	OBS	2010-04-04 20:36:46	2010-04-04 20:42:26	00:05:40	608	101.01	608	121.68	0.00	-
92	PSR	PLR	2010-04-04 20:51:57	2010-04-04 20:53:49	00:01:52	608	156.45	608	163.25	9.70	120
93	AV2	OBS	2010-04-04 20:57:15	2010-04-04 21:02:25	00:05:10	608	175.71	608	194.55	0.00	-
94	PSM	OB2	2010-04-04 21:00:32	2010-04-04 21:02:42	00:02:10	608	187.69	608	195.59	0.00	-
95	PSR	WB1	2010-04-04 21:15:56	2010-04-04 21:19:12	00:03:16	608	243.91	608	255.82	27.10	80
96	PSR	FBS	2010-04-04 21:40:12	2010-04-04 21:45:22	00:05:10	608	332.40	608	351.24	34.30	7
97	PSR	FBS	2010-04-04 21:47:57	2010-04-04 22:05:09	00:17:12	654	0.67	654	63.39	34.30	7
98	PSR	FBS	2010-04-04 22:10:14	2010-04-04 22:13:02	00:02:48	654	81.93	654	92.14	34.30	7
99	AV2	OBS	2010-04-04 22:12:01	2010-04-04 22:13:53	00:01:52	654	88.43	654	95.24	0.00	-
100	AV2	OBS	2010-04-04 22:16:40	2010-04-04 22:23:38	00:06:58	654	105.39	654	130.80	0.00	-
101	PSM	OB1	2010-04-04 22:20:58	2010-04-04 22:23:34	00:02:36	654	121.01	654	130.49	1.20	-
102	AV2	OBS	2010-04-04 22:36:50	2010-04-04 22:39:24	00:02:34	654	178.93	654	188.29	0.00	-
103	PSM	OB2	2010-04-04 22:36:50	2010-04-04 22:40:10	00:03:20	654	178.93	654	191.09	0.00	-
104	PSR	WB1	2010-04-04 22:42:11	2010-04-04 22:44:03	00:01:52	654	198.44	654	205.25	27.10	80
105	PSR	WB1	2010-04-04 22:54:39	2010-04-04 22:56:45	00:02:06	654	243.91	654	251.56	27.10	80
106	PSR	FBS	2010-04-04 23:25:57	2010-04-04 23:35:37	00:09:40	654	358.05	29	33.31	34.30	7
107	PSR	FBS	2010-04-04 23:45:43	2010-04-04 23:51:33	00:05:50	29	70.14	29	91.41	34.30	7
108	AV2	OBS	2010-04-04 23:55:47	2010-04-04 23:57:39	00:01:52	29	106.79	29	113.60	0.00	-

Node information(Nominal Time)

Path	Ascending Node		Descending Node
Path	Longitude	Time(UTC)	Longitude	Time(UTC)
10	-5.12213	2010-04-03 22:45:42	162.53808	2010-04-03 23:35:03
56	-29.80171	2010-04-04 00:24:25	137.85850	2010-04-04 01:13:46
102	-54.48129	2010-04-04 02:03:08	113.17892	2010-04-04 02:52:29
148	-79.16087	2010-04-04 03:41:51	88.49933	2010-04-04 04:31:12
194	-103.84046	2010-04-04 05:20:34	63.81975	2010-04-04 06:09:56
240	-128.52004	2010-04-04 06:59:17	39.14017	2010-04-04 07:48:39
286	-153.19962	2010-04-04 08:38:00	14.46059	2010-04-04 09:27:22
332	-177.87921	2010-04-04 10:16:43	-10.21900	2010-04-04 11:06:05
378	157.44121	2010-04-04 11:55:26	-34.89858	2010-04-04 12:44:48
424	132.76163	2010-04-04 13:34:10	-59.57816	2010-04-04 14:23:31
470	108.08205	2010-04-04 15:12:53	-84.25775	2010-04-04 16:02:14
516	83.40246	2010-04-04 16:51:36	-108.93733	2010-04-04 17:40:57
562	58.72288	2010-04-04 18:30:19	-133.61691	2010-04-04 19:19:40
608	34.04330	2010-04-04 20:09:02	-158.29649	2010-04-04 20:58:23
654	9.36372	2010-04-04 21:47:45	177.02392	2010-04-04 22:37:07
29	-15.31587	2010-04-04 23:26:28	152.34434	2010-04-05 00:15:50
